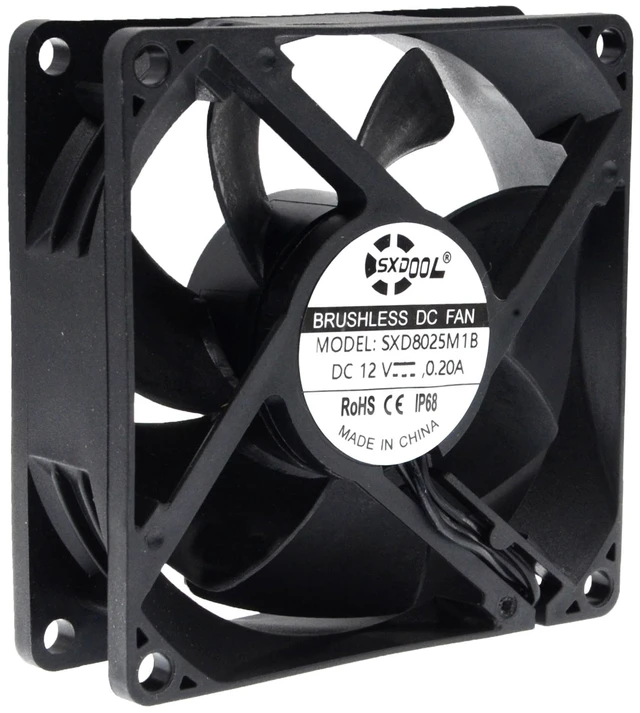

IP68 cooling for compact equipment
SXD8025M1B | 80 x 80 x 25 mm | 12V DC
Waterproof and dustproof industrial axial cooling in a compact 80 mm frame. Dual ball bearings and model-specific performance data help you select the fan for your equipment.
See the frame, label and connection

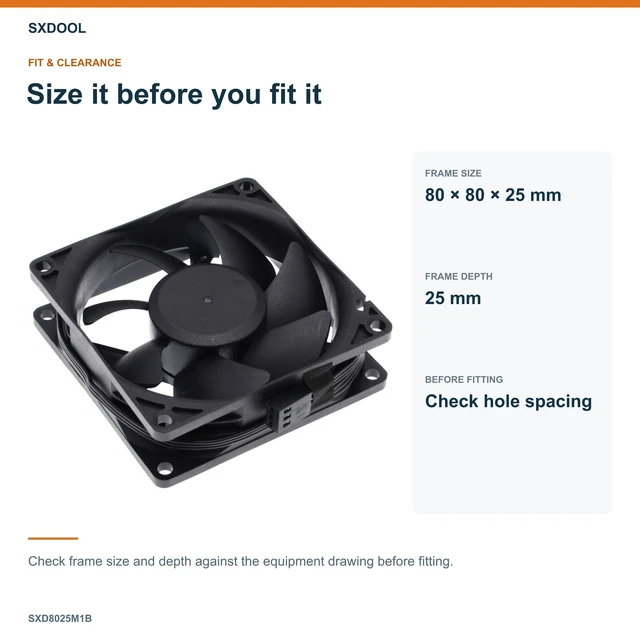

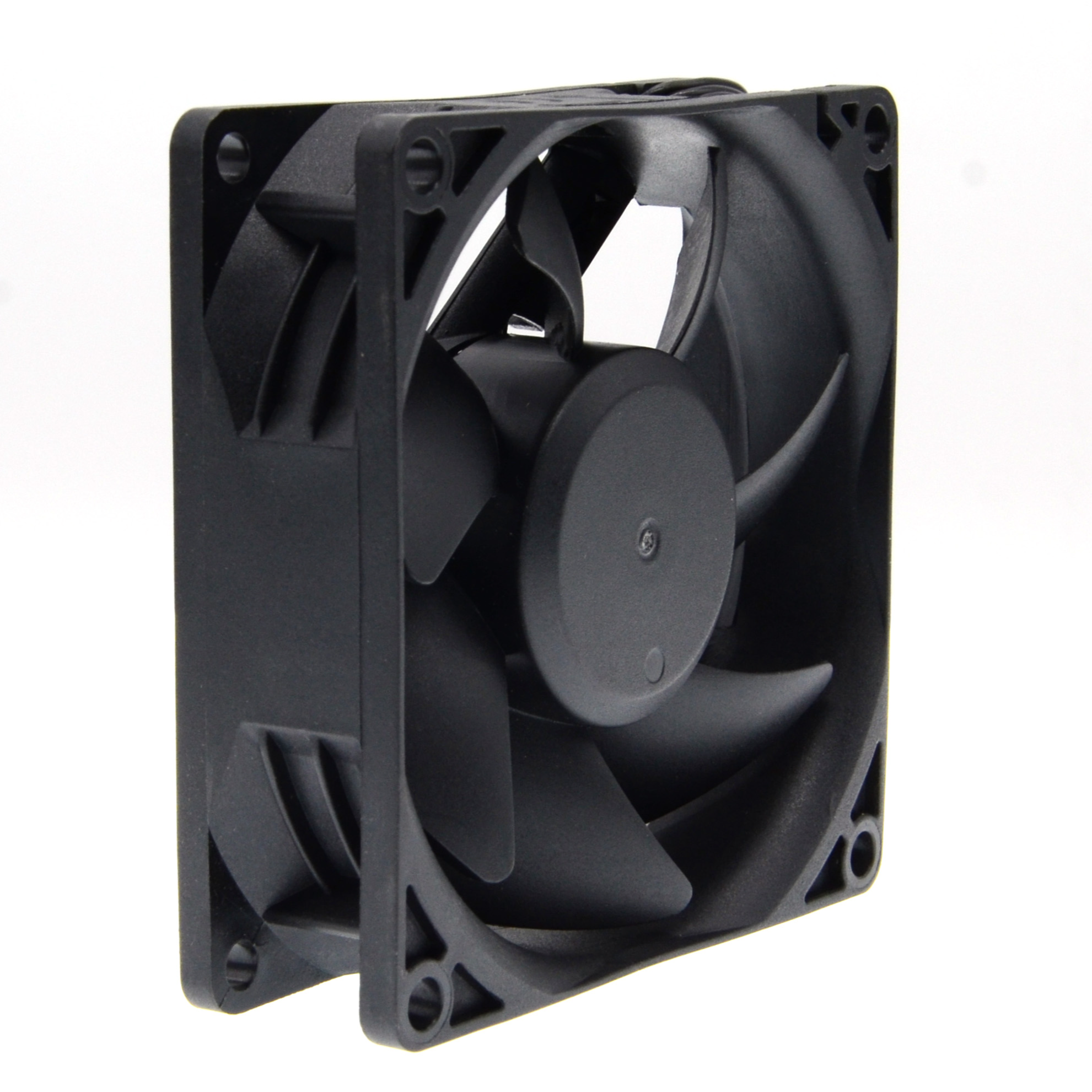

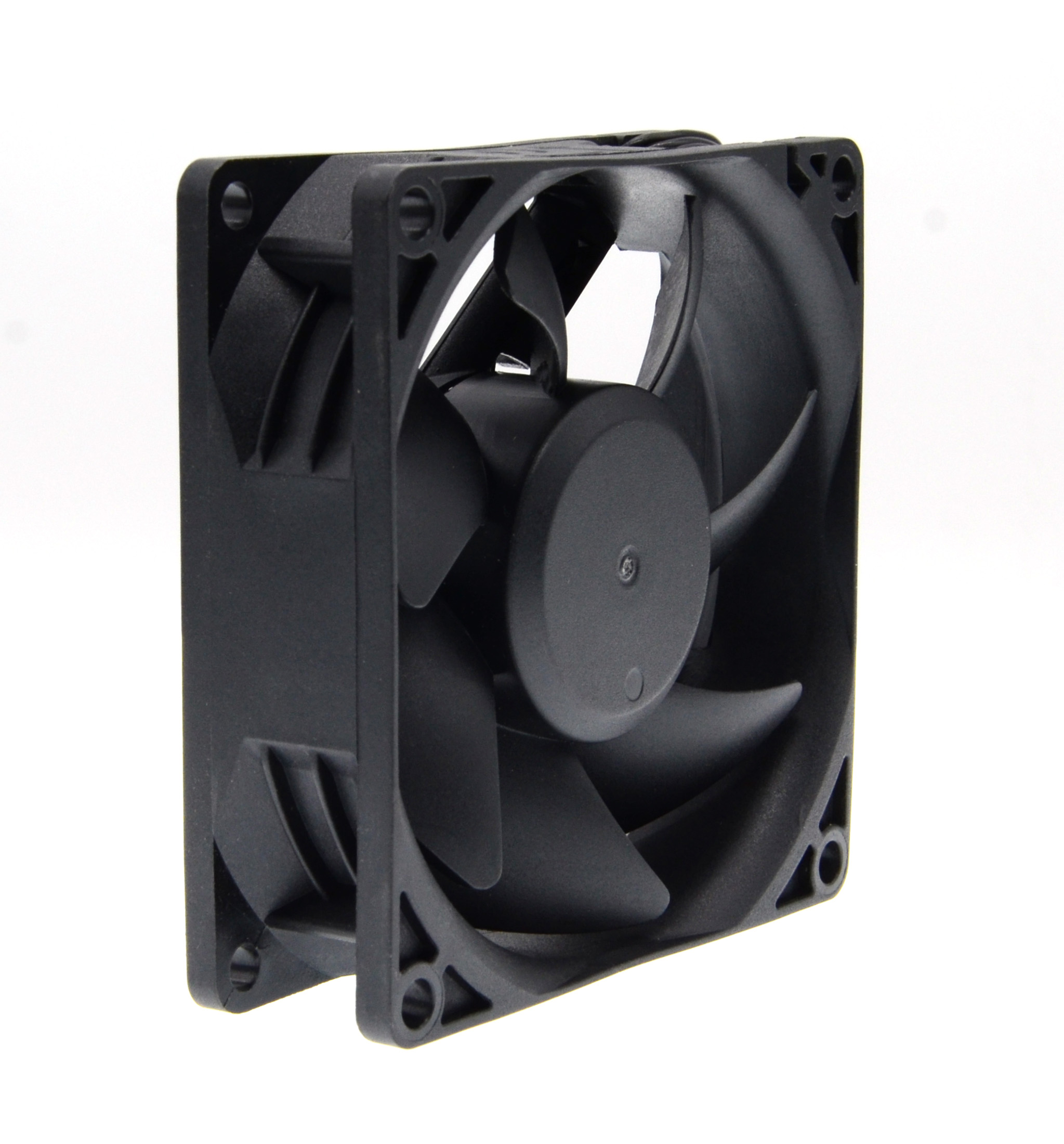

Impeller & frame
The 80 x 80 x 25 mm frame fits compact equipment layouts. Compare the mounting-hole pattern and available depth with your installation.

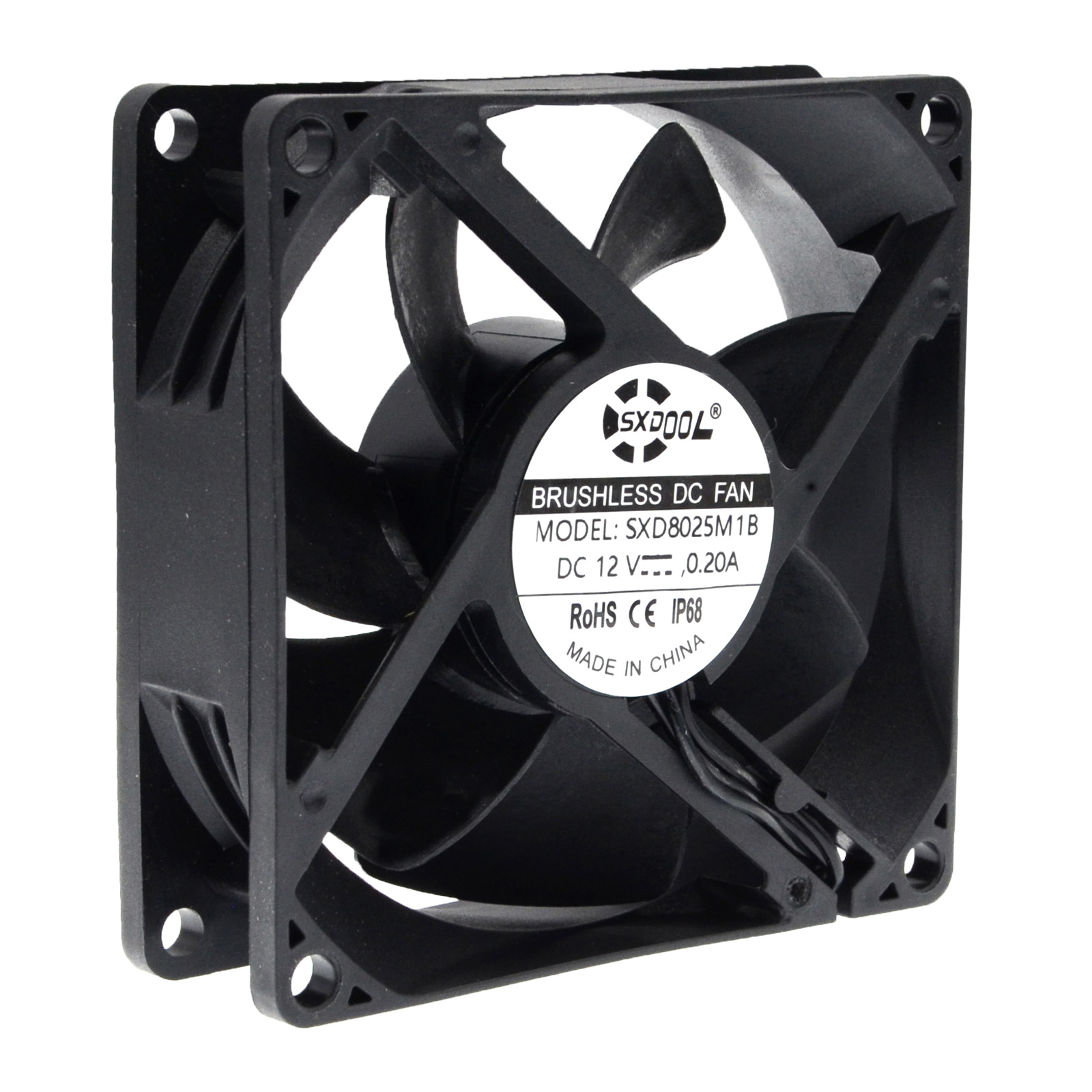

The exact model
Identify SXD8025M1B and its 12V DC input with a 0.20 A label rating. Select the exact electrical version for your equipment.

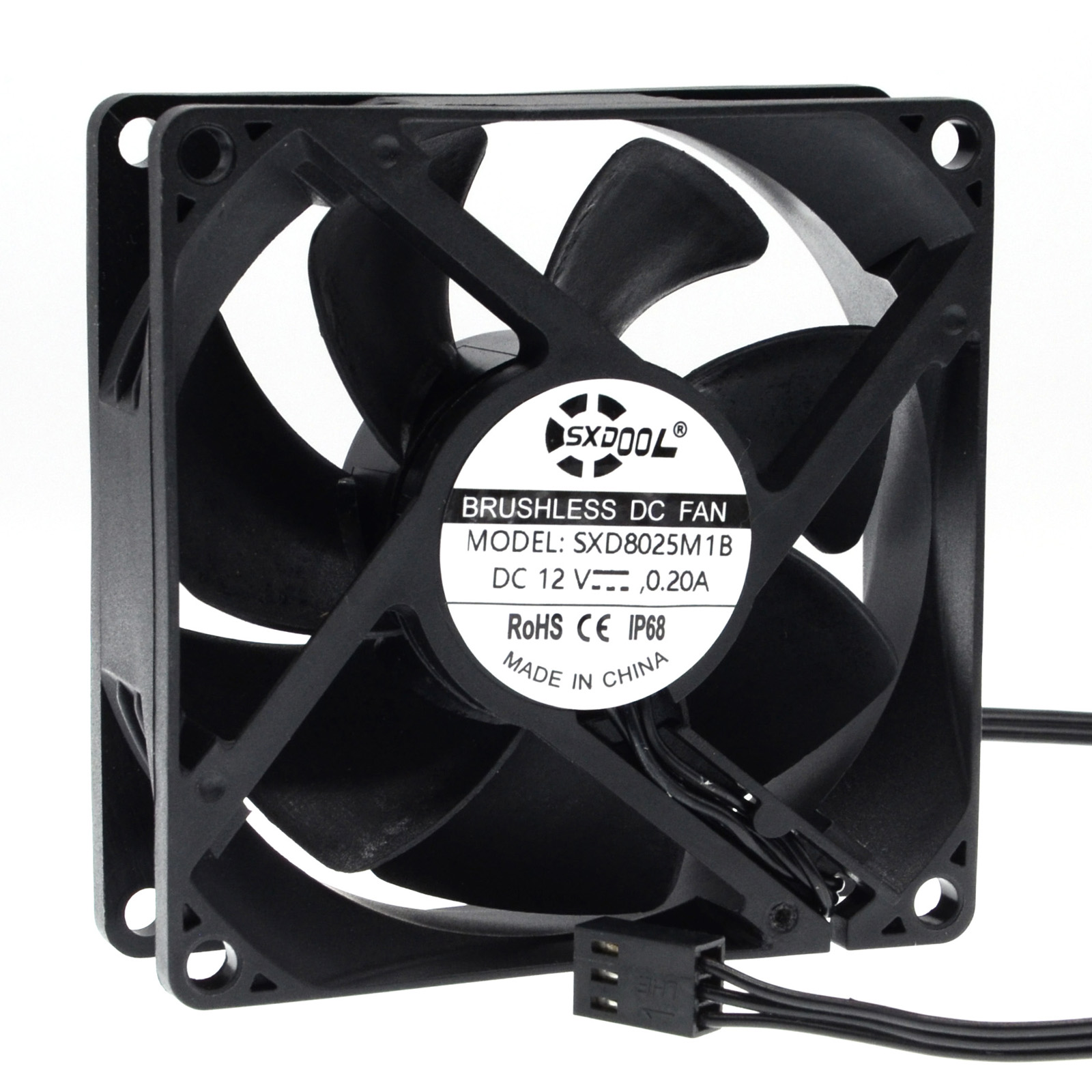

Connection view
Three black wires terminate in a three-position plug. Confirm the pin assignment with your equipment schematic before connecting.
Cooling for controls, telecom and power electronics
Compact control cabinets | Telecom enclosures | Power supplies
Use this 80 mm industrial fan for equipment ventilation where moisture and dust protection are required. Select by frame size and 12V DC supply. Match the airflow requirement and connection. Leave a clear path for inlet and outlet air.

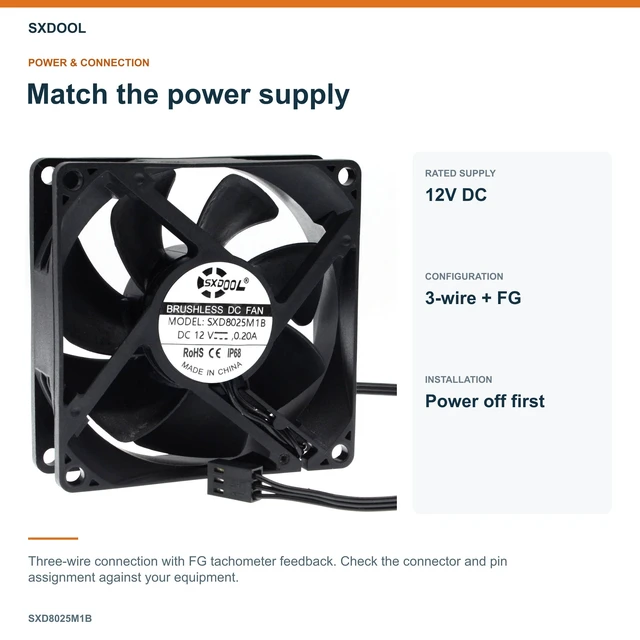

12V DC supply and three-position connection
DC 12V · 0.20 A
The label specifies 12V DC and 0.20 A. Product photos show three black wires and a three-position connector. Match pin assignment and plug orientation before wiring. Wire color and plug shape alone do not identify the electrical connections.

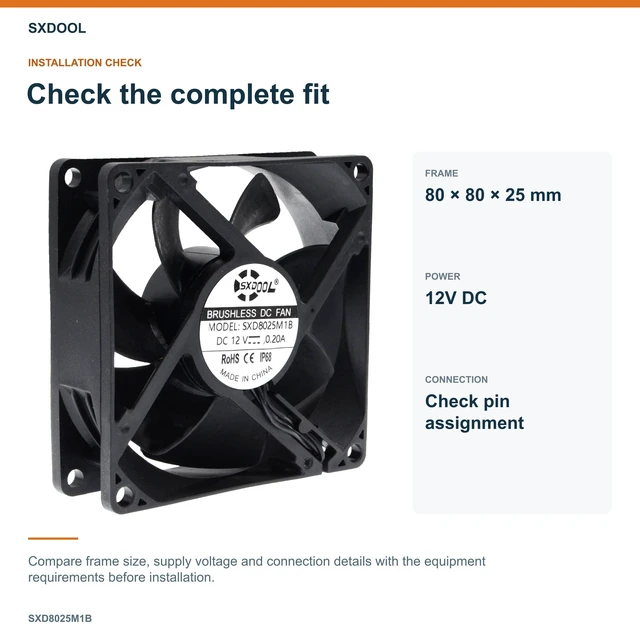

Plan the 80 x 80 x 25 mm installation
Three checks before installation

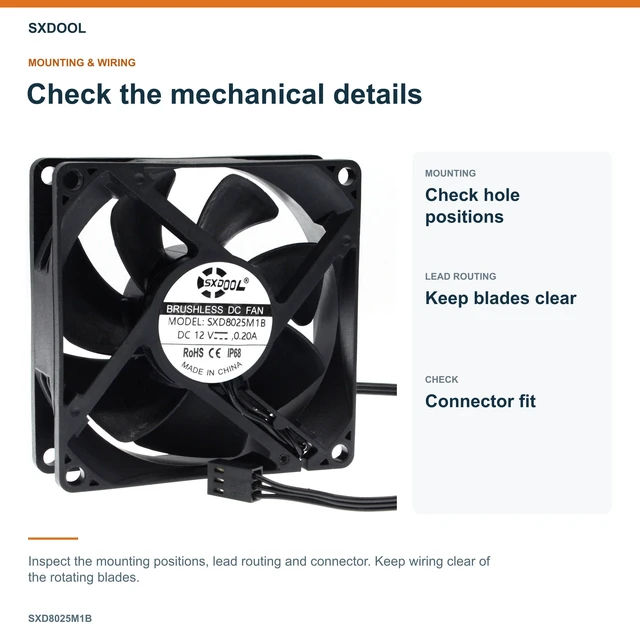

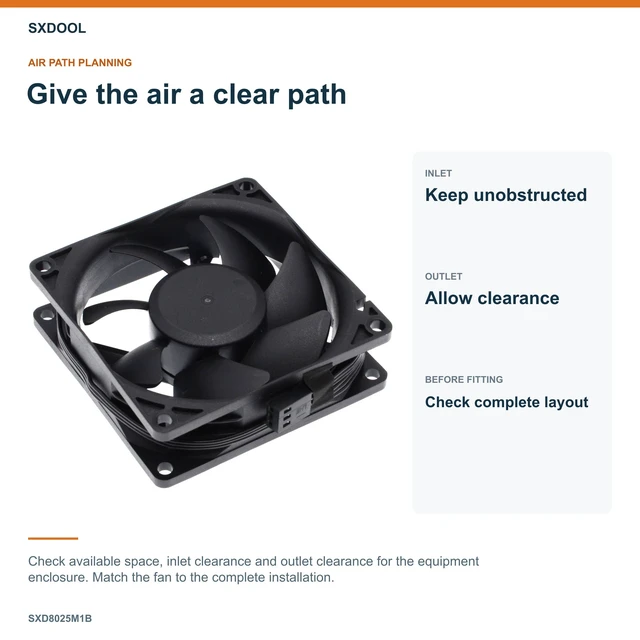

Check the mounting-hole pattern and allow 25 mm of frame depth plus wiring clearance. Use a matching 12V DC supply. Keep wires clear of the impeller and leave inlet and outlet air paths open. Disconnect power before fitting or servicing.
Technical Specifications
Fan dimensions and performance
| Model | SXD8025M1B |
|---|---|
| Dimensions | 80 x 80 x 25 mm |
| Bearing | Dual ball bearing |
| Rated Voltage | 12 V DC |
| Rated Current | 0.20 A |
| Speed | 3600 RPM |
| Airflow | 45.8 CFM |
| Noise Level | 38.5 dBA |
| Products | ||||
|---|---|---|---|---|
| Rated supply | DC 12V | DC 12V | DC 12V | DC 12V |
| Label current | 0.20 A | 0.50 A | 0.60 A | 0.60 A |
Which electrical version is this?
This is the SXDOOL SXD8025M1B. Its product label specifies DC 12V and 0.20 A. Choose the version that matches your equipment's DC supply.
How do I choose the right replacement fan?
Compare the model number and frame outline. Check the mounting-hole positions and available depth. Compare the wiring connection. Matching the supply voltage alone does not establish a direct replacement.
Which other SXDOOL models should I compare?

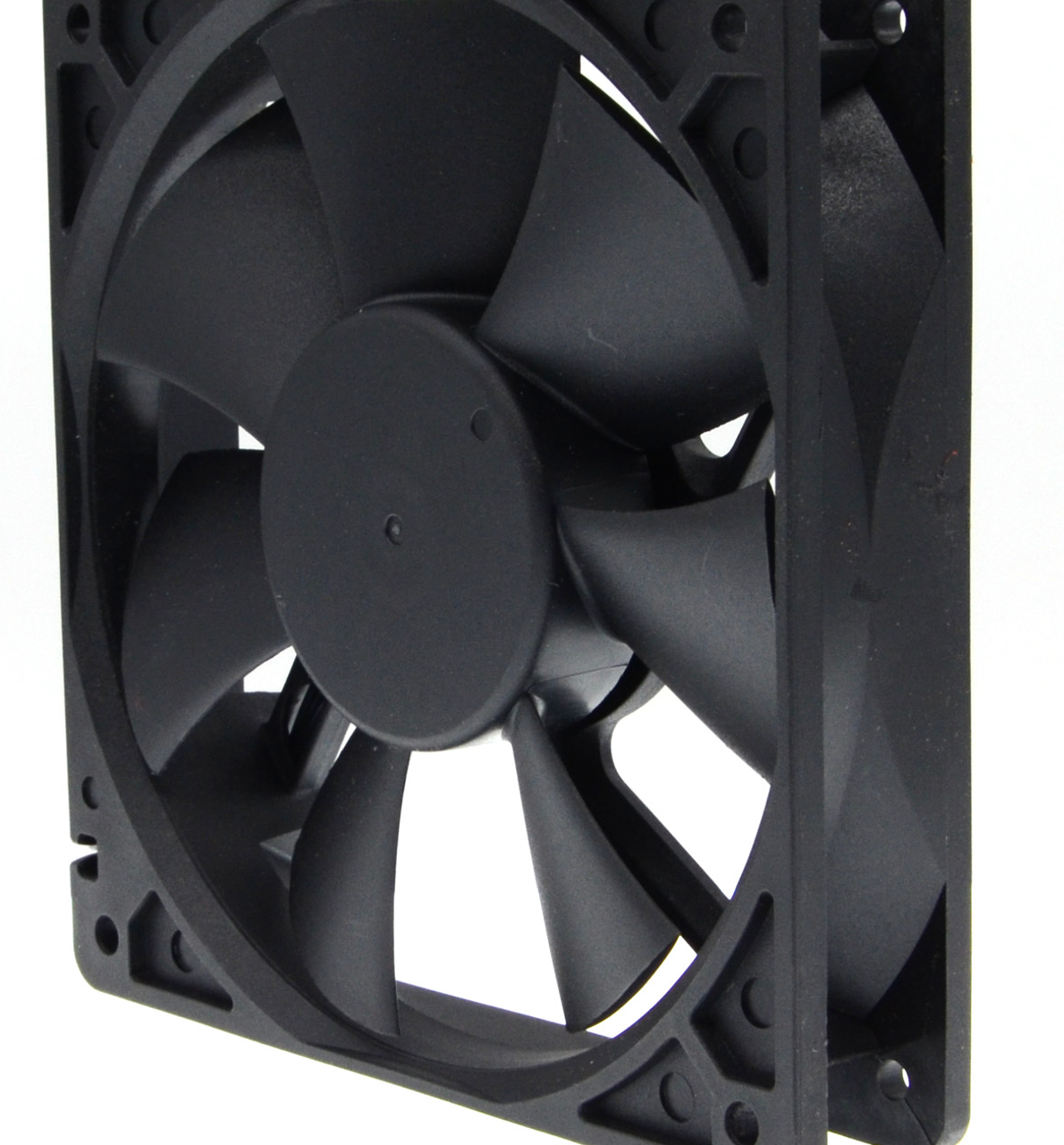

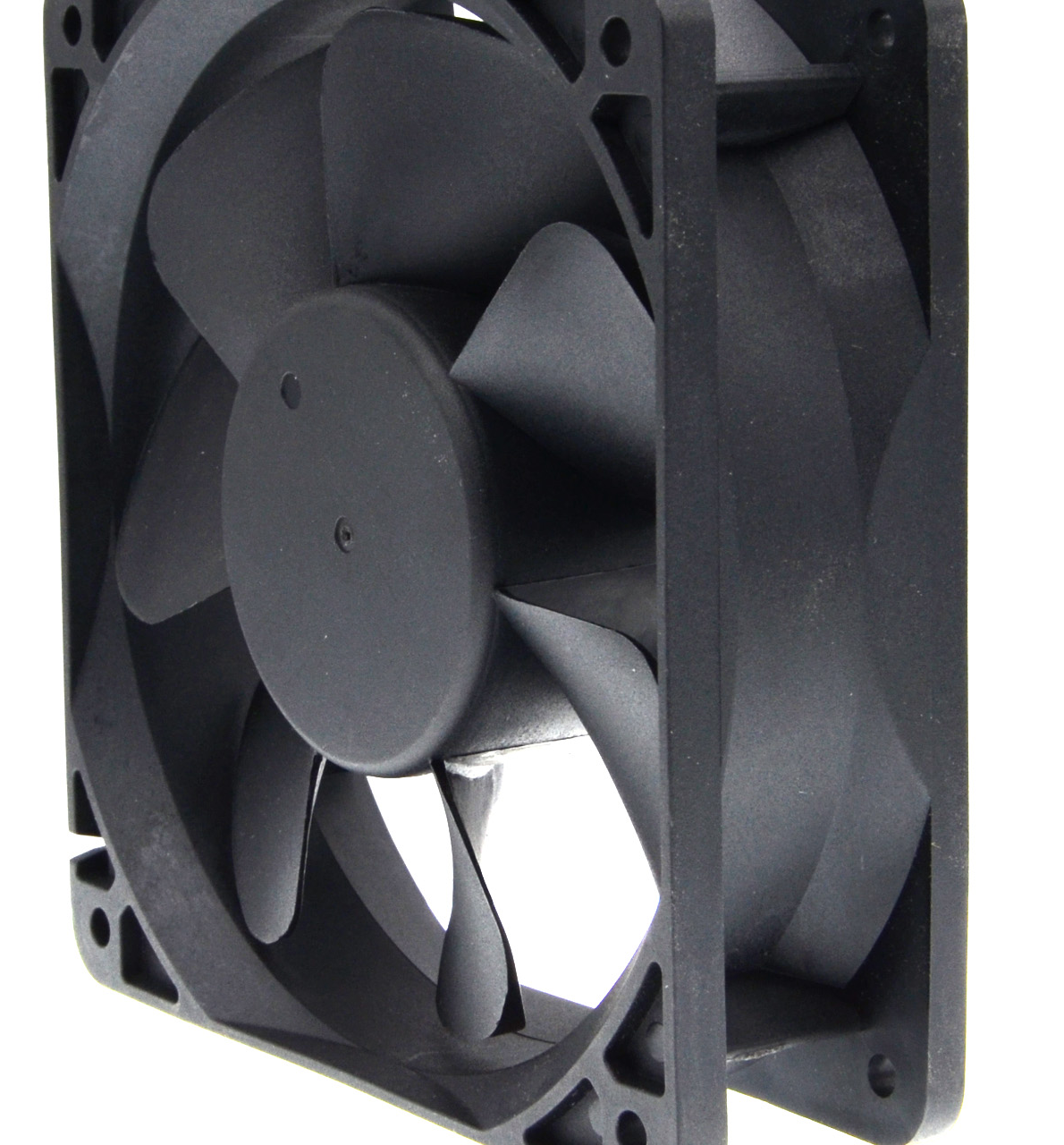

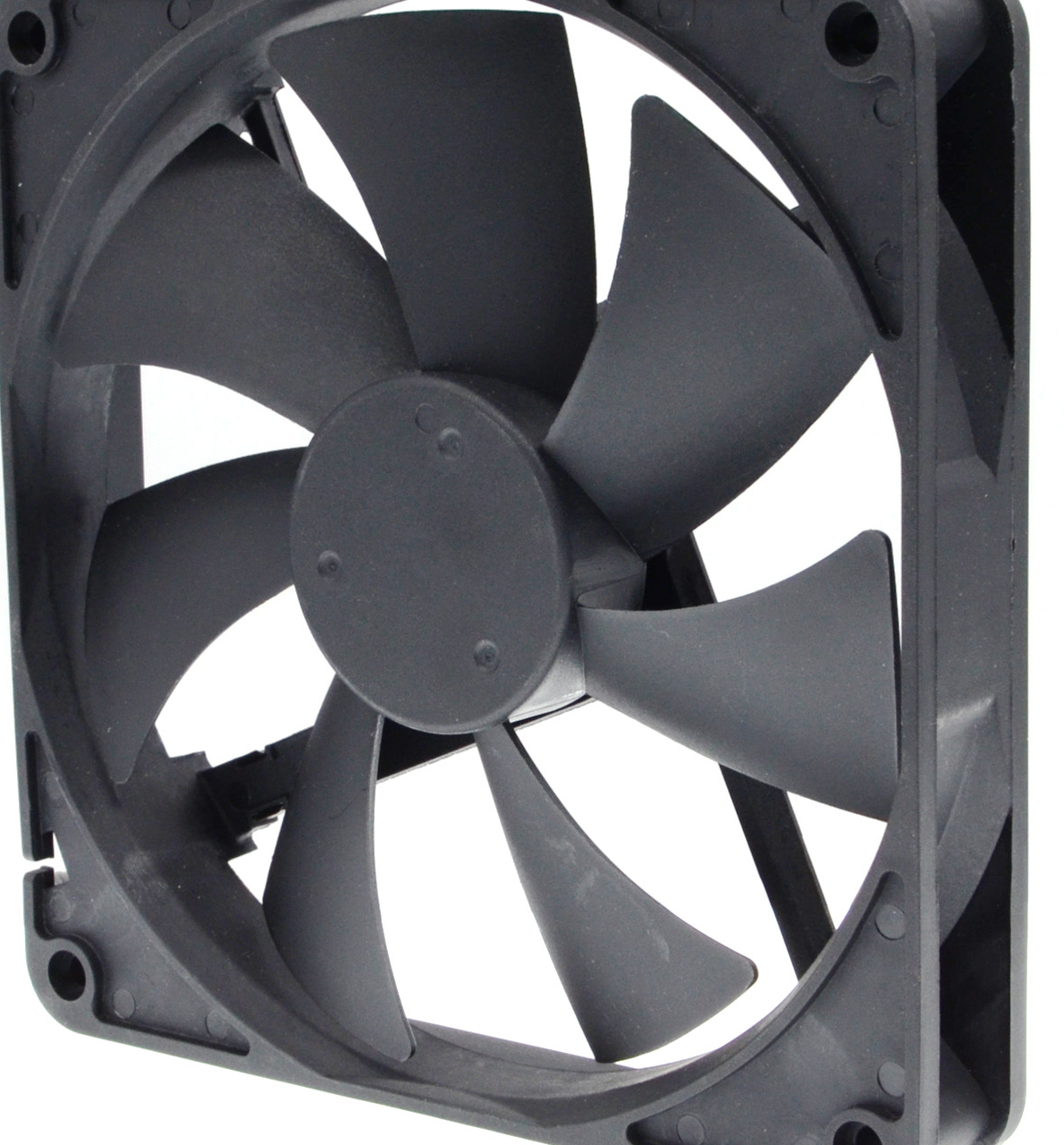

Compare frame size first. SXD8025M1B is 80 x 80 x 25 mm. SXD12025M1B is 120 x 120 x 25 mm. SXD12038M1B is 120 x 120 x 38 mm. SXD14025M1B is 140 x 140 x 25 mm. Open each linked model to compare airflow and noise as well as wiring. These models are not interchangeable by voltage alone.
How does this fan connect?
The product photo shows three black wires and a three-position plug. Compare the plug and wiring assignment with your equipment before ordering. Plug shape alone does not establish pin compatibility.

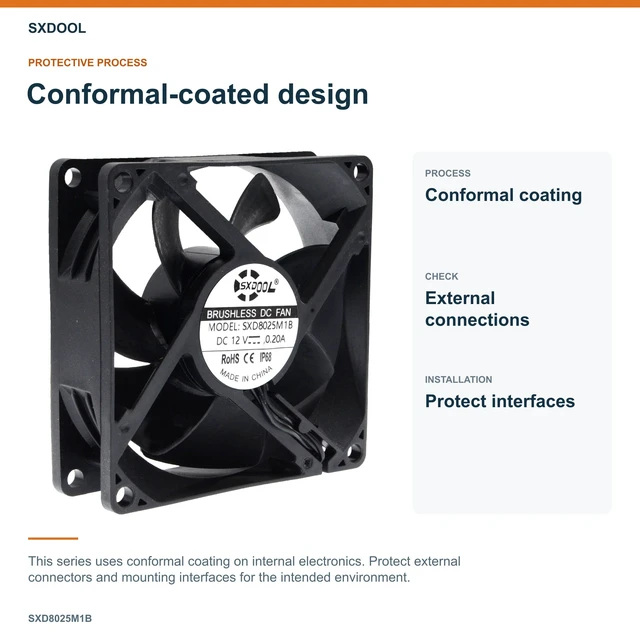

What does the IP68 rating cover?
SXD8025M1B is the IP68 waterproof and dustproof fan model. The rating applies to the fan. External connectors and the finished enclosure require separate protection. An immersion depth or duration and continuous underwater operating condition are not specified here.
Which cooling and noise figures should I compare?
SXD8025M1B has listed ratings of 3600 RPM with 45.8 CFM airflow and a 38.5 dBA sound level. Compare these figures with your equipment requirements. Installed airflow and sound depend on the enclosure and airflow restriction.
