Air Cooled Spindle Motor 2.2KW CNC Spindle Motor 220V Square Air Cooled Spindle Motor ER20 Collet 24000 RPM CNC Spindle 6A Spindle Motor 400 Hz for CNC Router Engraving Milling Machine
- Technical Parameters: Spec: 2.4 x 10.3 in (Diameter: 6.2 cm x Length: 26.1 cm); Power: 2.2KW; Voltage: 220V; Current: 7.8A; Collet Size: ER20; Bearings: 4 bearings; Frequency: 400 Hz; Speed: 24000 R/min; Runout off: less than 0.01 mm. Mainly used for engraving machine or used with frequency converter.
- ER20 Standard Collet: The collet of the CNC router spindle is quenched with manganese steel, and the runout is less than 0.01 mm, which has high precision and is not easy to break the knife, increasing the stability of the working process. Dynamic balance technology can effectively reduce noise during use.
- Powerful Bearing: The air spindle motor adopts imported bearings with high accuracy, precision, and durability. Significantly improve the hardness and anti-rust performance.

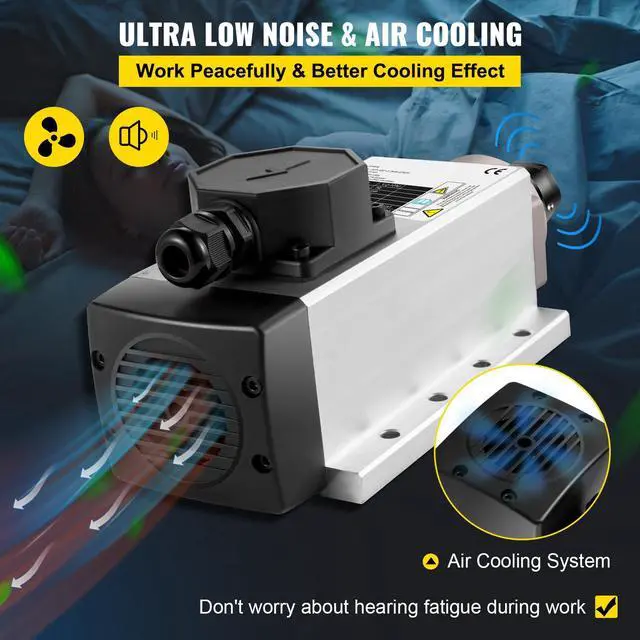

- Low Noise & Heat Dissipation: The dynamic balance technology can effectively reduce the noise during use
+
+
Overview
Specs
Reviews
Any questions? Ask CelesteSM will help you find out quickly.
Try me now
Specifications
Power: 2.2 KW
Voltage: 220V
Frequency: 400 Hz
Speed: 24000 R/min
Runout off: Less than 0.01 mm
Collet Size (Dia. ): 0.005" / 0.02" / 0.24" ( 0.125 mm / 0.5 mm / 6 mm)
Connection of Spindle End: ER20 ø 0.125" - 0.5" ( 3.175 mm- 12.7 mm)

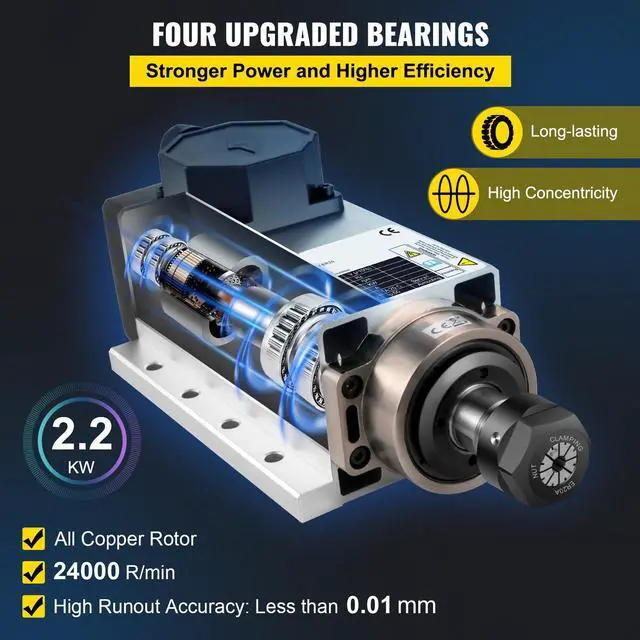

Bearing Model: 7005 x 2, 7002 x 2
Maximum Torque: 1.2NM

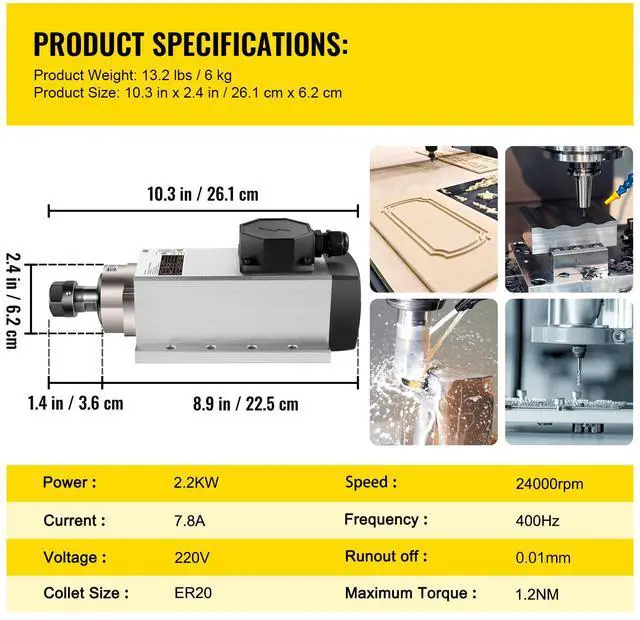

Product Dimension: 2.4 x 10.3 in / 6.2 x 26.1 cm
Weight: 13.2 lbs / 6 kg
Package Content

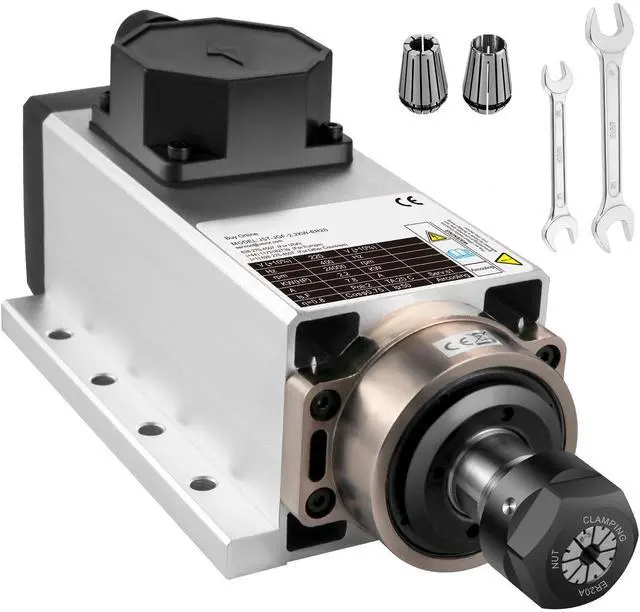

1 x Air Cooled Spindle Motor
2 x ER20 Collets
2 x Wrenches
