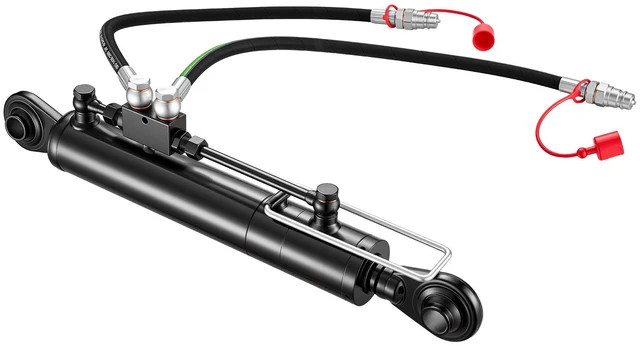

VEVOR Hydraulic Top Link Cat. 2-2 (11 in Stroke, 22-7/16 in to 33-7/16 in), Max 2900PSI Hydraulic Cylinder with 2 Hoses & G3/8" Check Valves for Tractors

Key

Specifications

:
Bore: 2.48 in (63 mm), Stroke: 11 in (280 mm), Retracted
Length: 22-7/16 in (570 mm), Extended
Length: 33-7/16 in (850 mm), Check
Valve: G3/8", Pin Hole Diameter: 1 in
Fits Category 2-2 Tractors: This hydraulic top link is designed for tractor three-point hitch systems. Operators can adjust implement angles directly from the drivers seat, improving fieldwork efficiency and operating convenience
High-Pressure Hydraulic Power: Built for demanding workloads, this hydraulic cylinder supports 2320 PSI rated pressure and up to 2900 PSI max pressure, delivering steady hydraulic force to improve tractor operating efficiency
Powerful Hydraulic Force: This hydraulic top link supports up to 9420 lbs ( 4.27 Ton) column load capacity while delivering 5 Ton push force and 3.5 Ton pull force (at 16 MPa), providing reliable power for pushing and pulling applications
High-Sealing Check Valve: Equipped with G3/8" check valves and heavy-duty painted steel construction, this hydraulic cylinder helps minimize oil leakage and ensures precise control during push and pull operations
