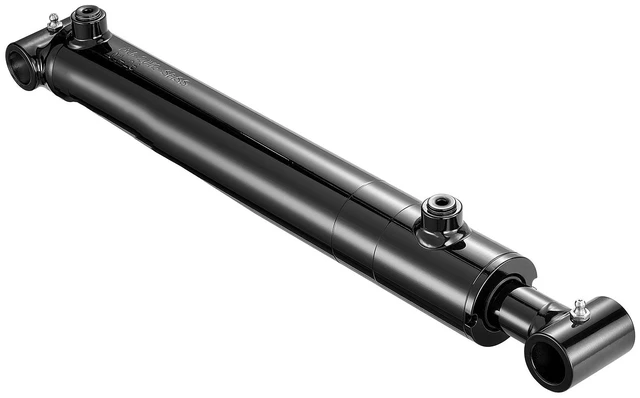

VEVOR Double Acting Hydraulic Cylinder, 2" Bore x 12" Stroke, Max 3500PSI Hydraulic Cylinder, Heavy-Duty Welded Cross Tube Cylinders with 1" Pin Hole & SAE #6 Port for Agricultural Machinery, Tractors
- VEVOR Double Acting Hydraulic Cylinder, 2" Bore x 12" Stroke, Max 3500PSI Hydraulic Cylinder, Heavy-Duty Welded Cross Tube Cylinders with 1" Pin Hole & SAE #6 Port for Agricultural Machinery, Tractors
+
+
Overview
Specs
Reviews
Any questions? Ask CelesteSM will help you find out quickly.
Try me now
Item Model Number: BU-2012
Bore: 2 in / 50.8 mm
Stroke: 12 in / 305 mm
Retracted Length: 20 in / 508 mm
Extended Length: 32 in / 813 mm
Rated Pressure: 2900 PSI / 20 MPa
Max Pressure: 3500 PSI / 24 MPa
Column Load Capacity: 4568 lbs / 2.07 Ton
Push/Pull Force: 4 Ton / 2.4 Ton (at 20 MPa)
Port Size: SAE #6 (9/16"-18 UNF)
Net Weight: 15.7 lbs / 7.1 kg
Bore: 2 in / 50.8 mm
Stroke: 12 in / 305 mm
Retracted Length: 20 in / 508 mm
Extended Length: 32 in / 813 mm
Rated Pressure: 2900 PSI / 20 MPa
Max Pressure: 3500 PSI / 24 MPa
Column Load Capacity: 4568 lbs / 2.07 Ton
Push/Pull Force: 4 Ton / 2.4 Ton (at 20 MPa)
Port Size: SAE #6 (9/16"-18 UNF)
Net Weight: 15.7 lbs / 7.1 kg
