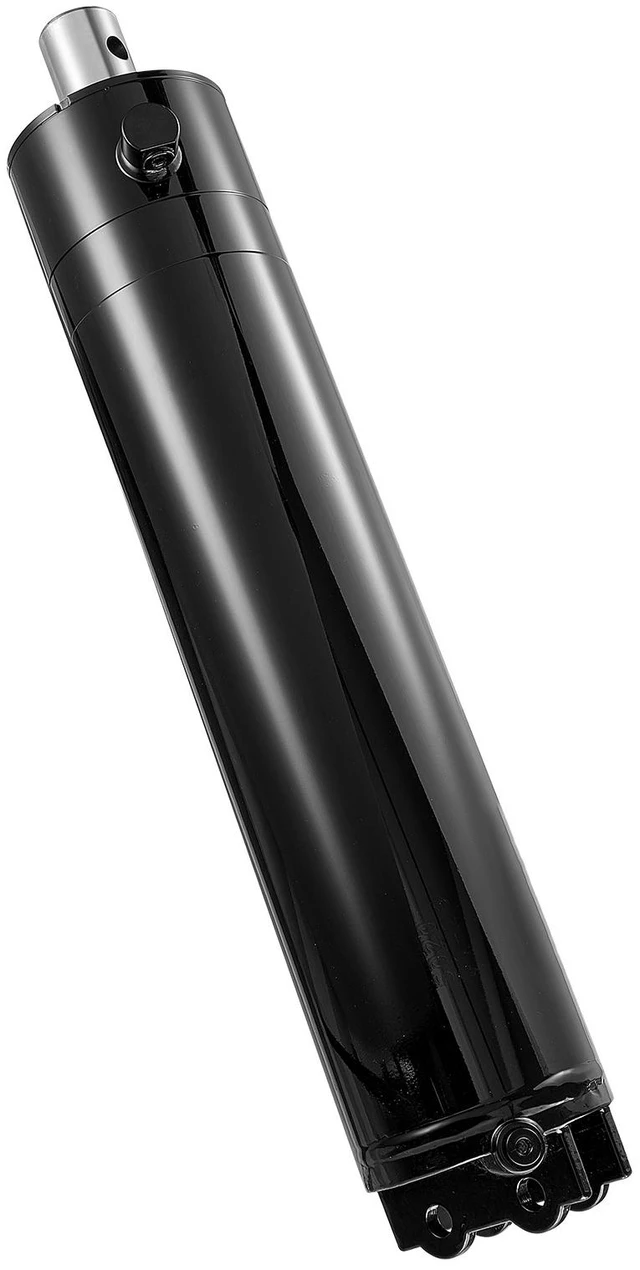

VEVOR Double Acting Hydraulic Cylinder, 5" Bore x 20" Stroke, Max 4500PSI Hydraulic Cylinder, Heavy-Duty Welded Cross Tube Cylinders with 0.63" Pin Hole & SAE #6 Port for Agricultural Machinery
- VEVOR Double Acting Hydraulic Cylinder, 5" Bore x 20" Stroke, Max 4500PSI Hydraulic Cylinder, Heavy-Duty Welded Cross Tube Cylinders with 0.63" Pin Hole & SAE #6 Port for Agricultural Machinery
+
+
Overview
Specs
Reviews
Any questions? Ask CelesteSM will help you find out quickly.
Try me now
Item Model Number: 5020
Bore: 5 in / 127 mm
Stroke: 20 in / 508 mm
Retracted Length: 27.5 in / 698.5 mm
Extended Length: 47.5 in / 1206.5 mm
Rated Pressure: 2900 PSI / 20 MPa
Max Pressure: 4500 PSI / 31 MPa
Column Load Capacity: 28219 lbs / 12.8 Ton
Push/Pull Force: 25 Ton / 21 Ton (at 20 MPa)
Port Size: SAE #6 (9/16"-18 UNF)
Product Dimensions: 29.7 x 5.6 x 6.8 in
Net Weight: 72.3 lbs / 32.8 kg
Bore: 5 in / 127 mm
Stroke: 20 in / 508 mm
Retracted Length: 27.5 in / 698.5 mm
Extended Length: 47.5 in / 1206.5 mm
Rated Pressure: 2900 PSI / 20 MPa
Max Pressure: 4500 PSI / 31 MPa
Column Load Capacity: 28219 lbs / 12.8 Ton
Push/Pull Force: 25 Ton / 21 Ton (at 20 MPa)
Port Size: SAE #6 (9/16"-18 UNF)
Product Dimensions: 29.7 x 5.6 x 6.8 in
Net Weight: 72.3 lbs / 32.8 kg
