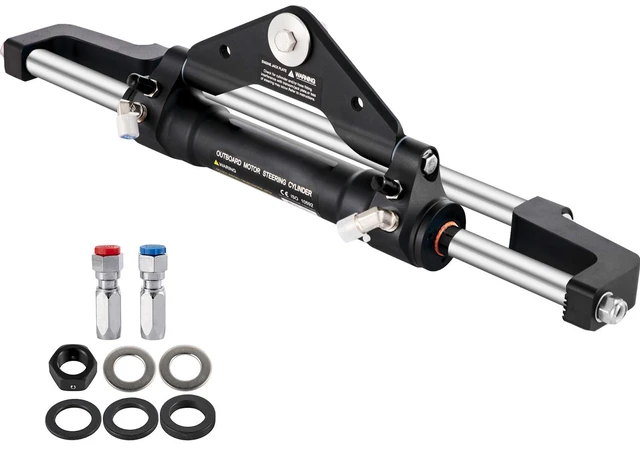

VEVOR Hydraulic Steering Cylinder 300HP, Hydraulic Steering Front Mount Hydraulic Outboard Marine Steering Kit Without Hydraulic Hose and Helm for Outboards Boat Steering System
- HC5345-3 Front Mount Cylinder: HC5345-3 steering cylinder is ideal for outboard powered boats like center console, offshore fishing, bass boats, flats boats and many more. For use with Yamaha applications where it is necessary to mount the steering cylinder underneath the steering arm.
- Advanced Crush Resistance: Our hydraulic outboard steering cylinder resists repeated compression set in marine environments.
- Built-In Two-Way Lock: A built-in two-way locking valve eliminates rebound torque during torsion. It also offers independent engine tilt for twin/triple engine installations and varying lock-to-lock turn ration dependent on helm selection.
- ORB Fitting: The redesigned 8-hole end gland improves serviceability and uses Positionable Stainless Steel O-Ring (ORB) Fittings for easier hose routing.
- Sturdy Aluminum Alloy: Made of high-strength, corrosion-resistant aluminum alloy to help resist seawater erosion.
- Fits:FORCE 1985-1999 90-150 HP
- HONDA 1996+ 75-90 HP
- 1998+ 30-50 HP (Spacer Kit #HO5090 req.)
- 2003+ BF135 HP
- 2010+ 115 HP
- JOHNSON/EVINRUDE 1991+ 40-300 HP ETech
- 1996-2003 75-250 HP FICHT
- 2002+ 200-225 HP 4-stroke
- 2007+ 3.3L/3.4L 200-250 HP H.O. MERCURY 1984-1994 2.4/2.5 HP EFI (cowling mods may be needed)
- 1989+ 75-300 HP
- 1998+ 30-60 HP
- 2004+ 150-200 HP VERADO
- NISSAN 1990+ 90-140 HP
- SUZUKI 1986+ 100 HP
- 1986-2002 115-140 HP (not 1996)
- 1986+ 150-300 HP 2/4-stroke
- YAMAHA 1990-2003 40-90 HP 2-stroke (Spacer Kit #HO5090 req.)
- 1986+ 100-300 HP 2-stroke
- 1997+ 80-250 HP 4-stroke
+
+
Overview
Specs
Reviews
Any questions? Ask CelesteSM will help you find out quickly.
Try me now
Specifications
Model: HC5345-3 Cylinder
Replaces: Teleflex Marine HC5345-3
Applicable: Up to 300HP
Max Working Pressure: 10.3M pa/1500PSI
Package Content
1 x Hydraulic Outboard Steering Cylinder
