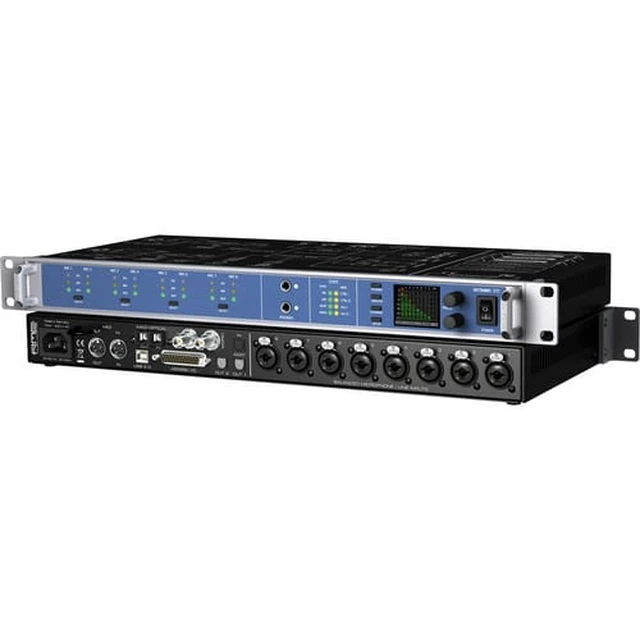

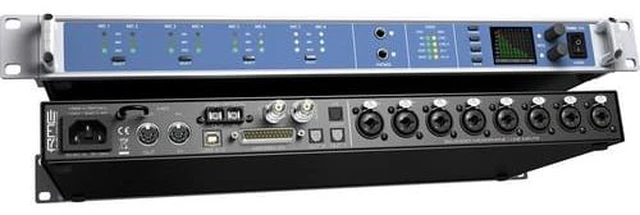

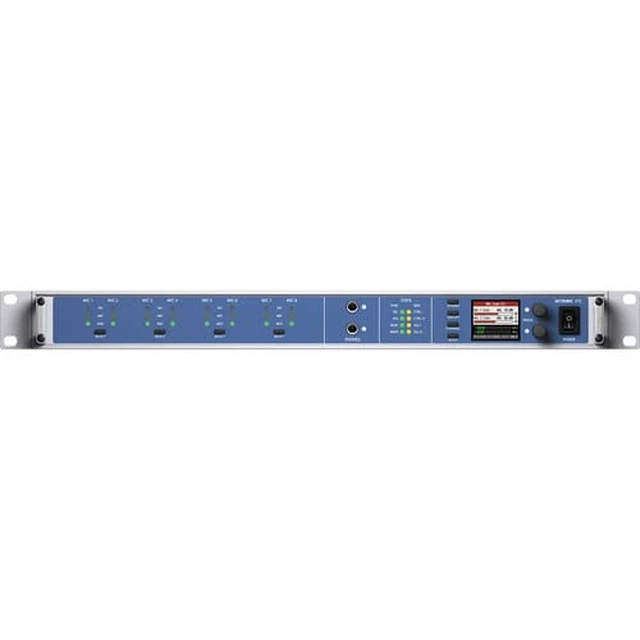

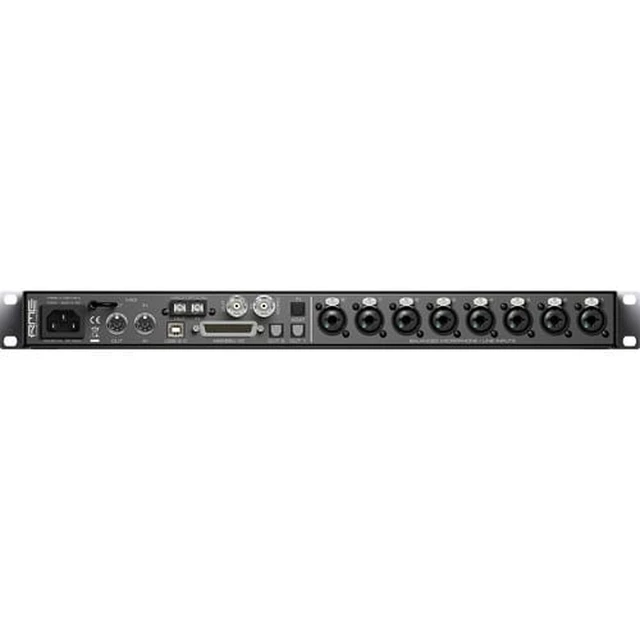

RME OctaMic XTC 8-Channel Digital Mic Preamp and USB 2.0 Interface

RME OctaMic XTC overview

The OctaMicXTC from RME is a professional 8-channel digital microphone preamp and USB 2.0 interface that features recording up to 192 kHz, offers AES/EBU and ADAT digital I/O, and supports the powerful MADI multi-channel audio protocol. The OctaMic XTC is equipped with one MADI optical port that provides up to 64 channels of MADI I/O at 48 kHz. It also boasts eight balanced XLR/TRS mic/line inputs. Four of these inputs feature a pad for recording loud sound sources, and the other four can be switched to accept direct Hi-Z input from electric guitars and basses. Each of the eight inputs are fitted with a high-quality digitally controlled preamp. Furthermore, the unit features a D-sub 25 connector that provides four AES/EBU inputs and four AES/EBU outputs. It also has one optical ADAT input and two ADAT outputs, each of which are capable of carrying eight channels of digital audio a piece. The OctaMic XTC also provides ample MIDI connectivity, equipped with two 5-pin DIN standard MIDI I/O connectors, plus it allows for two sets of MIDI I/O to be transmitted over USB and an additional set over the optical MADI port.

All analog and digital inputs, including up to 64 MADI channels and 8 AES/EBU audio channels, can be freely patched to any output. Up to 24 channels can be carried over the USB 2.0 port Two unbalanced hi-power stereo headphone outputs that can also operate as line outputs with use of TRS to RCA phono cable, or TRS plug to TS cable Switchable +48V phantom power per channel Full color TFT display BNC word clock I/O
