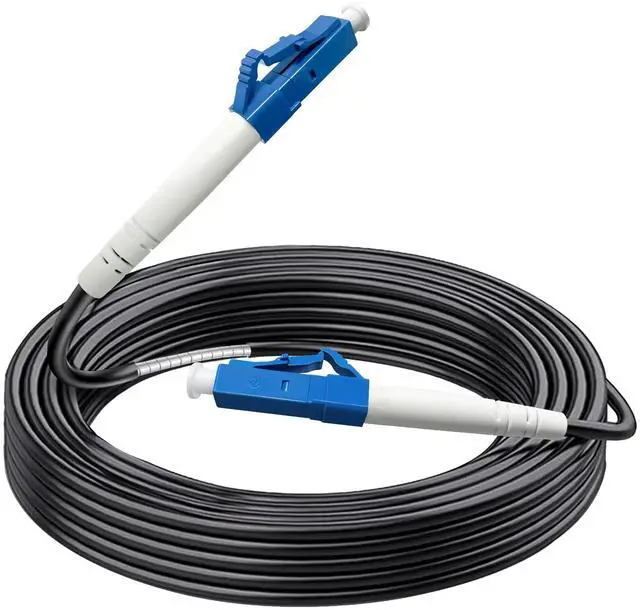

Simplex OS2 9/125 Single Mode LC Armored Fiber Optic Cable Specifications
Unique end-face baking technology
The unique end-face baking technology allows the jumper to maintain a dry end-face for an extended period in even the harshest climate conditions, preventing the formation of moisture that could affect data transmission.

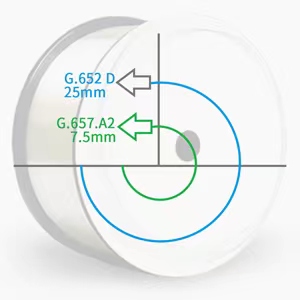

G657.A2 - Bend Intensive Fiber
Bangun Optical Fiber cable use G657A2 fiber which is a powerful solution for access networks where frequent bending and joining of cables and hardware miniaturization is observed.

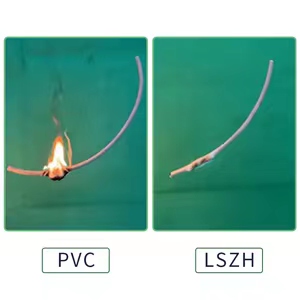

Compared with traditional PVC cable, LSZH Jacket is more healthy and safe.
Bangun Fiber Optic Patch Cable adpoted 3.0mm LSZH Jacket that is environment flame retardant, anti-corrosion, pull-resistant, low-smoke, halogen-free and immune to electrical interference.

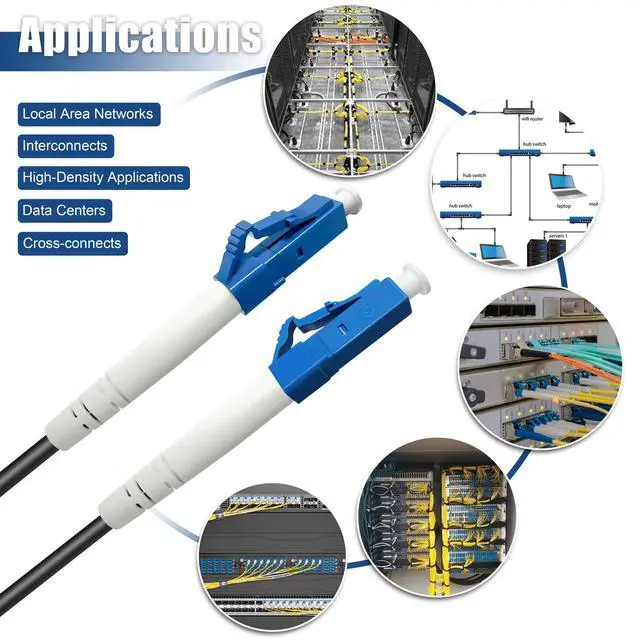

Bangun products are extensively applicable to telecom operators, fiber optic engineering, CCTV, broadband networks, FTTH, data center in more than 80 countries worldwide.

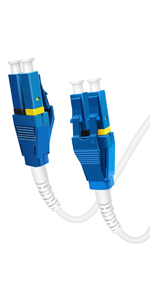

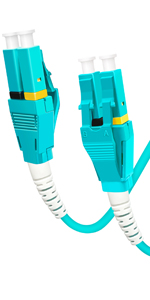

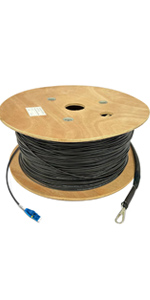

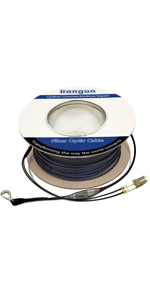

 Uniboot LC to LC OS2 |  Uniboot LC to LC OS2 |  Uniboot LC to LC OM3 |  Armored LC to LC OM3 | |
|---|---|---|---|---|
| Customer Reviews | — | — | — | — |
| Price | — | — no data | — no data | — |
| Fiber Count | Duplex / 2 Fibers | Duplex / 2 Fibers | Duplex / 2 Fibers | Duplex / 2 Fibers |
| Fiber Type | Corning G.657.A2 | Corning G.657.A2 | Corning OM3 | Corning OM3 |
| Jacket | Armored LSZH, Black | Armored LSZH, White | LSZH, Aqua | HDPE, Black |
| Cable Diameter | 3.0mm | 3.0mm | 3.0mm | 3.0mm |
| Insertion Loss | =0.15dB | =0.15dB | =0.15dB | =0.15dB |
| Low Friction Coating | ? | no data | no data | no data |
| Length | 1-10 Kilometers | 1-30m | 0.2-25m | 10-300m |

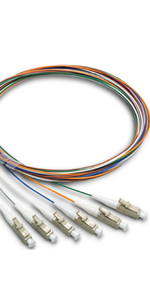

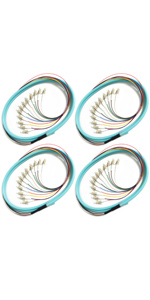

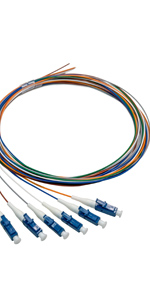

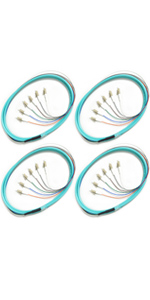

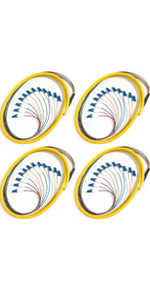

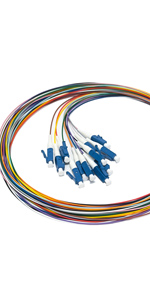

 LC UPC 12 Fibers Pigtail OS2 |  LC UPC 6 Fibers Pigtail OS2 |  LC UPC 6 Fibers Pigtail OM3 |  LC UPC 6 Fibers Pigtail OM3 |  LC UPC 12 Fibers Pigtail OM3 |  LC UPC 12 Fibers Pigtail OS2 | |
|---|---|---|---|---|---|---|
| Customer Reviews | — | — | — | — | — | — |
| Price | — | — | — | — | — | — |
| Fiber Count | 12 | 6 | 6 | 6 | 12 | 12 |
| Fiber Mode | 9/125 µm | 9/125 µm | 50/125 µm | 50/125 µm | 50/125 µm | 9/125 µm |
| Cable Diameter | 0.9 mm | 0.9 mm | 0.9 mm | 0.9 mm | 0.9 mm | 0.9 mm |
| Minimum Bend Radius | 7.5mm | 7.5mm | 7.5mm | 7.5mm | 7.5mm | 7.5mm |
| Insertion Loss | =0.15dB | =0.15dB | =0.15dB | =0.15dB | =0.15dB | =0.15dB |
| Cable Types | Color-Coded | Color-Coded | Color-Coded | Bunch | Bunch | Bunch |

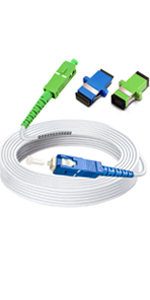

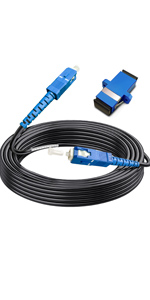

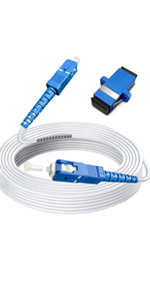

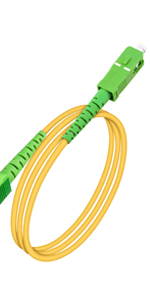

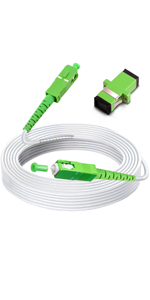

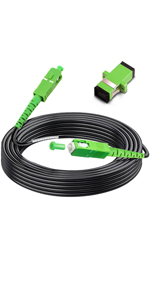

 SC/APC to SC/APC |  SC/APC to SC/APC Armored |  SC/APC to SC/APC Armored |  SC/UPC to SC/UPC OS2 |  SC/UPC to SC/UPC OS2 |  SC/UPC to SC/APC OS2 | |
|---|---|---|---|---|---|---|
| Customer Reviews | — | — | — | — | — | — |
| Price | — | — | — | — | — | — |
| Fiber Count | Simplex | Simplex | Simplex | Simplex | Simplex | Simplex |
| Fiber Grade | Corning G.657.A2 | Corning G.657.A2 | Corning G.657.A2 | Corning G.657.A2 | Corning G.657.A2 | Corning G.657.A2 |
| Jacket | LSZH, Yellow | Armored LSZH, White | Armored LSZH, Black | Armored LSZH, White | Armored LSZH, Black | Armored LSZH, White |
| Cable Diameter | 3.0mm | 3.0mm | 3.0mm | 3.0mm | 3.0mm | 3.0mm |
| Insertion Loss | =0.15dB | =0.15dB | =0.15dB | =0.15dB | =0.15dB | =0.15dB |
| Low Friction Coating | no data | no data | ? | no data | ? | no data |
| Length | 1-30m | 1-30m | 1-10 Kilometers | 1-30m | 10-100m | 1-30m |

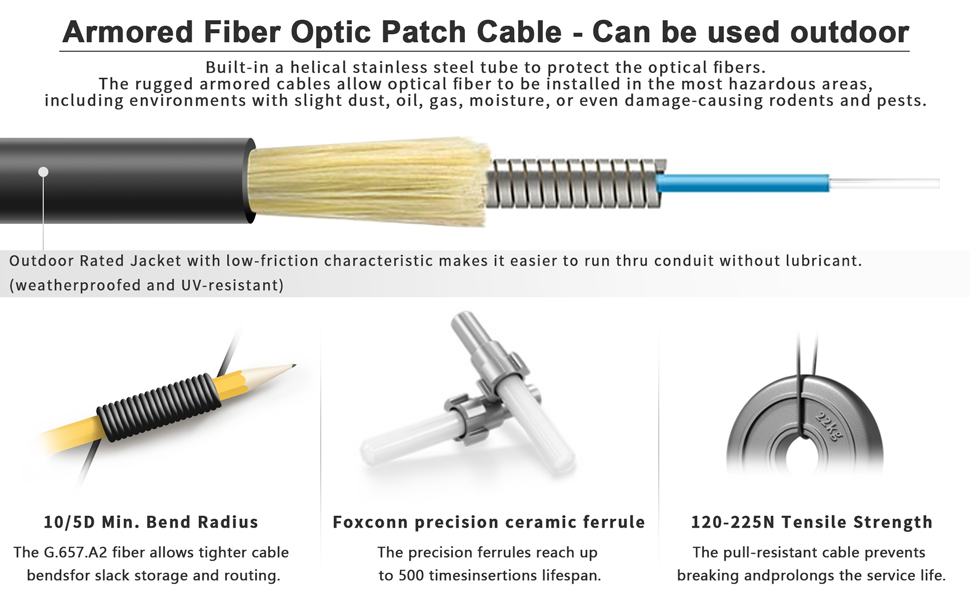

Simplex OS2 9/125 Single Mode LC Armored Fiber Optic Cable Specifications
| Connector Type | LC to LC |
| Polish Type | UPC to UPC |
| Fiber Mode | OS2 9/125µm |
| Wavelength | 1310/1550nm |
| Fiber Grade | G.657.A2 (Compatible with G.652.D) |

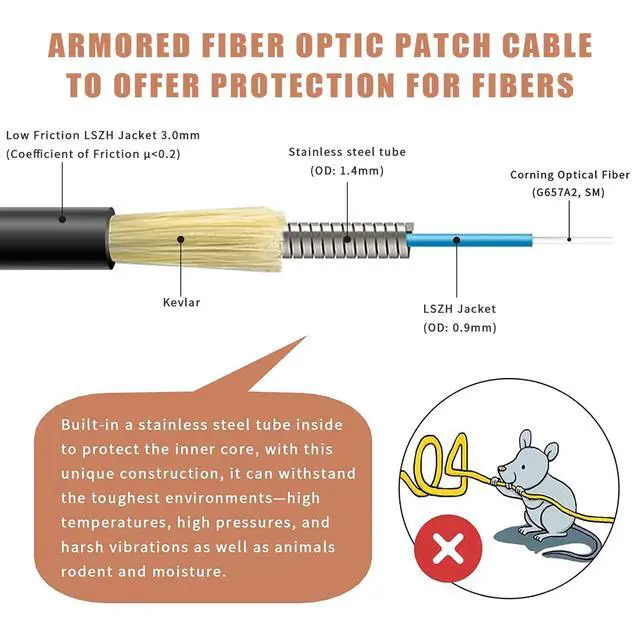

| Fiber Cords Structure | Single Armored, Stainless Steel Tube |
| Fiber Count | Simplex |
| Cable Diameter | 3.0mm |
| Cable Jacket | LSZH with low-friction characteristic |
| Tensile Load | 120/225N (Long/Short Term) |
| Insertion Loss | =0.15dB |
| Return Loss | =55dB |
| Min. Bend Radius (Fiber Core) | 7.5mm |
| Min. Bend Radius (Fiber Cable) | 10/5D (Dynamic/Static) |
| Operating Temperature | -20~70°C |
| Storage Temperature | -20~70°C |
Unique end-face baking technology
The unique end-face baking technology allows the jumper to maintain a dry end-face for an extended period in even the harshest climate conditions, preventing the formation of moisture that could affect data transmission.
G657.A2 - Bend Intensive Fiber
Bangun Optical Fiber cable use G657A2 fiber which is a powerful solution for access networks where frequent bending and joining of cables and hardware miniaturization is observed.
Compared with traditional PVC cable, LSZH Jacket is more healthy and safe.
Bangun Fiber Optic Patch Cable adpoted 3.0mm LSZH Jacket that is environment flame retardant, anti-corrosion, pull-resistant, low-smoke, halogen-free and immune to electrical interference.
Bangun products are extensively applicable to telecom operators, fiber optic engineering, CCTV, broadband networks, FTTH, data center in more than 80 countries worldwide.
Uniboot LC to LC OS2 | Uniboot LC to LC OS2 | Uniboot LC to LC OM3 | Armored LC to LC OM3 | |
|---|---|---|---|---|
| Customer Reviews | — | — | — | — |
| Price | — | — no data | — no data | — |
| Fiber Count | Duplex / 2 Fibers | Duplex / 2 Fibers | Duplex / 2 Fibers | Duplex / 2 Fibers |
| Fiber Type | Corning G.657.A2 | Corning G.657.A2 | Corning OM3 | Corning OM3 |
| Jacket | Armored LSZH, Black | Armored LSZH, White | LSZH, Aqua | HDPE, Black |
| Cable Diameter | 3.0mm | 3.0mm | 3.0mm | 3.0mm |
| Insertion Loss | =0.15dB | =0.15dB | =0.15dB | =0.15dB |
| Low Friction Coating | ? | no data | no data | no data |
| Length | 1-10 Kilometers | 1-30m | 0.2-25m | 10-300m |
LC UPC 12 Fibers Pigtail OS2 | LC UPC 6 Fibers Pigtail OS2 | LC UPC 6 Fibers Pigtail OM3 | LC UPC 6 Fibers Pigtail OM3 | LC UPC 12 Fibers Pigtail OM3 | LC UPC 12 Fibers Pigtail OS2 | |
|---|---|---|---|---|---|---|
| Customer Reviews | — | — | — | — | — | — |
| Price | — | — | — | — | — | — |
| Fiber Count | 12 | 6 | 6 | 6 | 12 | 12 |
| Fiber Mode | 9/125 µm | 9/125 µm | 50/125 µm | 50/125 µm | 50/125 µm | 9/125 µm |
| Cable Diameter | 0.9 mm | 0.9 mm | 0.9 mm | 0.9 mm | 0.9 mm | 0.9 mm |
| Minimum Bend Radius | 7.5mm | 7.5mm | 7.5mm | 7.5mm | 7.5mm | 7.5mm |
| Insertion Loss | =0.15dB | =0.15dB | =0.15dB | =0.15dB | =0.15dB | =0.15dB |
| Cable Types | Color-Coded | Color-Coded | Color-Coded | Bunch | Bunch | Bunch |
SC/APC to SC/APC | SC/APC to SC/APC Armored | SC/APC to SC/APC Armored | SC/UPC to SC/UPC OS2 | SC/UPC to SC/UPC OS2 | SC/UPC to SC/APC OS2 | |
|---|---|---|---|---|---|---|
| Customer Reviews | — | — | — | — | — | — |
| Price | — | — | — | — | — | — |
| Fiber Count | Simplex | Simplex | Simplex | Simplex | Simplex | Simplex |
| Fiber Grade | Corning G.657.A2 | Corning G.657.A2 | Corning G.657.A2 | Corning G.657.A2 | Corning G.657.A2 | Corning G.657.A2 |
| Jacket | LSZH, Yellow | Armored LSZH, White | Armored LSZH, Black | Armored LSZH, White | Armored LSZH, Black | Armored LSZH, White |
| Cable Diameter | 3.0mm | 3.0mm | 3.0mm | 3.0mm | 3.0mm | 3.0mm |
| Insertion Loss | =0.15dB | =0.15dB | =0.15dB | =0.15dB | =0.15dB | =0.15dB |
| Low Friction Coating | no data | no data | ? | no data | ? | no data |
| Length | 1-30m | 1-30m | 1-10 Kilometers | 1-30m | 10-100m | 1-30m |
