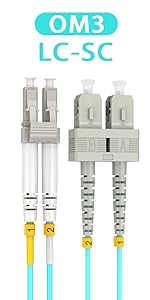

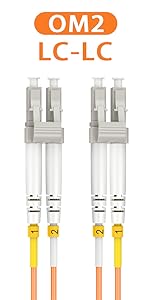

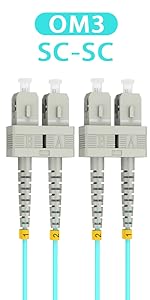

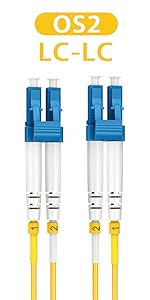

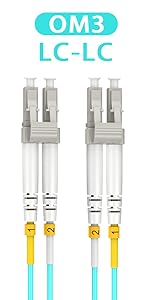

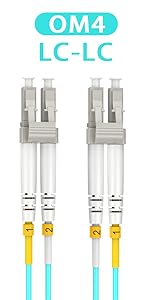

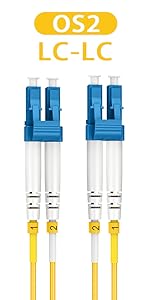

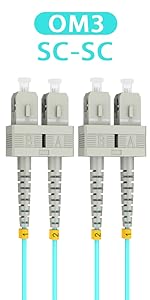

 OM3 LC to LC |  OM3 LC to SC |  OM3 SC to SC |  OM4 LC to LC |  OM2 LC to LC |  OS2 LC to LC | |
|---|---|---|---|---|---|---|
| Customer Reviews | — | — | — | — | — | — |
| Price | — | — | — | — | — | — |
| Length Options | 0.7in~500ft | 3ft~500ft | 1.6ft~500ft | 0.7in~500ft | 1.6ft~200ft | 0.7in~500ft |
| Fiber Mode | Multimode | Multimode | Multimode | Multimode | Multimode | Singlemode |
| Data Rate | 10GB/40G | 10GB/40G | 10GB/40G | 40G/100G | 1GB/10GB | 1GB/10GB |
| Connector | LC/UPC to LC/UPC | LC/UPC to SC/UPC | SC/UPC to SC/UPC | LC/UPC to LC/UP | LC/UPC to LC/UPC | LC/UPC to LC/UP |
| LSZH Jacket | ? | ? | ? | ? | ? | ? |
| Outer Diameter | 2.0mm | 2.0mm | 2.0mm | 2.0mm | 2.0mm | 2.0mm |
| Min. Bend Radius(Fiber Core) | 7.5mm | 7.5mm | 7.5mm | 7.5mm | 7.5mm | 16mm |
| Min. Bend Radius(Fiber Cable) | 20D/10D (Dynamic/Static) | 20D/10D (Dynamic/Static) | 20D/10D (Dynamic/Static) | 20D/10D (Dynamic/Static) | 20D/10D (Dynamic/Static) | 20D/10D (Dynamic/Static) |
Product Specifications:
- Fiber Core: High Rated 50/125um Fiber and Cladding
- Insertion Loss: =0.3dB
- Return Loss: =30dB
- Wavelengths: 850nm and 1300nm
- Attenuation at 850nm: 3.0 dB/km
- Attenuation at 1300nm : 1.0 dB/km
- Operating Temperature: -20~70°C

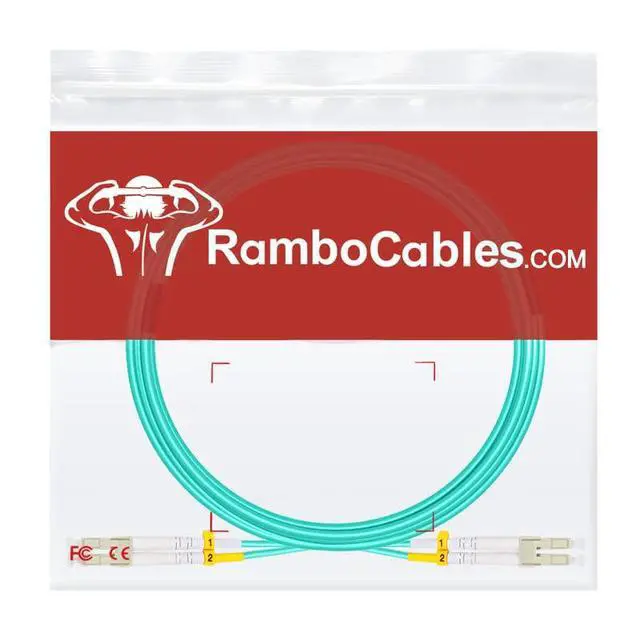

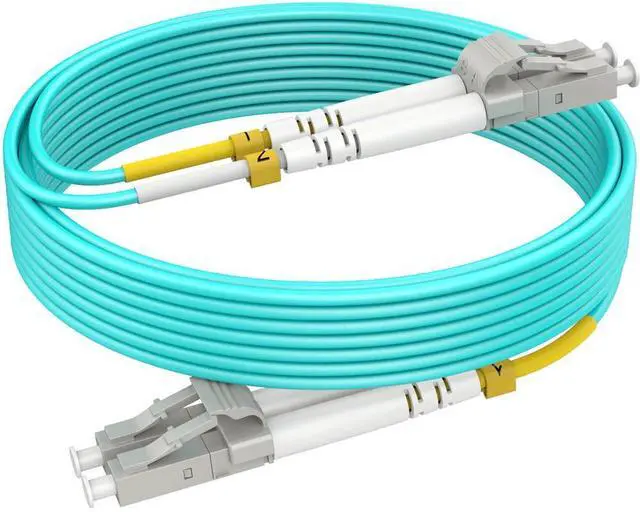

RamboCables OM3 LC to LC Fiber Patch Cable Multimode Duplex
OM3 Multimode Fiber Patch Cable is ideal for connecting 10G SR, 10G LRM, SFP+ transceivers etc. for 10G/40G/100G Ethernet connections and is the preferred fiber specification for 10G Ethernet connections.

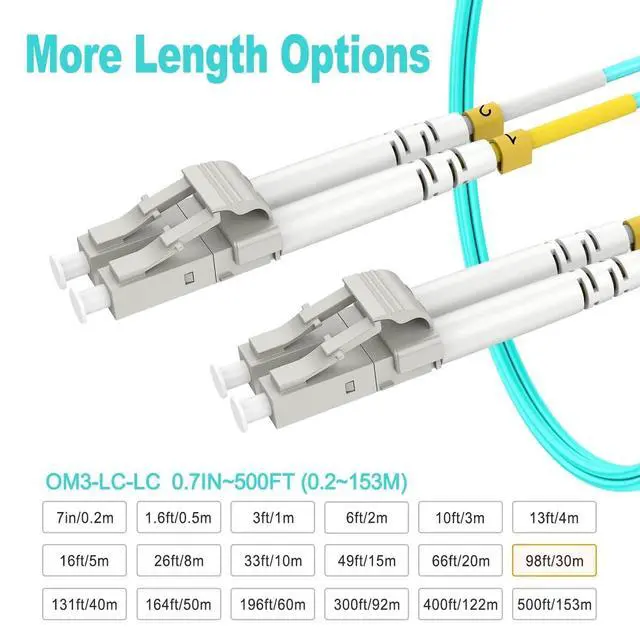

More length options to suit your cabling needs: 0.2m(7inch)~153m(500ft)
10G Ethernet Max Distance: 300Meters at 850nm
40G Ethernet Max Distance: 240Meters at 850nm
100G Ethernet Max Distance: 100Meters at 850nm

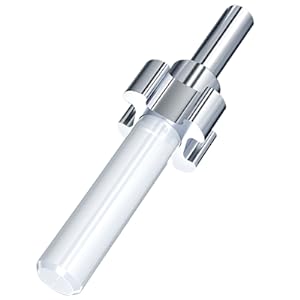

UPC Ceramic Ferrule
Each fiber optic connector uses industry standard high precision ceramic ferrule. Optimum IL and RL of the Zirconia Ceramic Ferrule ensures stable signal transmission. Improve the speed and flexibility of optical signal propagation.

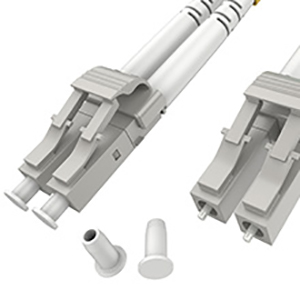

Connector Dust Cap
The connector Dust Cap can protect fiber optic connectors from external environmental pollution and external force damage, preventing severe network slowdown or network failure.
Easy To Install

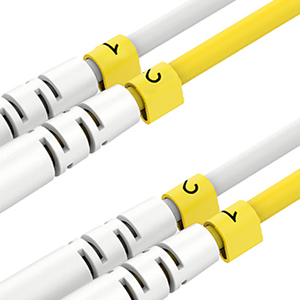

The OM3 fiber optic patch cable is plug and play, and the protective cover of the connector from Germany at both ends of the patch cable is marked with the numbers 1 and 2, which is easy to identify when you install it.

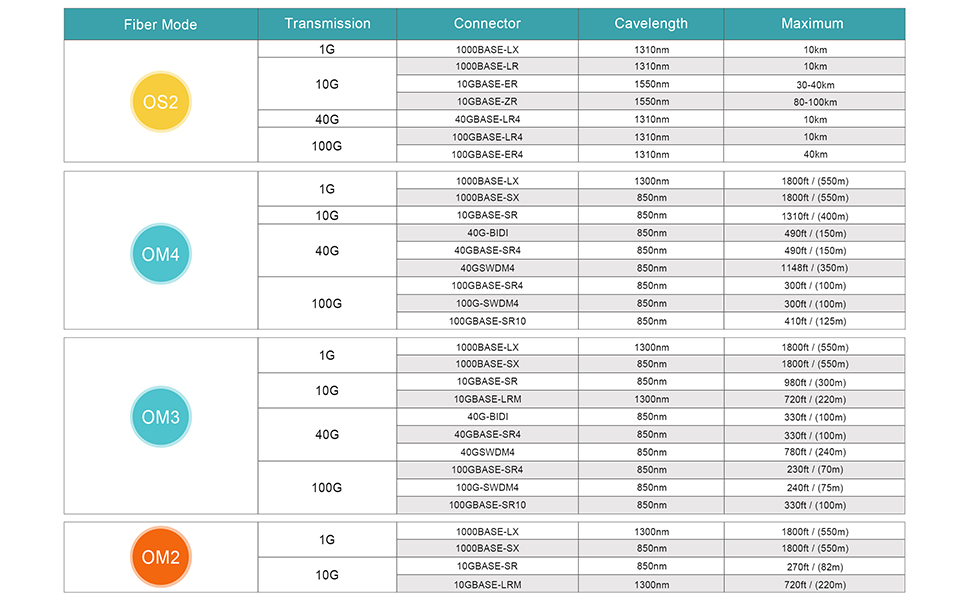

Ethernet Max Distance of Fiber Types
Wide Application
RamboCables fiber optic cables are compatible with all makes and models of switches, routers, enclosures, patch panels, media converters, SFP modules and other network components.Suitable for data centers, cloud storage networks, server farms, computer room wiring, community network construction and any places fiber optic cables are necessary.
RamboCables was founded in 2005 as a large-scale manufacturer that integrates fiber optic research, development, production, sales, and customization.
With AI developing at an unprecedented pace, having reliable and efficient connections is more crucial than ever before. we offers affordable and dependable fiber optic connectivity solutions.
Feel free to reach out for customization!
Dedicated To Fiber Cable
SC/APC to SC/APC Simplex
Outdoor Armored Fiber Cables
Save with our value pack!
10G SFP+ DAC Cable
MPO-MPO OM3 12 FIBER
Optical Fiber Pigtail Cable
Mini SAS SFF Cable
OM3 LC to LC |  OM3 LC to SC |  OM3 SC to SC | OM4 LC to LC | OM2 LC to LC |  OS2 LC to LC | |
|---|---|---|---|---|---|---|
| Customer Reviews | — | — | — | — | — | — |
| Price | — | — | — | — | — | — |
| Length Options | 0.7in~500ft | 3ft~500ft | 1.6ft~500ft | 0.7in~500ft | 1.6ft~200ft | 0.7in~500ft |
| Fiber Mode | Multimode | Multimode | Multimode | Multimode | Multimode | Singlemode |
| Data Rate | 10GB/40G | 10GB/40G | 10GB/40G | 40G/100G | 1GB/10GB | 1GB/10GB |
| Connector | LC/UPC to LC/UPC | LC/UPC to SC/UPC | SC/UPC to SC/UPC | LC/UPC to LC/UP | LC/UPC to LC/UPC | LC/UPC to LC/UP |
| LSZH Jacket | ? | ? | ? | ? | ? | ? |
| Outer Diameter | 2.0mm | 2.0mm | 2.0mm | 2.0mm | 2.0mm | 2.0mm |
| Min. Bend Radius(Fiber Core) | 7.5mm | 7.5mm | 7.5mm | 7.5mm | 7.5mm | 16mm |
| Min. Bend Radius(Fiber Cable) | 20D/10D (Dynamic/Static) | 20D/10D (Dynamic/Static) | 20D/10D (Dynamic/Static) | 20D/10D (Dynamic/Static) | 20D/10D (Dynamic/Static) | 20D/10D (Dynamic/Static) |
Product Specifications:
- Fiber Core: High Rated 50/125um Fiber and Cladding
- Insertion Loss: =0.3dB
- Return Loss: =30dB
- Wavelengths: 850nm and 1300nm
- Attenuation at 850nm: 3.0 dB/km
- Attenuation at 1300nm : 1.0 dB/km
- Operating Temperature: -20~70°C
RamboCables OM3 LC to LC Fiber Patch Cable Multimode Duplex
OM3 Multimode Fiber Patch Cable is ideal for connecting 10G SR, 10G LRM, SFP+ transceivers etc. for 10G/40G/100G Ethernet connections and is the preferred fiber specification for 10G Ethernet connections.
More length options to suit your cabling needs: 0.2m(7inch)~153m(500ft)
10G Ethernet Max Distance: 300Meters at 850nm
40G Ethernet Max Distance: 240Meters at 850nm
100G Ethernet Max Distance: 100Meters at 850nm

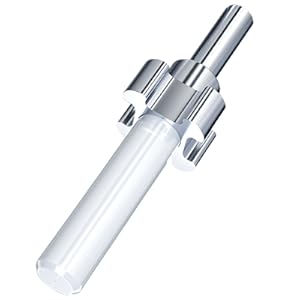

UPC Ceramic Ferrule
