LC OM3 Multimode Harsh Environment Armored Industrial Fiber Optic Cable
 Industrial OM3 Cables |  Uniboot Armored OM3 Cables |  4 Fibers Industrial OM3 Cables |  6 Fibers Industrial OM3 Cables |  12 Fibers Industrial OM3 Cables |  Fiber Pulling Eye Kit | |
|---|---|---|---|---|---|---|
| Customer Reviews | — | — | — | — | — | — |
| Price | — | — | — | — | — | — |
| Cable Diameter | 5.0mm | 3.0mm | 5.0mm | 5.0mm | 6.0mm | no data |
| Fiber Count | 2 Fibers | 2 Fibers | 4 Fibers | 6 Fibers | 12 Fibers | no data |
| Fiber Grade | Bend Insensitive | Bend Insensitive | Bend Insensitive | Bend Insensitive | Bend Insensitive | no data |
| Jacket | TPU | LSZH | TPU | TPU | TPU | PVC |
| Armored | ? | ? | ? | ? | ? | no data |
| Available Length | 5-300m | 1-300m | 10-245m | 10-245m | 10-245m | 3m |
| Operating Temperature | -40 to 80°C (-40 to 176?) | -25~70°C (-13 to 158?) | -40 to 80°C (-40 to 176?) | -40 to 80°C (-40 to 176?) | -40 to 80°C (-40 to 176?) | no data |

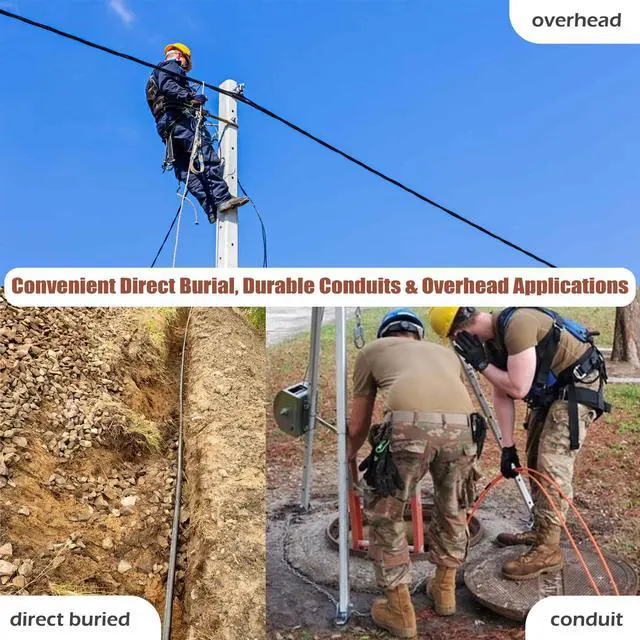

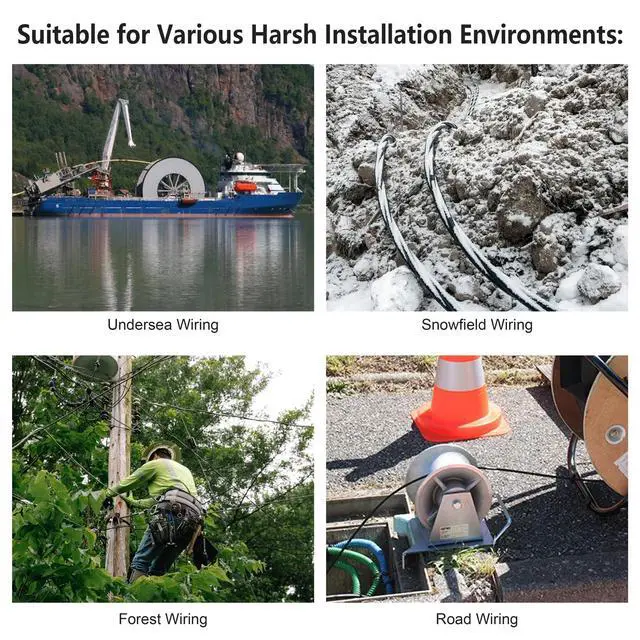

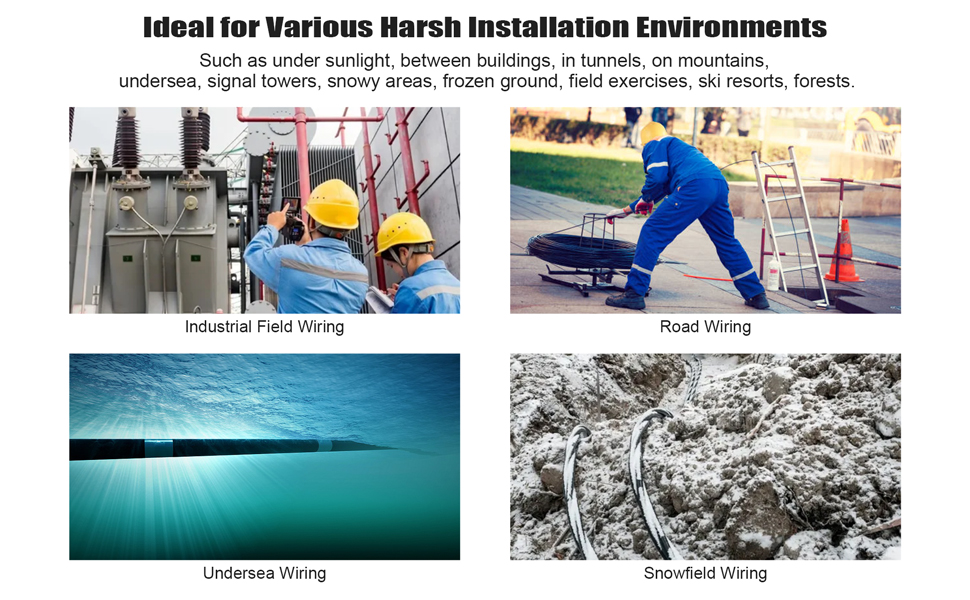

| Application | Outdoor, Harsh Environment | Indoor or underground with conduit | Outdoor, Harsh Environment | Outdoor, Harsh Environment | Outdoor, Harsh Environment | For running fiber optic cables behind walls, through conduit, ducts, or other pathways in both indoor and outdoor environments |
 Industrial OS2 Cables |  3.0mm Armored OS2 Cables |  4 Fibers Industrial OS2 Cables |  6 Fibers Industrial OS2 Cables |  12 Fibers Industrial OS2 Cables |  Fiber Pulling Eye Kit | |
|---|---|---|---|---|---|---|
| Customer Reviews | — | — | — | — | — | — |
| Price | — | — | — | — | — | — |
| Cable Diameter | 5.0mm | 3.0mm | 5.0mm | 5.0mm | 6.0mm | no data |
| Fiber Count | 2 Fibers | 2 Fibers | 4 Fibers | 6 Fibers | 12 Fibers | no data |
| Fiber Grade | G.657.A2 | G.657.A2 | G.657.A2 | G.657.A2 | G.657.A2 | no data |
| Jacket | TPU | LSZH | TPU | TPU | TPU | PVC |
| Armored | ? | ? | ? | ? | ? | no data |
| Available Length | 5m-10kilometer | 1m-10kilometer | 50-150m | 50-150m | 50-150m | 3m |
| Operating Temperature | -40 to 80°C (-40 to 176?) | -25~70°C (-13 to 158?) | -40 to 80°C (-40 to 176?) | -40 to 80°C (-40 to 176?) | -40 to 80°C (-40 to 176?) | no data |
| Application | Outdoor, Harsh Environment | Indoor or underground with conduit | Outdoor, Harsh Environment | Outdoor, Harsh Environment | Outdoor, Harsh Environment | For running fiber optic cables behind walls, through conduit, ducts, or other pathways in both indoor and outdoor environments |
 Industrial OM4 Cables |  3.0mm Armored OM4 Cables |  Industrial OM5 Cables | |
|---|---|---|---|
| Customer Reviews | — | — | — |
| Price | — | — | — |
| Cable Diameter | 5.0mm | 3.0mm | 5.0MM |
| Jacket | TPU | LSZH | TPU |
| Armored | ? | ? | ? |
| Fiber Count | 2 Fibers | 2 Fibers | 2 Fibers |
| Fiber Grade | Bend Insensitive | Bend Insensitive | Bend Insensitive |
| Available Length | 5-500m | 5-500m | 3-300m |
| Operating Temperature | -40 to 80°C (-40 to 176?) | -25~70°C (-13 to 158?) | -40 to 80°C (-40 to 176?) |
| Application | Outdoor, Harsh Environment | Indoor or underground with conduit | Outdoor, Harsh Environment |

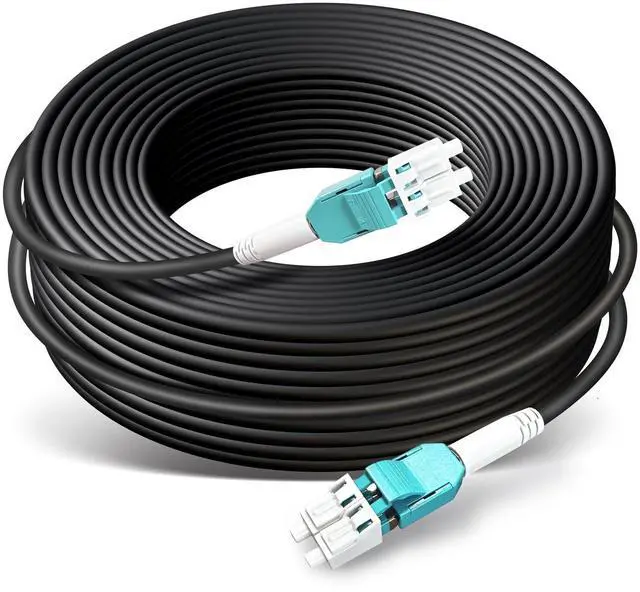

LC OM3 Multimode Harsh Environment Armored Industrial Fiber Optic Cable

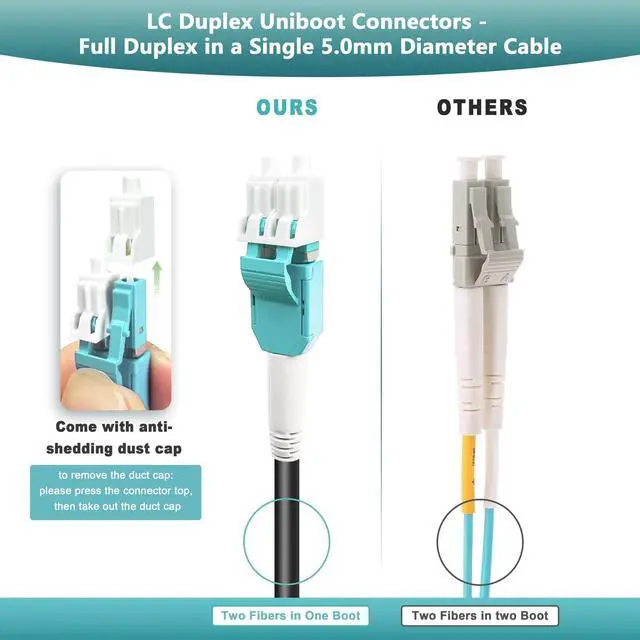

| Connector Type | LC to LC (LC Uniboot Connectors) |
| Polish Type | UPC to UPC |
| Fiber Mode | OM3 50/125µm |
| Fiber Count | Duplex |
| Fiber Grade | Bend Insensitive |
| Minimum Bend Radius | 20/10D (Dynamic/Static) |
| Cable Diameter | 5.0mm |

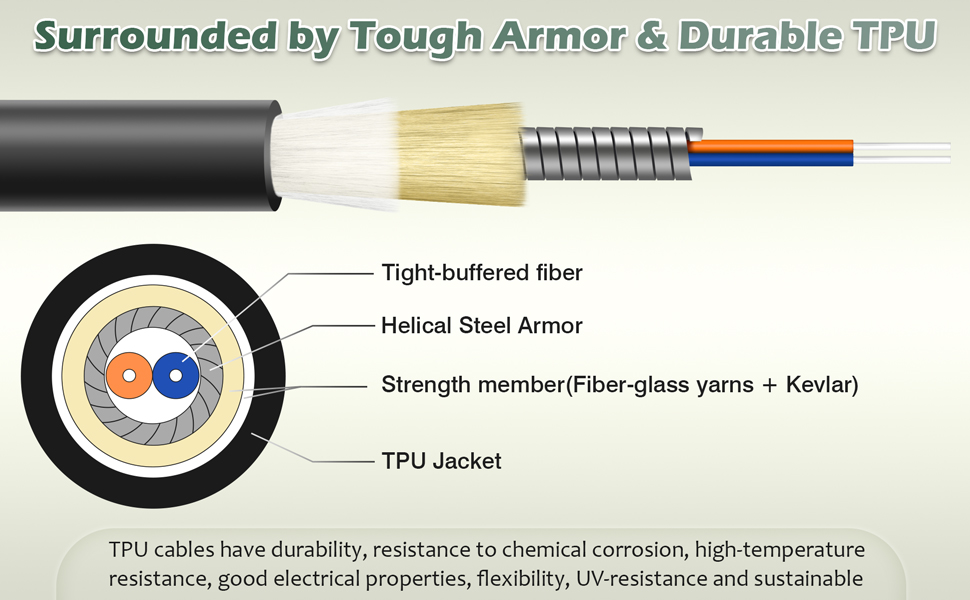

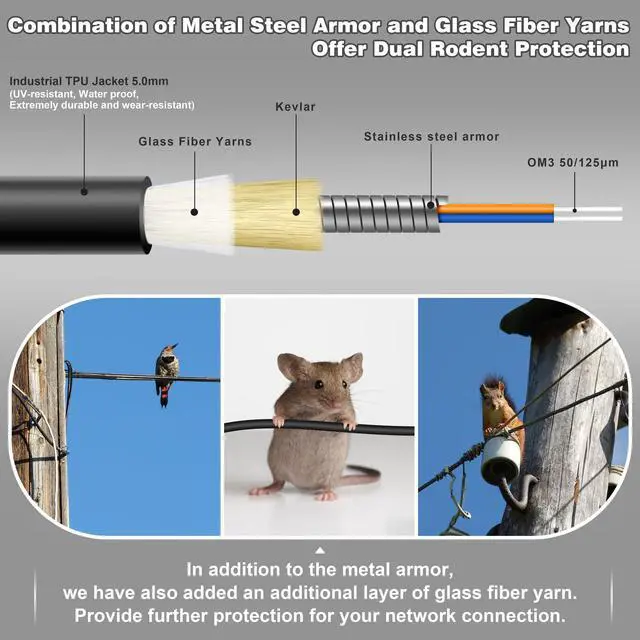

| Cable Jacket | TPU (Thermoplastic Polyurethane) |
| Tensile Resistance | 200/600N (Long/Short Term) |
| Crush Strength | 2000/3000 N/100mm (Long/Short Term) |
| Cable Color | Black |
| Wavelength | 850/1300nm |
| Insertion Loss | =0.3dB |
| Return Loss | =55dB |
| Operating Temperature | -40~80°C |
| Storage Temperature | -40~80°C |
Industrial OM3 Cables | Uniboot Armored OM3 Cables | 4 Fibers Industrial OM3 Cables | 6 Fibers Industrial OM3 Cables | 12 Fibers Industrial OM3 Cables | Fiber Pulling Eye Kit | |
|---|---|---|---|---|---|---|
| Customer Reviews | — | — | — | — | — | — |
| Price | — | — | — | — | — | — |
| Cable Diameter | 5.0mm | 3.0mm | 5.0mm | 5.0mm | 6.0mm | no data |
| Fiber Count | 2 Fibers | 2 Fibers | 4 Fibers | 6 Fibers | 12 Fibers | no data |
| Fiber Grade | Bend Insensitive | Bend Insensitive | Bend Insensitive | Bend Insensitive | Bend Insensitive | no data |
| Jacket | TPU | LSZH | TPU | TPU | TPU | PVC |
| Armored | ? | ? | ? | ? | ? | no data |
| Available Length | 5-300m | 1-300m | 10-245m | 10-245m | 10-245m | 3m |
| Operating Temperature | -40 to 80°C (-40 to 176?) | -25~70°C (-13 to 158?) | -40 to 80°C (-40 to 176?) | -40 to 80°C (-40 to 176?) | -40 to 80°C (-40 to 176?) | no data |
| Application | Outdoor, Harsh Environment | Indoor or underground with conduit | Outdoor, Harsh Environment | Outdoor, Harsh Environment | Outdoor, Harsh Environment | For running fiber optic cables behind walls, through conduit, ducts, or other pathways in both indoor and outdoor environments |
Industrial OS2 Cables | 3.0mm Armored OS2 Cables | 4 Fibers Industrial OS2 Cables | 6 Fibers Industrial OS2 Cables | 12 Fibers Industrial OS2 Cables | Fiber Pulling Eye Kit | |
|---|---|---|---|---|---|---|
| Customer Reviews | — | — | — | — | — | — |
| Price | — | — | — | — | — | — |
| Cable Diameter | 5.0mm | 3.0mm | 5.0mm | 5.0mm | 6.0mm | no data |
| Fiber Count | 2 Fibers | 2 Fibers | 4 Fibers | 6 Fibers | 12 Fibers | no data |
| Fiber Grade | G.657.A2 | G.657.A2 | G.657.A2 | G.657.A2 | G.657.A2 | no data |
| Jacket | TPU | LSZH | TPU | TPU | TPU | PVC |
| Armored | ? | ? | ? | ? | ? | no data |
| Available Length | 5m-10kilometer | 1m-10kilometer | 50-150m | 50-150m | 50-150m | 3m |
| Operating Temperature | -40 to 80°C (-40 to 176?) | -25~70°C (-13 to 158?) | -40 to 80°C (-40 to 176?) | -40 to 80°C (-40 to 176?) | -40 to 80°C (-40 to 176?) | no data |
| Application | Outdoor, Harsh Environment | Indoor or underground with conduit | Outdoor, Harsh Environment | Outdoor, Harsh Environment | Outdoor, Harsh Environment | For running fiber optic cables behind walls, through conduit, ducts, or other pathways in both indoor and outdoor environments |
Industrial OM4 Cables | 3.0mm Armored OM4 Cables | Industrial OM5 Cables | |
|---|---|---|---|
| Customer Reviews | — | — | — |
| Price | — | — | — |
| Cable Diameter | 5.0mm | 3.0mm | 5.0MM |
| Jacket | TPU | LSZH | TPU |
| Armored | ? | ? | ? |
| Fiber Count | 2 Fibers | 2 Fibers | 2 Fibers |
| Fiber Grade | Bend Insensitive | Bend Insensitive | Bend Insensitive |
| Available Length | 5-500m | 5-500m | 3-300m |
| Operating Temperature | -40 to 80°C (-40 to 176?) | -25~70°C (-13 to 158?) | -40 to 80°C (-40 to 176?) |
| Application | Outdoor, Harsh Environment | Indoor or underground with conduit | Outdoor, Harsh Environment |
