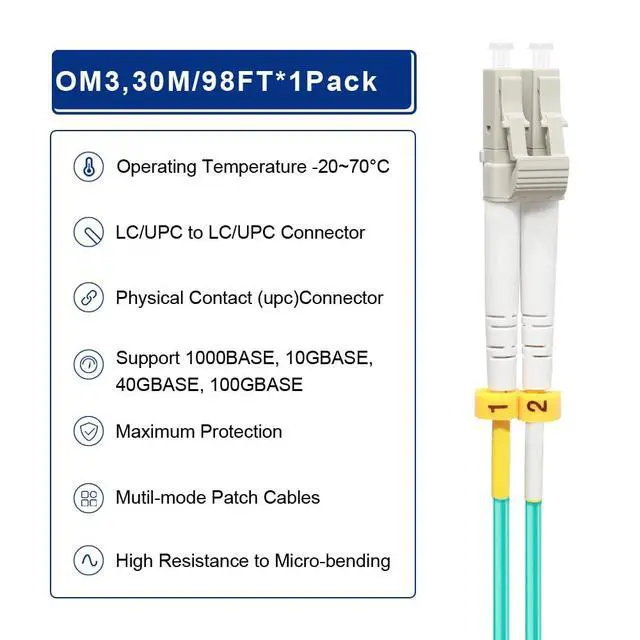

OM3 LC to LC Fiber Patch Cable 10Gb Multimode Fiber Optic Cord (MMF) 50/125um LSZH
ADVANTAGES
Plug and play cables save time in the field since there is no onsite termination necessary.
The 50/125µm OM3 multimode bend insensitive fiber optic cable is less attenuation when bent or twisted and this will make the installation and maintenance of the fiber optic cables more efficient.
It's a long term, cost effective solution to securely transmit data requiring high transfer rates.
APPLICATIONS
Computer Networking - Transfers data at a higher rate of speed.
Military and Defense - Transmits data signals more clearly.
Telecommunications - Carries data to internet, cable TV and phone subscribers at greater bandwidths.
FLYPROFiber cables are compatible with all makes and models of switches, routers, enclosures, patch panels, media converters, SFP modules and other network components.
Superior Selection, Exquisite Workmanship
Industry Standard Material
- Industry Standard Fiber Optic Cable.
- Optimum IL and RL ensure stable signal transmission, protecting your network safety.
- Meet high speed cabling networks.
Premium Ceramic Ferrule
- Japan made zirconia ceramic ferrules
- High return loss
- Low insertion loss
- Low attenuation
- Provide precise alignment to ensure the signal integrity.
Strong Resistance to Pull
- Lightweight, flexible and flame retardant
- Intensive to bending
- Easy peeling&welding
- Allows tighter or bending cable routing.
LSZH Jacket & Quality Control
- Factory-based maker, strict quality control
- Low Smoke Zero Halogen
- Provide precise alignment to ensure the signal integrity.
OM3 Duplex Multimode Fiber Optic Cable Specifications
 OS2 Single Mode Duplex |  OM3 Multimode Duplex |  OM4 Multimode Duplex |  OS2 Single Mode Simplex Armored |  OS2 Single Mode Duplex Outdoor Fiber |  OS2 Single Mode Duplex Outdoor Pull Eye | |
|---|---|---|---|---|---|---|
| Customer Reviews | — | — | — | — | — | — |
| Price | — | — | — | — | — | — |
| Data Rate | 1G/10GB | 10G/40G/100GB | 10G/40G/100GB | 1GB/10GB | 1GB/10GB | 1GB/10GB |
| Insertion Loss | =0.3dB | =0.3dB | =0.3dB | =0.3dB | =0.3dB | =0.3dB |
| Return Loss | =50dB | =30dB | =30dB | =50dB | =50dB | =50dB |
| Jacket | LSZH | LSZH | LSZH | Armored LSZH | Armored LSZH | Armored TPU |
| Min. Bend Radius(Fiber Core) | 16mm | 7.5mm | 7.5mm | 10mm | 7.5mm | 7.5mm |
| Min. Bend Radius(Fiber Cable) | 20D/10D (Dynamic/Static) | 20D/10D (Dynamic/Static) | 20D/10D (Dynamic/Static) | 30D (Dynamic/Static) | 30D (Dynamic/Static) | 30D (Dynamic/Static) |
| Fiber Grade | G652D | Bend Insensitive | Bend Insensitive | G657A1 | G657A2 | G657A2 |
| Indoor/Outdoor | Indoor | Indoor | Indoor | Indoor/Outdoor | Outdoor | Outdoor |
| Application | Indoor | Indoor | Indoor | Indoor/Conduit | Overhead/Conduit | Overhead/Direct burial/Conduit |
| Cable Diameter | 2mm | 2mm | 2mm | 3mm | 5mm | 5mm |
 OM3 Multimode Duplex Outdoor Fiber |  OM3 Multimode Duplex Outdoor Pull Eye |  OM4 Multimode Duplex Outdoor Pull Eye |  OS2 Single Mode 4-Strands Outdoor Fiber |  OS2 Single Mode 6-Strands Outdoor Fiber |  OS2 Single Mode 12-Strands Outdoor Fiber | |
|---|---|---|---|---|---|---|
| Customer Reviews | — | — | — | — | — | — |
| Price | — | — | — | — | — | — |
| Data Rate | 10G/40G/100GB | 10G/40G/100GB | 10G/40G/100GB | 1GB/10GB | 1GB/10GB | 1GB/10GB |
| Insertion Loss | =0.3dB | =0.3dB | =0.3dB | =0.3dB | =0.3dB | =0.3dB |
| Return Loss | =30dB | =30dB | =30dB | =50dB | =50dB | =50dB |
| Armored Jacket | LSZH | TPU | TPU | TPU | TPU | TPU |
| Min. Bend Radius(Fiber Core) | 7.5mm | 7.5mm | 7.5mm | 7.5mm | 7.5mm | 7.5mm |
| Min. Bend Radius(Fiber Cable) | 30D (Dynamic/Static) | 30D (Dynamic/Static) | 30D (Dynamic/Static) | 30D (Dynamic/Static) | 30D (Dynamic/Static) | 30D (Dynamic/Static) |
| Fiber Grade | Bend Insensitive | Bend Insensitive | Bend Insensitive | G657A2 | G657A2 | G657A2 |
| Cable Diameter | 5mm | 5mm | 5mm | 5mm | 5mm | 6mm |
| Indoor/Outdoor | Outdoor | Outdoor | Outdoor | Outdoor | Outdoor | Outdoor |
| Application | Overhead/Conduit | Overhead/Direct burial/Conduit | Overhead/Direct burial/Conduit | Overhead/Direct burial/Conduit | Overhead/Direct burial/Conduit | Overhead/Direct burial/Conduit |
FLYPROfiber founded in 2005. A large-scale optical communication product manufacturer integrating R&D, production and sales of optical fiber cables, optical modules, WDM, optical switches, splitters, optical circulators and other passive components.
Optical fiber cable provide high-speed and reliable network connectivity, which benefits AI applications.
LC-LC Duplex Fiber Cable
OM3 LC LC Outdoor Armored
OS2 LC-LC Outdoor Armored
SCA Simplex Fiber Optic Cable
LC-SC Duplex Fiber Cable
SC-SC Duplex Fiber Cable
Network Transceivers
10G SFP+ DAC Cable
10G SFP+ AOC Cable
OM3 LC to LC Fiber Patch Cable 10Gb Multimode Fiber Optic Cord (MMF) 50/125um LSZH
ADVANTAGES
Plug and play cables save time in the field since there is no onsite termination necessary.
The 50/125µm OM3 multimode bend insensitive fiber optic cable is less attenuation when bent or twisted and this will make the installation and maintenance of the fiber optic cables more efficient.
It's a long term, cost effective solution to securely transmit data requiring high transfer rates.
APPLICATIONS
Computer Networking - Transfers data at a higher rate of speed.
Military and Defense - Transmits data signals more clearly.
Telecommunications - Carries data to internet, cable TV and phone subscribers at greater bandwidths.
FLYPROFiber cables are compatible with all makes and models of switches, routers, enclosures, patch panels, media converters, SFP modules and other network components.
Superior Selection, Exquisite Workmanship
Industry Standard Material
- Industry Standard Fiber Optic Cable.
- Optimum IL and RL ensure stable signal transmission, protecting your network safety.
- Meet high speed cabling networks.
Premium Ceramic Ferrule
- Japan made zirconia ceramic ferrules
- High return loss
- Low insertion loss
- Low attenuation
- Provide precise alignment to ensure the signal integrity.
Strong Resistance to Pull
- Lightweight, flexible and flame retardant
- Intensive to bending
- Easy peeling&welding
- Allows tighter or bending cable routing.
LSZH Jacket & Quality Control
- Factory-based maker, strict quality control
- Low Smoke Zero Halogen
- Provide precise alignment to ensure the signal integrity.
OM3 Duplex Multimode Fiber Optic Cable Specifications
| Fiber Type | LC to LC |
| Fiber Count | Duplex |
| Polish Type | UPC to UPC |
| Cable Diameter | 2.0mm |
| Wavelength | 850nm and 1300nm |
| Bandwidth | 2000 MHz·km @850nm |
| Min. Bend Radius(Fiber Core) | 7.5mm |
| Min. Bend Radius(Fiber Cable) | 20D/10D (Dynamic/Static) |
