OS2 Single Mode LC to LC Fibe Patch Cable 9/125µm Duplex LSZH
ADVANTAGES:
Plug and play cables save time in the field since there is no onsite termination necessary.
The 9/125µm OS2 lc to lc singlemode bend insensitive fiber optic cable is less attenuation when bent or twisted and this will make the installation and maintenance of the fiber optic cables more efficient.
It's a long term, cost effective solution to securely transmit data requiring high transfer rates.
APPLICATIONS:
Computer Networking - Transfers data at a higher rate of speed.
Military and Defense - Transmits data signals more clearly.
Telecommunications - Carries data to internet, cable TV and phone subscribers at greater bandwidths.
FLYPROFiber fiber optic cables are compatible with all makes and models of switches, routers, enclosures, patch panels, media converters, SFP modules and other network components.
Superior Selection, Exquisite Workmanship
Industry Standard Material
- Industry Standard Fiber Optic Cable.
- Optimum IL and RL ensure stable signal transmission, protecting your network safety.
- Meet high speed cabling networks.

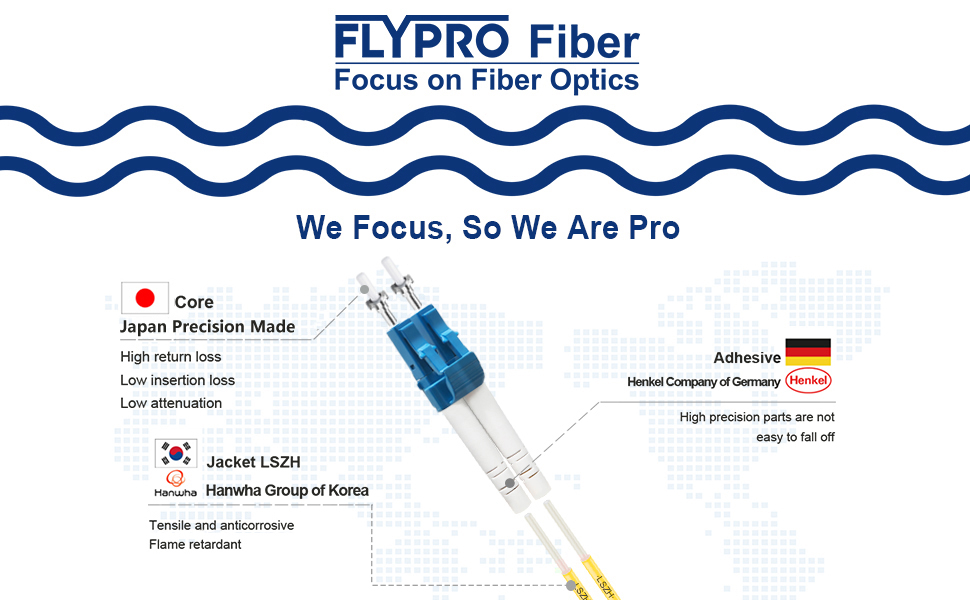

Premium Ceramic Ferrule
- Japan made zirconia ceramic ferrules
- High return loss
- Low insertion loss
- Low attenuation
- Provide precise alignment to ensure the signal integrity.
Strong Resistance to Pull
- Lightweight, flexible and flame retardant
- Intensive to bending
- Easy peeling&welding
- Allows tighter or bending cable routing.
LSZH Jacket & Quality Control
- Factory-based maker, strict quality control
- Low Smoke Zero Halogen
- Provide precise alignment to ensure the signal integrity.
OS2 Duplex Single Mode Fiber Optic Cable Specifications

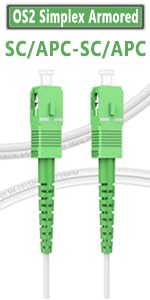

 OS2 Single Mode Duplex |  OS2 Single Mode Duplex |  OS2 Single Mode Duplex |  OS2 Single Mode Simplex Armored |  OS2 Single Mode Duplex Outdoor Fiber |  OS2 Single Mode Duplex Outdoor Pull Eye | |
|---|---|---|---|---|---|---|
| Customer Reviews | — | — | — | — | — | — |
| Price | — | — | — | — | — | — |
| Data Rate | 1GB/10GB | 1GB/10GB | 1GB/10GB | 1GB/10GB | 1GB/10GB | 1GB/10GB |
| Insertion Loss | =0.3dB | =0.3dB | =0.3dB | =0.3dB | =0.3dB | =0.3dB |
| Return Loss | =50dB | =50dB | =50dB | =50dB | =50dB | =50dB |
| Jacket | LSZH | LSZH | LSZH | Armored LSZH | Armored LSZH | Armored TPU |
| Min. Bend Radius(Fiber Core) | 16mm | 16mm | 16mm | 10mm | 7.5mm | 7.5mm |
| Min. Bend Radius(Fiber Cable) | 20D/10D (Dynamic/Static) | 20D/10D (Dynamic/Static) | 20D/10D (Dynamic/Static) | 30D (Dynamic/Static) | 30D (Dynamic/Static) | 30D (Dynamic/Static) |
| Fiber Grade | G652D | G652D | G652D | G657A1 | G657A2 | G657A2 |
| Indoor/Outdoor | Indoor | Indoor | Indoor | Indoor/Outdoor | Outdoor | Outdoor |
| Application | Indoor | Indoor | Indoor | Indoor/Conduit | Overhead/Conduit | Overhead/Direct burial/Conduit |
| Cable Diameter | 2mm | 2mm | 2mm | 3mm | 5mm | 5mm |
OS2 Single Mode LC to LC Fibe Patch Cable 9/125µm Duplex LSZH
ADVANTAGES:
Plug and play cables save time in the field since there is no onsite termination necessary.
The 9/125µm OS2 lc to lc singlemode bend insensitive fiber optic cable is less attenuation when bent or twisted and this will make the installation and maintenance of the fiber optic cables more efficient.
It's a long term, cost effective solution to securely transmit data requiring high transfer rates.
APPLICATIONS:
Computer Networking - Transfers data at a higher rate of speed.
Military and Defense - Transmits data signals more clearly.
Telecommunications - Carries data to internet, cable TV and phone subscribers at greater bandwidths.
FLYPROFiber fiber optic cables are compatible with all makes and models of switches, routers, enclosures, patch panels, media converters, SFP modules and other network components.
Superior Selection, Exquisite Workmanship
Industry Standard Material
- Industry Standard Fiber Optic Cable.
- Optimum IL and RL ensure stable signal transmission, protecting your network safety.
- Meet high speed cabling networks.
Premium Ceramic Ferrule
- Japan made zirconia ceramic ferrules
- High return loss
- Low insertion loss
- Low attenuation
- Provide precise alignment to ensure the signal integrity.
Strong Resistance to Pull
- Lightweight, flexible and flame retardant
- Intensive to bending
- Easy peeling&welding
- Allows tighter or bending cable routing.
LSZH Jacket & Quality Control
- Factory-based maker, strict quality control
- Low Smoke Zero Halogen
- Provide precise alignment to ensure the signal integrity.
OS2 Duplex Single Mode Fiber Optic Cable Specifications
| Fiber Type | LC to LC |
| Fiber Count | Duplex |
| Polish Type | UPC to UPC |

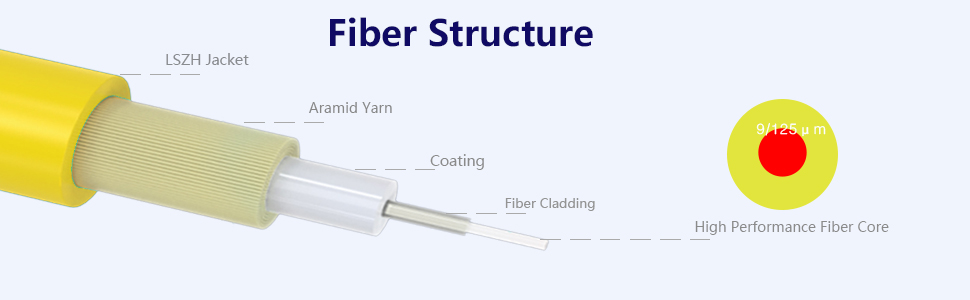

| Fiber Mode | OS2 9/125µm single mode |
| Cable Diameter | 2.0mm |
| Wavelength | 1310nm and 1550nm |
| Attenuation at 1310nm | 0.36 dB/km |
| Attenuation at 1550nm | 0.22 dB/km |
| Ferrule Material | Ceramic |
| Min. Bend Radius(Fiber Core) | 16mm |
| Min. Bend Radius(Fiber Cable) | 20D/10D (Dynamic/Static) |
| Fiber Grade | G.652.D |

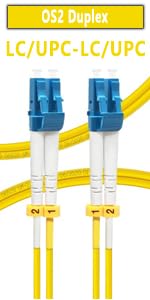

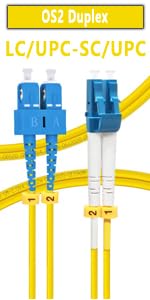

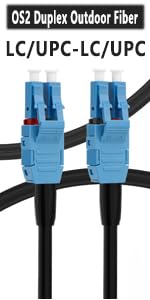

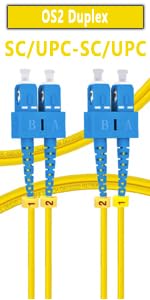

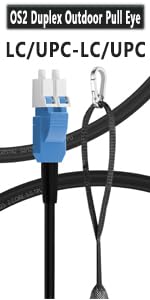

OS2 Single Mode Duplex | OS2 Single Mode Duplex | OS2 Single Mode Duplex | OS2 Single Mode Simplex Armored | OS2 Single Mode Duplex Outdoor Fiber | OS2 Single Mode Duplex Outdoor Pull Eye | |
|---|---|---|---|---|---|---|
| Customer Reviews | — | — | — | — | — | — |
| Price | — | — | — | — | — | — |
| Data Rate | 1GB/10GB | 1GB/10GB | 1GB/10GB | 1GB/10GB | 1GB/10GB | 1GB/10GB |
| Insertion Loss | =0.3dB | =0.3dB | =0.3dB | =0.3dB | =0.3dB | =0.3dB |
| Return Loss | =50dB | =50dB | =50dB | =50dB | =50dB | =50dB |
| Jacket | LSZH | LSZH | LSZH | Armored LSZH | Armored LSZH | Armored TPU |
| Min. Bend Radius(Fiber Core) | 16mm | 16mm | 16mm | 10mm | 7.5mm | 7.5mm |
| Min. Bend Radius(Fiber Cable) | 20D/10D (Dynamic/Static) | 20D/10D (Dynamic/Static) | 20D/10D (Dynamic/Static) | 30D (Dynamic/Static) | 30D (Dynamic/Static) | 30D (Dynamic/Static) |
| Fiber Grade | G652D | G652D | G652D | G657A1 | G657A2 | G657A2 |
| Indoor/Outdoor | Indoor | Indoor | Indoor | Indoor/Outdoor | Outdoor | Outdoor |
| Application | Indoor | Indoor | Indoor | Indoor/Conduit | Overhead/Conduit | Overhead/Direct burial/Conduit |
| Cable Diameter | 2mm | 2mm | 2mm | 3mm | 5mm | 5mm |
