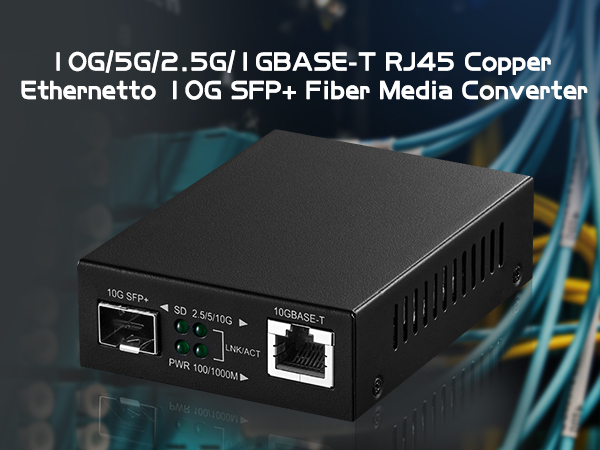

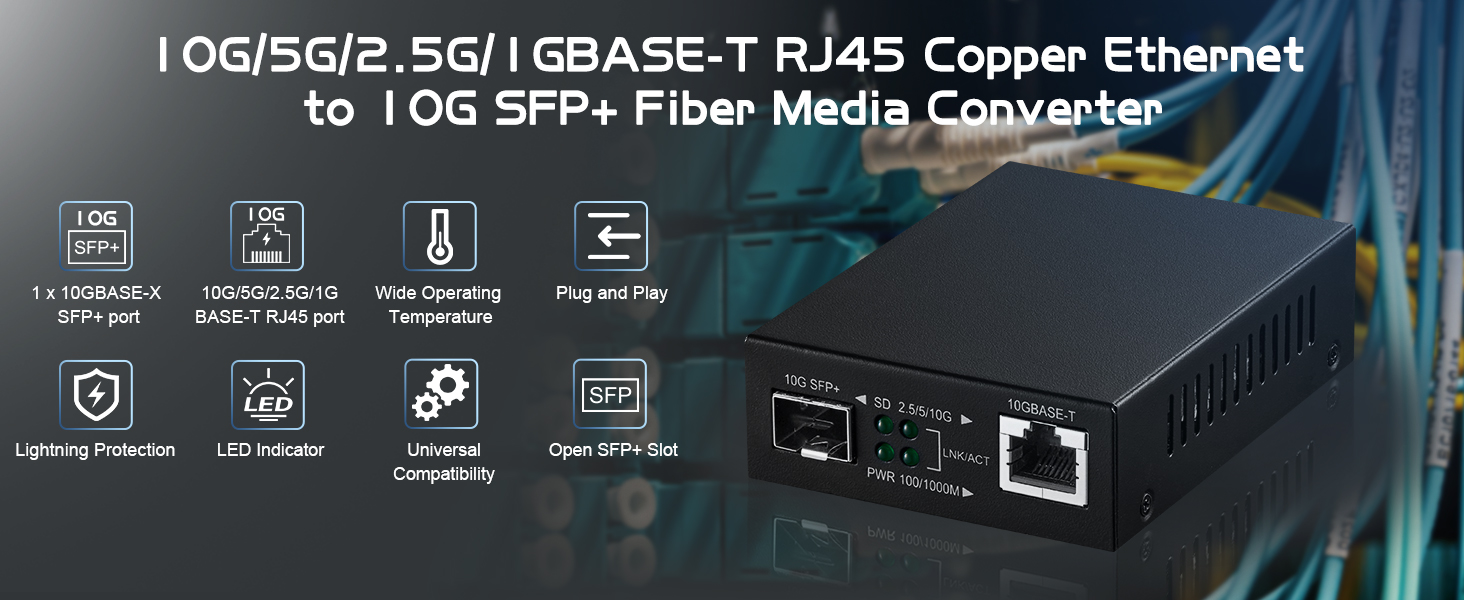

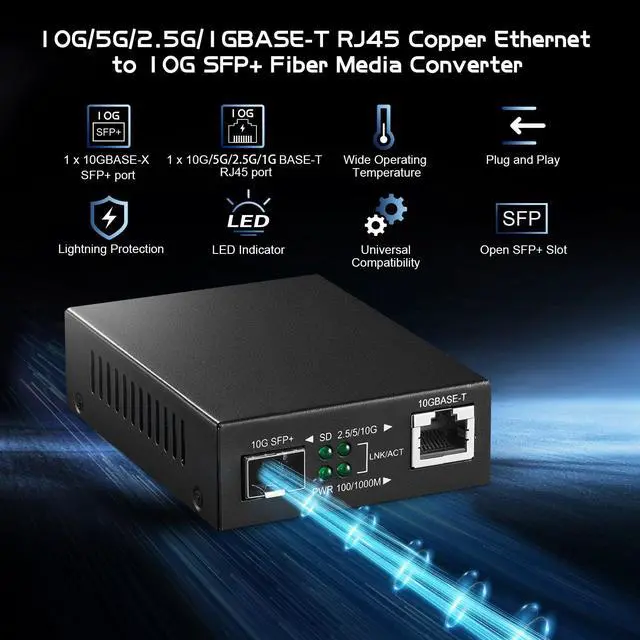

CON-10G1E1SN can realize the conversion between 2 different transmission media, fiber and network cable, providing 1*100M/1G/2.5G/5G/10Gbps adaptive RJ45 port and 1*10Gbps SFP+ module slot, which can convert the short distance 10Gbase-TX electrical signal and long distance 10Gbase-FX optical signal.

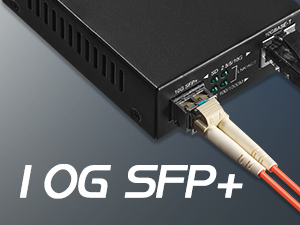

SFP+ Interface
Enabling seamless integration with multiple SFP+ transceiver models, it significantly enhances your network's operational flexibility and scalability.
10G High Speed
Delivers lightning-fast data transfer rates up to 10Gbps, with backward compatibility for 1G/2.5G/5G speeds.

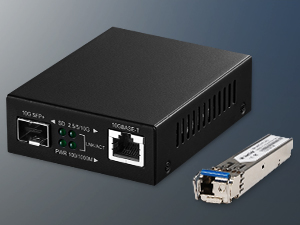

Open SFP+ Slot
This SFP+ slot is non-encrypted, supporting any brand of SFP/SFP+ modules with extensive compatibility. (Not support 2.5G SFP Module).
Extension Distance
Effortlessly expand network coverage beyond 20 kilometers using single-mode fiber optics, optimized for high-performance point-to-point connectivity.
Plug and Play
Plug-and-play, no configuration required, hot-plugging support

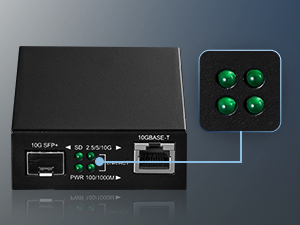

Led Indicator
Panel indicators monitor operating status and help with fault analysis.

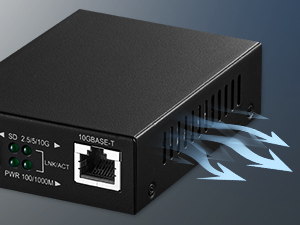

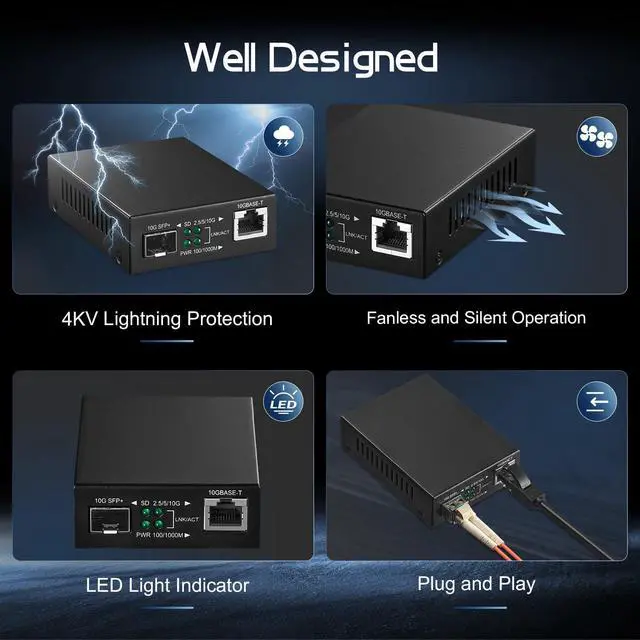

Robust Design
Compact dimensions with IP30-rated metal enclosure, fanless design ensures silent operation without noise.

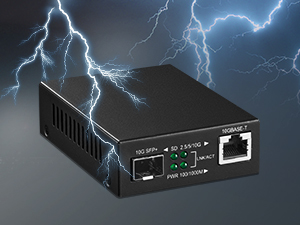

Surge Protection
4kV surge protection, working temperature 0?~40?.
Product Specifications
CON-10G1E1SN can realize the conversion between 2 different transmission media, fiber and network cable, providing 1*100M/1G/2.5G/5G/10Gbps adaptive RJ45 port and 1*10Gbps SFP+ module slot, which can convert the short distance 10Gbase-TX electrical signal and long distance 10Gbase-FX optical signal.
SFP+ Interface
Enabling seamless integration with multiple SFP+ transceiver models, it significantly enhances your network's operational flexibility and scalability.
10G High Speed
Delivers lightning-fast data transfer rates up to 10Gbps, with backward compatibility for 1G/2.5G/5G speeds.
Open SFP+ Slot
This SFP+ slot is non-encrypted, supporting any brand of SFP/SFP+ modules with extensive compatibility. (Not support 2.5G SFP Module).
Extension Distance
Effortlessly expand network coverage beyond 20 kilometers using single-mode fiber optics, optimized for high-performance point-to-point connectivity.
Plug and Play
Plug-and-play, no configuration required, hot-plugging support
Led Indicator
Panel indicators monitor operating status and help with fault analysis.
Robust Design
Compact dimensions with IP30-rated metal enclosure, fanless design ensures silent operation without noise.
Surge Protection
4kV surge protection, working temperature 0?~40?.
Product Specifications
| Model | CON-10G1E1SN |
|---|---|
| Interface | 1*100M/1G/2.5G/5G/10Gbps RJ45 Port + 1*10Gbps SFP slot |
| Protocol Standards | IEEE802.3u 100BASE-TX IEEE802.3ab 1000BASE-T IEEE802.3bz 2.5G/5GBASE-T IEEE802.3an 10GBASE-T IEEE802.3ae 10Gbps Ethernet IEEE802.3x full-duplex flow control (Copper Port) |
| Network Cables | 10G/5G/2.5G/1G/100M BASE-T: 10G--Cat. 6A and above unshielded category twisted pair 5G--Cat. 6 and above unshielded category twisted pair 1G/2.5G--Cat. 5e and above unshielded category twisted pair 100M-- Cat. 5 and above unshielded category twisted pair Cat. 5/5e/6/6A UTP cable (100 meters, max.) EIA/TIA-568 100-ohm STP (100 meters, max.) |
| Indicator Light | PWR (Green), LNK/ACT (Green),SD (Green) |
| Input Voltage | 12V/1A, DC Adapter |
| Appearance Size(L*W*H) | 93.5*70*26mm, Black |
| Operating Temperature | 0?~40? |
| Storage Temperature | -40?~80? |
| Operating Humidity | 10% ~ 90% non-condensing |
| Storage Humidity | 5% ~ 90% non-condensing |
| Surge Protection | Differential mode ±2KV, Common mode ±4KV |
| Electrostatic Standard | Contact ±6KV, Air ±8KV |
| MTBF | >100000 hours |
