Fiber Ethernet Media Converter
Single-Mode 10/100Base-TX to 100Base-FX

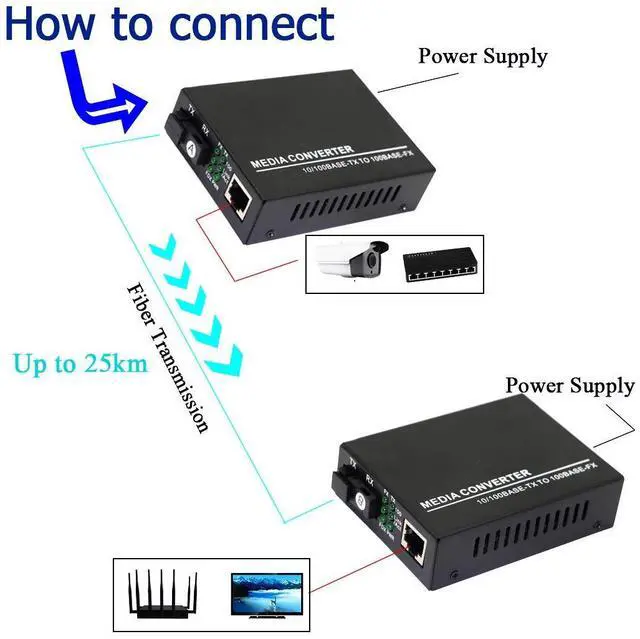

Long-distance transmission:*The optical fiber transceiver A and the optical fiber transceiver B are 100M single-mode single-fiber optical fiber transceivers. After pairing, they can exchange short-distance twisted pair electrical signals and long-distance optical signals Change and transmit long-distance signals through optical fiber
*Use fiber optic wiring to expand or bridge the network in a cost-effective manner, with a transmission distance of up to 25KM, 1310nm
*Convenient user upgrade, can easily achieve motherboard server, Repeaters, hubs, terminal and terminal of the interconnection connection

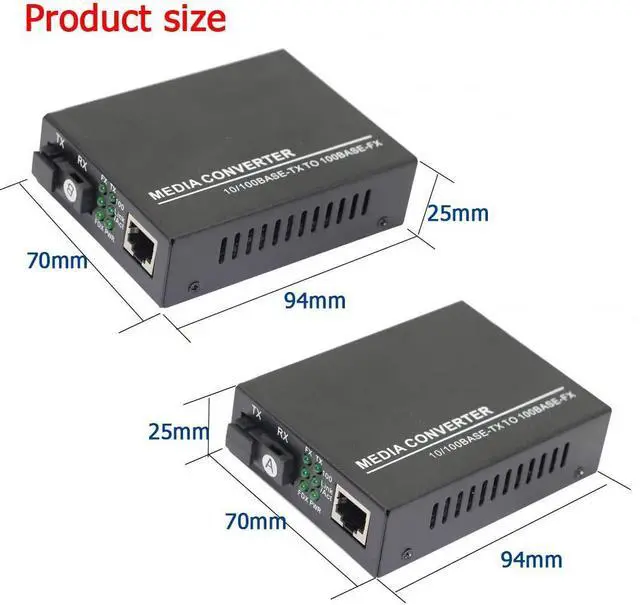

Specifications:*Single Size: 94 × 70 × 25 (mm) Single Weight: 148 (g) Color: Black
*Operating Temperature: -20~ + 70 ? Storage Temperature: -40 ~ + 85 ? Input Voltage: 5V
Package includes:Converters (A / B)*2, External Power Supplies*2, User Manual*1

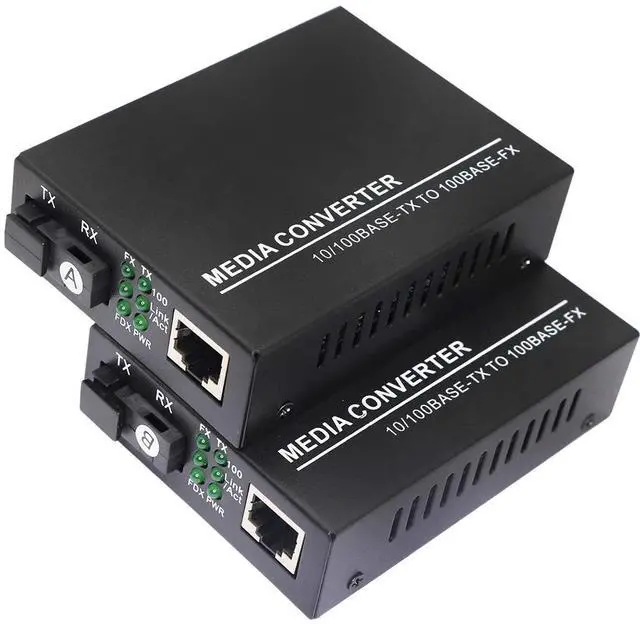

high-quality metal case
high-quality metal case
Support for low-delay time pure data transmission and full/half-duplex flow control.
Built-in watch-dog timer to monitor any error in internal data exchange.

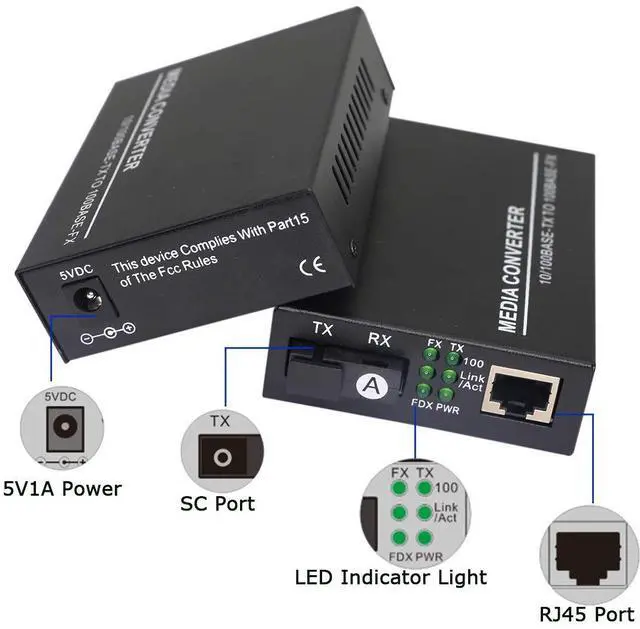

Interface:
1 x Ethernet port (RJ45) 10/100Base-Tx
1 x Optical port (Single SC) 100Base-Fx
Optical Port:
1310nm Single mode ,Transfer Distance: up to 20km
Connectors: Single SC connector ,Fiber core: 8.3um, 8.7um, 9um and 10um on single mode fiber
Optical Power (dBm): -15~ -8
Receiving Sensitivity (dBm): =-34
Ethernet Port:
Standard: IEEE 802.3, IEEE 802.3u
Available speed: auto-detective 10/100Mbps Full-Duplex and Half-Duplex auto-negotiation
Connectors: RJ-45 connector; MDI/MDI-X connection auto-sensing

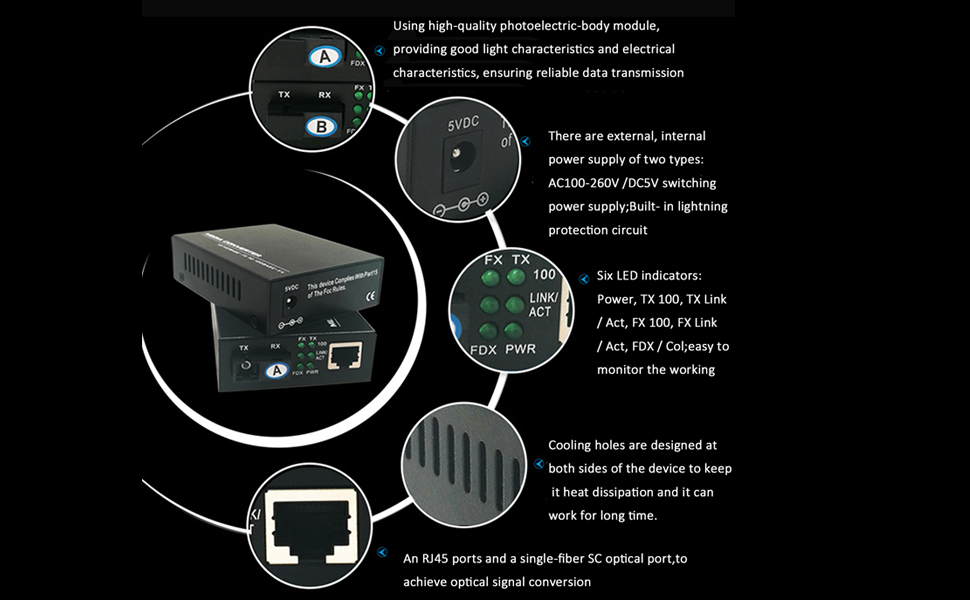

Fiber Ethernet Transceiver Detail Description
Efficient And Stable Chip
* Newly imported chips, which efficiently distribute decoding processing capabilities, have strong recognition capabilities, ignore interference, and consume less power, enabling the device to achieve higher performance and stable data transmission
* Average trouble-free time exceeding 50000 hours, in line with standard telecom-level operations
Strong heat dissipation
Cooling holes are designed at both sides of the device to keep it heat dissipation and it can work for long time.
High-quality Metal Housing.

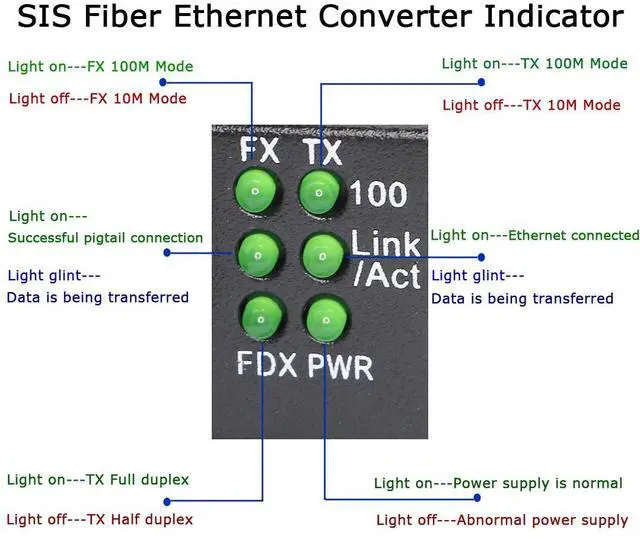

LED Indicator Easy To View
Six LED indicators: Power, TX 100, TX Link / Act, FX 100, FX Link / Act, FDX / Col;easy to monitor the working
Built- in lightning protection circuit , which can greatly reduce the damage caused by lightning induction
Transmission distance: 25 Km,Dimensions: 95*71*25mm.
* RJ45 port: Automatic detection of 10M / 100M Cat5 /6cable.

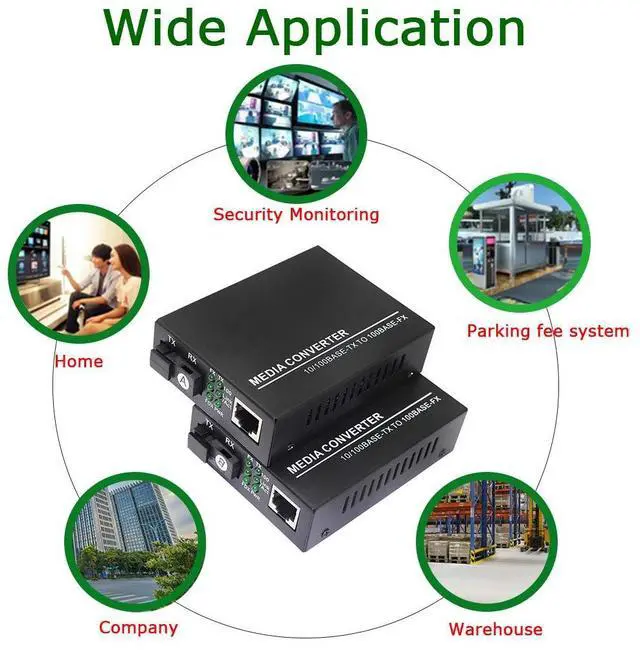

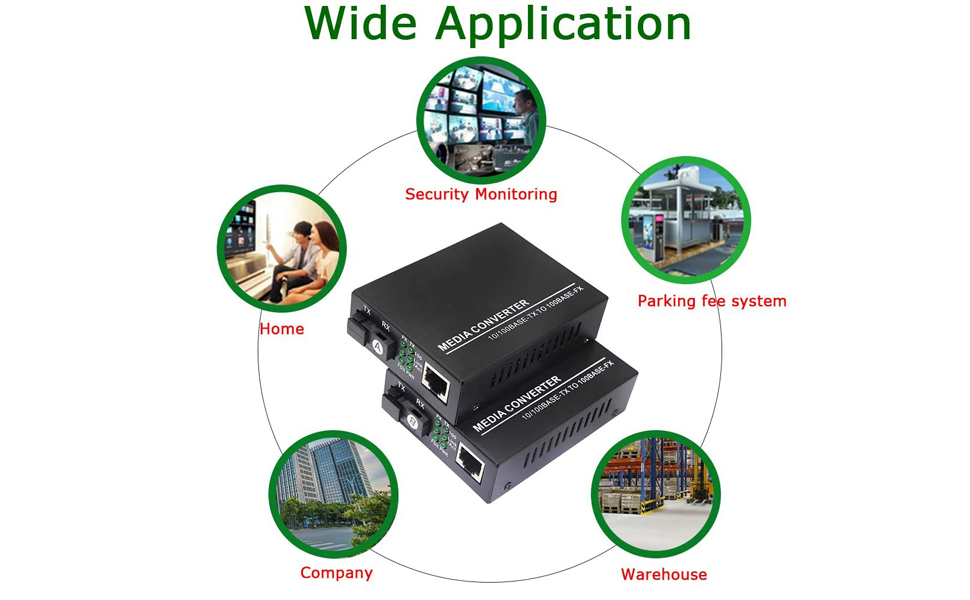

Wide Applications
* Provide connections for users in isolated areas of large complexes or in separate buildings.
* It should work in a variety of environments: security monitoring, community network monitoring, highway high-definition bayonet, intelligent transportation system, parking lot access control, fiber optic access, broadcast and television transmission and other fields.
Fiber Ethernet Media Converter
Single-Mode 10/100Base-TX to 100Base-FX
Long-distance transmission:*The optical fiber transceiver A and the optical fiber transceiver B are 100M single-mode single-fiber optical fiber transceivers. After pairing, they can exchange short-distance twisted pair electrical signals and long-distance optical signals Change and transmit long-distance signals through optical fiber
*Use fiber optic wiring to expand or bridge the network in a cost-effective manner, with a transmission distance of up to 25KM, 1310nm
*Convenient user upgrade, can easily achieve motherboard server, Repeaters, hubs, terminal and terminal of the interconnection connection
Specifications:*Single Size: 94 × 70 × 25 (mm) Single Weight: 148 (g) Color: Black
*Operating Temperature: -20~ + 70 ? Storage Temperature: -40 ~ + 85 ? Input Voltage: 5V
Package includes:Converters (A / B)*2, External Power Supplies*2, User Manual*1
high-quality metal case
high-quality metal case
Support for low-delay time pure data transmission and full/half-duplex flow control.
Built-in watch-dog timer to monitor any error in internal data exchange.
Interface:
1 x Ethernet port (RJ45) 10/100Base-Tx
1 x Optical port (Single SC) 100Base-Fx
Optical Port:
1310nm Single mode ,Transfer Distance: up to 20km
Connectors: Single SC connector ,Fiber core: 8.3um, 8.7um, 9um and 10um on single mode fiber
Optical Power (dBm): -15~ -8
Receiving Sensitivity (dBm): =-34
Ethernet Port:
Standard: IEEE 802.3, IEEE 802.3u
Available speed: auto-detective 10/100Mbps Full-Duplex and Half-Duplex auto-negotiation
Connectors: RJ-45 connector; MDI/MDI-X connection auto-sensing
Fiber Ethernet Transceiver Detail Description
Efficient And Stable Chip
* Newly imported chips, which efficiently distribute decoding processing capabilities, have strong recognition capabilities, ignore interference, and consume less power, enabling the device to achieve higher performance and stable data transmission
* Average trouble-free time exceeding 50000 hours, in line with standard telecom-level operations
Strong heat dissipation
Cooling holes are designed at both sides of the device to keep it heat dissipation and it can work for long time.
High-quality Metal Housing.
LED Indicator Easy To View
Six LED indicators: Power, TX 100, TX Link / Act, FX 100, FX Link / Act, FDX / Col;easy to monitor the working
Built- in lightning protection circuit , which can greatly reduce the damage caused by lightning induction
Transmission distance: 25 Km,Dimensions: 95*71*25mm.
* RJ45 port: Automatic detection of 10M / 100M Cat5 /6cable.
Wide Applications
* Provide connections for users in isolated areas of large complexes or in separate buildings.
* It should work in a variety of environments: security monitoring, community network monitoring, highway high-definition bayonet, intelligent transportation system, parking lot access control, fiber optic access, broadcast and television transmission and other fields.
