Open SFP Slot A Pair of 1.25G/s Gigabit Fiber Ethernet Media Converter 10/100/1000Base-Tx to 1000Base-SX SMF RJ45 to SFP Slot, Support SFP Gigabit modules up to 120KM(2 Pack)
- What You Get: 2pcs Gigabit Ethernet SFP Slot media converters; 2pcs AC/DC Power Supply; 1 x Users Manual. Support wide power supply voltage (100V-240V), Power Supply: 5V-1A, UL Certified.

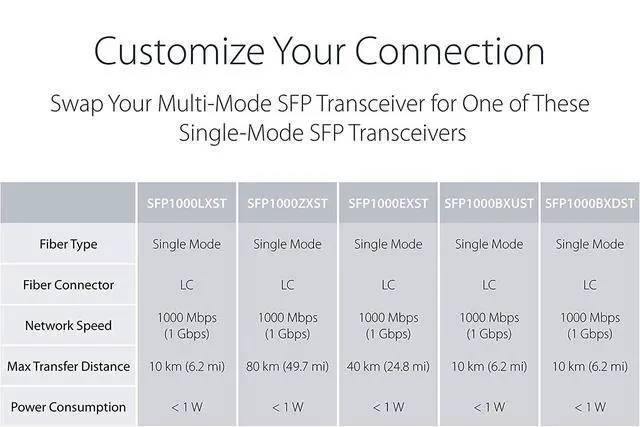

- Supports Multi-mode or Single-mode fiber using different SFP modules (not including any SFP transceiver); Convert and extend different networks over a LC fiber cable connection up to 120KM (depends on the SFP transceiver)
- RJ45 Port: 10M/100M/1000M Auto-negotiation, full Duplex or half Duplex, Auto-negotiation, Supports MDI/MDIX auto-crossover, Complies with IEEE 802.3/802.3u/802.3z/802.3ab.
- Fiber Optical Port: 1.25Gbps 1310-nm wavelength SFP port, connecting the BiDi transceivers up to 30-120km ; Fiber Type: SMF, Cable Type: UTP/STP Cat.5e for 100 meters.
- Plug & Play: Simply plug in optical port and RJ45 port, and it will work immediatelly. Status LED's for TX, FX LINK/ACT, POWER, FDX to easily monitor network status. Supports jumbo frame size 9K bytes; Supports working temperature range from 0°C to 60°C.
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Supports Multi-mode or Single-mode fiber using different SFP modules (not including any SFP transceiver); Convert and extend different networks over a LC fiber cable connection up to 120KM (Depends on the SFP transceiver)

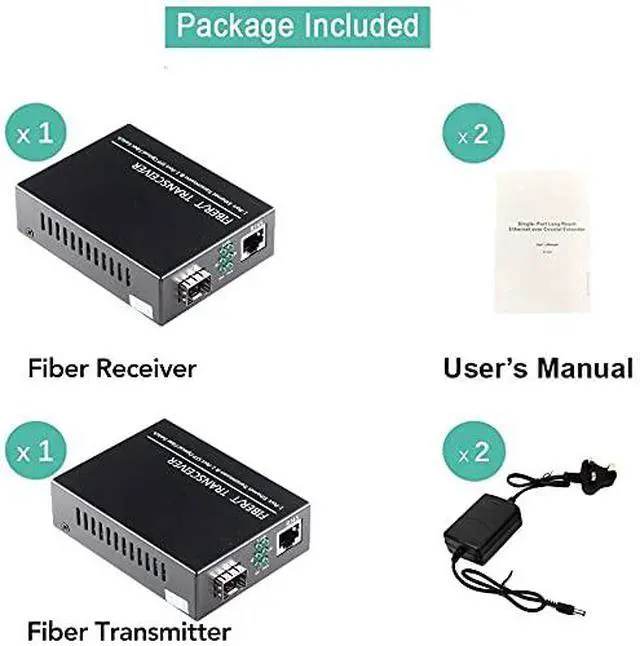

Product Include
2x Gigabit Ethernet Fiber Media Converter
2x DC Power Adapter Output voltage:5V DC/1A;
1x Product Manual,Multi-Language Quick Installation Guide
Feature Introduction
1.Optical Port Data Rate:1.25Gbps,10/100/1000Base-Tx-LX Fiber Gigabit Media Converter
2.Interface:SFP Slot Port+RJ45 Port, RJ45 Port Data Rate: 10/100/1000M auto-negotiation
Excellent Function
1.Super Heat Dissipation:Air-vent on both sides and metal enclosure provide better heat dissipation,low power consumption and long service life
2.Lightning protection.Strong anti-interference ability.High-speed and stability signal conversion

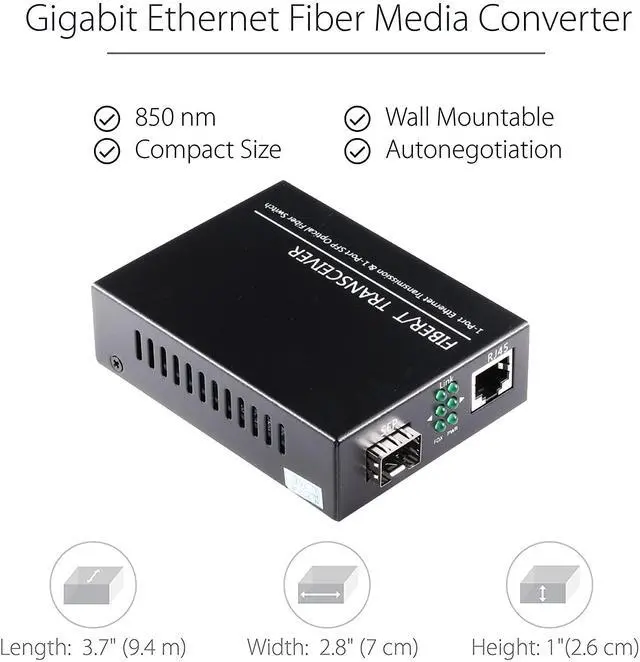

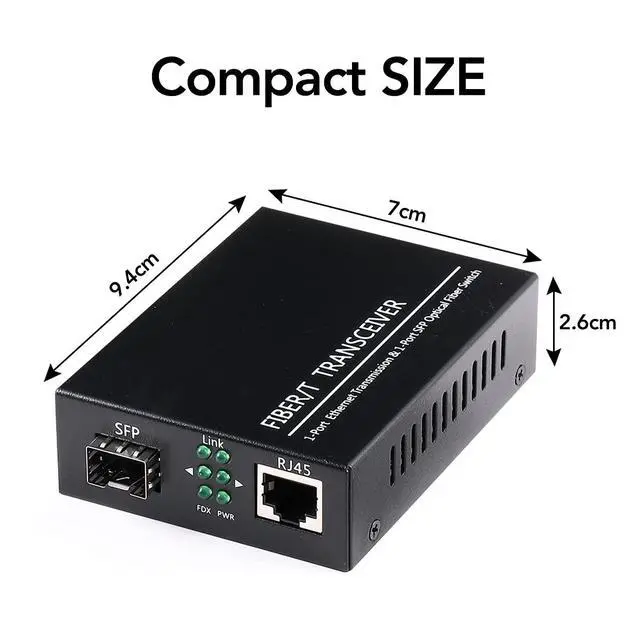

3.Standalone design with simple plug-and-play set-up.Compact size provide more flexible installation options.Dimensions:95x72x27mm(DxWxH)
4.Power Adapter Safety standards: UL/EN60950 GB4943, Power Dissipation 3 watts, External Power:AC100V~240V
5.High-quality Conversion Chip & Easy Installation,Operating temperature: 0°C to 60°C.Humidity:5% to 90% RH
Wide Applications
1.Extend or bridge networks using fiber cable
2.Provide connectivity to users in an isolated area of a large complex or in a separate building
3.Ideal for secure connections required by government or corporations where EMI is not acceptable

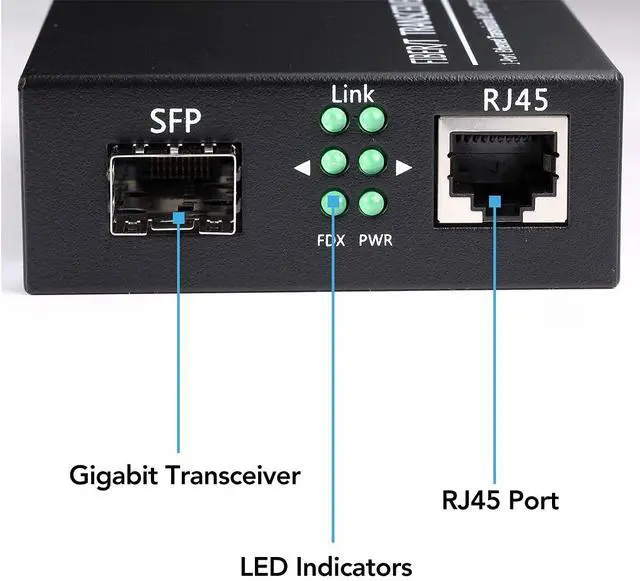

LED Indicators
1.FP:Light on when fiber speed is 1000Mbps,else light off
2.TP:Light on when TP speed is 1000Mbps, else light off
3.Link/ACT: Left side is indicate for fiber port link/act and right side for TP, light flashing when data transmitting and receiving
4.FDX: Light on when TP full-duplex mode is active,light off when TP half-duplex mode is active
5.PWR: Light on when DC power on,else light off.
