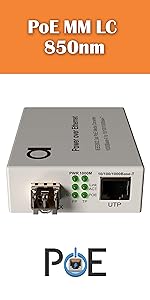

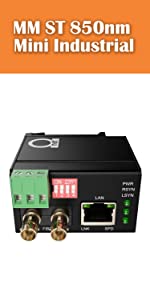

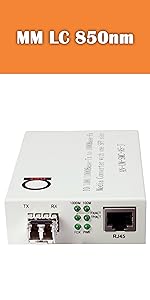

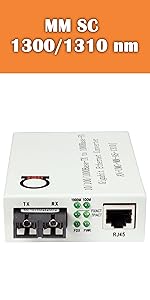

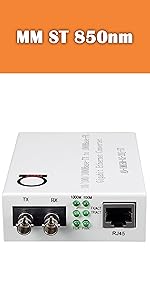

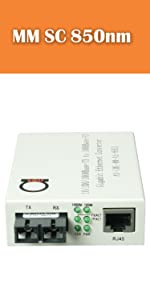

 SC Multimode Gigabit 2 km (1.24 mi) Built-In Fiber Module Media Converter |  LC Multimode Gigabit 550m (0.34 mi) LC Fiber Module Media Converter |  ST Multimode Gigabit 550m (0.34 mi) Built-In Fiber Module Media Converter |  SC Multimode Gigabit 550m (0.34 mi) Built-In Fiber Module Media Converter |  PoE Multimode LC 850nm 550m (0.34mi) Fiber Media Converter |  DIN Rail Industrial Multimode ST 850nm Fiber Media Converter 550m (0.34mi) | |
|---|---|---|---|---|---|---|
| Customer Reviews | — | — | — | — | — | — |
| Price | — | — | — | — | — | — |
| Speed | Gigabit (default) / Fast Ethernet (User Configurable) | Gigabit (default) / Fast Ethernet (User Configurable) | Gigabit (default) / Fast Ethernet (User Configurable) | Gigabit (default) / Fast Ethernet (User Configurable) | Gigabit | Gigabit (default) / Fast Ethernet (User Configurable) |
| UTP (RJ-45) Port Autosensing to 10 / 100 / 1000 Mbit/s | ? | ? | ? | ? | ? | ? |
| Fiber Type | Multi Mode | Multi Mode | Multi Mode | Multi Mode | Multi Mode | Multi Mode |
| Fiber Connector | SC | LC | ST | SC | LC | ST |
| Wavelength | 1300/1310nm | 850nm | 850nm | 850nm | 850nm | 850nm |
| Power Supply | AC adapter in set | AC adapter in set | AC adapter in set | AC adapter in set | AC adapter in set | AC adapter in set (it also accepts direct DC input via phoenix connector) |
| Maximum Reach | 1.24 miles (2 km) | 0.34 miles (550 m) | 0.34 miles (550 m) | 0.34 miles (550 m) | 0.34 miles (550 m) | 0.34 miles (550 m) |
| Size | 70.5mm - 2.77in - (L) X 94mm – 3.7in (W) X 26.5mm – 1.04in (H) | 70.5mm - 2.77in - (L) X 94mm – 3.7in (W) X 26.5mm – 1.04in (H) | 70.5mm - 2.77in - (L) X 94mm – 3.7in (W) X 26.5mm – 1.04in (H) | 70.5mm - 2.77in - (L) X 94mm – 3.7in (W) X 26.5mm – 1.04in (H) | 70.5mm - 2.77in - (L) X 94mm – 3.7in (W) X 26.5mm – 1.04in (H) | 60* 50* 35 mm (2.36* 1.96* 1.37in) (L*W*H) |
| DIN rail support | no data | no data | no data | no data | no data | ? |
| PoE/PoE+ PSE Output | no data | no data | no data | no data | ? | no data |

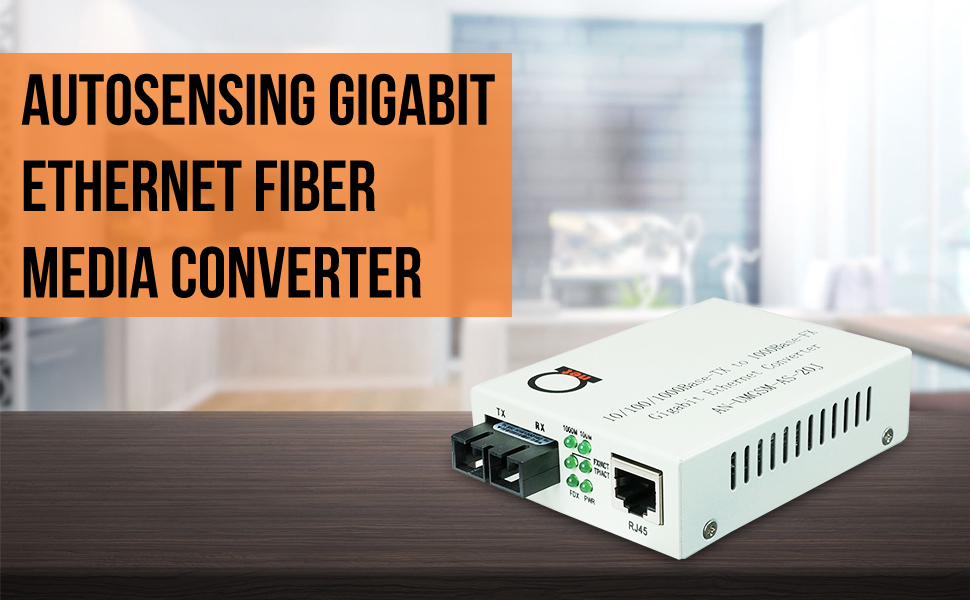

Plug-n-Play Solution to Extend Ethernet over Multimode Cables up to 2 km (1.24 miles)
Extend your Gigabit or Fast Ethernet Network Over Multi Mode Fiber Up to 2 km (1.24 miles) using 1310 nm With Ease

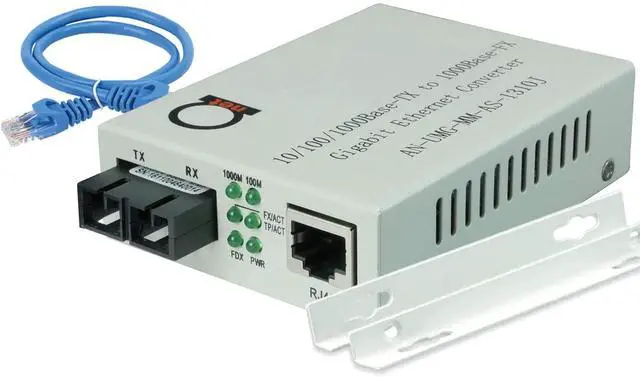

AN-UMG-MM-AS-1310J Will Automatically Detect 10 Mbit/s or 100 Mbit/s Fast Ethernet or 1000 Mbit/s Gigabit port - You just need plug in the cables and it will work right away!
Powering it up?
Easy, it will come with AC power adapter in set, just plug it!
Versatile Protocol & Features Support
- Supports Jumbo Ethernet Frames up to 9000 bytes (if needed, configurable by dip switches);
- Supports QinQ and VLAN's - MTU size big enough to pass them through;
- One 1000Base-X Multi Mode Dual Fiber port Port with SC type connector - up to 2 km (1.24 miles) distance using 1310 nm wavelength
- One 10/100/1000Base-T RJ-45 port Autosensing featured - adapts to all 3 speeds!
- Compliant with IEEE 10/100/1000Base-T and 1000Base-X
- Connect it to Gigabit or Fast Ethernet ports (UTP RJ-45 port is Autosensing, for Fiber Port default mode is Gigabit, use dip switch setting to set speed to 100M (Fast Ethernet)
- When used standalone (paired with other devices), be sure to check that wavelengths match - 1310 nm used in these converters.
Sturdy, Stable, and Easy To Use

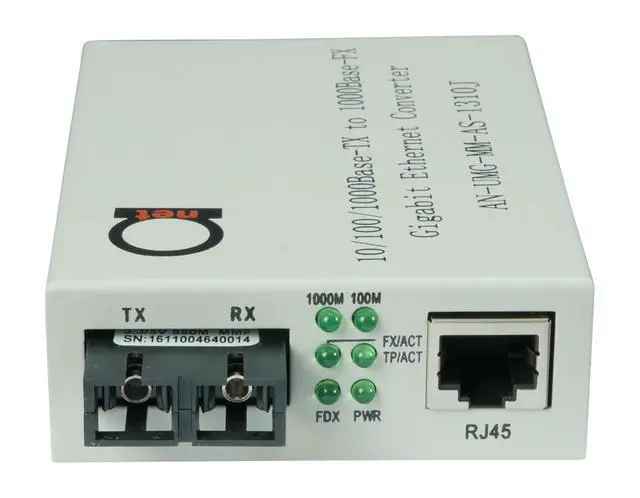

- Status LED indicators for Power, Link/Activity, Full-Duplex, and Speed
- Standards: IEEE802.3z/ab 100/1000/1000Base-T 1000Base-X
- Transmission Wavelength - 1310 nm
- Power supply: 100 to 240VAC 50 to 60Hz
- Dimensions: 70.5mm - 2.77in - (L) X 94mm – 3.7in (W) X 26.5mm – 1.04in (H)
- Environment: Relative humidity; 5% to 90%
- Operating temperature: 0 to 70 degree Celsius

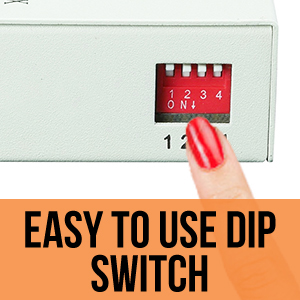

- Supports LLF feature - Link Loss Feature - (if needed, configurable by dip switches)
More Features, More Convience and Ease of Mind!

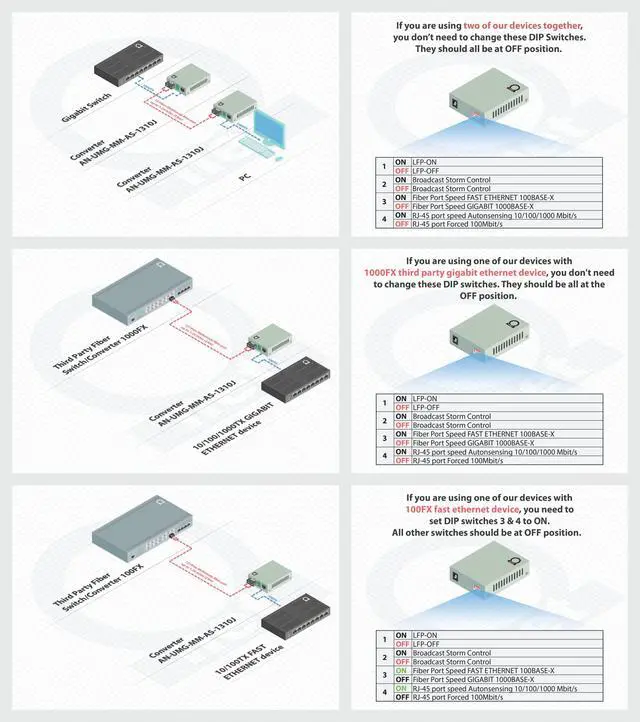

Setup of these units are really easy as the 3 steps shown in picture gallery - all default settings will work for all of your cases, but if you can turn on/off LFF feature or Jumbo frame - do it!

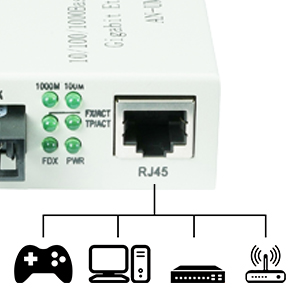

While in most cases you will have LAN switches, WiFi routers, or regular PC's connected to media converter UTP port - this versatile converter will still work with any standard Ethernet port device!
Scale Up Your Network as You Grow!
Autosensing 10/100/1000 Gigabit Ethernet port auto adapts to Fast Ethernet speed device as well.
BONUS!

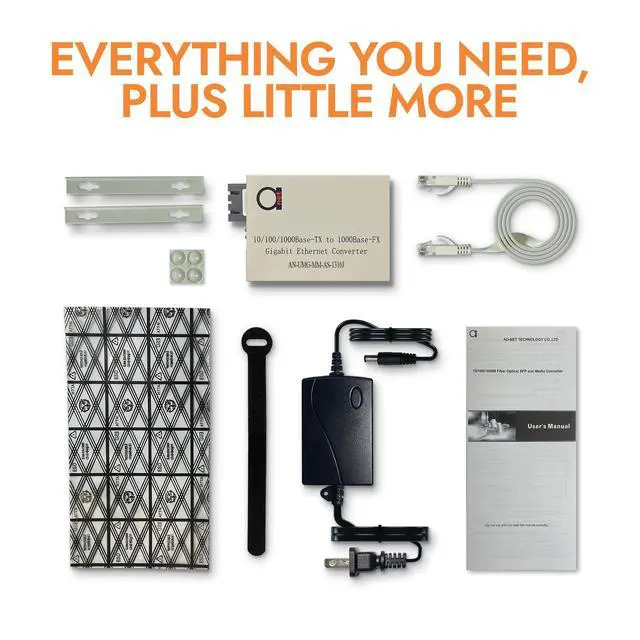

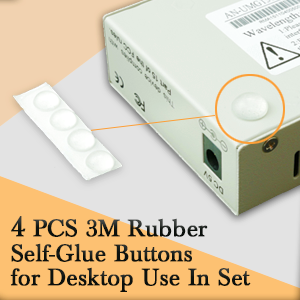

+ you getfreewall mount ears and rubber buttons in set!
SC Multimode Gigabit 2 km (1.24 mi) Built-In Fiber Module Media Converter | LC Multimode Gigabit 550m (0.34 mi) LC Fiber Module Media Converter | ST Multimode Gigabit 550m (0.34 mi) Built-In Fiber Module Media Converter | SC Multimode Gigabit 550m (0.34 mi) Built-In Fiber Module Media Converter | PoE Multimode LC 850nm 550m (0.34mi) Fiber Media Converter | DIN Rail Industrial Multimode ST 850nm Fiber Media Converter 550m (0.34mi) | |
|---|---|---|---|---|---|---|
| Customer Reviews | — | — | — | — | — | — |
| Price | — | — | — | — | — | — |
| Speed | Gigabit (default) / Fast Ethernet (User Configurable) | Gigabit (default) / Fast Ethernet (User Configurable) | Gigabit (default) / Fast Ethernet (User Configurable) | Gigabit (default) / Fast Ethernet (User Configurable) | Gigabit | Gigabit (default) / Fast Ethernet (User Configurable) |
| UTP (RJ-45) Port Autosensing to 10 / 100 / 1000 Mbit/s | ? | ? | ? | ? | ? | ? |
| Fiber Type | Multi Mode | Multi Mode | Multi Mode | Multi Mode | Multi Mode | Multi Mode |
| Fiber Connector | SC | LC | ST | SC | LC | ST |
| Wavelength | 1300/1310nm | 850nm | 850nm | 850nm | 850nm | 850nm |
| Power Supply | AC adapter in set | AC adapter in set | AC adapter in set | AC adapter in set | AC adapter in set | AC adapter in set (it also accepts direct DC input via phoenix connector) |
| Maximum Reach | 1.24 miles (2 km) | 0.34 miles (550 m) | 0.34 miles (550 m) | 0.34 miles (550 m) | 0.34 miles (550 m) | 0.34 miles (550 m) |
| Size | 70.5mm - 2.77in - (L) X 94mm – 3.7in (W) X 26.5mm – 1.04in (H) | 70.5mm - 2.77in - (L) X 94mm – 3.7in (W) X 26.5mm – 1.04in (H) | 70.5mm - 2.77in - (L) X 94mm – 3.7in (W) X 26.5mm – 1.04in (H) | 70.5mm - 2.77in - (L) X 94mm – 3.7in (W) X 26.5mm – 1.04in (H) | 70.5mm - 2.77in - (L) X 94mm – 3.7in (W) X 26.5mm – 1.04in (H) | 60* 50* 35 mm (2.36* 1.96* 1.37in) (L*W*H) |
| DIN rail support | no data | no data | no data | no data | no data | ? |
| PoE/PoE+ PSE Output | no data | no data | no data | no data | ? | no data |
Plug-n-Play Solution to Extend Ethernet over Multimode Cables up to 2 km (1.24 miles)
Extend your Gigabit or Fast Ethernet Network Over Multi Mode Fiber Up to 2 km (1.24 miles) using 1310 nm With Ease
AN-UMG-MM-AS-1310J Will Automatically Detect 10 Mbit/s or 100 Mbit/s Fast Ethernet or 1000 Mbit/s Gigabit port - You just need plug in the cables and it will work right away!
Powering it up?
Easy, it will come with AC power adapter in set, just plug it!
Versatile Protocol & Features Support
- Supports Jumbo Ethernet Frames up to 9000 bytes (if needed, configurable by dip switches);
- Supports QinQ and VLAN's - MTU size big enough to pass them through;
- One 1000Base-X Multi Mode Dual Fiber port Port with SC type connector - up to 2 km (1.24 miles) distance using 1310 nm wavelength
- One 10/100/1000Base-T RJ-45 port Autosensing featured - adapts to all 3 speeds!
- Compliant with IEEE 10/100/1000Base-T and 1000Base-X
- Connect it to Gigabit or Fast Ethernet ports (UTP RJ-45 port is Autosensing, for Fiber Port default mode is Gigabit, use dip switch setting to set speed to 100M (Fast Ethernet)
- When used standalone (paired with other devices), be sure to check that wavelengths match - 1310 nm used in these converters.
Sturdy, Stable, and Easy To Use
- Status LED indicators for Power, Link/Activity, Full-Duplex, and Speed
- Standards: IEEE802.3z/ab 100/1000/1000Base-T 1000Base-X
- Transmission Wavelength - 1310 nm
- Power supply: 100 to 240VAC 50 to 60Hz
- Dimensions: 70.5mm - 2.77in - (L) X 94mm – 3.7in (W) X 26.5mm – 1.04in (H)
- Environment: Relative humidity; 5% to 90%
- Operating temperature: 0 to 70 degree Celsius
- Supports LLF feature - Link Loss Feature - (if needed, configurable by dip switches)
More Features, More Convience and Ease of Mind!
Setup of these units are really easy as the 3 steps shown in picture gallery - all default settings will work for all of your cases, but if you can turn on/off LFF feature or Jumbo frame - do it!
While in most cases you will have LAN switches, WiFi routers, or regular PC's connected to media converter UTP port - this versatile converter will still work with any standard Ethernet port device!
Scale Up Your Network as You Grow!
Autosensing 10/100/1000 Gigabit Ethernet port auto adapts to Fast Ethernet speed device as well.
BONUS!
+ you getfreewall mount ears and rubber buttons in set!
