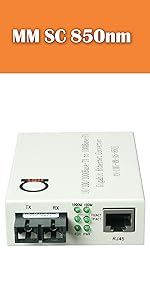

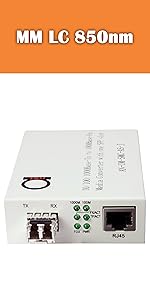

 SC Multimode Gigabit 550m (0.34 mi) Built-In Fiber Module Media Converter |  SC Multimode Gigabit 2 km (1.24 mi) Built-In Fiber Module Media Converter |  ST Multimode Gigabit 550m (0.34 mi) Built-In Fiber Module Media Converter |  LC Multimode Gigabit 550m (0.34 mi) LC Fiber Module Media Converter |  LC Single Mode Gigabit 20km (12.24 mi) Built-In Fiber Module Media Converter |  SFP to SFP (Fiber to Fiber) Open SFP slot Gigabit Media Converter | |
|---|---|---|---|---|---|---|
| Customer Reviews | — | — | — | — | — | — |
| Price | — | — | — | — | — | — |
| Speed | Gigabit | Gigabit | Gigabit | Gigabit | Gigabit | Gigabit |
| Autosensing to 10 / 100 / 1000 Mbit/s | ? | ? | ? | ? | ? | no data |
| Fiber Type | Multi Mode | Multi Mode | Multi Mode | Multi Mode | Single Mode | Depends on SFP module used |
| Fiber Connector | SC | SC | ST | LC | LC | Depends on SFP module used |
| Wavelength | 850nm | 1300/1310nm | 850nm | 850nm | 1310nm | Depends on SFP module used |
| Power Supply | AC adapter in set | AC adapter in set | AC adapter in set | AC adapter in set | AC adapter in set | AC adapter in set |
| Maximum Reach | 0.34 miles (550 m) | 1.24 miles (2 km) | 0.34 miles (550 m) | 0.34 miles (550 m) | 12.24 miles (20 km) | Depends on SFP module used |
| Size | 70.5mm - 2.77in - (L) X 94mm – 3.7in (W) X 26.5mm – 1.04in (H) | 70.5mm - 2.77in - (L) X 94mm – 3.7in (W) X 26.5mm – 1.04in (H) | 70.5mm - 2.77in - (L) X 94mm – 3.7in (W) X 26.5mm – 1.04in (H) | 70.5mm - 2.77in - (L) X 94mm – 3.7in (W) X 26.5mm – 1.04in (H) | 70.5mm - 2.77in - (L) X 94mm – 3.7in (W) X 26.5mm – 1.04in (H) | 70.5mm - 2.77in - (L) X 94mm – 3.7in (W) X 26.5mm – 1.04in (H) |
| LFP & Jumbo Frame Support | ? | ? | ? | ? | ? | no data |
| UTP cable & Wall Mount Ears in Set | ? | ? | ? | ? | ? | no data |

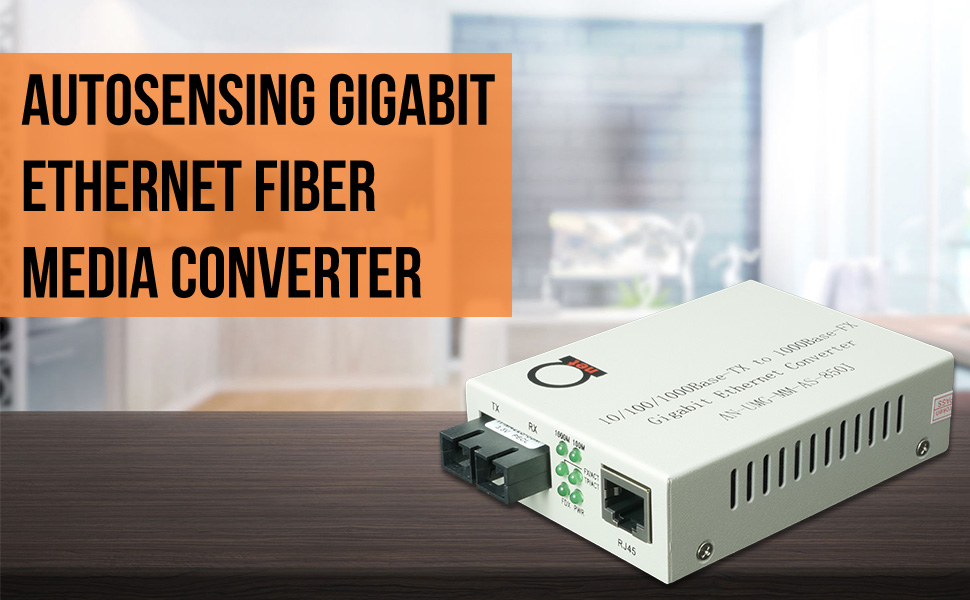

Plug-n-Play Solution to Extend Ethernet over Multimode Cables up to 550m (0.34 miles) – High Performance 850 nm SC Built-In Fiber Module Ready to Use
Extend your Gigabit or Fast Ethernet Network Over Multi Mode FiberUp to 550 m (0.34 miles) using 850 nm With Ease - SC connector used
AN-UM-SMC-AS-J+MM-SFP-KIT Multimode Fiber Media Converter Will Automatically Detect 10 Mbit/s or 100 Mbit/s Fast Ethernet or 1000 Mbit/s Gigabit port
You just need plug in the cables and it will work right away!
Powering it up?
Easy, it will come with an AC power adapter in the set, just plug it in!
Sturdy, Stable, and Easy To Use
- Supports Jumbo Ethernet Frames up to 9000 bytes (if needed, configurable by dip switches);
- Supports QinQ and VLAN's - MTU size big enough to pass them through;
- One 1000Base-SX Multi Mode Dual Fiber port Port with SC type connector - up to 550m (0.34 miles) distance using 850 nm wavelength
- One 10/100/1000Base-T RJ-45 port Autosensing featured - adapts to all 3 speeds!
- Compliant with IEEE 10/100/1000Base-T and 1000Base-SX
- Connect it to Gigabit or Fast Ethernet ports
- When used standalone (paired with other devices), be sure to check that wavelengths match - 850 nm used in these converters.
Versatile Protocol & Features Support

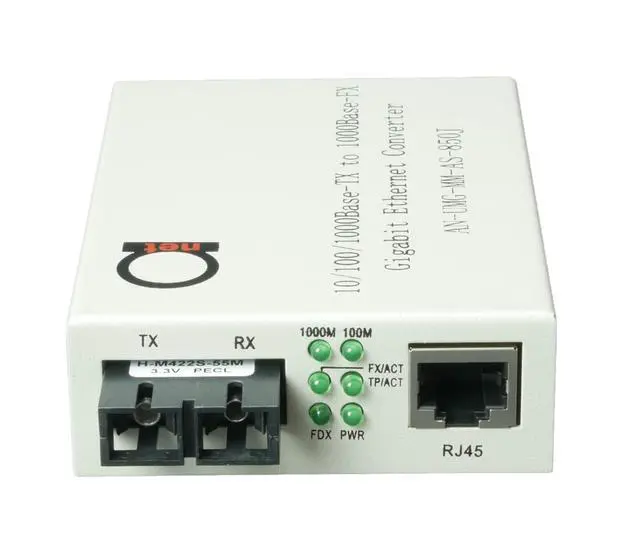

- Status LED indicators for Power, Link/Activity, Full-Duplex, and Speed
- Standards: IEEE802.3z/ab 100/1000/1000Base-T 1000Base-SX
- Transmission Wavelength – 850 nm, Fiber Connector Type: SC
- Power supply: 100 to 240VAC 50 to 60Hz
- Dimensions: 70.5mm - 2.77in - (L) X 94mm – 3.7in (W) X 26.5mm – 1.04in (H)
- Environment: Relative humidity; 5% to 90%
- Operating temperature: 0 to 70 degree Celsius (32 - 158 F)
- Supports LLF feature - Link Loss Feature - (if needed, configurable by dip switches)
More Features, More Convenience and Peace of Mind!

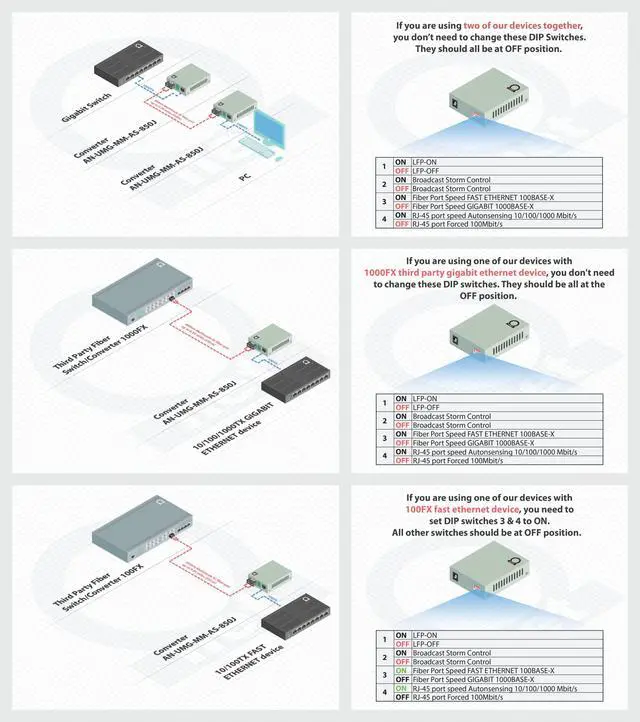

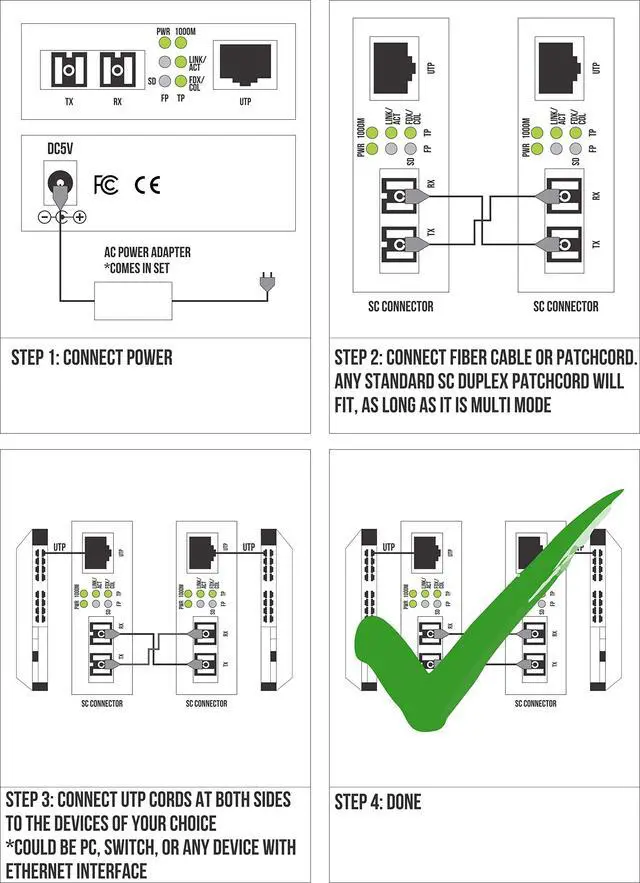

Setup of these units are really easy as the 3 steps shown in picture gallery - all default settings will work for all of your cases, but if you can turn on/off LFF/LFP feature or Jumbo frame - do it!

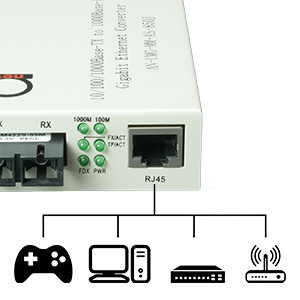

While in most cases you will have LAN switches, WiFi routers, or regular PC's connected to media converter UTP port - this versatile converter will still work with any standard Ethernet port device!
Scale Up Your Network as You Grow!
Autosensing10/100/1000 Gigabit Ethernet port auto adapts to Fast Ethernet speed device as well.
BONUS!

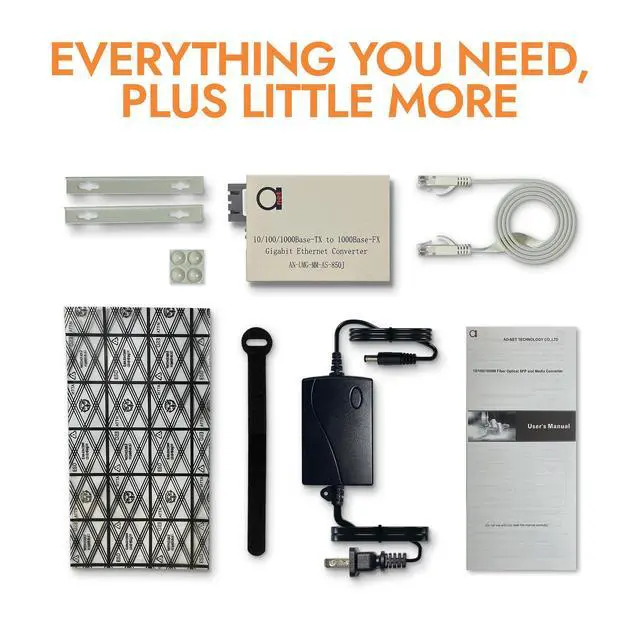

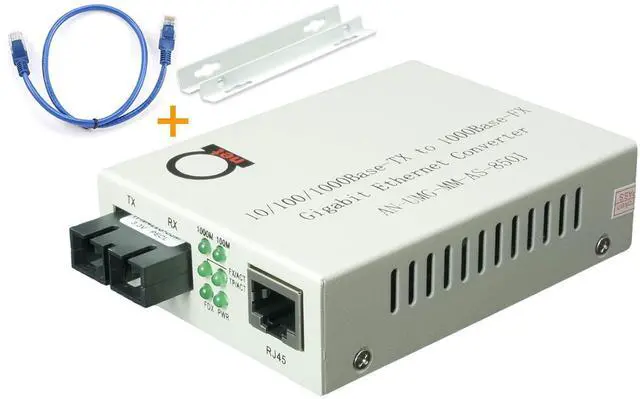

+ you getfreewall mount ears and rubber buttons in set!
