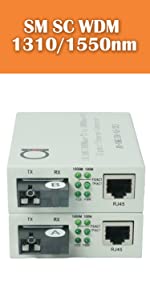

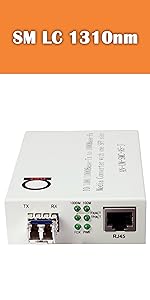

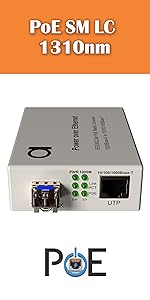

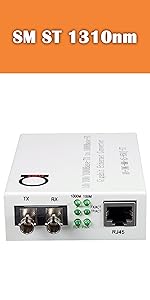

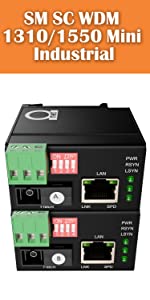

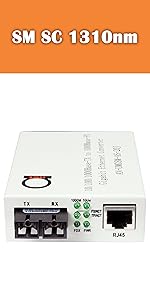

 SC Single Mode Gigabit 20km (12.24 mi) Built-In Fiber Module Media Converter |  LC Single Mode Gigabit 20km (12.24 mi) Built-In Fiber Module Media Converter |  ST Single Mode Gigabit 20km (12.24 mi) Built-In Fiber Module Media Converter |  PoE Single Mode LC 1310nm 20km (12.42mi) Power Over Ethernet Fiber Converter |  DIN RAIL Industrial Mini Type Single Mode Single Fiber WDM SC Media Converters |  Single Mode SC WDM Bi-Di Single Fiber Gigabit Built-In Fiber Module Converter | |
|---|---|---|---|---|---|---|
| Customer Reviews | — | — | — | — | — | — |
| Price | — | — | — | — | — | — |
| Speed | Gigabit | Gigabit | Gigabit | Gigabit | Universal: Gigabit / Fast Ethernet | Gigabit |
| Autosensing to 10 / 100 / 1000 Mbit/s | ? | ? | ? | ? | ? | ? |
| Fiber Type | Single Mode | Single Mode | Single Mode | Single Mode | Single Mode (1 fiber - Single Strand) | Single Mode (1 fiber - Single Strand) |
| Fiber Connector | SC | LC | ST | LC | SC | SC |
| Wavelength | 1310nm | 1310nm | 1310nm | 1310nm | 1310/1550 nm A-side | 1550/1310nm B-side | 1310/1550 nm A-side | 1550/1310nm B-side |
| Power Supply | AC adapter in set | AC adapter in set | AC adapter in set | AC adapter in set | 9 - 55 VDC (AC adapter in set) | AC adapter in set |
| Maximum Reach | 12.24 miles (20 km) | 12.24 miles (20 km) | 12.24 miles (20 km) | 12.24 miles (20 km) | 12.24 miles (20 km) | 12.24 miles (20 km) |
| Size | 70.5mm - 2.77in - (L) X 94mm – 3.7in (W) X 26.5mm – 1.04in (H) | 70.5mm - 2.77in - (L) X 94mm – 3.7in (W) X 26.5mm – 1.04in (H) | 70.5mm - 2.77in - (L) X 94mm – 3.7in (W) X 26.5mm – 1.04in (H) | 70.5mm - 2.77in - (L) X 94mm – 3.7in (W) X 26.5mm – 1.04in (H) | 60* 50* 35 mm (2.36* 1.96* 1.37in) (L*W*H) | 70.5mm - 2.77in - (L) X 94mm – 3.7in (W) X 26.5mm – 1.04in (H) |
| DIN rail support | no data | no data | no data | no data | ? | no data |
| PoE/PoE+ PSE Output | no data | no data | no data | ? | no data | no data |

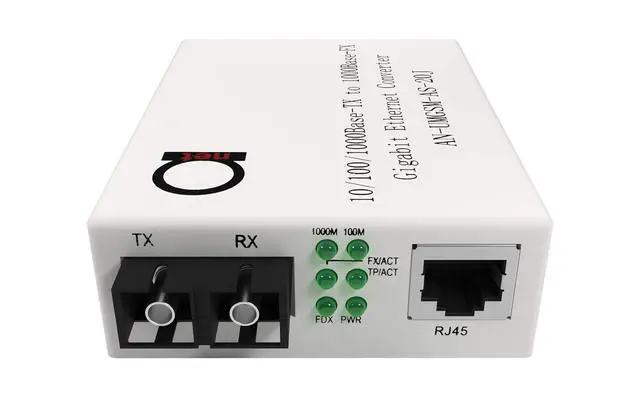

Plug-n-Play Solution to Extend Ethernet over Single Mode Type Cables
Extend your Gigabit or Fast Ethernet Network Over Single Mode Fiber Up to 20 km With Ease
AN-UMGSM-AS-20J Will Automatically Detect 10 Mbit/s or 100 Mbit/s Fast Ethernet or 1000 Mbit/s Gigabit port - You just need plug in the cables and it will work right away!
Powering it up?
Easy, it will come with AC power adapter in set, just plug it!
Versatile Protocol & Features Support
- Supports Jumbo Ethernet Frames up to 9000 bytes (if needed, configurable by dip switches);
- Supports QinQ and VLAN's - MTU size big enough to pass them through;
- One 1000Base-LX Single Mode Dual Fiber port Port with SC type connector - up to 20 km distance
- One 10/100/1000Base-T RJ-45 port Autosensing featured - adapts to all 3 speeds!
- Compliant with IEEE 10/100/1000Base-T and 1000Base-LX
- Connect it to Gigabit or Fast Ethernet ports
Sturdy, Stable, and Easy To Use
- Status LED indicators for Power, Link/Activity, Full-Duplex, and Speed
- Standards: IEEE802.3z/ab 100/1000/1000Base-T 1000Base-LX
- Power supply: 100 to 240VAC 50 to 60Hz
- Dimensions: 70.5mm - 2.77in - (L) X 94mm – 3.7in (W) X 26.5mm – 1.04in (H)
- Environment: Relative humidity; 5% to 90%
- Operating temperature: 0 to 70 degree celsius
- Supports LLF feature - Link Loss Feature - (if needed, configurable by dip switches)
More Features, More Convience and Ease of Mind!

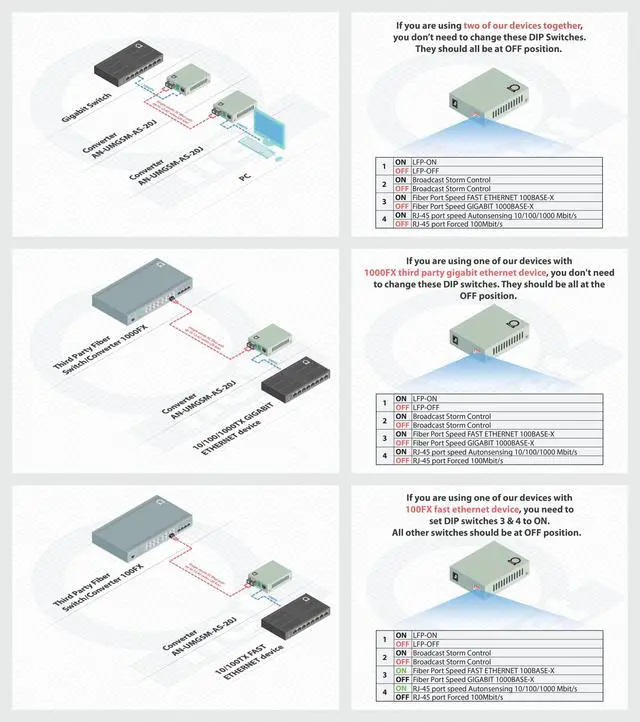

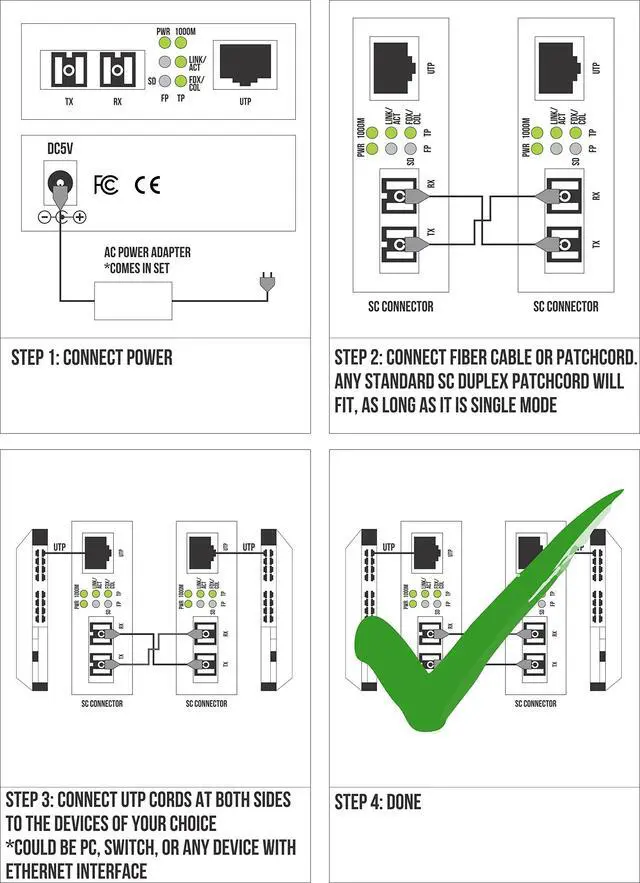

Setup of these units are really easy as the 3 steps shown in picture gallery - all default settings will work for all of your cases, but if you can turn on/off LFF feature or Jumbo frame - do it!
While in most cases you will have LAN switches, WiFi routers, or regular PC's connected to media converter UTP port - this versatile converter will still work with any standard Ethernet port device!
Scale Up Your Network as You Grow!
Autosensing10/100/1000 Gigabit Ethernet port auto adapts to Fast Ethernet speed device as well.
BONUS!

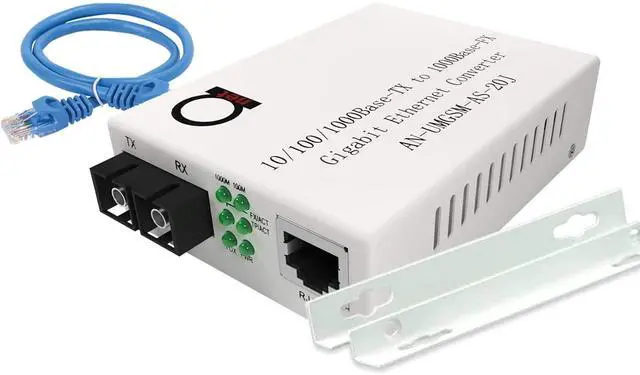

+ you getfreewall mount ears and rubber buttons in set!
