Seamless Connectivity for Every Device
Universal Compatibility – Works with All Your Ethernet Gear!
From gaming consoles to smart TVs, security cameras, and printers—this media converter ensures smooth, high-speed networking over fiber. Whether upgrading your home, office, or industrial setup, enjoy stable, lag-free performance with full Gigabit support!

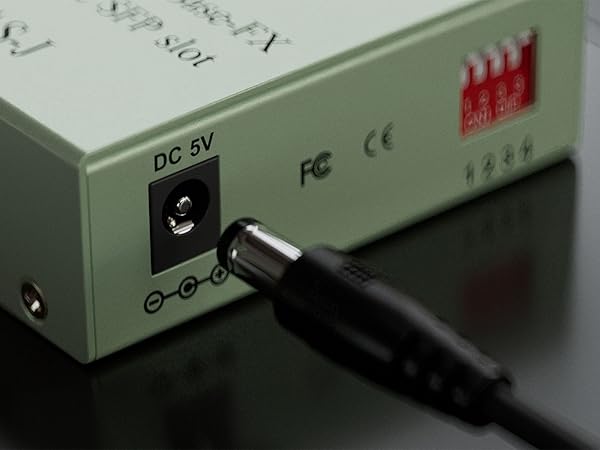

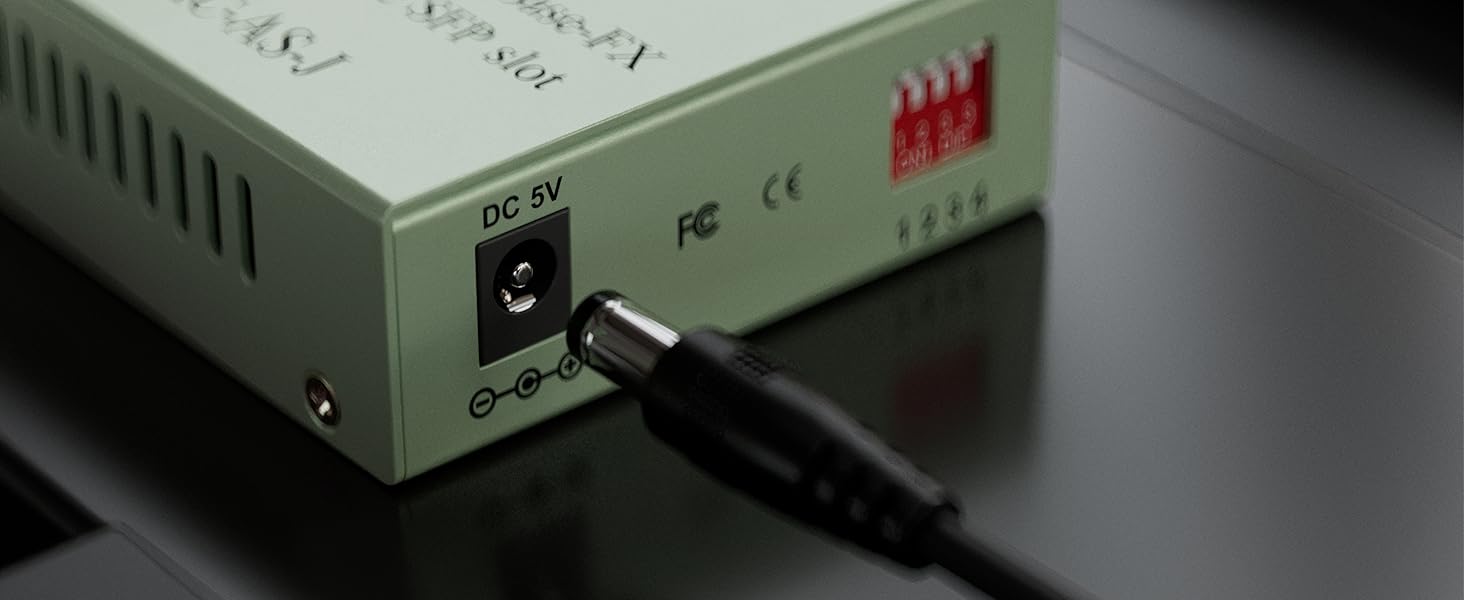

Plug in the Power
Plug in the included 5V power adapter LED indicators will light up, confirming the device is powered

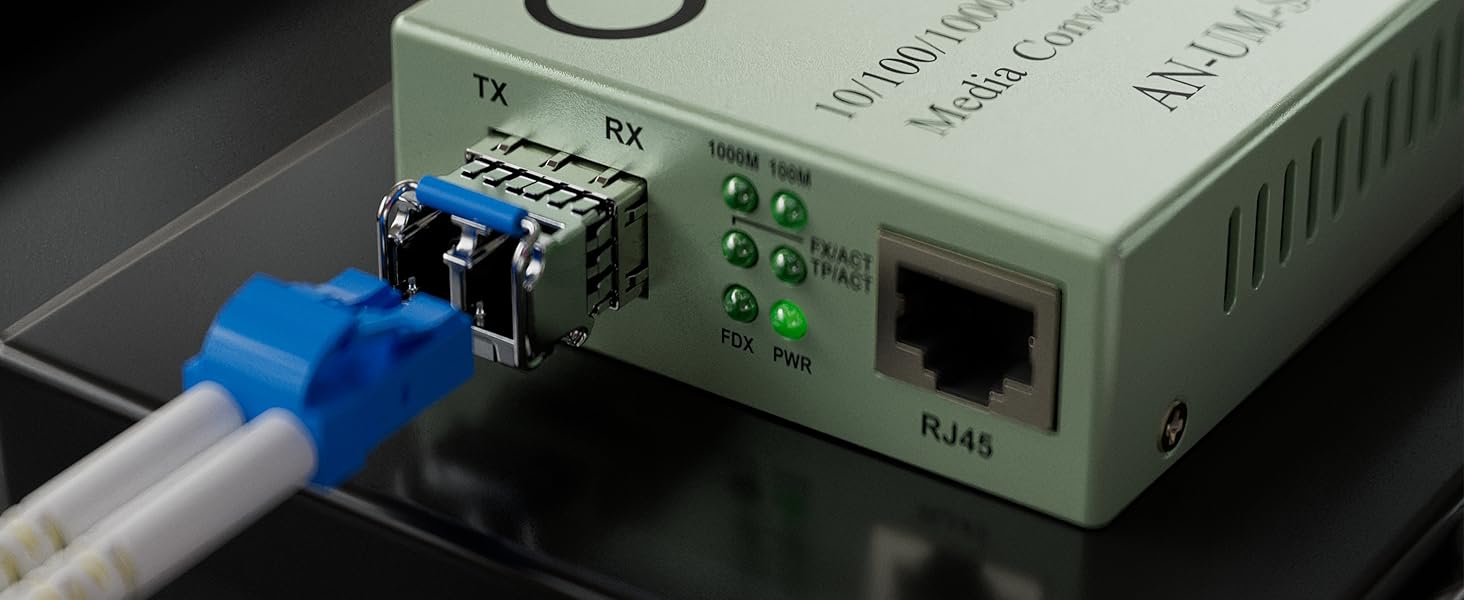

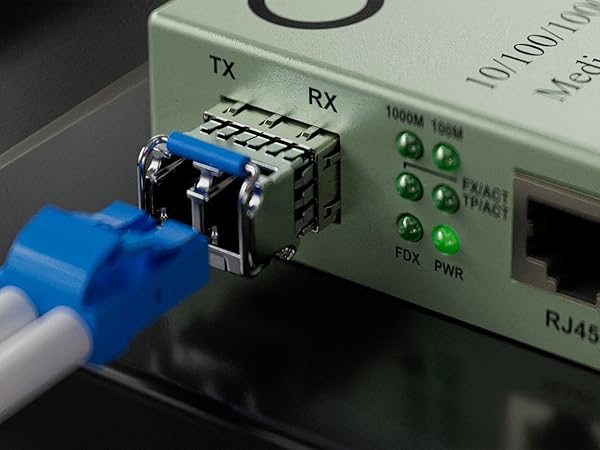

Connect the Fiber
Insert the LC fiber cable into the SFP module. Ensure TX and RX match the other end for proper link.

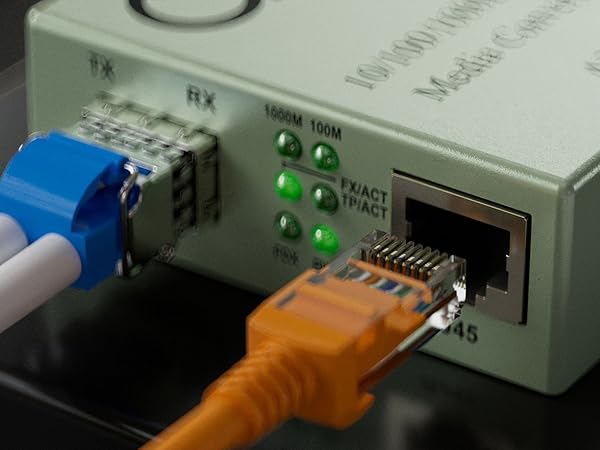

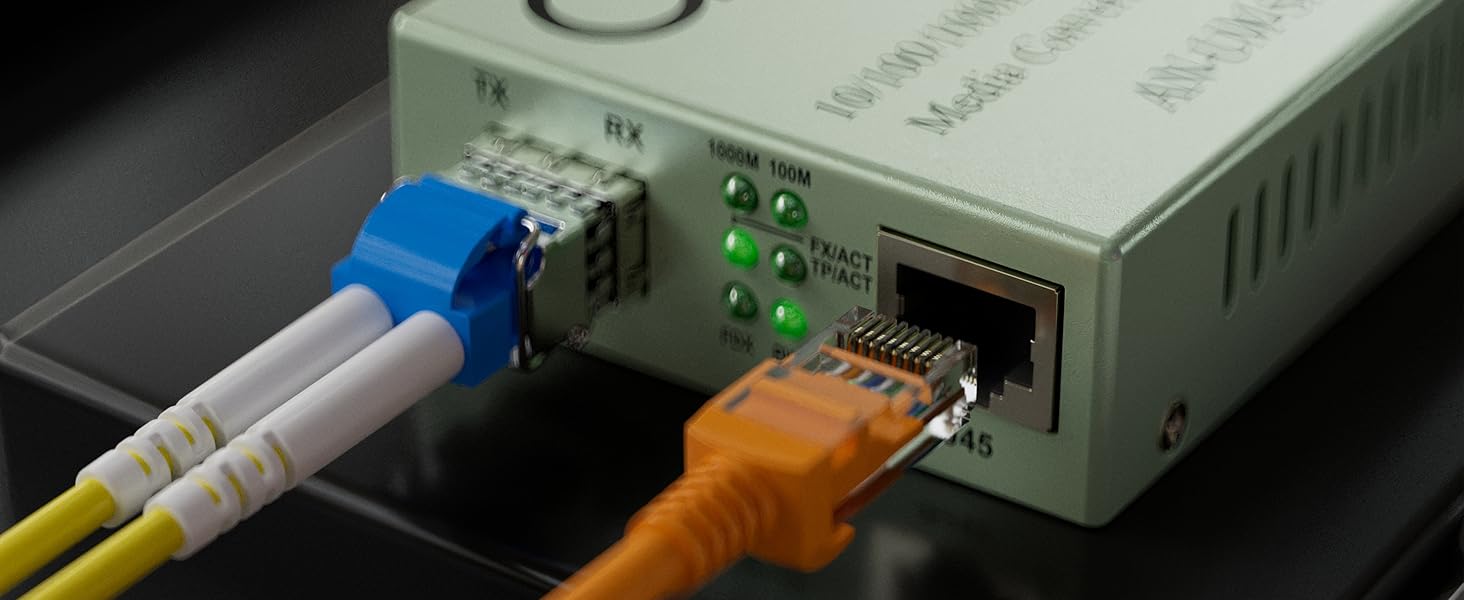

Connect Ethernet
Insert an Ethernet cable into the RJ-45 port. Auto-sensing supports 10/100/1000Mbps speeds.
Setup Complete!
Fiber and Ethernet linked, LEDs active your high-speed network is live. Enjoy seamless connectivity!
Get Connected in 3 Simple Steps!
Technical Specifications
Which One is Right for You? See the Differences!
 LC Single Mode Dual Fiber |  LC Multimode Fiber 850nm |  WDM Single Fiber SM LC |  WDM Single Mode SM SC |  2xRJ45 ports SM LC 1 Pair |  10G SFP+ 1310nm Converter |  PoE Single Mode LC 1310nm | |
|---|---|---|---|---|---|---|---|
Customer Reviews | — | — | — | — | — | — | — |
Price | — | — | — | — | — | — | — |
Speed | Gigabit Autosensing | Gigabit Autosensing | Gigabit Autosensing | Gigabit Autosensing | Gigabit Autosensing | 10G (Autosensing to 1G) | Gigabit Autosensing |
Fiber Type | Single Mode (Dual Fiber) | Multi Mode (Dual Fiber) | Single Mode (Single Fiber) | Single Mode (Single Fiber) | Single Mode (Dual Fiber) | Single Mode (Dual Fiber) | Single Mode (Dual Fiber) |
Fiber Connector | LC | LC | LC | LC | LC | LC | LC |
PoE/PoE+ PSE Output | ? | ? | ? | ? | ? | ? | ? |
Wavelength | 1310nm | 850nm | 1310nm | 1310nm | 1310nm | 1310nm | 1310nm |
Maximum Reach | 12.24 miles (20 km) | 0.34 miles (550m) | 12.24 miles (20 km) | 12.24 miles (20 km) | 12.24 miles (20 km) | 12.24 miles (20 km) | 12.24 miles (20 km) |
Size | 2.77in(L) 3.7in (W)1.04in(H) | 2.77in(L) 3.7in (W)1.04in(H) | 2.77in(L) 3.7in (W)1.04in(H) | 2.77in(L) 3.7in (W)1.04in(H) | 2.77in(L) 3.7in (W)1.04in(H) | 2.77in(L) 3.7in (W)1.04in(H) | 2.77in(L) 3.7in (W)1.04in(H) |
Power Supply | DC5V (AC adapter in set) | DC5V (AC adapter in set) | DC5V (AC adapter in set) | DC5V (AC adapter in set) | DC5V (AC adapter in set) | DC5V (AC adapter in set) | DC5V (AC adapter in set) |
What fiber patch cord should I choose for this converter?
Use a duplex LC-LC single-mode UPC (BLUE) patch cord (9/125µm). The included SFP runs at 1310nm. Avoid APC (GREEN) connectors, as they are not compatible. If needed, you can swap the SFP for multimode or other options.
I plan to use it as a standalone unit – what should I watch for?
This converter cannot replace ISP ONTs (e.g., FiOS, GPON). It works only with standard Ethernet-to-fiber links. Ensure the wavelength matches on both ends (e.g., 1310nm TX - 1310nm RX) and use a compatible LC UPC patch cord
What is the most common fault if the converter does not come up?
The most common issue is TX/RX mismatch—swap the RX and TX fibers at one side. If using it standalone, ensure the wavelengths match on both ends (e.g., 1310nm TX - 1310nm RX). Also check if fiber module speeds match - i.e. 100FX or 1000FX
Can I use this as a replacement for Verizon FiOS, Google Fiber, or other ISP fiber services CPE?
No, this cannot replace ISP ONTs like Verizon FiOS, Google Fiber, AT&T Fiber, or CenturyLink. These providers use GPON/XGS-PON, which requires their own ONT. This converter works only for standard Ethernet-to-fiber extensions, not ISP connections.
Can I use different SFP modules, can I replace module?
Yes! The SFP slot supports all types of fiber modules, including single-mode, multimode, BiDi, CWDM, and more. It works with both 155M and 1.25G SFPs, giving you full flexibility to match your network needs.
Universal Compatibility – Works with All Your Ethernet Gear!
From gaming consoles to smart TVs, security cameras, and printers—this media converter ensures smooth, high-speed networking over fiber. Whether upgrading your home, office, or industrial setup, enjoy stable, lag-free performance with full Gigabit support!
Get Connected in 3 Simple Steps!
Plug in the Power
Plug in the included 5V power adapter LED indicators will light up, confirming the device is powered
Connect the Fiber
Insert the LC fiber cable into the SFP module. Ensure TX and RX match the other end for proper link.
Connect Ethernet
Insert an Ethernet cable into the RJ-45 port. Auto-sensing supports 10/100/1000Mbps speeds.
Setup Complete!
Fiber and Ethernet linked, LEDs active your high-speed network is live. Enjoy seamless connectivity!

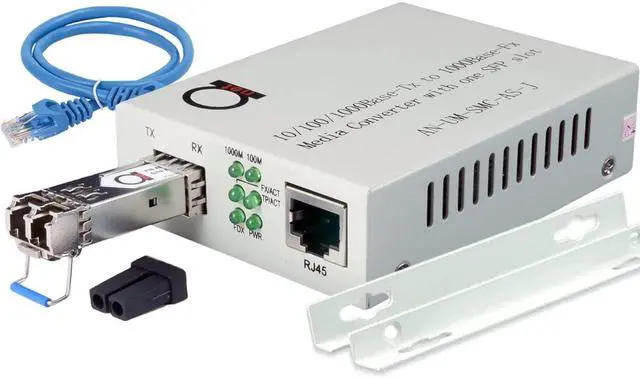

Technical Specifications
| Fiber Connector | LC duplex |
|---|---|
| Fiber Type | Single Mode |
| Wavelength | 1310nm |
| Power Supply | DC 5V (AC/DC adapter comes in set) 100 to 240VAC 50 to 60Hz, US type power plug |
| Maximum Fiber Distance | 12.42 miles (20 km) |
| Operating temperature | 0 to 70 degree Celsius (32 - 158 F) |
| Dimensions | 70.5mm - 2.77in - (L) X 94mm – 3.7in (W) X 26.5mm – 1.04in (H) |
| Standards Supported | IEEE802.3z/ab 100/1000/1000Base-T 1000Base-LX module included |

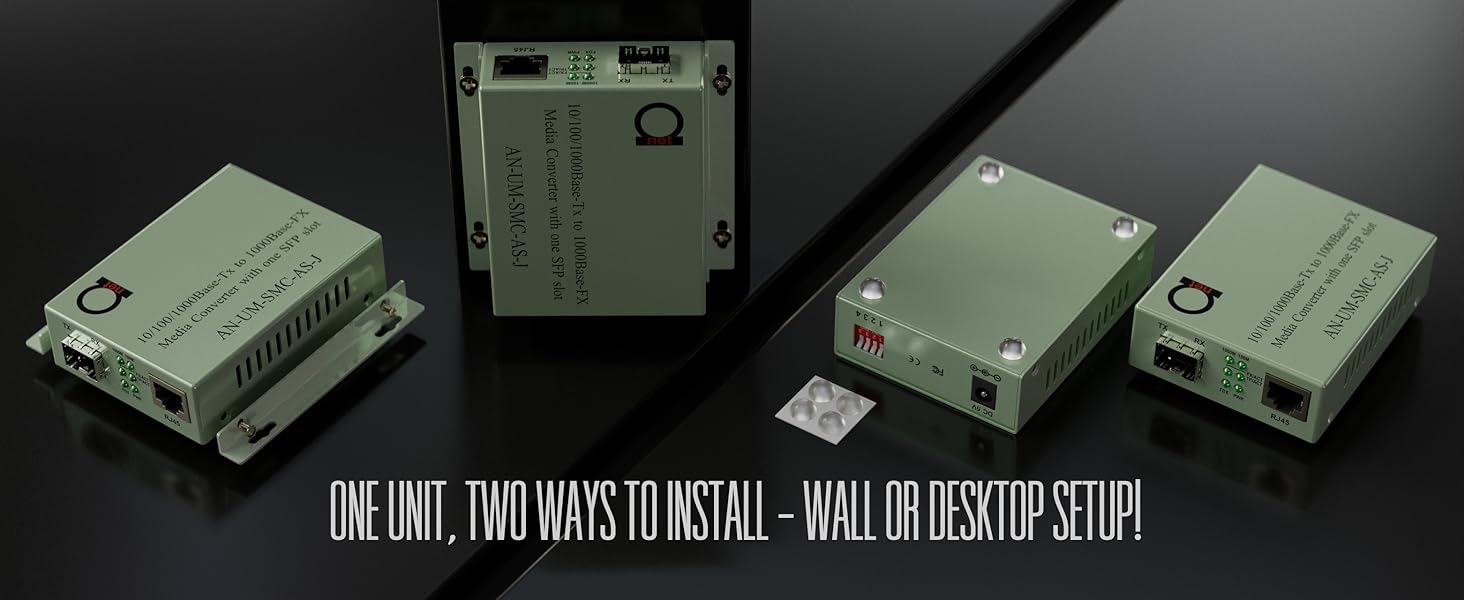

| Mounting Type | Desktop or Wall Mount |
| Status LED indicators | Power, Link/Activity, Full-Duplex, and Speed |
| Ethernet port | RJ-45 Compliant with IEEE 10/100/1000Base-T |
| SFP slot | Supports 1.25G & 155M SFP transceivers, hot swappable |

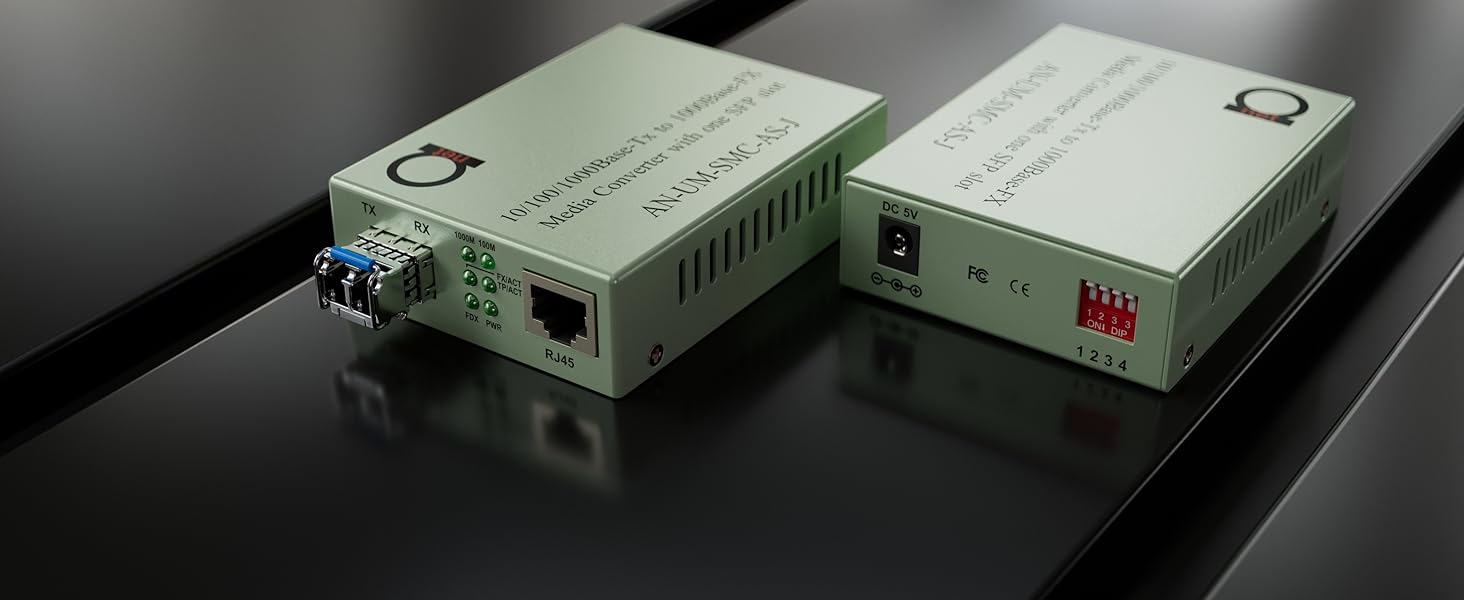

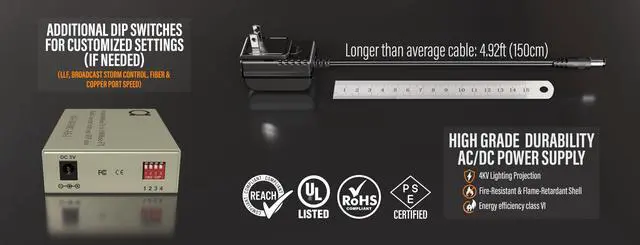

| Dip switch on the back | LFP on/off, Broadcast Storm Control, Fiber port & Ethernet port force speed |
Which One is Right for You? See the Differences!
LC Single Mode Dual Fiber | LC Multimode Fiber 850nm | WDM Single Fiber SM LC | WDM Single Mode SM SC | 2xRJ45 ports SM LC 1 Pair | 10G SFP+ 1310nm Converter | PoE Single Mode LC 1310nm |
|---|---|---|---|---|---|---|
| Customer Reviews | ||||||
| — | — | — | — | — | — | — |
| Price | ||||||
| — | — | — | — | — | — | — |
| Speed | ||||||
| Gigabit Autosensing | Gigabit Autosensing | Gigabit Autosensing | Gigabit Autosensing | Gigabit Autosensing | 10G (Autosensing to 1G) | Gigabit Autosensing |
| Fiber Type | ||||||
| Single Mode (Dual Fiber) | Multi Mode (Dual Fiber) | Single Mode (Single Fiber) | Single Mode (Single Fiber) | Single Mode (Dual Fiber) | Single Mode (Dual Fiber) | Single Mode (Dual Fiber) |
| Fiber Connector | ||||||
| LC | LC | LC | LC | LC | LC | LC |
| PoE/PoE+ PSE Output | ||||||
| ? | ? | ? | ? | ? | ? | ? |
| Wavelength | ||||||
| 1310nm | 850nm | 1310nm | 1310nm | 1310nm | 1310nm | 1310nm |
| Maximum Reach | ||||||
| 12.24 miles (20 km) | 0.34 miles (550m) | 12.24 miles (20 km) | 12.24 miles (20 km) | 12.24 miles (20 km) | 12.24 miles (20 km) | 12.24 miles (20 km) |
| Size | ||||||
| 2.77in(L) 3.7in (W)1.04in(H) | 2.77in(L) 3.7in (W)1.04in(H) | 2.77in(L) 3.7in (W)1.04in(H) | 2.77in(L) 3.7in (W)1.04in(H) | 2.77in(L) 3.7in (W)1.04in(H) | 2.77in(L) 3.7in (W)1.04in(H) | 2.77in(L) 3.7in (W)1.04in(H) |
| Power Supply | ||||||
| DC5V (AC adapter in set) | DC5V (AC adapter in set) | DC5V (AC adapter in set) | DC5V (AC adapter in set) | DC5V (AC adapter in set) | DC5V (AC adapter in set) | DC5V (AC adapter in set) |
What fiber patch cord should I choose for this converter?
Use a duplex LC-LC single-mode UPC (BLUE) patch cord (9/125µm). The included SFP runs at 1310nm. Avoid APC (GREEN) connectors, as they are not compatible. If needed, you can swap the SFP for multimode or other options.
I plan to use it as a standalone unit – what should I watch for?
This converter cannot replace ISP ONTs (e.g., FiOS, GPON). It works only with standard Ethernet-to-fiber links. Ensure the wavelength matches on both ends (e.g., 1310nm TX - 1310nm RX) and use a compatible LC UPC patch cord
What is the most common fault if the converter does not come up?
The most common issue is TX/RX mismatch—swap the RX and TX fibers at one side. If using it standalone, ensure the wavelengths match on both ends (e.g., 1310nm TX - 1310nm RX). Also check if fiber module speeds match - i.e. 100FX or 1000FX
Can I use this as a replacement for Verizon FiOS, Google Fiber, or other ISP fiber services CPE?
No, this cannot replace ISP ONTs like Verizon FiOS, Google Fiber, AT&T Fiber, or CenturyLink. These providers use GPON/XGS-PON, which requires their own ONT. This converter works only for standard Ethernet-to-fiber extensions, not ISP connections.
Can I use different SFP modules, can I replace module?
Yes! The SFP slot supports all types of fiber modules, including single-mode, multimode, BiDi, CWDM, and more. It works with both 155M and 1.25G SFPs, giving you full flexibility to match your network needs.
