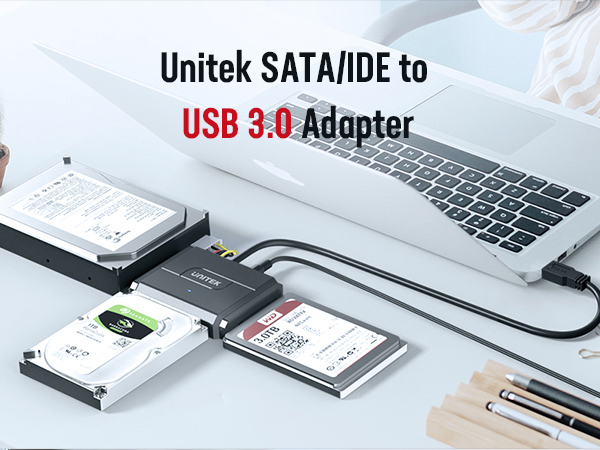

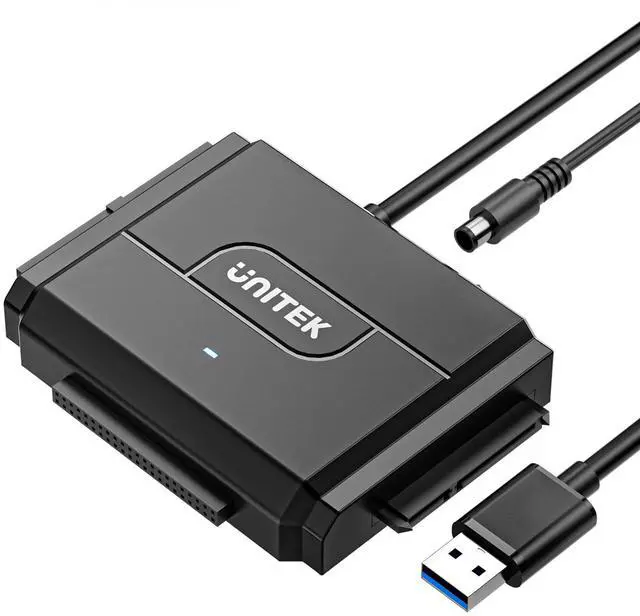

Hard Drive Adapter
Hard Drive Adapter

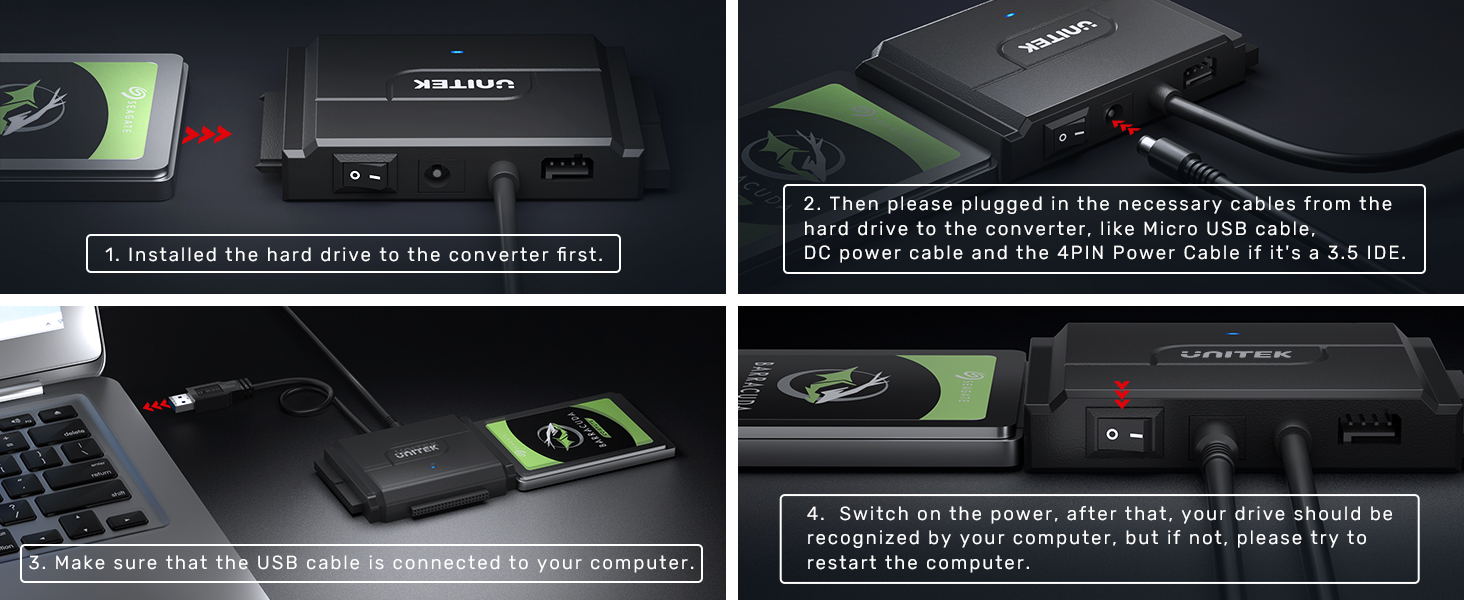

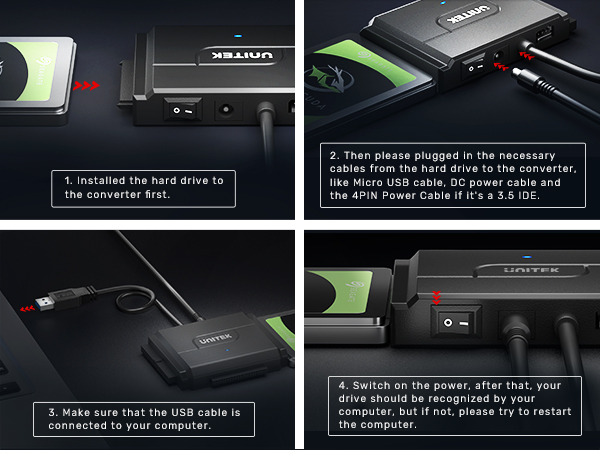

INSTALLATION STEPS
Specifications:

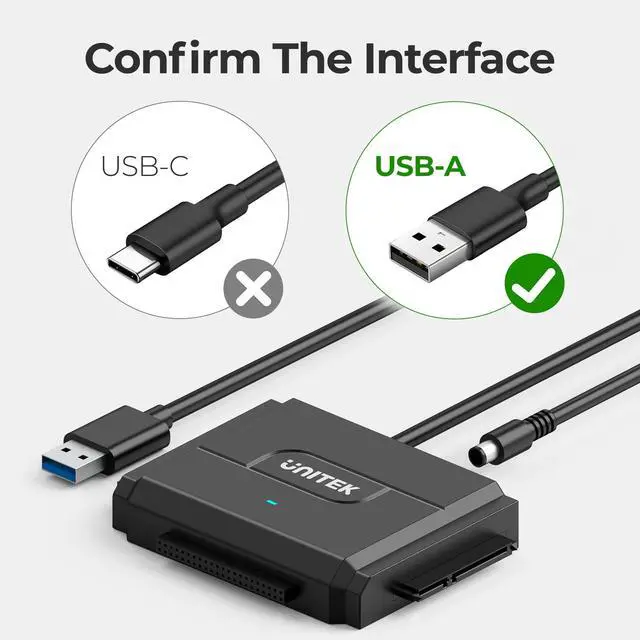

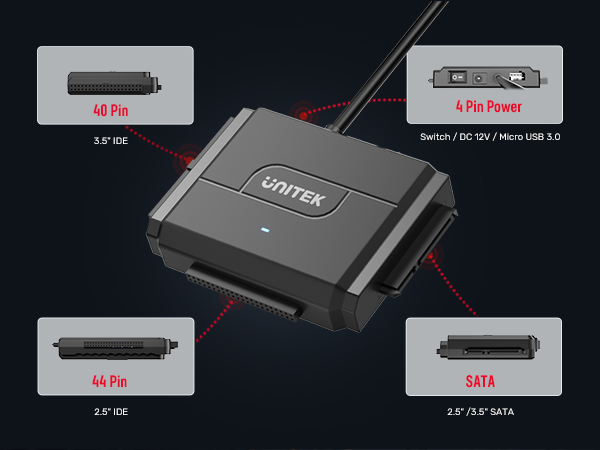

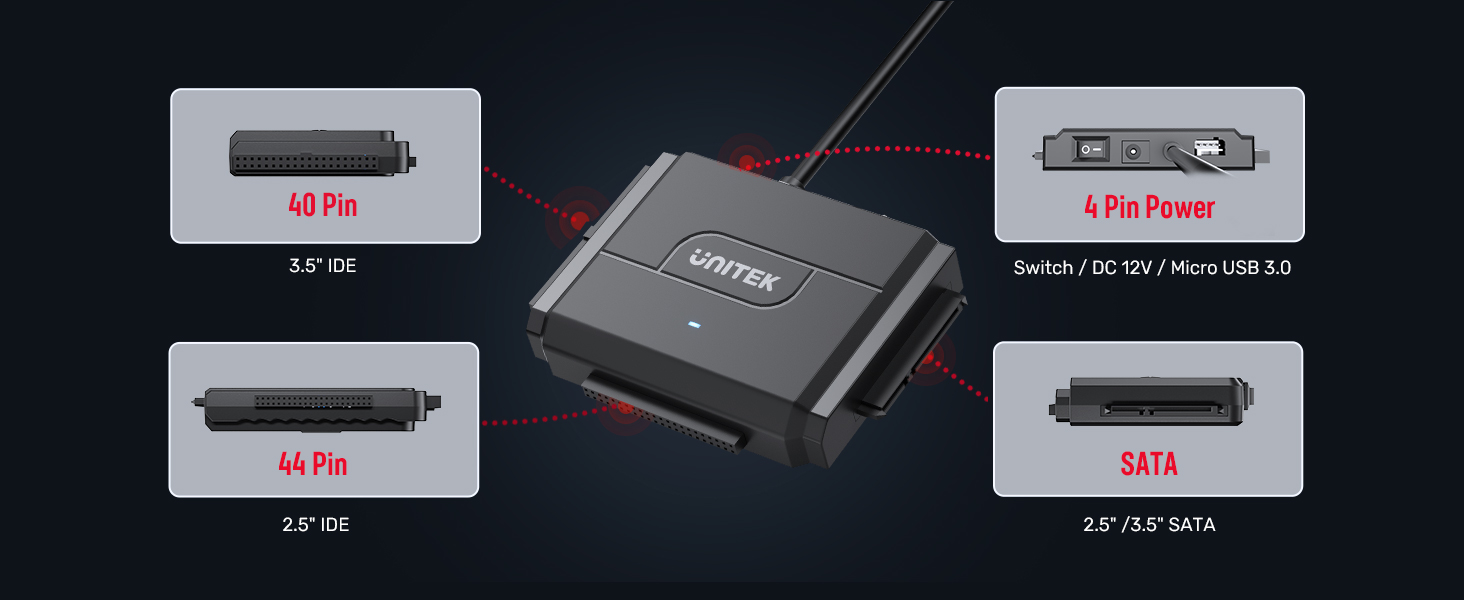

- Interface : 2 IDE connectors (40pin and 44pin) + 1 SATA connector
- Cable Length : 2.62 ft /31.5in /80cm
- Product Size : 3.8*2.7*0.7 in / 97*70*17mm

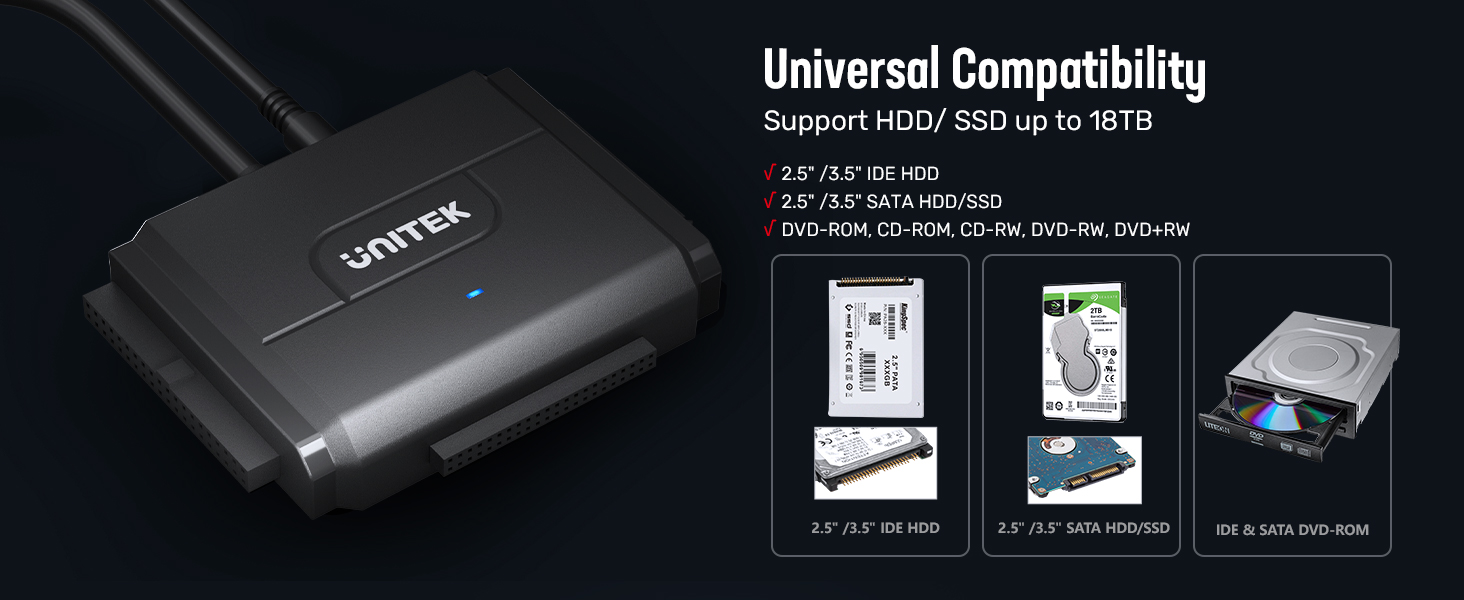

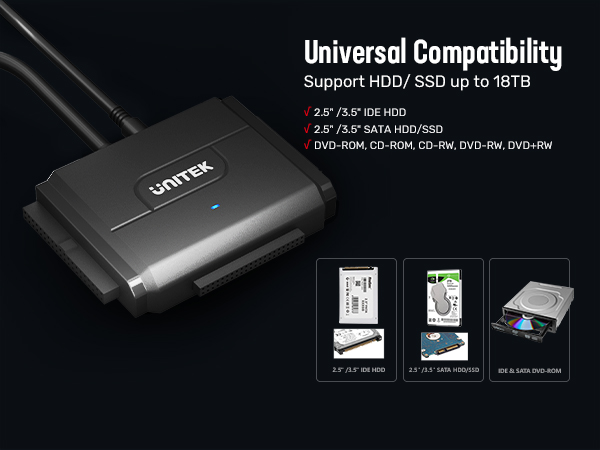

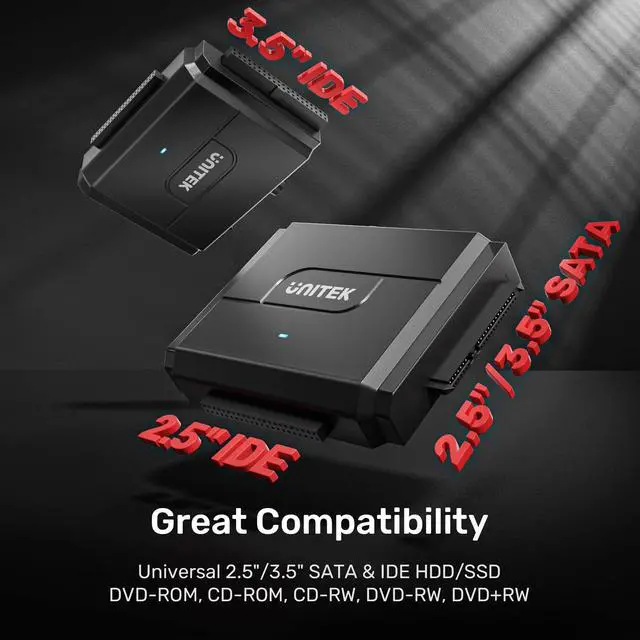

- Supported Hard Drives : 2.5"/3.5" SATA HDD and SSD, 2.5"/3.5" IDE up to 10TB max and DVD-ROM, CD-ROM, CD-RW, DVD-RW, DVD + RW Optical Drive.

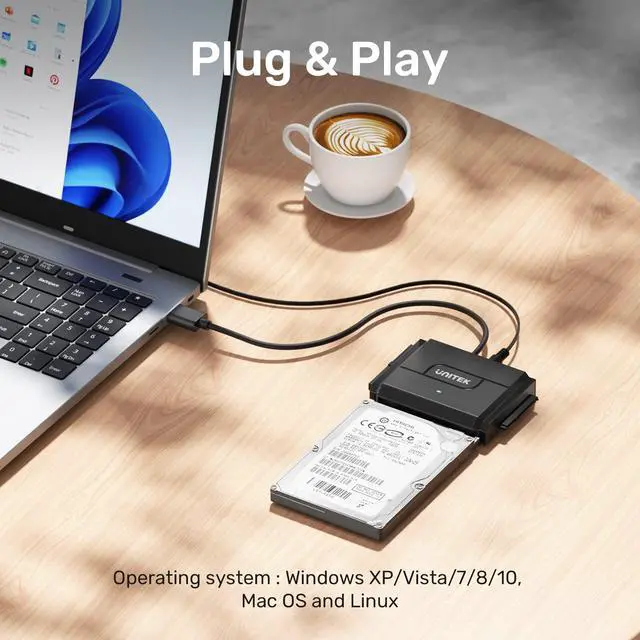

- Operating system : Windows XP/Vista/7/8/10, Mac OS and Linux.
Features:

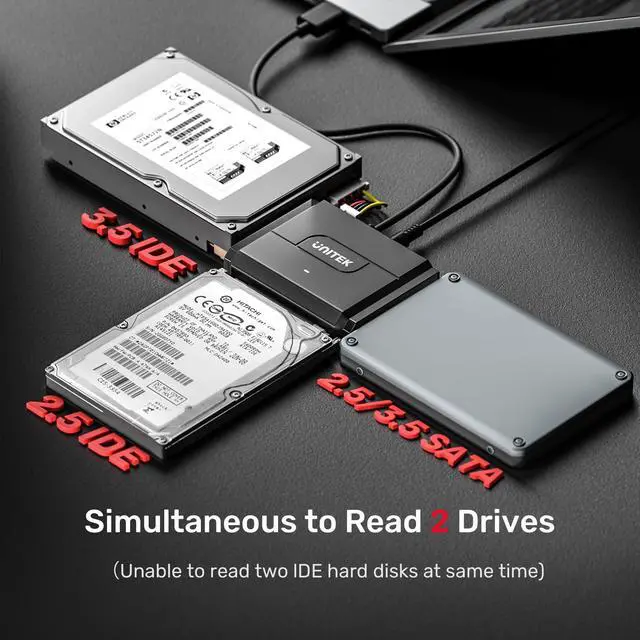

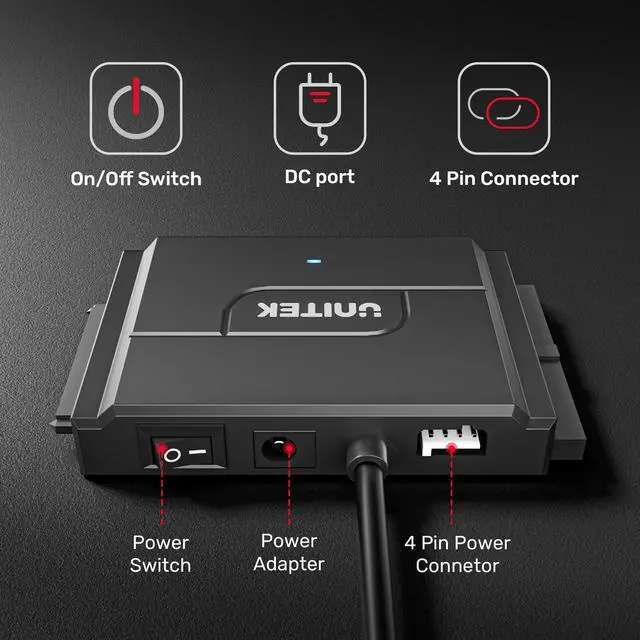

Automatic Sleep Mode after 30 minutes of inactivity; LED light shows Power and Activity status;Allowing you to connect and operate TWO drives (SATA and one IDE) simultaneously. NOTE: Can not read the two IDE at same time.
Unitek Hard Driver Adapter Collection
 USB-3.0 SATA/IDE Adapter |  USB-C SATA/IDE Adapter |  USB-3.0 SATA Adapter |  USB-3.0 SATA Adapter |  USB-3.0 SATA /IDE Adapter |  USB-C SATA /IDE Adapter |  USB-C SATA Adapter | |
|---|---|---|---|---|---|---|---|
Customer Reviews | — | — | — | — | — | — | — |
Price | — | — | — | — | — | — | — |
USB Interface | USB 3.0 | USB C | USB 3.0 | USB 3.0 | USB 3.0 | USB C | USB C |
IDE Interface | 2.5" & 3.5" | 2.5" & 3.5" | × | × | 2.5" & 3.5" | 2.5" & 3.5" | × |
SATA Interface | 2.5" or 3.5" | 2.5" or 3.5" | 2.5" or 3.5" | 2.5" or 3.5" | 2.5" or 3.5" | 2.5" or 3.5" | 2.5" or 3.5" |

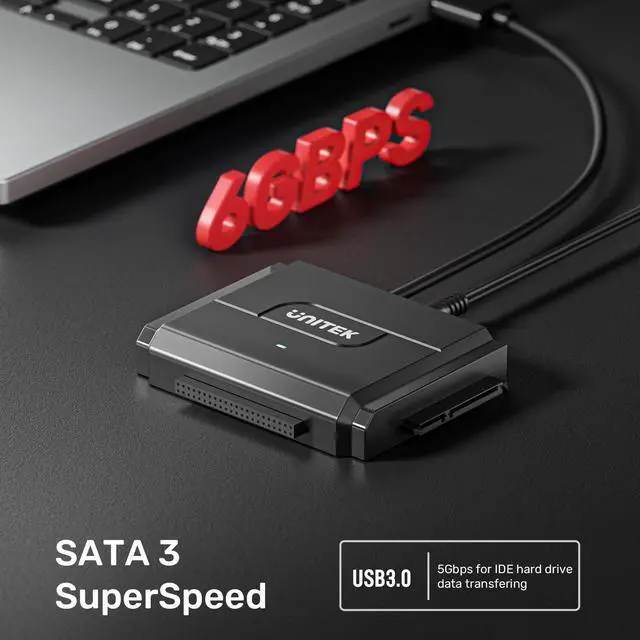

Maximum Speed | 5 Gbps | 5 Gbps | 6 Gbps | 6 Gbps | 5 Gbps | 5 Gbps | 5 Gbps |

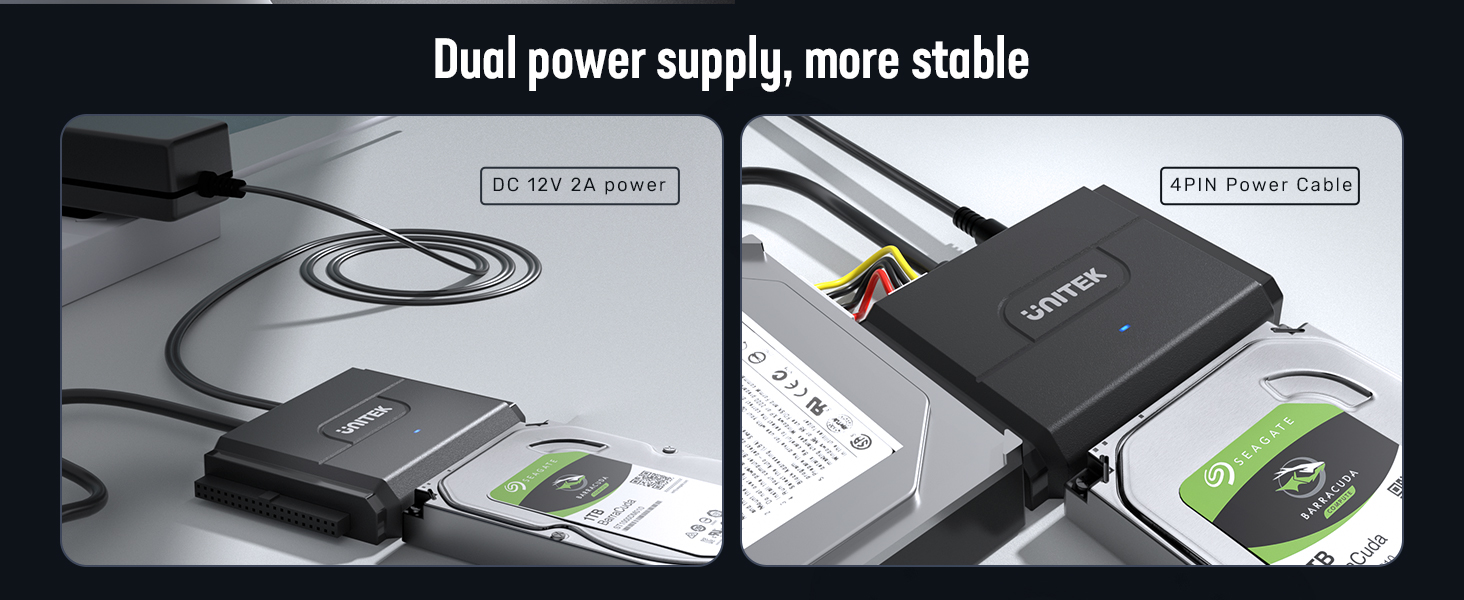

Power Adapter | 12V 2A | 12V 2A | 12V 2A | 12V 2A | 12V 2A | 12V 2A | × |
Support Optical Drive | ? | ? | ? | ? | ? | ? | × |
Easy to Use
No need to install any software.Support Hot Swapping.
INSTALLATION STEPS
Specifications:
- Interface : 2 IDE connectors (40pin and 44pin) + 1 SATA connector
- Cable Length : 2.62 ft /31.5in /80cm
- Product Size : 3.8*2.7*0.7 in / 97*70*17mm
- Supported Hard Drives : 2.5"/3.5" SATA HDD and SSD, 2.5"/3.5" IDE up to 10TB max and DVD-ROM, CD-ROM, CD-RW, DVD-RW, DVD + RW Optical Drive.
- Operating system : Windows XP/Vista/7/8/10, Mac OS and Linux.
Features:
Automatic Sleep Mode after 30 minutes of inactivity; LED light shows Power and Activity status;Allowing you to connect and operate TWO drives (SATA and one IDE) simultaneously. NOTE: Can not read the two IDE at same time.
Unitek Hard Driver Adapter Collection
USB-3.0 SATA/IDE Adapter | USB-C SATA/IDE Adapter | USB-3.0 SATA Adapter | USB-3.0 SATA Adapter | USB-3.0 SATA /IDE Adapter | USB-C SATA /IDE Adapter | USB-C SATA Adapter |
|---|---|---|---|---|---|---|
| Customer Reviews | ||||||
| — | — | — | — | — | — | — |
| Price | ||||||
| — | — | — | — | — | — | — |
| USB Interface | ||||||
| USB 3.0 | USB C | USB 3.0 | USB 3.0 | USB 3.0 | USB C | USB C |
| IDE Interface | ||||||
| 2.5" & 3.5" | 2.5" & 3.5" | × | × | 2.5" & 3.5" | 2.5" & 3.5" | × |
| SATA Interface | ||||||
| 2.5" or 3.5" | 2.5" or 3.5" | 2.5" or 3.5" | 2.5" or 3.5" | 2.5" or 3.5" | 2.5" or 3.5" | 2.5" or 3.5" |
| Maximum Speed | ||||||
| 5 Gbps | 5 Gbps | 6 Gbps | 6 Gbps | 5 Gbps | 5 Gbps | 5 Gbps |
| Power Adapter | ||||||
| 12V 2A | 12V 2A | 12V 2A | 12V 2A | 12V 2A | 12V 2A | × |
| Support Optical Drive | ||||||
| ? | ? | ? | ? | ? | ? | × |
