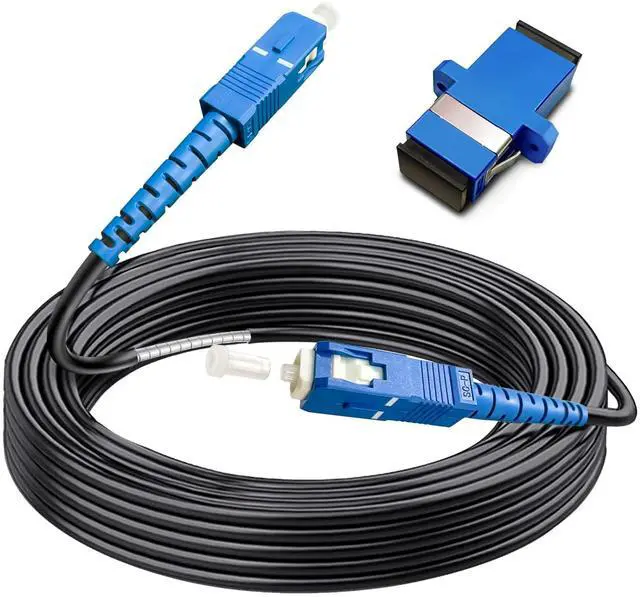

    100ft (30 Meters) SC to SC Fiber Optic Patch Cable, Outdoor Armored Single Mode SC/UPC to SC/UPC Fiber Jumper Optical Patch Cord- SIMPLEX - 9/125um - OS1/OS2 Compatible, LSZH Black

    Be the first to review this product...

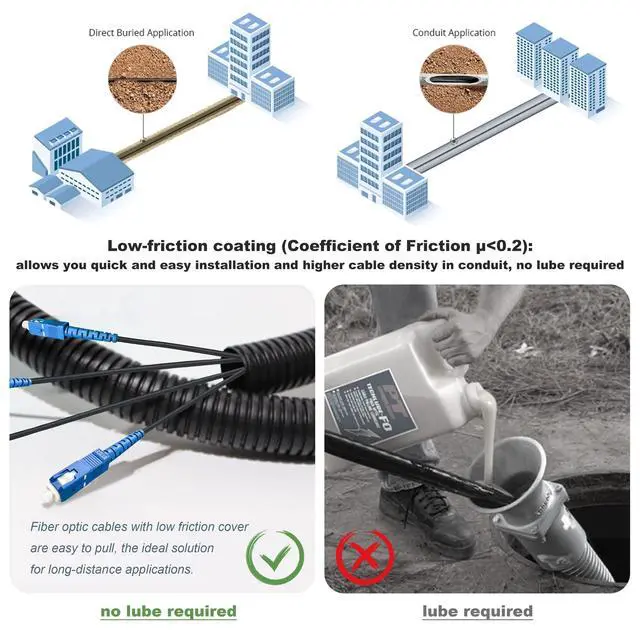

    • Low Friction SC/UPC-SC/UPC singlemode SIMPLEX fiber optic patch cable: Bangun OS2 fiber patch cable body is made of Ultra Low Friction flame retardant LSZH jacket (Coefficient of Friction <0.2). Low Friction Cables are the ideal solution for wiring premises. The stiffness allows the cable to be installed by pushing as well as by the more conventional pulling method. These cables can even be used in congested conduits.
    • Armored SC UPC to UPC Fiber Jumpers: This single mode sc to sc fiber jumper cable built-in a stainless steel tube inside to protect the inner core(fiber glass) from damage like pet chew. The sc sc fiber optic armor jumper also use protective LSZH outer jacket to strengthen the structure of cable. It retains all the features of a standard patch cord, but is much stronger. Pressure resist and Wear resist.
    • SM SC/UPC-SC/UPC Singlemode fiber patch cable, ideal for all Single-mode fiber networks including CATV type FTTH, FTTB & FTTP systems. sc/sc fiber patch cable perfect for the demands of Fiber Professionals. This is NOT a Home Fiber cable, that is our GREEN SC/APC
    • Product details: Connector: SCUPC/SCUPC. Mode: 9/125m. Wavelength: 1310nm to 1550nm. Jacket Material: Low-Smoke, Zero Halogen (LSZH) Armoured jacket. Jacket Color: White. OD: 3.0mm. RoHS Compliant, Resistant to Electrical Interference.

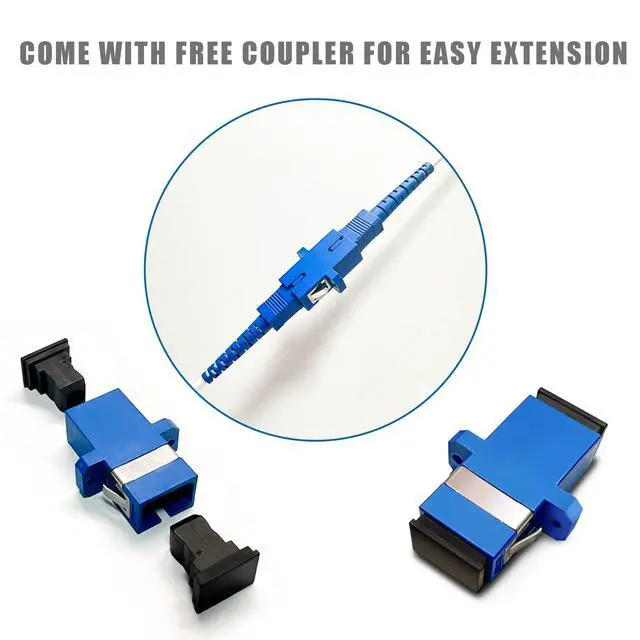

    • Bangun SCUPC to SCUPC fiber patch cable comes with one Free Coupler - You get a SC-UPC Fiber Optic Adapter for easy extension
    +
    +
    Overview
    Specs
    Reviews
    avatar

    Any questions? Our AI beta will help you find out quickly.

    Try me now

    9/125 Single Mode SC UPC to SC UPC Armored Fiber Optic Cable Specifications

    Connector Type SC to SC
    Polish Type UPC to UPC
    Fiber Mode OS2 9/125µm
    Fiber Count Simplex
    Fiber Grade G.657.A2 (Compatible with G.652.D)
    Cable Diameter 3.0mm
    Cable Jacket LSZH with low-friction characteristic
    Jacket Color Black

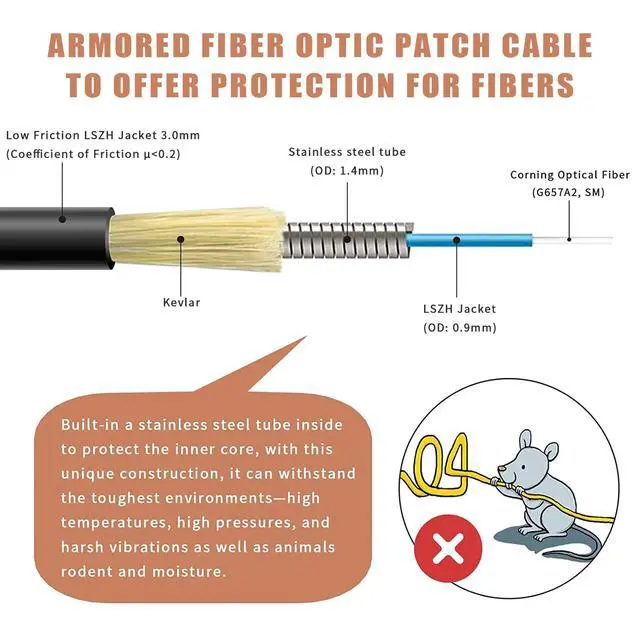

    Fiber Cords Structure Single Armored, Stainless Steel Tube
    Tensile Load 120/225N (Long/Short Term)
    Insertion Loss =0.15dB
    Return Loss =55dB
    Min. Bend Radius (Fiber Core) 7.5mm
    Min. Bend Radius (Fiber Cable) 10/5D (Dynamic/Static)
    Operating Temperature -25~70°C
    Storage Temperature -25~70°C
    1-UPC-black-s

    LC fiber

    Unique end-face baking technology

    The unique end-face baking technology allows the jumper to maintain a dry end-face for an extended period in even the harshest climate conditions, preventing the formation of moisture that could affect data transmission.

    lc-sm-fiber

    G657.A2 - Bend Intensive Fiber

    Bangun Optical Fiber cable use G657A2 fiber which is a powerful solution for access networks where frequent bending and joining of cables and hardware miniaturization is observed.

    lc-sm-lszh

    Compared with traditional PVC cable, LSZH Jacket is more healthy and safe

    Bangun Fiber Optic Patch Cable adpoted 3.0mm LSZH Jacket that is environment flame retardant, anti-corrosion, pull-resistant, low-smoke, halogen-free and immune to electrical interference.

    bangun-lc-global

    Bangun products are extensively applicable to telecom operators, fiber optic engineering, CCTV, broadband networks, FTTH, data center in more than 80 countries worldwide.

    https://m.media-amazon.com/images/S/aplus-media-library-service-media/0b00da8e-e1db-4834-9903-901e92a5d0de.__CR0,0,150,300_PT0_SX150_V1___.jpg
    SC/APC to SC/APC Yellow
    https://m.media-amazon.com/images/S/aplus-media-library-service-media/3cff8ce0-4912-4dd7-9423-fb5e27e532a6.__CR0,0,150,300_PT0_SX150_V1___.jpg
    SC/APC to SC/APC White
    https://m.media-amazon.com/images/S/aplus-media-library-service-media/12fd3b30-f9d6-4ad5-ae32-be845a9cbd2e.__CR0,0,150,300_PT0_SX150_V1___.jpg
    SC/APC to SC/APC Black
    https://m.media-amazon.com/images/S/aplus-media-library-service-media/9ea59ab6-f02f-4bf3-a70d-cf0c58f9d65b.__CR0,0,150,300_PT0_SX150_V1___.jpg
    SC/APC to SC/APC Clear
    https://m.media-amazon.com/images/S/aplus-media-library-service-media/081e0721-5c70-4df4-9b66-5118f41eeea8.__CR0,0,150,300_PT0_SX150_V1___.jpg
    SC/UPC to SC/APC White
    https://m.media-amazon.com/images/S/aplus-media-library-service-media/037c8b78-ff30-4cf0-9987-678c37c9ae5c.__CR0,0,150,300_PT0_SX150_V1___.jpg
    Simplex LC to LC Black
    Customer Reviews ——————
    Price ——— — no data— — no data
    Fiber Count Simplex Simplex Simplex Simplex Simplex Simplex
    Fiber Grade Corning G.657.A2 Corning G.657.A2 Corning G.657.A2 Corning G.657.A2 Corning G.657.A2 Corning G.657.A2
    Jacket LSZH Armored LSZH Armored LSZH PVC Armored LSZH Armored LSZH
    Cable Diameter 3.0mm 3.0mm 3.0mm 0.9mm 3.0mm 3.0mm
    Insertion Loss =0.15dB =0.15dB =0.15dB =0.15dB =0.15dB =0.15dB
    Low Friction Coating no datano data ? no datano data ?
    Length 1-30m 1-30m 1-10 Kilometers 1-30m 1-30m 10-30m
    https://m.media-amazon.com/images/S/aplus-media-library-service-media/1de2b0f4-1f47-4a3d-9156-b022e2815b97.__CR0,0,150,300_PT0_SX150_V1___.jpg
    Uniboot LC to LC OS2
    https://m.media-amazon.com/images/S/aplus-media-library-service-media/3c0e4be8-6d1f-423c-8d6e-c3b5de14f618.__CR0,0,150,300_PT0_SX150_V1___.jpg
    Uniboot LC to LC OS2
    https://m.media-amazon.com/images/S/aplus-media-library-service-media/d54417c3-0c89-436f-b950-df211516ce6c.__CR0,0,150,300_PT0_SX150_V1___.jpg
    Uniboot LC to LC OM3
    https://m.media-amazon.com/images/S/aplus-media-library-service-media/64218506-7e10-4b53-b20f-7ae1f654cc9b.__CR0,0,150,300_PT0_SX150_V1___.jpg
    Armored LC to LC OM3
    Customer Reviews ————
    Price — — no data——
    Fiber Count Duplex / 2 Fibers Duplex / 2 Fibers Duplex / 2 Fibers Duplex / 2 Fibers
    Fiber Type Corning G.657.A2 Corning G.657.A2 Corning OM3 Corning OM3
    Jacket Armored LSZH, Black Armored LSZH, White LSZH, Aqua HDPE
    Cable Diameter 3.0mm 3.0mm 3.0mm 3.0mm
    Insertion Loss =0.15dB =0.15dB =0.15dB =0.15dB
    Low Friction Coating ? no datano datano data
    Length 1-10 Kilometers 1-30m 0.2-25m 15-300m
    https://m.media-amazon.com/images/S/aplus-media-library-service-media/8c1f5178-d44f-4aeb-92c4-f6f104da151f.__CR0,0,150,300_PT0_SX150_V1___.jpg
    LC UPC 12 Fibers Pigtail OS2
    https://m.media-amazon.com/images/S/aplus-media-library-service-media/f2445c2d-a2e0-4536-b329-e07133f5e43c.__CR0,0,150,300_PT0_SX150_V1___.jpg
    LC UPC 6 Fibers Pigtail OS2
    https://m.media-amazon.com/images/S/aplus-media-library-service-media/bff4cba6-5a4f-4a3e-9bb5-f05fd0c02e21.__CR0,0,150,300_PT0_SX150_V1___.jpg
    LC UPC 6 Fibers Pigtail OM3
    https://m.media-amazon.com/images/S/aplus-media-library-service-media/979e56d6-354a-41ed-832a-ef78799843f0.__CR0,0,150,300_PT0_SX150_V1___.jpg
    LC UPC 6 Fibers Pigtail OM3
    https://m.media-amazon.com/images/S/aplus-media-library-service-media/8888cc47-8f12-4706-8b63-e885e1d55d4f.__CR0,0,150,300_PT0_SX150_V1___.jpg
    LC UPC 12 Fibers Pigtail OM3
    https://m.media-amazon.com/images/S/aplus-media-library-service-media/c3971717-ab29-4f82-bc96-ad8267a4737b.__CR0,0,150,300_PT0_SX150_V1___.jpg
    LC UPC 12 Fibers Pigtail OS2
    Customer Reviews ——————
    Price ——————
    Fiber Count 12 6 6 6 12 12
    Fiber Mode 9/125 µm 9/125 µm 50/125 µm 50/125 µm 50/125 µm 9/125 µm
    Cable Diameter 0.9 mm 0.9 mm 0.9 mm 0.9 mm 0.9 mm 0.9 mm
    Minimum Bend Radius 7.5mm 7.5mm 7.5mm 7.5mm 7.5mm 7.5mm
    Insertion Loss =0.15dB =0.15dB =0.15dB =0.15dB =0.15dB =0.15dB
    Cable Types Color-Coded Color-Coded Color-Coded Bunch Bunch Bunch

    9/125 Single Mode SC UPC to SC UPC Armored Fiber Optic Cable Specifications

    Connector Type SC to SC
    Polish Type UPC to UPC
    Fiber Mode OS2 9/125µm
    Fiber Count Simplex
    Fiber Grade G.657.A2 (Compatible with G.652.D)
    Cable Diameter 3.0mm
    Cable Jacket LSZH with low-friction characteristic
    Jacket Color Black
    Fiber Cords Structure Single Armored, Stainless Steel Tube
    Tensile Load 120/225N (Long/Short Term)
    Insertion Loss =0.15dB
    Return Loss =55dB
    Min. Bend Radius (Fiber Core) 7.5mm
    Min. Bend Radius (Fiber Cable) 10/5D (Dynamic/Static)
    Operating Temperature -25~70°C
    Storage Temperature -25~70°C
    1-UPC-black-s

    LC fiber

    Unique end-face baking technology

    The unique end-face baking technology allows the jumper to maintain a dry end-face for an extended period in even the harshest climate conditions, preventing the formation of moisture that could affect data transmission.

    lc-sm-fiber

    G657.A2 - Bend Intensive Fiber

    Bangun Optical Fiber cable use G657A2 fiber which is a powerful solution for access networks where frequent bending and joining of cables and hardware miniaturization is observed.

    lc-sm-lszh

    Compared with traditional PVC cable, LSZH Jacket is more healthy and safe

    Bangun Fiber Optic Patch Cable adpoted 3.0mm LSZH Jacket that is environment flame retardant, anti-corrosion, pull-resistant, low-smoke, halogen-free and immune to electrical interference.

    bangun-lc-global

    Bangun products are extensively applicable to telecom operators, fiber optic engineering, CCTV, broadband networks, FTTH, data center in more than 80 countries worldwide.

    https://m.media-amazon.com/images/S/aplus-media-library-service-media/0b00da8e-e1db-4834-9903-901e92a5d0de.__CR0,0,150,300_PT0_SX150_V1___.jpg
    SC/APC to SC/APC Yellow
    https://m.media-amazon.com/images/S/aplus-media-library-service-media/3cff8ce0-4912-4dd7-9423-fb5e27e532a6.__CR0,0,150,300_PT0_SX150_V1___.jpg
    SC/APC to SC/APC White
    https://m.media-amazon.com/images/S/aplus-media-library-service-media/12fd3b30-f9d6-4ad5-ae32-be845a9cbd2e.__CR0,0,150,300_PT0_SX150_V1___.jpg
    SC/APC to SC/APC Black
    https://m.media-amazon.com/images/S/aplus-media-library-service-media/9ea59ab6-f02f-4bf3-a70d-cf0c58f9d65b.__CR0,0,150,300_PT0_SX150_V1___.jpg
    SC/APC to SC/APC Clear
    https://m.media-amazon.com/images/S/aplus-media-library-service-media/081e0721-5c70-4df4-9b66-5118f41eeea8.__CR0,0,150,300_PT0_SX150_V1___.jpg
    SC/UPC to SC/APC White
    https://m.media-amazon.com/images/S/aplus-media-library-service-media/037c8b78-ff30-4cf0-9987-678c37c9ae5c.__CR0,0,150,300_PT0_SX150_V1___.jpg
    Simplex LC to LC Black
    Customer Reviews ——————
    Price ——— — no data— — no data
    Fiber Count Simplex Simplex Simplex Simplex Simplex Simplex
    Fiber Grade Corning G.657.A2 Corning G.657.A2 Corning G.657.A2 Corning G.657.A2 Corning G.657.A2 Corning G.657.A2
    Jacket LSZH Armored LSZH Armored LSZH PVC Armored LSZH Armored LSZH
    Cable Diameter 3.0mm 3.0mm 3.0mm 0.9mm 3.0mm 3.0mm
    Insertion Loss =0.15dB =0.15dB =0.15dB =0.15dB =0.15dB =0.15dB
    Low Friction Coating no datano data ? no datano data ?
    Length 1-30m 1-30m 1-10 Kilometers 1-30m 1-30m 10-30m
    https://m.media-amazon.com/images/S/aplus-media-library-service-media/1de2b0f4-1f47-4a3d-9156-b022e2815b97.__CR0,0,150,300_PT0_SX150_V1___.jpg
    Uniboot LC to LC OS2
    https://m.media-amazon.com/images/S/aplus-media-library-service-media/3c0e4be8-6d1f-423c-8d6e-c3b5de14f618.__CR0,0,150,300_PT0_SX150_V1___.jpg
    Uniboot LC to LC OS2
    https://m.media-amazon.com/images/S/aplus-media-library-service-media/d54417c3-0c89-436f-b950-df211516ce6c.__CR0,0,150,300_PT0_SX150_V1___.jpg
    Uniboot LC to LC OM3
    https://m.media-amazon.com/images/S/aplus-media-library-service-media/64218506-7e10-4b53-b20f-7ae1f654cc9b.__CR0,0,150,300_PT0_SX150_V1___.jpg
    Armored LC to LC OM3
    Customer Reviews ————
    Price — — no data——
    Fiber Count Duplex / 2 Fibers Duplex / 2 Fibers Duplex / 2 Fibers Duplex / 2 Fibers
    Fiber Type Corning G.657.A2 Corning G.657.A2 Corning OM3 Corning OM3
    Jacket Armored LSZH, Black Armored LSZH, White LSZH, Aqua HDPE
    Cable Diameter 3.0mm 3.0mm 3.0mm 3.0mm
    Insertion Loss =0.15dB =0.15dB =0.15dB =0.15dB
    Low Friction Coating ? no datano datano data
    Length 1-10 Kilometers 1-30m 0.2-25m 15-300m
    https://m.media-amazon.com/images/S/aplus-media-library-service-media/8c1f5178-d44f-4aeb-92c4-f6f104da151f.__CR0,0,150,300_PT0_SX150_V1___.jpg
    LC UPC 12 Fibers Pigtail OS2
    https://m.media-amazon.com/images/S/aplus-media-library-service-media/f2445c2d-a2e0-4536-b329-e07133f5e43c.__CR0,0,150,300_PT0_SX150_V1___.jpg
    LC UPC 6 Fibers Pigtail OS2
    https://m.media-amazon.com/images/S/aplus-media-library-service-media/bff4cba6-5a4f-4a3e-9bb5-f05fd0c02e21.__CR0,0,150,300_PT0_SX150_V1___.jpg
    LC UPC 6 Fibers Pigtail OM3
    https://m.media-amazon.com/images/S/aplus-media-library-service-media/979e56d6-354a-41ed-832a-ef78799843f0.__CR0,0,150,300_PT0_SX150_V1___.jpg
    LC UPC 6 Fibers Pigtail OM3
    https://m.media-amazon.com/images/S/aplus-media-library-service-media/8888cc47-8f12-4706-8b63-e885e1d55d4f.__CR0,0,150,300_PT0_SX150_V1___.jpg
    LC UPC 12 Fibers Pigtail OM3
    https://m.media-amazon.com/images/S/aplus-media-library-service-media/c3971717-ab29-4f82-bc96-ad8267a4737b.__CR0,0,150,300_PT0_SX150_V1___.jpg
    LC UPC 12 Fibers Pigtail OS2
    Customer Reviews ——————
    Price ——————
    Fiber Count 12 6 6 6 12 12
    Fiber Mode 9/125 µm 9/125 µm 50/125 µm 50/125 µm 50/125 µm 9/125 µm
    Cable Diameter 0.9 mm 0.9 mm 0.9 mm 0.9 mm 0.9 mm 0.9 mm
    Minimum Bend Radius 7.5mm 7.5mm 7.5mm 7.5mm 7.5mm 7.5mm
    Insertion Loss =0.15dB =0.15dB =0.15dB =0.15dB =0.15dB =0.15dB
    Cable Types Color-Coded Color-Coded Color-Coded Bunch Bunch Bunch

    Product information

    Brand Bangun
    Connector Type Optical
    Cable Type Fiber Optic
    Compatible Devices Networking Equipment
    Special Feature Weatherproof
    Recommended Uses For Product Professional fiber optic network installations
    Color Black
    Connector Gender Male-to-Male
    Data Transfer Rate 10 Gigabits Per Second
    Shape Round
    Unit Count 1.0 Count
    Specification Met RoHS
    Indoor/Outdoor Usage Indoor, Outdoor
    Manufacturer Bangun
    Package Dimensions 9.88 x 8.31 x 1.1 inches
    Item Weight 1.01 pounds
    Item model number Ban-scsc-30mb
    Date First Available February 2, 2023

    Additional Features

    • Bangun sc to sc simplex armored fiber patch cords terminated with Foxconn precision ceramic ferrule SC/UPC fiber cable connectors, insuring low insertion loss(less than 0.15 dB) for faster speed network performance.
