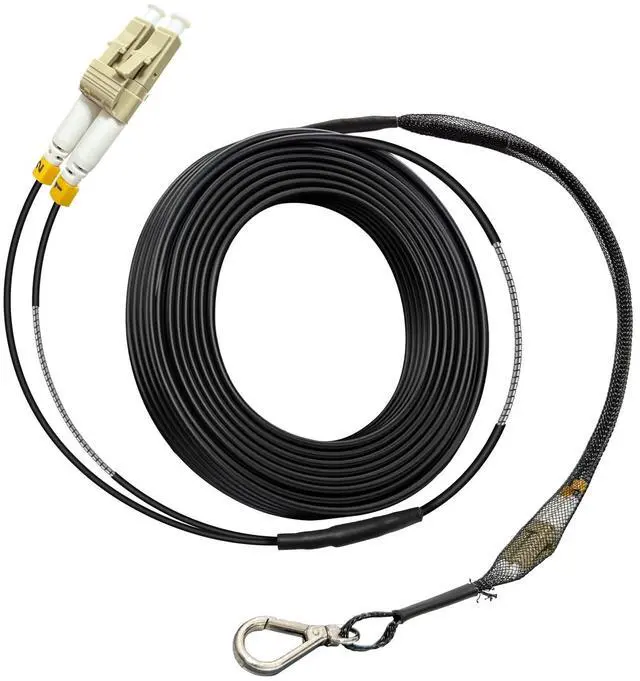

OM3 Multimode LC to LC Duplex Armored Fiber Optic Cable Specifications

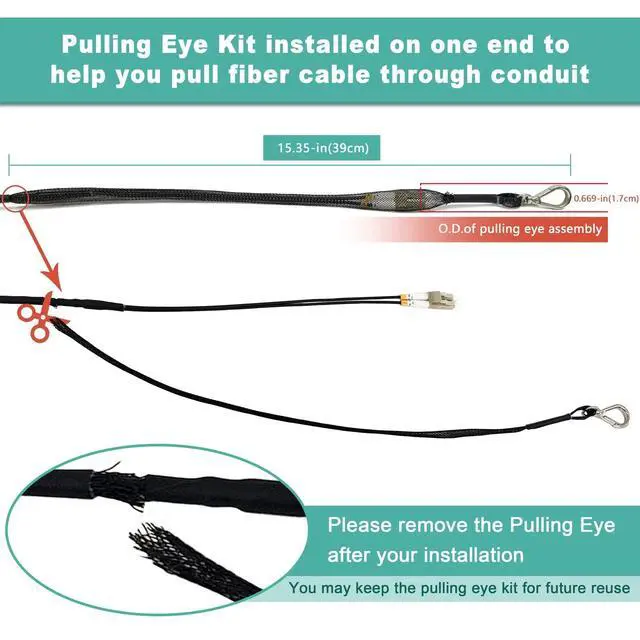

Pulling Eye Kit installed on one end
The pulling eye protects the connectors of the outdoor fibers and prevents the cables from twisting during the installation of conduits, ducts or risers. With this kit, you can pull this duplex jumpers through the conduit easily and quickly. It allows a tension up to 245N.

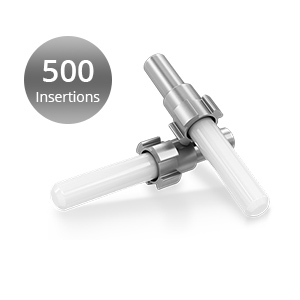

Foxconn precision ceramic ferrule
The precision ferrules reach up to 500 times insertions lifespan.
Unique end-face baking technology
The unique end-face baking technology allows the jumper to maintain a dry end-face for an extended period in even the harshest climate conditions, preventing the formation of moisture that could affect data transmission.
Bangun products are extensively applicable to telecom operators, fiber optic engineering, CCTV, broadband networks, FTTH, data center in more than 80 countries worldwide.
 Uniboot LC to LC OS2 |  Uniboot LC to LC OS2 |  Uniboot LC to LC OM3 |  Armored LC to LC OM3 |  Simplex LC to LC OS2 | |
|---|---|---|---|---|---|
| Customer Reviews | — | — | — | — | — |
| Price | — | — no data | — no data | — | — |
| Fiber Count | Duplex / 2 Fibers | Duplex / 2 Fibers | Duplex / 2 Fibers | Duplex / 2 Fibers | Simplex |
| Fiber Type | Corning G.657.A2 | Corning G.657.A2 | Corning OM3 | Corning OM3 | Corning G.657.A2 |
| Jacket | Armored LSZH, Black | Armored LSZH, White | LSZH, Aqua | HDPE, Black | Armored LSZH, Black |
| Cable Diameter | 3.0mm | 3.0mm | 3.0mm | 3.0mm | 3.0mm |
| Insertion Loss | =0.15dB | =0.15dB | =0.15dB | =0.15dB | =0.15dB |
| Low Friction Coating | ? | no data | no data | no data | ? |
| Length | 1-10 Kilometers | 1-30m | 0.2-25m | 10-300m | 10-30m |
 LC UPC 12 Fibers Pigtail OS2 |  LC UPC 6 Fibers Pigtail OS2 |  LC UPC 6 Fibers Pigtail OM3 |  LC UPC 6 Fibers Pigtail OM3 |  LC UPC 12 Fibers Pigtail OM3 |  LC UPC 12 Fibers Pigtail OS2 | |
|---|---|---|---|---|---|---|
| Customer Reviews | — | — | — | — | — | — |
| Price | — | — | — | — | — | — |
| Fiber Count | 12 | 6 | 6 | 6 | 12 | 12 |
| Fiber Mode | 9/125 µm | 9/125 µm | 50/125 µm | 50/125 µm | 50/125 µm | 9/125 µm |
| Cable Diameter | 0.9 mm | 0.9 mm | 0.9 mm | 0.9 mm | 0.9 mm | 0.9 mm |
| Minimum Bend Radius | 7.5mm | 7.5mm | 7.5mm | 7.5mm | 7.5mm | 7.5mm |
| Insertion Loss | =0.15dB | =0.15dB | =0.15dB | =0.15dB | =0.15dB | =0.15dB |
| Cable Types | Color-Coded | Color-Coded | Color-Coded | Bunch | Bunch | Bunch |
 SC/APC to SC/APC |  SC/APC to SC/APC Armored |  SC/APC to SC/APC Armored |  SC/UPC to SC/UPC OS2 |  SC/UPC to SC/UPC OS2 |  SC/UPC to SC/APC OS2 | |
|---|---|---|---|---|---|---|
| Customer Reviews | — | — | — | — | — | — |
| Price | — | — | — | — | — | — |
| Fiber Count | Simplex | Simplex | Simplex | Simplex | Simplex | Simplex |
| Fiber Grade | Corning G.657.A2 | Corning G.657.A2 | Corning G.657.A2 | Corning G.657.A2 | Corning G.657.A2 | Corning G.657.A2 |
| Jacket | LSZH, Yellow | Armored LSZH, White | Armored LSZH, Black | Armored LSZH, White | Armored LSZH, Black | Armored LSZH, White |
| Cable Diameter | 3.0mm | 3.0mm | 3.0mm | 3.0mm | 3.0mm | 3.0mm |
| Insertion Loss | =0.15dB | =0.15dB | =0.15dB | =0.15dB | =0.15dB | =0.15dB |
| Low Friction Coating | no data | no data | ? | no data | ? | no data |
| Length | 1-30m | 1-30m | 1-10 Kilometers | 1-30m | 10-100m | 1-30m |

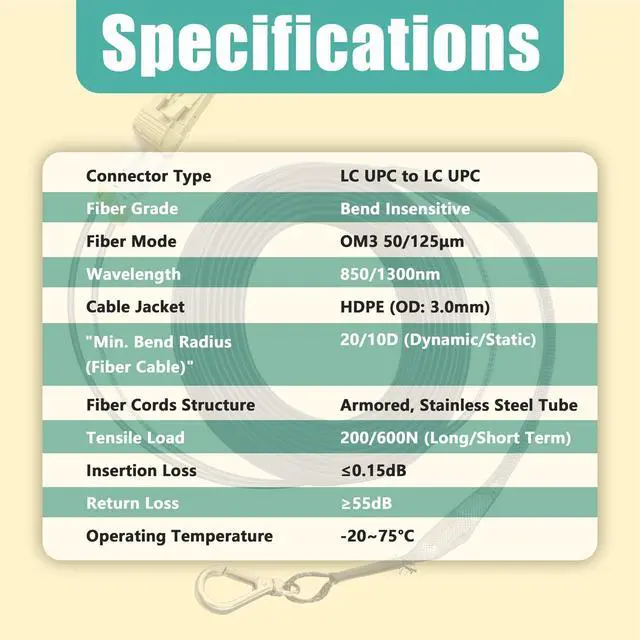

OM3 Multimode LC to LC Duplex Armored Fiber Optic Cable Specifications
| Connector Type | LC UPC to LC UPC |
| Fiber Mode | OM3 50/125µm |
| Fiber Count | Duplex |
| Fiber Grade | Bend Insensitive |
| Min. Bend Radius (Fiber Cable) | 20/10D (Dynamic/Static) |
| Cable Jacket | HDPE |
| Cable Diameter | 3.0mm |

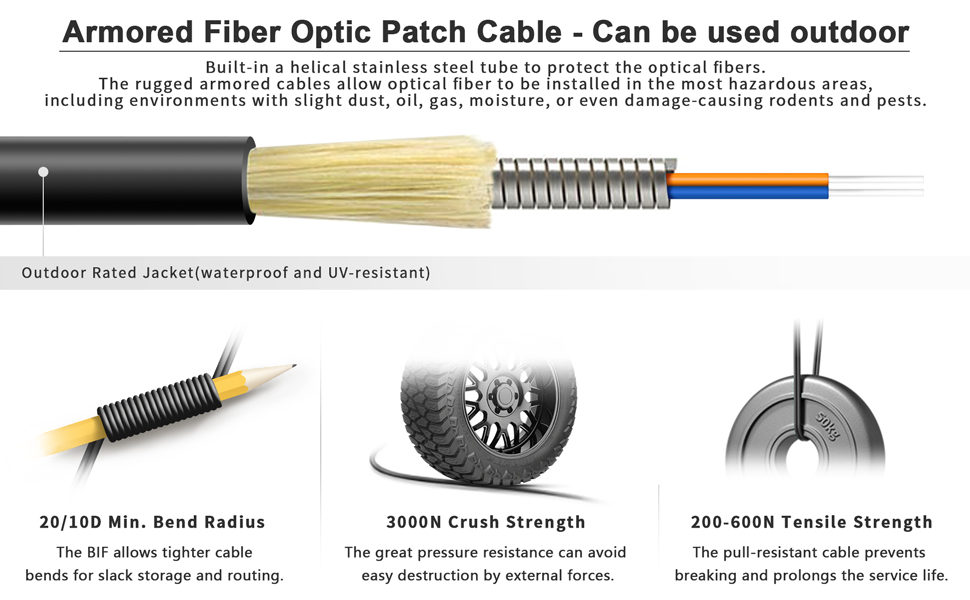

| Fiber Cords Structure | Armored, Stainless Steel Tube |
| Tensile Load | 200/600N (Long/Short Term) |
| Insertion Loss | 10-100m=0.3dB, 100-200m=0.6dB, 200-300m=0.9dB |
| Return Loss | =55dB |
| Maximum Tension of Pulling Eye | 245N |
| Operating Temperature | -20~75°C |
| Storage Temperature | -20~75°C |
Pulling Eye Kit installed on one end
The pulling eye protects the connectors of the outdoor fibers and prevents the cables from twisting during the installation of conduits, ducts or risers. With this kit, you can pull this duplex jumpers through the conduit easily and quickly. It allows a tension up to 245N.
Foxconn precision ceramic ferrule
The precision ferrules reach up to 500 times insertions lifespan.
Unique end-face baking technology
The unique end-face baking technology allows the jumper to maintain a dry end-face for an extended period in even the harshest climate conditions, preventing the formation of moisture that could affect data transmission.
Bangun products are extensively applicable to telecom operators, fiber optic engineering, CCTV, broadband networks, FTTH, data center in more than 80 countries worldwide.
