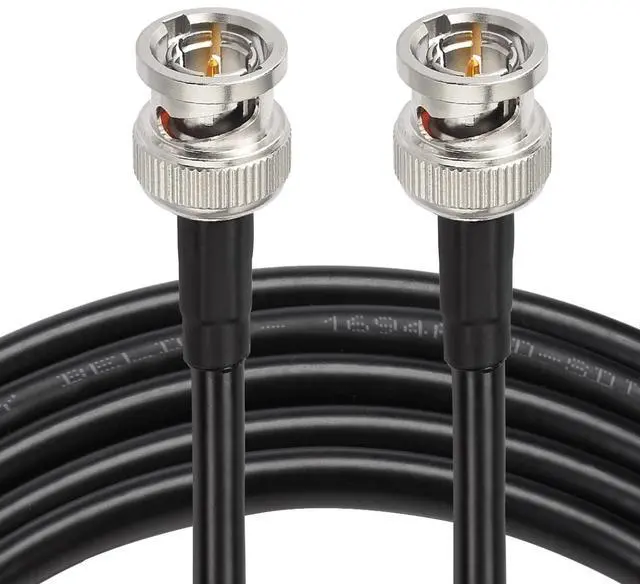

Superbat 3G/6G/12G/HD-SDI Cable BNC to BNC Digital Video Cable ( Belden 1694A cable)
Belden 1694A Low Loss Serial Digital Coaxial Cable is an RG6 coax designed to carry several video signals including analog, 4x3 digital (SD-SDI), high definition (HD-SDI) and even 3gig (1080p/50 or 1080p/60). The center conductor is made from true 75 Ohm 18AWG solid copper.
This cable is 100% sweep tested and is ready to meet today’s requirements of 6 Gbps data transfer.can be used in professional broadcast applications.

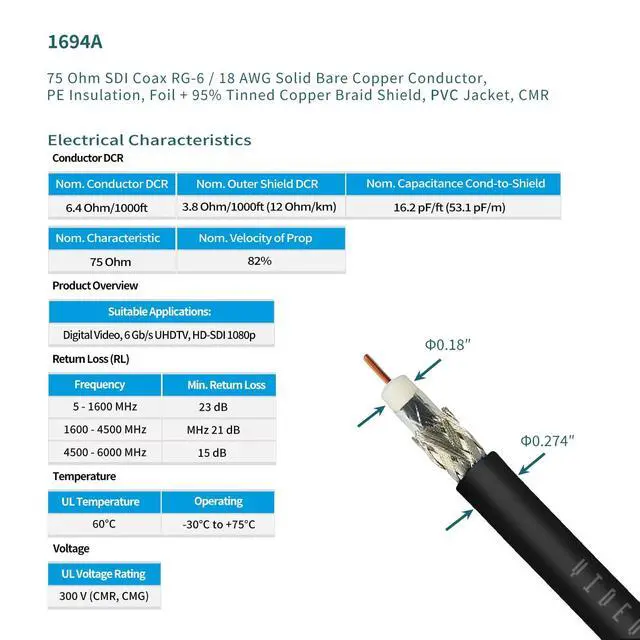

Features and Specifications: Overall diameter: 0.274".
Center conductor: 0.40" dia. bare copper
Dielectric: 0.180" dia. foamed PE

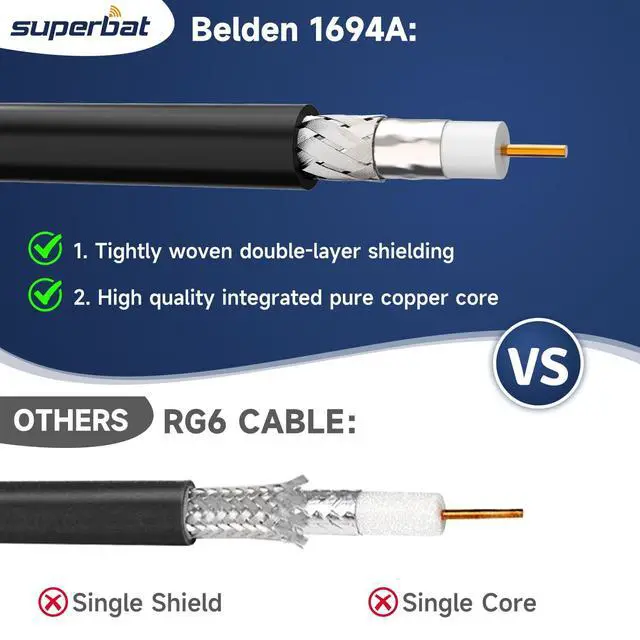

Shield: 100% aluminum foil/polyester tape/aluminum foil and 95% coverage tinned copper -give maximum protection from EMI and RFI, excellent noise rejection
PVC outer jacket - durability and long-term protection.
Velocity of propagation: 82%
Capacitance: 16.2 pF/ft.
Nominal attenuation: 0.240 dB/100 ft. @ 1 MHz
NOTE:

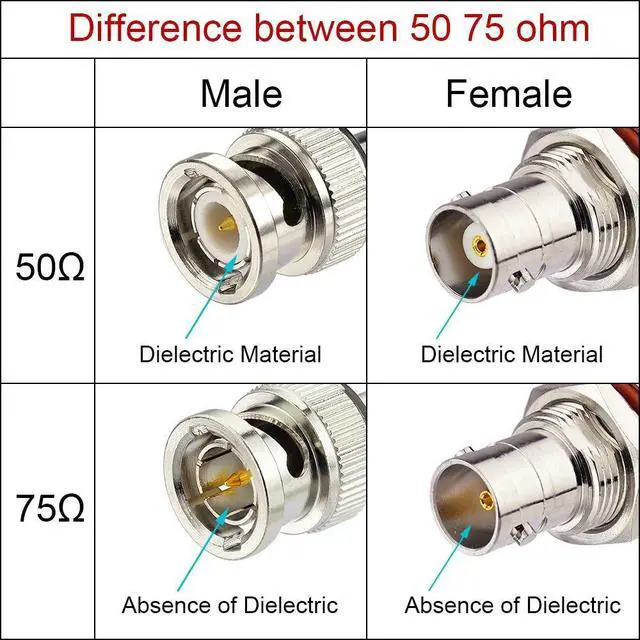

This sdi cable Impedance: 75 ohm for audio and video, so :
50 Ohm BNC connectors are used with 50 Ohm cables. 75 Ohm BNC connectors are used with 75 Ohm cables.

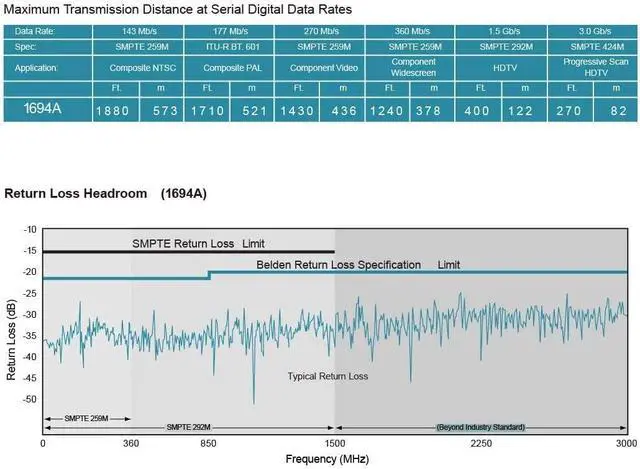

Serial Digital Data Rates
- Standard Definition SD-SDI (270 Mbps, ST 259)
- HD standard HD-SDI (1.483 Gbps, ST 292)
- 3G-SDI (2.97 Gbps, ST 424)
- 6G-SDI (5.94 Gbps, ST 2081)
- 12G-SDI (11.88 Gbps, ST 2082)

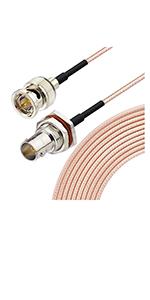

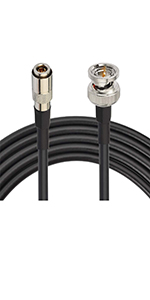

 3G/HD SDI Cable BNC Cable bnc Male to male extension Coaxial Cable |  3G/6G/12G SDI Cable BNC Cable BNC Extension Coaxial Cable |  3G SDI HD-SDI Cable BNC Cable Thin Short bnc Male to male Cable |  DIN to SDI BNC Cable, DIN 1.0/2.3 to BNC Male Cable |  BNC Cable 3G/HD SDI Cable Coil Cable 75ohm BNC to BNC Extension Cable |  12G SDI Cable 4K short BNC Cable | |
|---|---|---|---|---|---|---|
| Customer Reviews | — | — | — | — | — | — |
| Price | — | — | — | — | — | — |
| Cable type | RG179 coax cable | Belden 1694A | Belden 1855A | Belden 1855A | 3C-2V A/V Cable | Belden 4855A |
| Support | Supports HD-SDI/3G-SDI/4K/8K,SDI Video Cable | Supports HD-SDI/3G-SDI/4K/8K,SDI Video Cable Precision Video Cable | SD-SDI/HD-SDI /3G-SDI/6G-SDI Vedio Camera Monitor | for Blackmagic BMCC/BMPCC Video Assist 4K Transmissions HyperDeck Kameras | SD-SDI/HD-SDI /3G-SDI Cable | for SDI Vedio Recorder Camera Monitor Audio Gateway Hub Broadcast Router Frame Sync Converter |

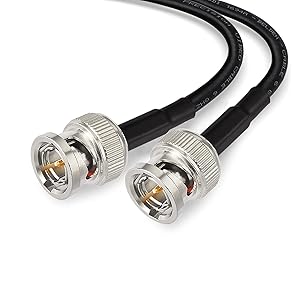

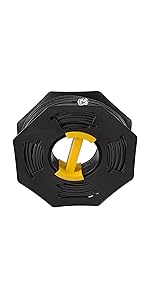

 3G 6G SDI Cable 75 ohm BNC Male to BNC Male Cable |  12G SDI Cable 4K BNC Male to Male Cable 75 Ohm + SDI Cable Reel |  3G/6G HD SDI Cable BNC Male to BNC Male Cable |  3G HD-SDI Cable BNC Male to BNC Female Cable | |
|---|---|---|---|---|
| Customer Reviews | — | — | — | — |
| Price | — | — | — | — no data |
| Cable type | Belden 1694A Black | Belden 4694R | Belden 1694A Colourful | RG179 cable |

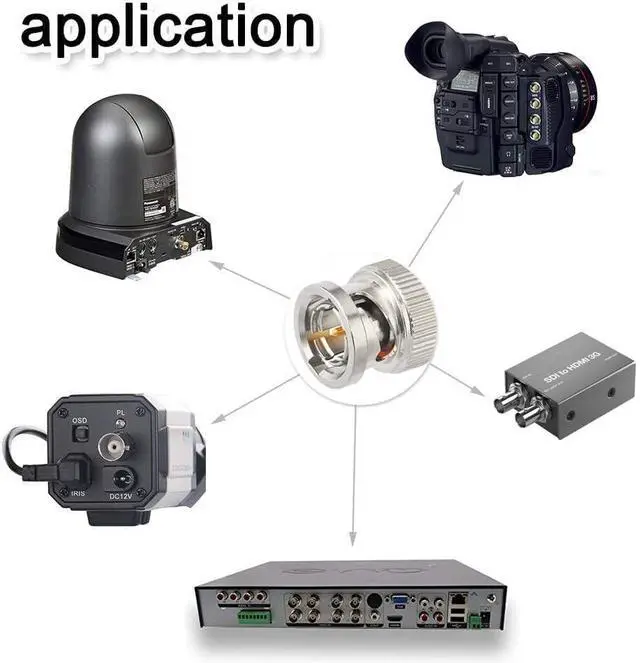

| Application | for SDI Vedio Camera Monitor, SDI Capture Card, SDI Vedio Frame Grabber, SDI Switcher Hub, SDI Frame Synchronizer etc. | for SDI Vedio Camera Monitor, SDI Capture Card, SDI Frame Grabber, Switcher Hub, SDI Frame Synchronizer, Surveillance Camera Cables etc. | for VCR, camera, CCTV monitor, sdi converter, video splitter, oscilloscopes, surveillance camera cables etc. | for Cameras, SDI Video Cable Wireless Microphone System Receiver Extender etc. |

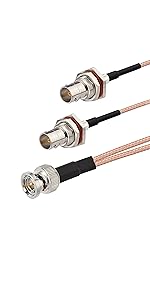

 3G/HD SDI Cable BNC Cable bnc Male to male extension Coaxial Cable 2pcs |  BNC Cable BNC Male to Male Connector Coaxial Cable 2pcs |  BNC SDI Coax Splitter 75Ohm BNC Male to Dual Female Cable |  BNC SDI Adapter BNC Female to Female Barrel Connector |  BNC Female to BNC Female Barrel Coaxial Connector Adapter | |
|---|---|---|---|---|---|
| Customer Reviews | — | — | — | — | — |
| Price | — | — | — | — | — |
| Impedance | 75 Ohm | 50 Ohm | 75 Ohm | 75 Ohm | 50 Ohm |
| Type | Coax cable | Coax cable | Coax splitter | bnc coupler | bnc coupler |
Superbat 3G/6G/12G/HD-SDI Cable BNC to BNC Digital Video Cable ( Belden 1694A cable)
Belden 1694A Low Loss Serial Digital Coaxial Cable is an RG6 coax designed to carry several video signals including analog, 4x3 digital (SD-SDI), high definition (HD-SDI) and even 3gig (1080p/50 or 1080p/60). The center conductor is made from true 75 Ohm 18AWG solid copper.
This cable is 100% sweep tested and is ready to meet today’s requirements of 6 Gbps data transfer.can be used in professional broadcast applications.
Features and Specifications: Overall diameter: 0.274".
Center conductor: 0.40" dia. bare copper
Dielectric: 0.180" dia. foamed PE
Shield: 100% aluminum foil/polyester tape/aluminum foil and 95% coverage tinned copper -give maximum protection from EMI and RFI, excellent noise rejection
PVC outer jacket - durability and long-term protection.
Velocity of propagation: 82%
Capacitance: 16.2 pF/ft.
Nominal attenuation: 0.240 dB/100 ft. @ 1 MHz
NOTE:
This sdi cable Impedance: 75 ohm for audio and video, so :
50 Ohm BNC connectors are used with 50 Ohm cables. 75 Ohm BNC connectors are used with 75 Ohm cables.
Serial Digital Data Rates
- Standard Definition SD-SDI (270 Mbps, ST 259)
- HD standard HD-SDI (1.483 Gbps, ST 292)
- 3G-SDI (2.97 Gbps, ST 424)
- 6G-SDI (5.94 Gbps, ST 2081)
- 12G-SDI (11.88 Gbps, ST 2082)
