Supports all M/M&B Key NVMe SSDs up to 8TB in 2280/2260/2242/2230 (partial list)
UGREEN 10 Gbps M.2 External SSD Enclosure USB C Series
 M.2 NVMe Enclosure |  80Gbps M.2 NVMe Enclosure |  20Gbps Dual Bay Cloner |  40Gbps Dual-Bay Cloner |  M.2 NVMe Enclosure |  40Gbps M.2 NVMe Enclosure |  20Gbps M.2 Enclosure | |
|---|---|---|---|---|---|---|---|
Customer Reviews | — | — | — | — | — | — | — |
Price | — | — | — | — | — | — | — |
Compatible SSDs | NVMe SSDs | NVMe SSDs | NVMe SSDs | NVMe SSDs | NVMe SSDs | NVMe SSDs | NVMe & SATA SSDs |
Transfer Speed | 10 Gbps | 80 Gbps | 20 Gbps | 40 Gbps | 40 Gbps | 40 Gbps | 20 Gbps |
USB Interface | USB C 3.2 Gen 2 | Thunderbolt 5 | USB C 3.2 Gen 2x2 | USB 4.0 | USB 4.0 | USB 4.0 | USB C 3.2 Gen 2*2 |
Supports SSD uo tp | 8TB | 8TB | 16TB | 16TB | 8TB | 8TB | 8TB |
Chipset | RTL9210 | JHL9480 | JMS586U | ASM2464PDX | ASM2464PD | JHL7440+ RTL9210 | RTL9220 |
Supports SSD Sizes | 2230/ 2242/ 2260/2280 | 2280 | 2230/ 2242/ 2260/2280 | 2230/ 2242/ 2260/2280 | 2230/ 2242/ 2260/2280 | 2280 | 2230/ 2242/ 2260/2280 |

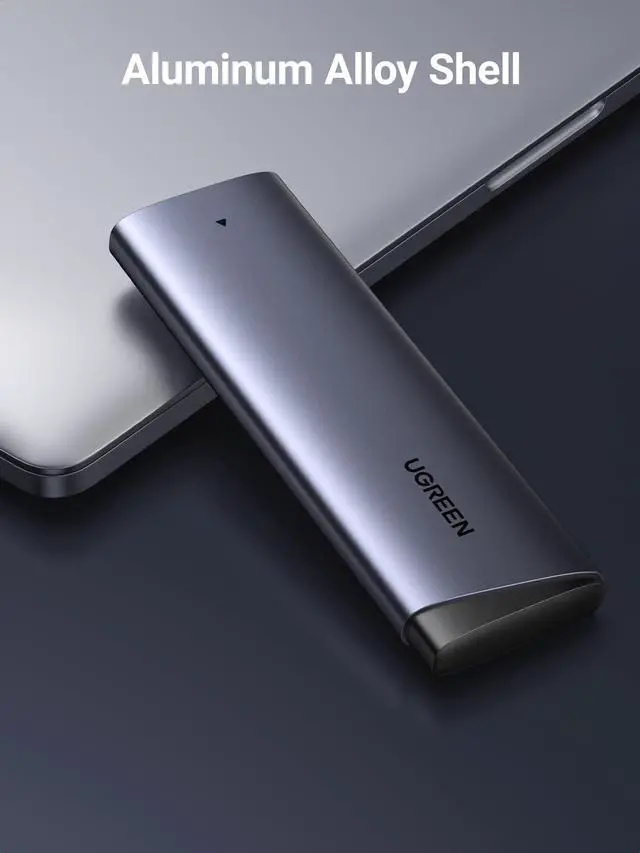

Material | Aluminum | Aluminum | Aluminum | Aluminum | Aluminum | Aluminum | Aluminum |
Cable Included | C to C | C to C | C to C | C to C | C to C + C to A | C to C | C to C |
Silicone Case | ? | ? | ? | ? | ? | ? | ? |
Plug&Play | ? | ? | ? | ? | ? | ? | ? |
Fan | ? | ? | ? | ? | ? | ? | ? |
Notice For UGREEN NVMe M.2 SSD Enclosure USB C 10Gbps Portable Aluminum SSD Case

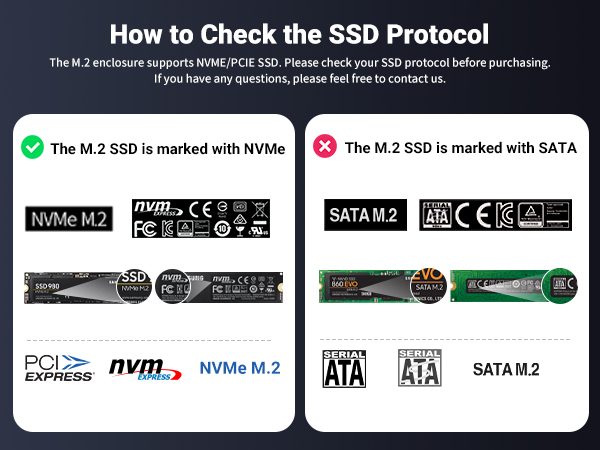

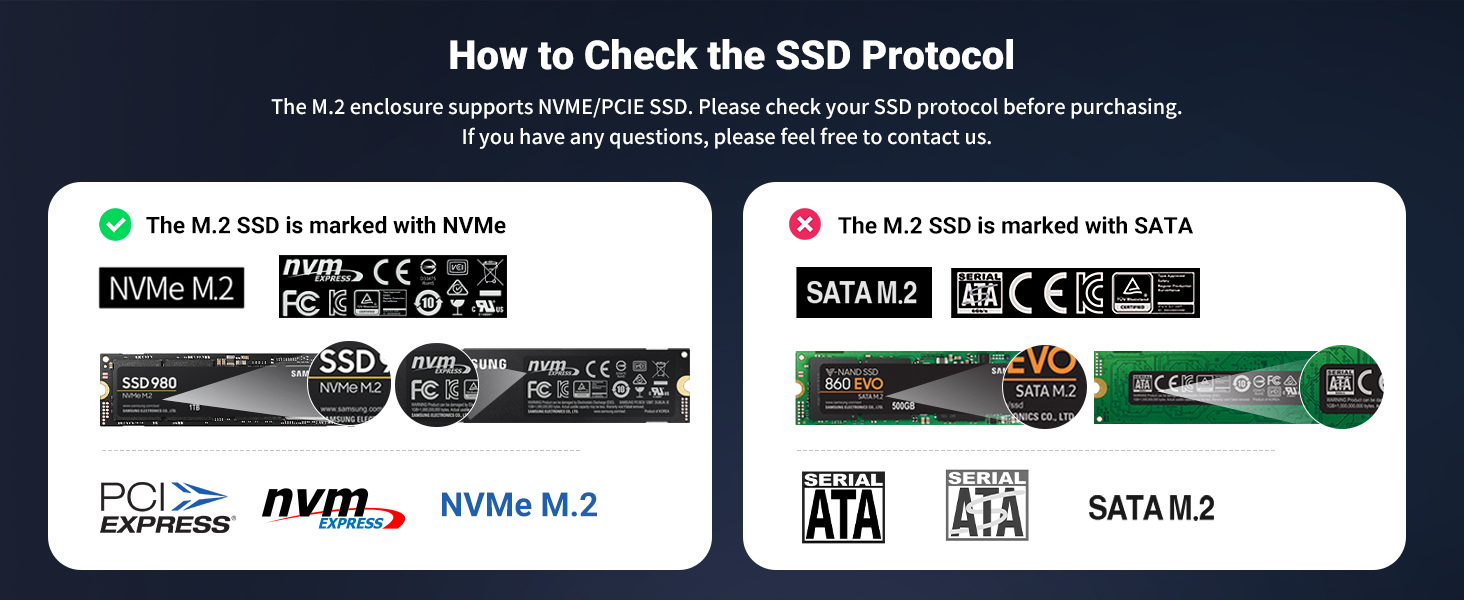

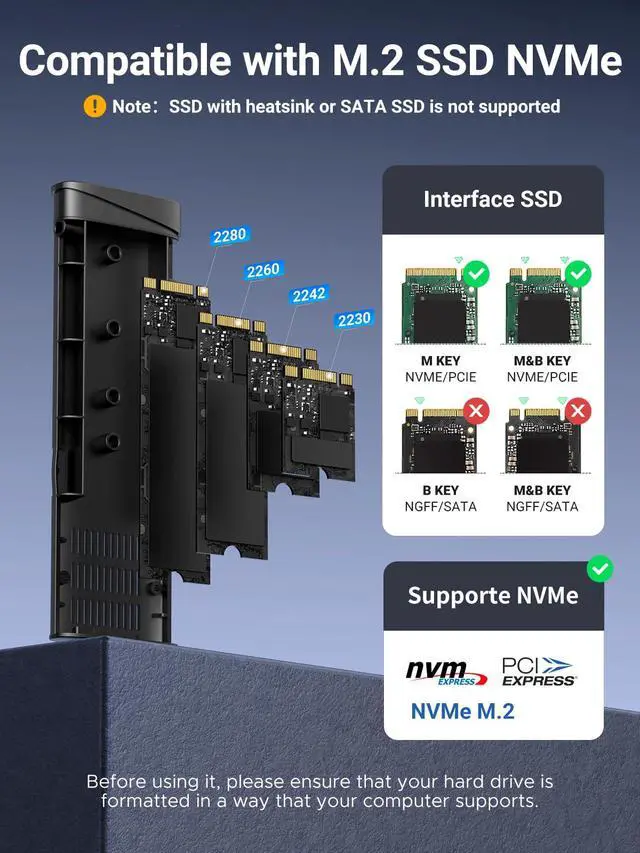

- This M.2 NVMe SSD enclosure does not support M.2 SATA NGFF SSDs or SSDs with heatsink,only supports NVMe SSD with thickness less than 3.5mm.

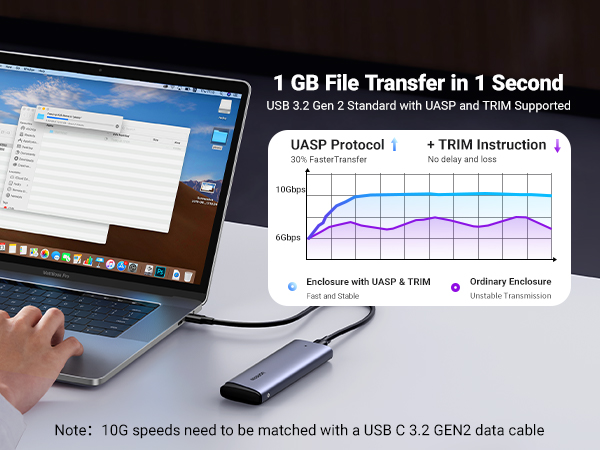

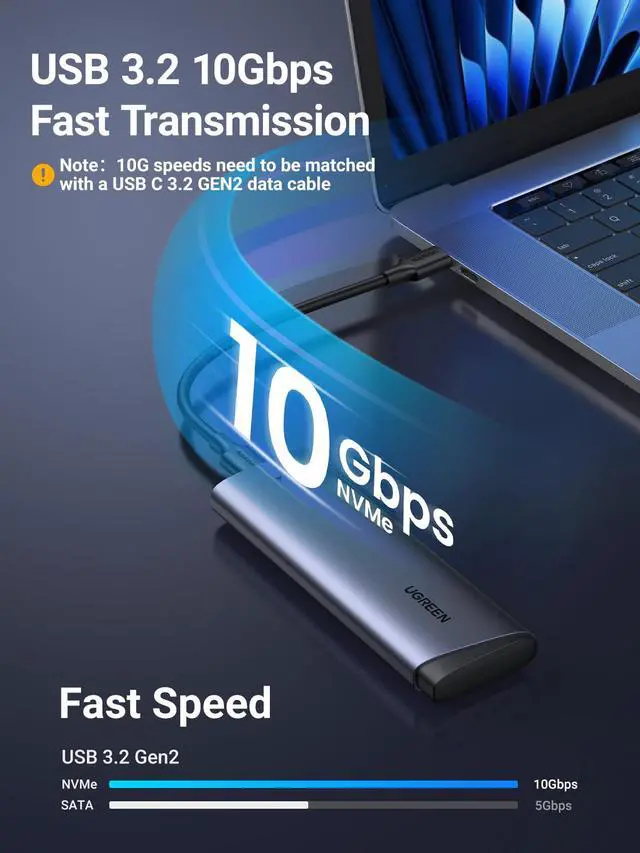

- To perfectly reflect product performance (up to 10Gbps), please connect this M.2 SSD enclosure to a device with a USB 3.2 gen 2 standard interface.
- When you need to take out the SSD, please perform a safe removal operation on the device before disconnecting it from the device. Do not remove the NVMe M.2 enclosure and SSD forcibly to avoid data loss and hard drive damage.
- When this SSD enclosure M.2 NVMe is copying data, do not forcibly disconnect the device to avoid file loss and hard drive damage.
The solution to the problem that the device cannot recognize the SSD through this M.2 enclosure USB C:
- Confirm whether the connection between the data cable and the product and equipment is in good contact, and whether the SSD is installed correctly.
- The new SSD needs to be partitioned and formatted for the first use, otherwise the device cannot recognize the SSD.
- Confirm whether the system supports large-capacity hard drives, WinXP 32-bit systems do not support hard drives above 2TB.
- Confirm whether the hard disk format is consistent with the SSD format supported by the system. If not, please format the SSD into a hard disk format supported by the system.

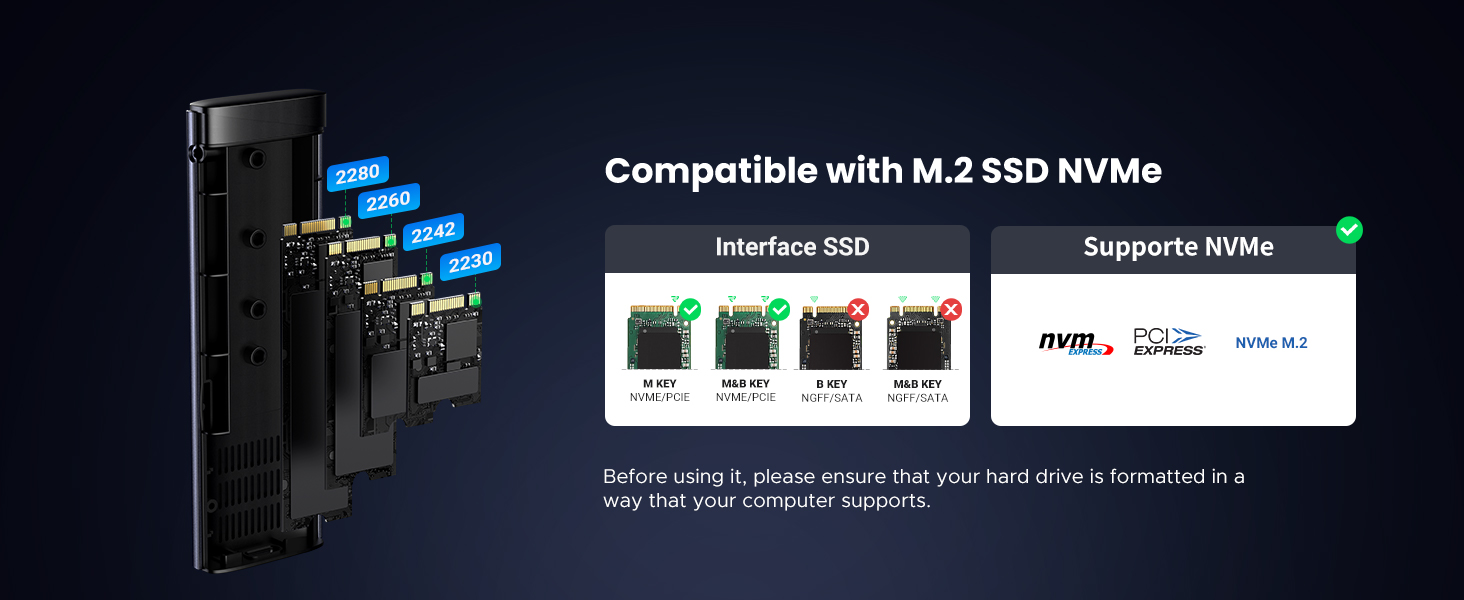

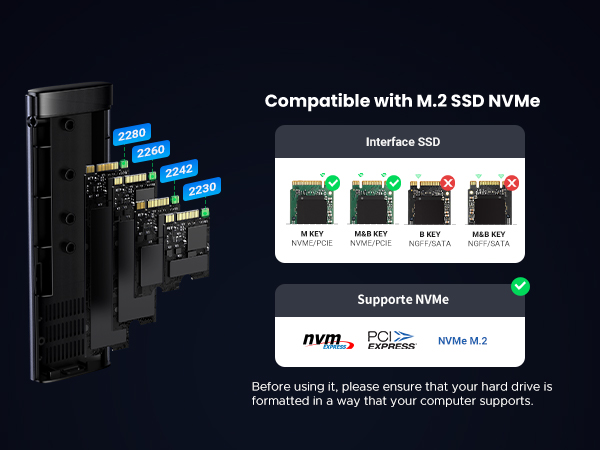

Supports all M/M&B Key NVMe SSDs up to 8TB in 2280/2260/2242/2230 (partial list)
| Compatible with Samsung | 990 PRO/980/980 PRO/970 EVO Plus/970 EVO/970 Pro/960 Pro/960 EVO/860 EVO Series |
|---|---|
| Compatible with Crucial | P2/P3/P3 Plus/P5/P5 Plus Series |
| Compatible with W_D Black | SN 850X/SN 850/SN 770/SN 750/SN 570/SN 550/SN 530/SN 520 |
| Compatible with Silicon Power | UD90/UD85/UD80/UD70/US75/US70/P34A60/P34A80/P32A80/XD85/XD80 |
| Compatible with TEAMGROUP | A440 Pro/Z440/Z44L/Z340/Z330/MP33/MP34 |
| Compatible with Corsair | MP700 Series/MP600 Series/MP510 |
| Compatible with SABRENT | Rocket 4/Rocket Q4/Rocket Q/Rocket |
| Compatible with PNY | CS2241/CS2230/CS2240/CS2140/CS3140/CS1030/LX3030/LX2030/ |
| Compatible with XPG | GAMMIX S70/SX8200/GAMMIX S11 |
| Compatible with Kingston | SNVS/A2000/KC2000/KC2500/KC3000/SA400M8 |
| Compatible with sk hynix | Platinum P41/Gold P31 |
| Compatible with Lexar | NM800 PRO/NM790/NM710/NM620 |
| Compatible with Seagate | FireCuda 540/FireCuda 530/FireCuda 520/FireCuda 510/BarraCuda 510/BarraCuda 515 |
| Compatible with Intel | 600P/660P/665P/760P/545S/Optane 800P/Optane H10 |
UGREEN 10 Gbps M.2 External SSD Enclosure USB C Series
M.2 NVMe Enclosure | 80Gbps M.2 NVMe Enclosure | 20Gbps Dual Bay Cloner | 40Gbps Dual-Bay Cloner | M.2 NVMe Enclosure | 40Gbps M.2 NVMe Enclosure | 20Gbps M.2 Enclosure |
|---|---|---|---|---|---|---|
| Customer Reviews | ||||||
| — | — | — | — | — | — | — |
| Price | ||||||
| — | — | — | — | — | — | — |
| Compatible SSDs | ||||||
| NVMe SSDs | NVMe SSDs | NVMe SSDs | NVMe SSDs | NVMe SSDs | NVMe SSDs | NVMe & SATA SSDs |
| Transfer Speed | ||||||
| 10 Gbps | 80 Gbps | 20 Gbps | 40 Gbps | 40 Gbps | 40 Gbps | 20 Gbps |
| USB Interface | ||||||
| USB C 3.2 Gen 2 | Thunderbolt 5 | USB C 3.2 Gen 2x2 | USB 4.0 | USB 4.0 | USB 4.0 | USB C 3.2 Gen 2*2 |
| Supports SSD uo tp | ||||||
| 8TB | 8TB | 16TB | 16TB | 8TB | 8TB | 8TB |
| Chipset | ||||||
| RTL9210 | JHL9480 | JMS586U | ASM2464PDX | ASM2464PD | JHL7440+ RTL9210 | RTL9220 |
| Supports SSD Sizes | ||||||
| 2230/ 2242/ 2260/2280 | 2280 | 2230/ 2242/ 2260/2280 | 2230/ 2242/ 2260/2280 | 2230/ 2242/ 2260/2280 | 2280 | 2230/ 2242/ 2260/2280 |
| Material | ||||||
| Aluminum | Aluminum | Aluminum | Aluminum | Aluminum | Aluminum | Aluminum |
| Cable Included | ||||||
| C to C | C to C | C to C | C to C | C to C + C to A | C to C | C to C |
| Silicone Case | ||||||
| ? | ? | ? | ? | ? | ? | ? |
| Plug&Play | ||||||
| ? | ? | ? | ? | ? | ? | ? |
| Fan | ||||||
| ? | ? | ? | ? | ? | ? | ? |
Notice For UGREEN NVMe M.2 SSD Enclosure USB C 10Gbps Portable Aluminum SSD Case
- This M.2 NVMe SSD enclosure does not support M.2 SATA NGFF SSDs or SSDs with heatsink,only supports NVMe SSD with thickness less than 3.5mm.
- To perfectly reflect product performance (up to 10Gbps), please connect this M.2 SSD enclosure to a device with a USB 3.2 gen 2 standard interface.
- When you need to take out the SSD, please perform a safe removal operation on the device before disconnecting it from the device. Do not remove the NVMe M.2 enclosure and SSD forcibly to avoid data loss and hard drive damage.
- When this SSD enclosure M.2 NVMe is copying data, do not forcibly disconnect the device to avoid file loss and hard drive damage.
The solution to the problem that the device cannot recognize the SSD through this M.2 enclosure USB C:
- Confirm whether the connection between the data cable and the product and equipment is in good contact, and whether the SSD is installed correctly.
- The new SSD needs to be partitioned and formatted for the first use, otherwise the device cannot recognize the SSD.
- Confirm whether the system supports large-capacity hard drives, WinXP 32-bit systems do not support hard drives above 2TB.
- Confirm whether the hard disk format is consistent with the SSD format supported by the system. If not, please format the SSD into a hard disk format supported by the system.
