Model:SH-U09C5

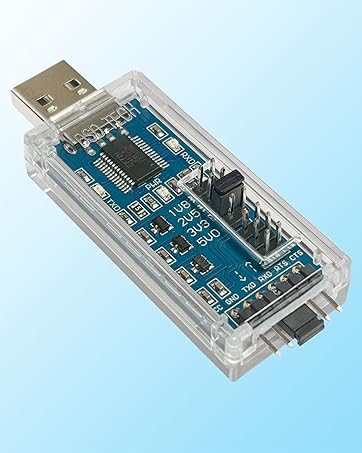

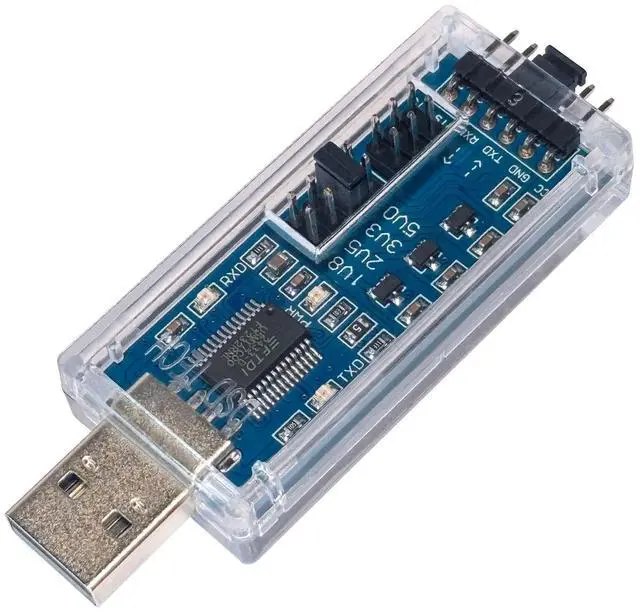

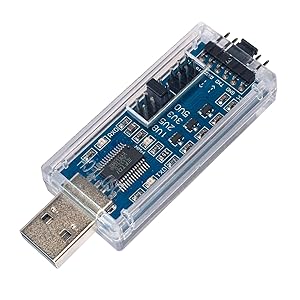

Ideal for programmers, hardware engineers and DIY enthusiasts.Compared to other USB to TTL UART adapters, this adapter not only supports 3.3V and 5V logic levels, but also adds support for 1.8V and 2.5V logic levels.At the same time it is equipped with a protective plastic case, this protective plastic case can effectively prevent static interference and various short circuits.

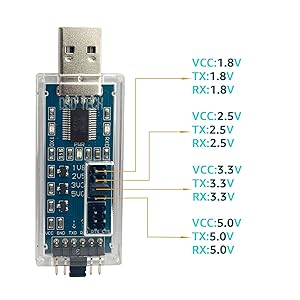

Multi-Voltage TTL Support

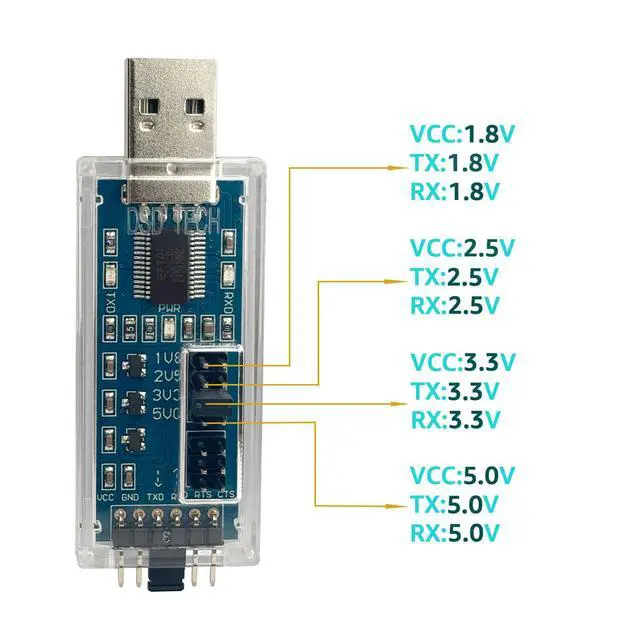

Compatible with 1.8V, 2.5V, 3.3V, and 5V TTL levels, ideal for diverse electronics projects requiring flexible voltage communication.

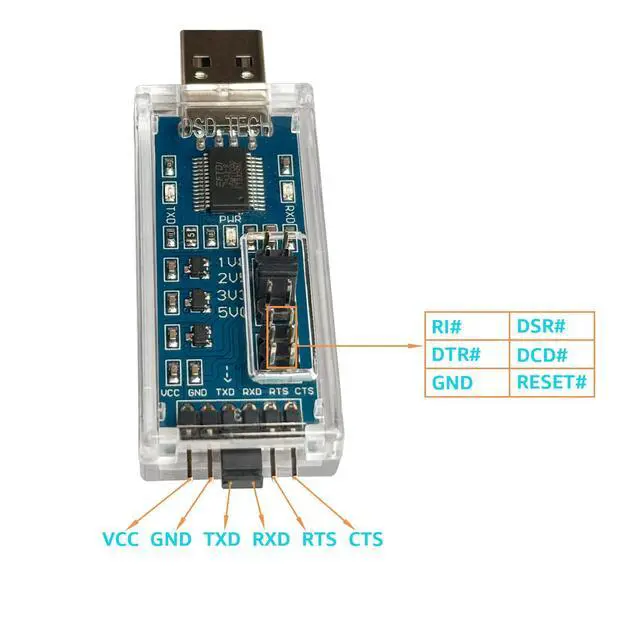

Extended pin layout is implemented

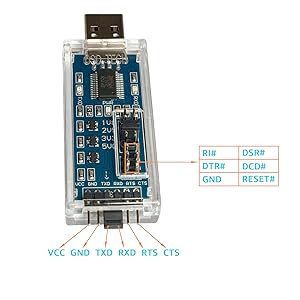

In addition to the basic pins (UART TX/RX/RTS/CTS/VCC/GND), DSR/RI/DCD/DTR/RESET pins are individually accessible. Supports a variety of control needs.
Anti-Static Protective Case

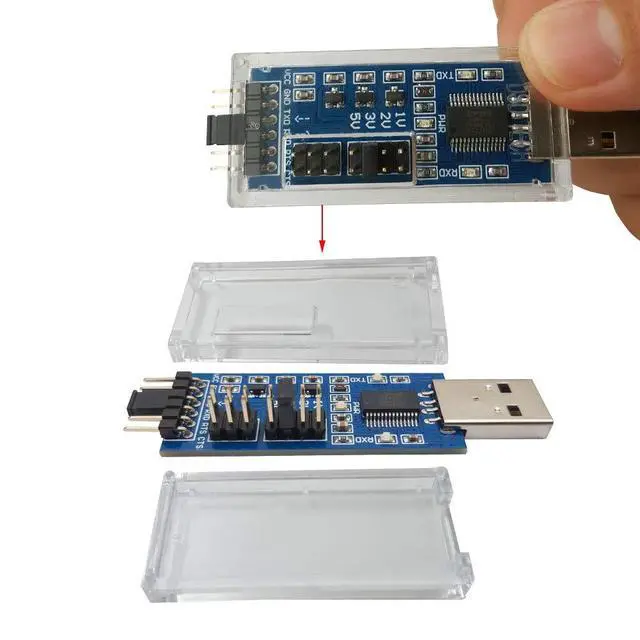

Includes a transparent case to prevent static interference and accidental short circuits, enhancing durability during use.
Specification
Model:SH-U09C5
Ideal for programmers, hardware engineers and DIY enthusiasts.Compared to other USB to TTL UART adapters, this adapter not only supports 3.3V and 5V logic levels, but also adds support for 1.8V and 2.5V logic levels.At the same time it is equipped with a protective plastic case, this protective plastic case can effectively prevent static interference and various short circuits.
Multi-Voltage TTL Support
Compatible with 1.8V, 2.5V, 3.3V, and 5V TTL levels, ideal for diverse electronics projects requiring flexible voltage communication.
Extended pin layout is implemented
In addition to the basic pins (UART TX/RX/RTS/CTS/VCC/GND), DSR/RI/DCD/DTR/RESET pins are individually accessible. Supports a variety of control needs.
Anti-Static Protective Case
Includes a transparent case to prevent static interference and accidental short circuits, enhancing durability during use.
Specification
| ?Model? | SH-U09C5 |

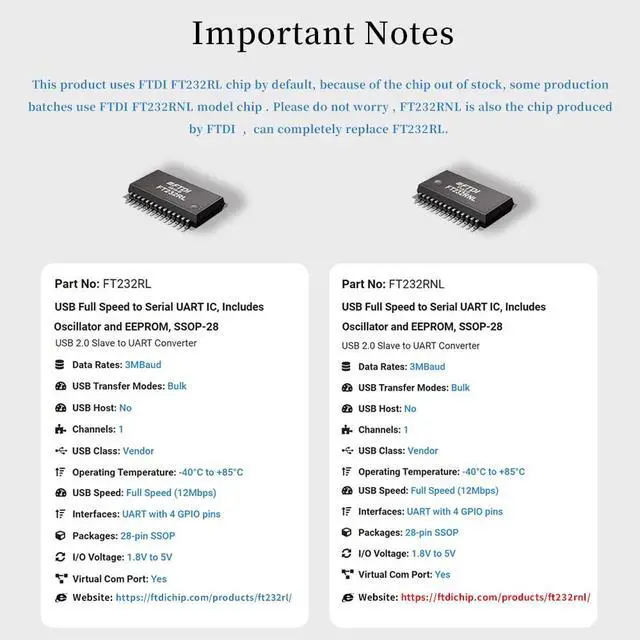

| ?Main Chip? | FTDI FT232RL/FT232RNL |
| Output VCC | 1.8V/2.5V/3.3V/5V |
| TTL Level | 1.8V/2.5V/3.3V/5V |
| USB interface | 2.0 |
| Maximum speed | 3Mbps |
| Output current limiting | 500mA(5V),250mA(3.3V) |
| ?Pin Definitions? | CTS, RTS, RXD, TXD, GND, VCC, DSR, RI, DCD, DTR, RESET |
| Indicator LED? | Power Indicator ,Tx Indicator ,Rx Indicator |
| ?Supported OS? | Windows xp,7,8,10 ,11,Linux,MacOS |

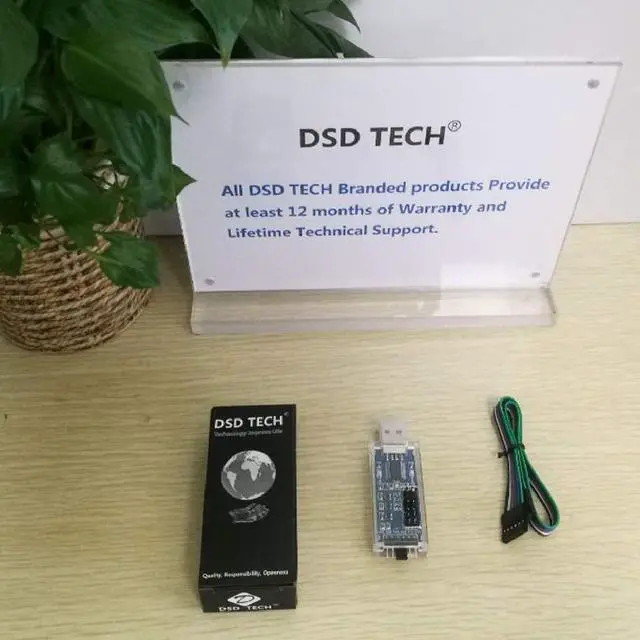

| ?Package Contents | 1×USB-TTL Adapter,1×4-pin Dupont Cable,1×User Manual |
