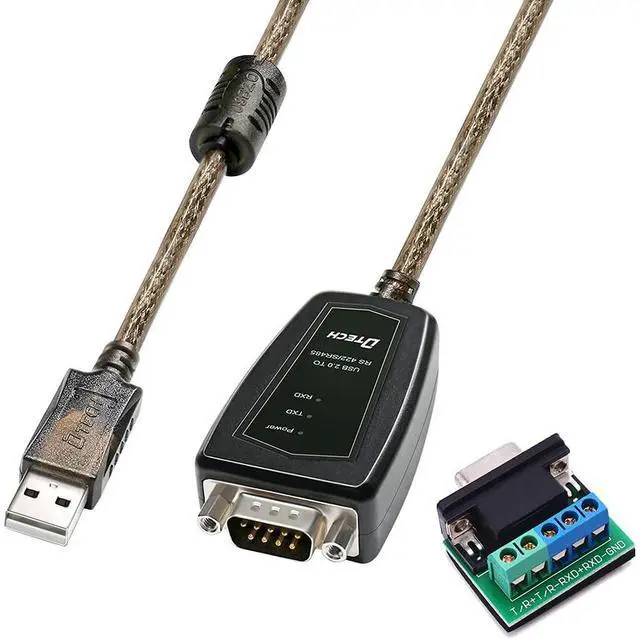

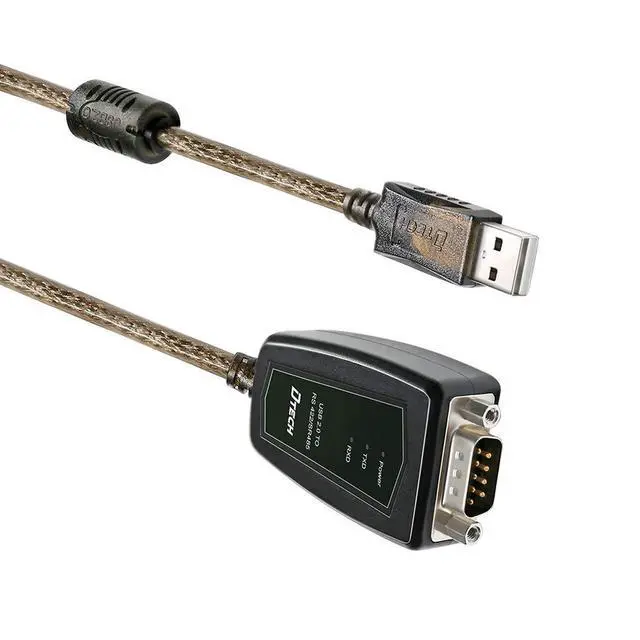

USB to RS485 Adapter RS422 Serial Port Cable with CP2102 Chip Terminal Board LED Lights Ferrite Core for Windows 11 10 8 7 XP Mac (5 Feet)

5-foot USB to RS485 cable devices with CP2102 chip connects RS422 or RS485 serial devices to a computer via USB connector.

USB to RS 422 / 485 serial adaptor cord is a high quality industrial USB plug and play dongle designed to instantly add a RS485/RS422 port to your PC or Mac system via USB interface, RS485 serial to USB adapter is ideal solution for connecting industrial devices such as laboratory testing and measuring equipment, monitoring devices, material handling equipment, and many more devices where mission critical applications are required.

Specific

RS422/RS485 TIA/EIA Standard

USB2.0; compatible USB 1.1

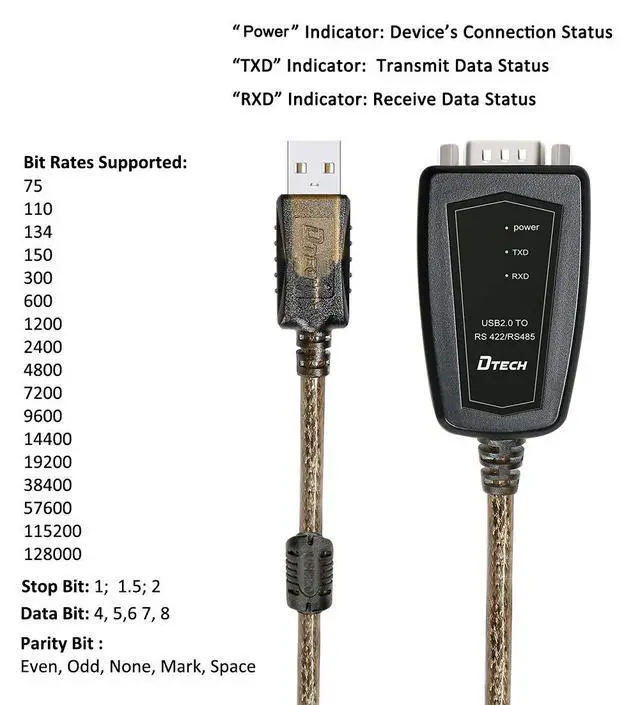

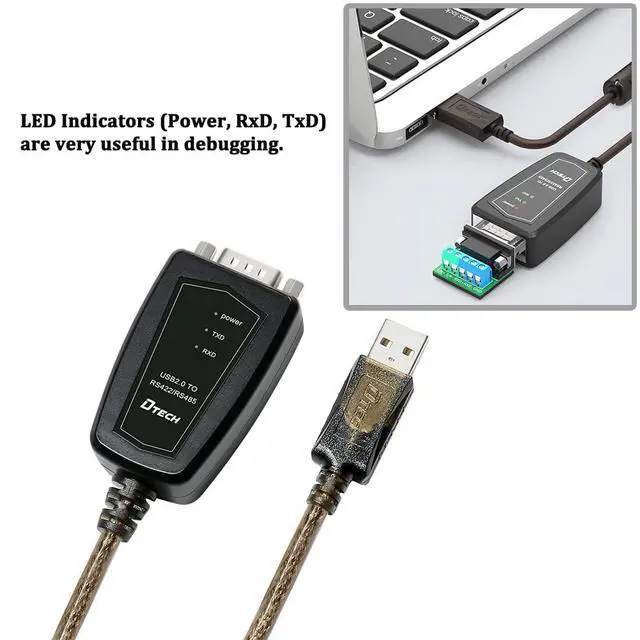

Indication LED's for Power, TX and RX

No IRQs, DMA or required; No IRQ Conflicts

Automatic send data control. Auto detection of data speed; Zero delay automatic transmission

Automatic hand-shaking protocol supported

Built-in static and surge protection up to 600W; 15KV ESD protection

multiple terminals up to 256 RS-485 or RS-422 devices

Distance: up to 1200 meters for RS-485/422 end

Bit Rates: 75; 110; 134; 150; 300; 600; 1200; 2400; 4800; 7200; 9600; 14400; 19200; 38400; 57600; 115200; 128000 per second

Data Bit: 4; 5;6; 7; 8

Stop Bit: 1;1.5; 2

Parity Bit : Even; Odd; None; Mark; Space

Flow control: hardware; Xon/Xoff; none

Working modes: asynchronous; point-to-point or point-to-multipoint; 2-line RS485 half duplex and 4-line RS422 full duplex.

Application: Factory automation system, Distributed control system, Other 485/422 serial device wireless network, LED INFO display equipments, PLC control and management, SCADA, measuring instrument and monitoring system, CNC management, Medical treatment/medication automation, Building automation, Check on work attendance/ Human resource management.

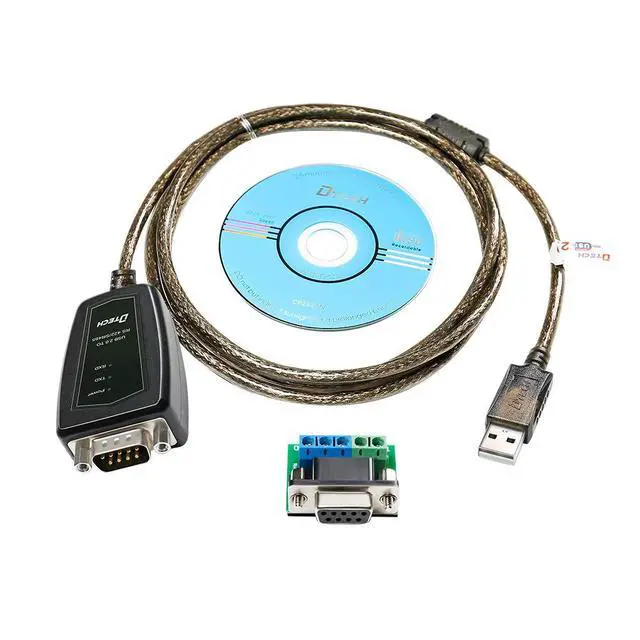

Whats Included

1 x USB to RS-422 RS-485 Adapter Cable 5ft

1x 5 Position Terminal Block

1 x CD driver
