Features At A Glance

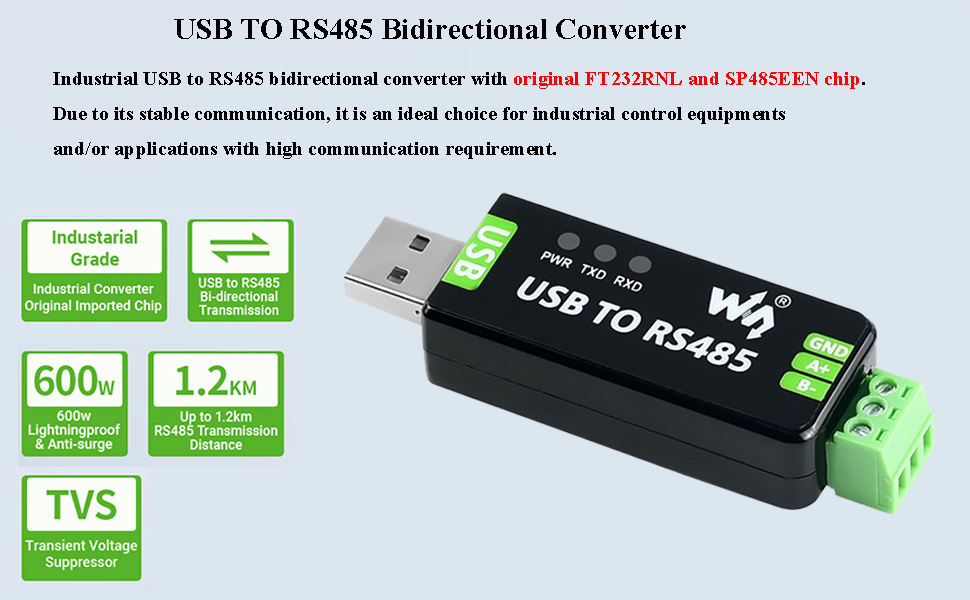

- Support USB to RS485 bidirectional conversion

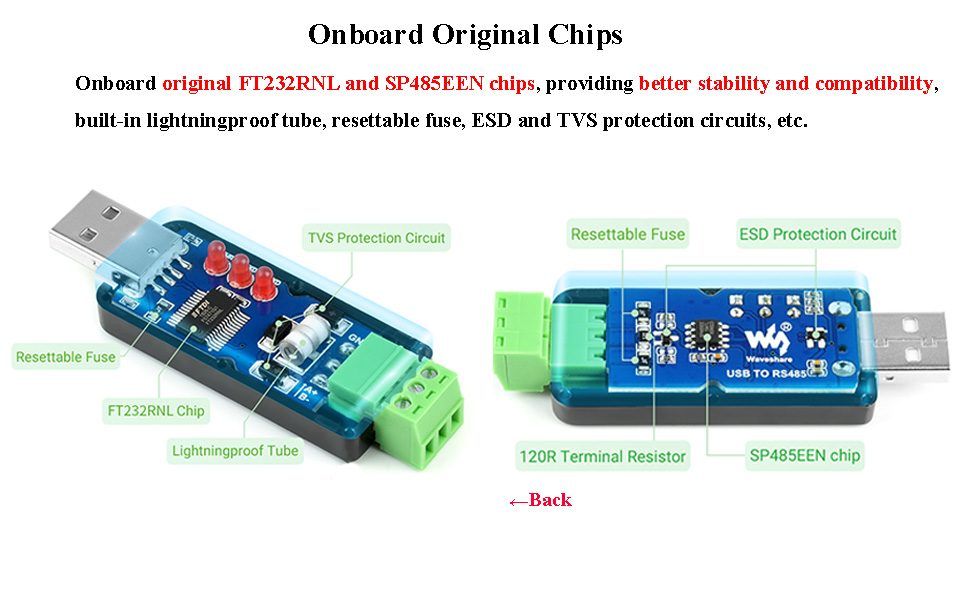

- Onboard Original FT232RNL and SP485EEN chip. Fast communication, stable and reliable, better compatibility
- Onboard TVS (Transient Voltage Suppressor), effectively suppress surge voltage and transient spike voltage in the circuit, lightningproof & anti-electrostatic
- Onboard resettable fuse and protection diodes, ensures the current/voltage stable outputs, provides over-current/over-voltage proof, improves shock proof performance

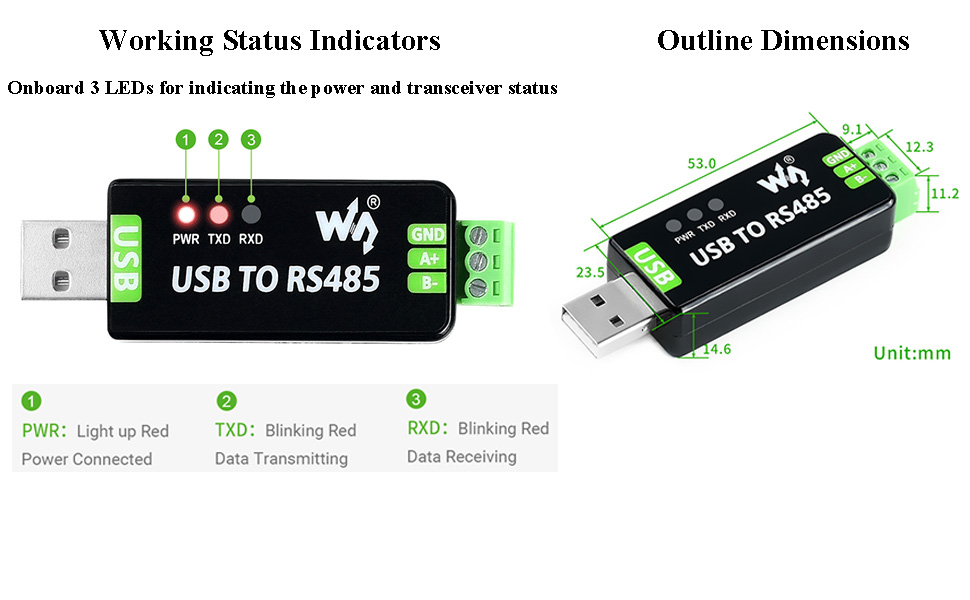

- 3 LEDs for indicating the power and transceiver status
- Due to its stable communication, it is an ideal choice for industrial control equipments and/or applications with high communication requirement.

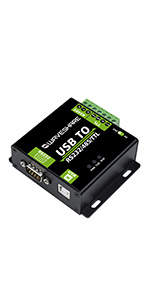

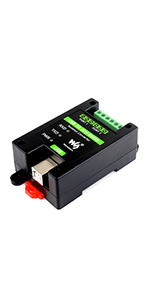

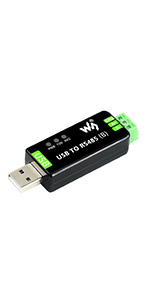

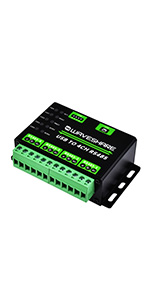

 USB TO RS485 Converter |  USB TO RS485 (B) Converter |  USB TO 2CH RS485 Converter |  USB TO 4CH RS485 Converter |  USB TO RS232/485/TTL Converter | |
|---|---|---|---|---|---|
| Customer Reviews | — | — | — | — | — |
| Price | — | — | — no data | — | — |

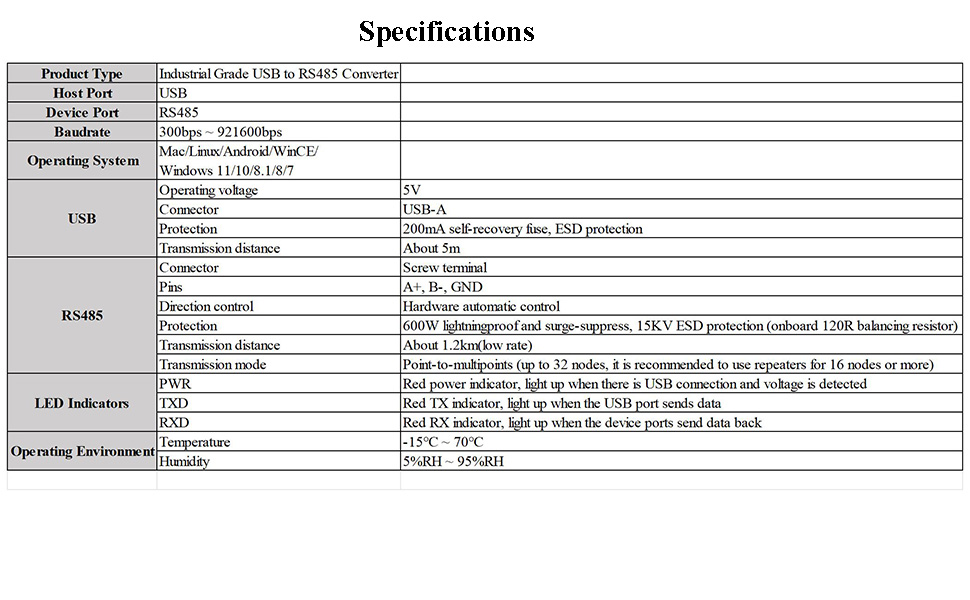

| Chip | FT232RNL and SP485EEN | CH343G and SP485EEN | FT2232HL | CH344L and SP485EEN | FT232RL |
| Host Port | USB | USB | USB | USB | USB |
| Device Port | RS485 | RS485 | RS485 | RS485 | RS485/RS232/TTL (UART) |
| Baudrate | 300bps ~ 921600bps | 300bps ~ 3Mbps | 300bps ~ 3Mbps | 1200bps ~ 460800bps | 300bps ~ 921600 bps |
| Operating System | Mac/Linux/Android/WinCE/Windows 11/10/8.1/8/7 | Mac/Linux/Android/WinCE/Windows 11/10/8.1/8/7 | Mac/Linux/Android/Windows 11/10/8.1/8/7 | Mac/Linux/Android/Windows 11/10/8.1/8/7 | Mac/Linux/Android/Windows 11/10/8.1/8/7 |
| Temperature Range | -15? ~ 70? | -15? ~ 70? | -15? ~ 70? | -40 ~ 85? | -15? ~ 70? |
| Humidity Range | 5%RH ~ 95%RH | 5%RH ~ 95%RH | 5%RH ~ 95%RH | 5%RH ~ 95%RH | 5%RH ~ 95%RH |
| LED Indicators | PWR/TXD/RXD | PWR/TXD/RXD | PWR/TXD/RXD | PWR/ACT/TXD/RXD | PWR/TXD/RXD |
