Cable Specifications(Cables and Cabling Configurations)
These cables enable connection from 95xx series MegaRAID and HBA Tri-Mode adapters to SAS, SATA, and PCIe (NVMe) devices.
Storage Interface Cabling
Choose the proper cable for the given backplane type and connectors. The correct choice is especially important for
backplanes that use SFF-8643 for the NVMe connectors. Many of these backplanes use an older legacy-recommended
pinout for the NVMe connector instead of a connector pinout based on the SFF-9402 specification. Most backplanes
that use either SFF-8612 or SFF-8654 connectors follow the SFF-9402 specification. The pinout recommended in the
PCI Express OCuLink Specification is equivalent to that recommended for SFF-9402. Verify the connector pinout for the
intended backplane to make sure the proper cable is used when connecting to NVMe drives.
Backplane Connectors
SFF-8612 or SFF-8654 are the preferred connectors to use for NVMe backplane or multiprotocol backplanes based on
the SFF-TA-1001 universal bay definition.
Backplanes that use OCuLink connectors should follow the PCI Express OCuLink Specification. This pinout is also
equivalent to the SFF-9402 specification recommendations. Verify the backplane connector pinout to make sure you use
proper cabling to the NVMe drive. Refer to the PCI Express OCuLink Specification and the SFF-9402 specification for
backplane NVMe connector pinout information.

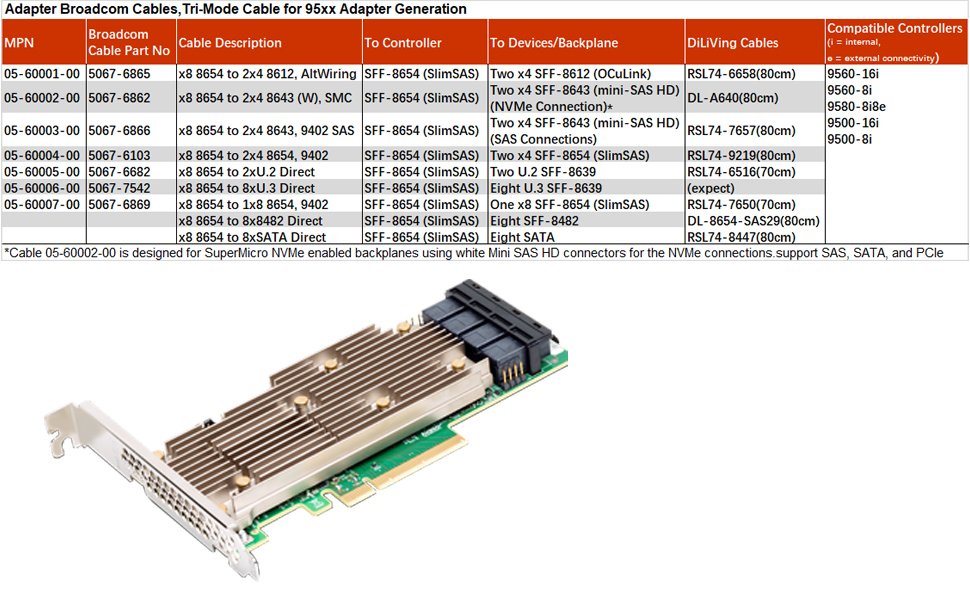

 RSL74-6658 |  DL-A640 | RSL74-7657 |  RSL74-9219 |  RSL74-6516 |  RSL74-7650 | |
|---|---|---|---|---|---|---|
| Customer Reviews | — | — | — | — | — | — |
| Price | — | — | — | — | — | — no data |
| Controller | SFF-8654 (SlimSAS) | SFF-8654 (SlimSAS) | SFF-8654 (SlimSAS) | SFF-8654 (SlimSAS) | SFF-8654 (SlimSAS) | SFF-8654 (SlimSAS) |
| Devices/Backplane | 2 x4 SFF-8612 (OCuLink) | 2 x4 SFF-8643 Mini SAS HD (NVMe Connection) | 2 x4 SFF-8643 Mini SAS HD (SAS Connections) | 2 x4 SFF8654 SlimSAS | 2xU.2 Direct | 1 x8 SFF8654 SlimSAS |
| Description | x8 8654 to 2x4 8612, AltWiring | x8 8654 to 2x4 8643 (W), SMC | x8 8654 to 2x4 8643, 9402 SAS | x8 8654 to 2x4 8654, 9402 | x8 8654 to 2xU.2 Direct | x8 8654 to 1x8 8654, 9402 |
| Length | 80cm | 80cm | 80cm | 80cm | 70cm | 70cm |
| Supported Devices | SATA/SAS/NVMe | SATA/SAS/NVMe | SATA/SAS | SATA/SAS/NVMe | U.2 NVMe | SATA/SAS/NVMe |
| MPN | 05-60001-00 | 05-60002-00 | 05-60003-00 | 05-60004-00 | 05-60005-00 | 05-60007-00 |
Diliving SlimSAS 8X to 2*oCulink 4X,SFF-8654 74Pin to 2*SFF-8611 38Pin Cable 80cm(Broadcom MPN 05-60001-00)
This cable can be used to connect internal devices, e.g. a backplane with Slim Line 8654 74pin connector to a controller with SFF-8611 connector.
Ultraport Slimline x8 74Pin Cable Assembly. Length: 80cm
Connector 1: Slimline SFF-8654 x8 74pin. Connector 2: Dual SFF-8611 oCulink
Features and Benefits: 1.Smaller size connector and cable saves device space. 2.Provide four channels signal transmission as per industry standard. 3.Data speed: 24Gbps for SAS and 8GT/s for PCIe per channel. 4.Meet SAS4.0, Ultraport SlimSAS SFF-8654 specification.
Diliving SlimSAS 8X to 2*MiniSAS HD 4X,SFF-8654 74Pin to 2*SFF-8643 36Pin Cable 80cm(Broadcom MPN 05-60002-00)
- This cable can be used to connect internal devices, e.g. a backplane with Slim Line 8654 74pin connector to a controller with SFF-8643 connector.
- Ultraport Slimline x8 74Pin Cable Assembly. Length: 80cm
- Connector 1: Slimline SFF-8654 x8 74pin. Connector 2: Dual SFF-8643 Mini SAS HD
- Applications for Servers,Data Storage,Workstation. Meet PCIe Gen3/4 and SAS4.0 specification
Features and Benefits: 1.Smaller size connector and cable saves device space. 2.Provide four channels signal transmission as per industry standard. 3.Data speed: 24Gbps for SAS and 8GT/s for PCIe per channel. 4.Meet SAS4.0, Ultraport SlimSAS SFF-8654 specification.
*Cable DL-A640 is designed for SuperMicro NVMe enabled backplanes using Mini SAS HD connectors for the NVMe connections.
Diliving SlimSAS 8X to 2*MiniSAS HD 4X,SFF-8654 74Pin to 2*SFF-8643 36Pin Cable 80cm(Broadcom MPN 05-60003-00)
This cable can be used to connect internal devices, e.g. a backplane with Slim Line 8654 74pin connector to a controller with SFF-8643 connector.
Connector 1: Slimline SFF-8654 x8 74pin. Connector 2: Dual SFF-8643 Mini SAS HD;
Applications for Servers,Data Storage,Workstation. Meet PCIe Gen3/4 and SAS4.0 specification
Features and Benefits: 1.Smaller size connector and cable saves device space. 2.Provide four channels signal transmission as per industry standard. 3.Data speed: 24Gbps for SAS and 8GT/s for PCIe per channel. 4.Meet SAS4.0, Ultraport SlimSAS SFF-8654 specification.
Diliving SlimSAS x8 to 2X SlimSAS x4,SFF-8654 74P to Two SFF-8654 38P 80CM Cable(Broadcom MPN 05-60004-00)
SlimSAS x8 74pin (SFF-8654) to two SlimSAS x4 38pin (SFF-8654) Y-Cables
SFF-9402 Reference Multi-Protocol Internal Cables for SAS and/or PCIe For SAS-4 (SFF-8654)/ Other Protocol (SFF-8654) x8 Connections only
SlimSAS x8 74pin (SFF-8654) Plug to two SlimSAS x4 38pin (SFF-8654) Plug
For Broadcom Controller:9560-16i, 9560-8i, 9580-8i8e, 9500-16i, 9500-8i.
Diliving SFF-8654 to SFF-8639 Cable,SlimSAS 8i (SFF-8654 74P) to 2 Port U.2 NVMe Adapter (SFF-8639 68P) Cable with Power(Broadcom MPN 05-60005-00)
SFF-9402 Reference Multi-Protocol Internal Cables for SAS and/or PCIe For SAS-4 (SFF-8654)/ Other Protocol (SFF-8654) x4 Connections only
Downstream: U.2 Plug (SFF-8639 68P) Receptacle Port
Power: 4 pin Connector
SAS Cable: UL20744, 30AWG, 75cm, 24Gbps
For Broadcom Controller:9560-16i, 9560-8i, 9580-8i8e, 9500-16i, 9500-8i.
Professional Cables Seller
Diliving is a company specializing in the production and sale of various cables and connectors for servers, workstations and storage devices.
We provide various types of cables and connectors,Our products are widely used in servers, workstations, storage devices and data centers and other fields.
We look forward to becoming your trusted partner and providing the best connection solution for your equipment.
SATA Cable & Adapter
High-speed PCIe NVMe Solutions
Slimsas Multiport Solutions
Is the quality of our products reliable?
Products are produced by Amphenol; one of the world's top connector manufacturers and a globally recognized expert in the interconnection of electronic devices. is a high-tech company specializing in electronic integration, custom electronic packaging and value-added flexible printed circuit boards.
