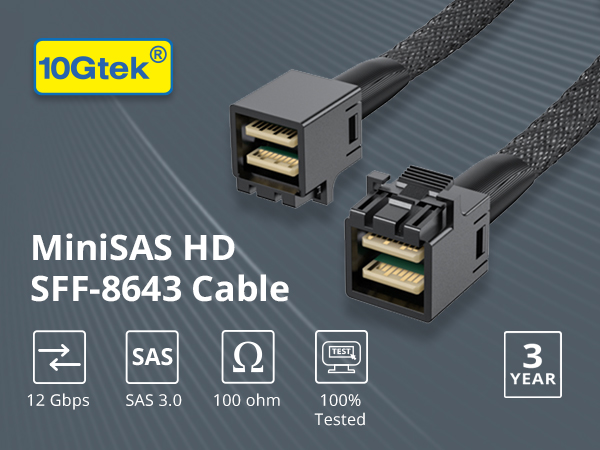

10Gtek Internal Mini SAS HD SFF-8643 Series Cable
 SFF-8643 to SFF-8643 |  SFF-8643 to 4xSATA |  SFF-8643 to SFF-8087 |  SFF-8643 to SFF-8639 |  SFF-8643 to SFF-8643(R/A) | |
|---|---|---|---|---|---|
Customer Reviews | — | — | — | — | — |
Price | — | — | — | — | — |
Connector | SFF-8643 to SFF-8643 | SFF-8643 to SATA | SFF-8643 to SFF-8087 | SFF-8643 to SFF-8639 | SFF-8643 to SFF-8643 |
Angle | Straight to Straight | Straight to Straight | Straight to Straight | Straight to Straight | Straight to Right Angle |
Date Rate | 12G | 6G | 6G | 12G | 12G |
Impedance(O) | 100 | 100 | 100 | 85 | 100 |
Quantity | 2 | 1 | 2 | 1 | 1 |

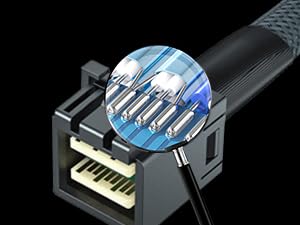

Perfectly welded, Full point
Silver plated AWG30 Twinax for impeccable signal integrity

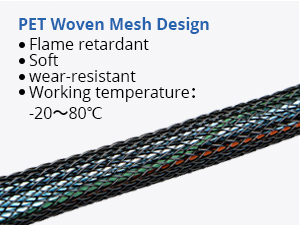

PET Woven Mesh

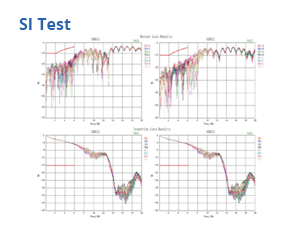

SI Test
Attenuation values in accordance with SAS 3.0 protocol standards.

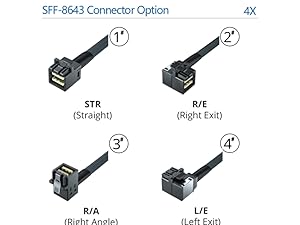

Connector Option

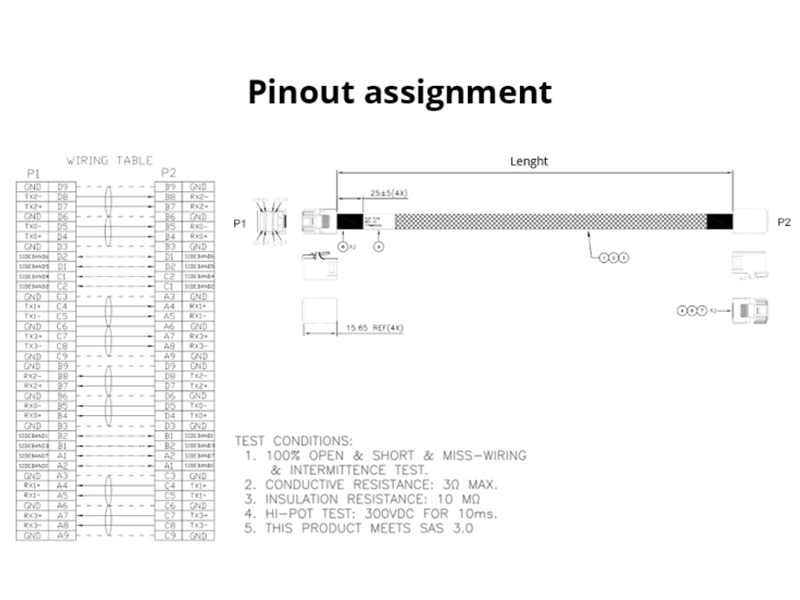

Pinout assignment
10Gtek specializes in developing high-performance SAS (Serial Attached SCSI) cable solutions for enterprise storage, server, and data center applications and is committed to delivering reliable, high-quality, and cost-effective SAS connectivity products to global customers. Customized production options are available to meet specific requirements.
