VOLTEGE REDUCER
96V 84V 72V 60V 48V 36V to 12V DC DC Converter Voltage Reducer with Fuse
High-Power DC to DC Converter Voltage Reducer works at 360W power with 12V 30A current(Max).
Please carefully check the working power of your battery pack. Don’t be conneted to any device with power higher than 360w.

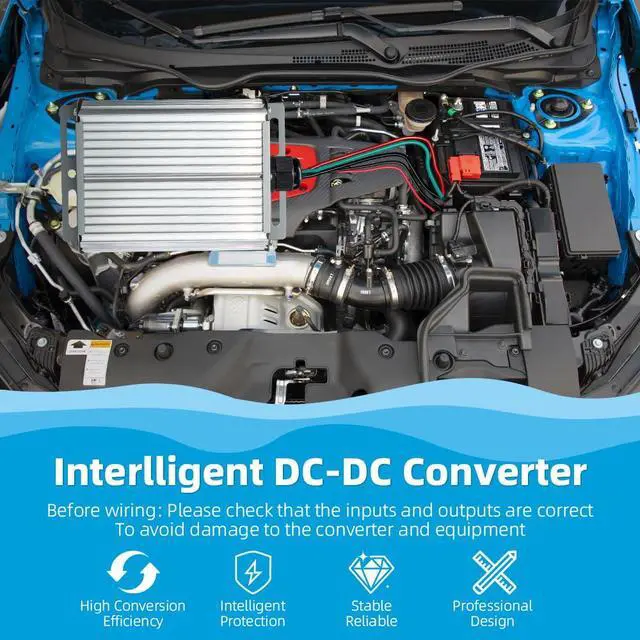

Interlligent DC-DC Converter
DC-DC 48V to 12V Step Down Voltage Reducer Regulator for Golf Carts
Our 12V voltage reducer regulator can meet your different control scenarios.

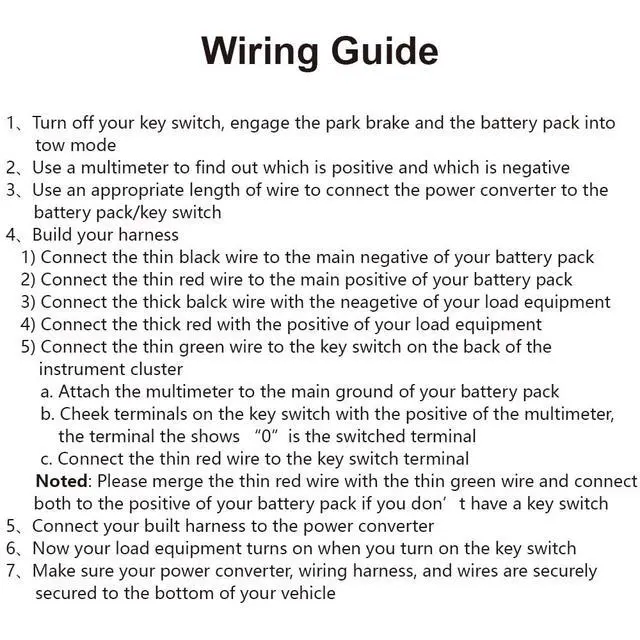

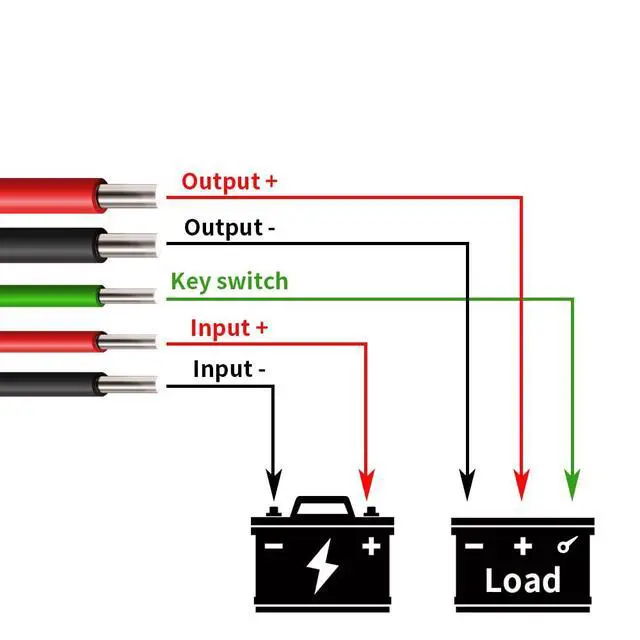

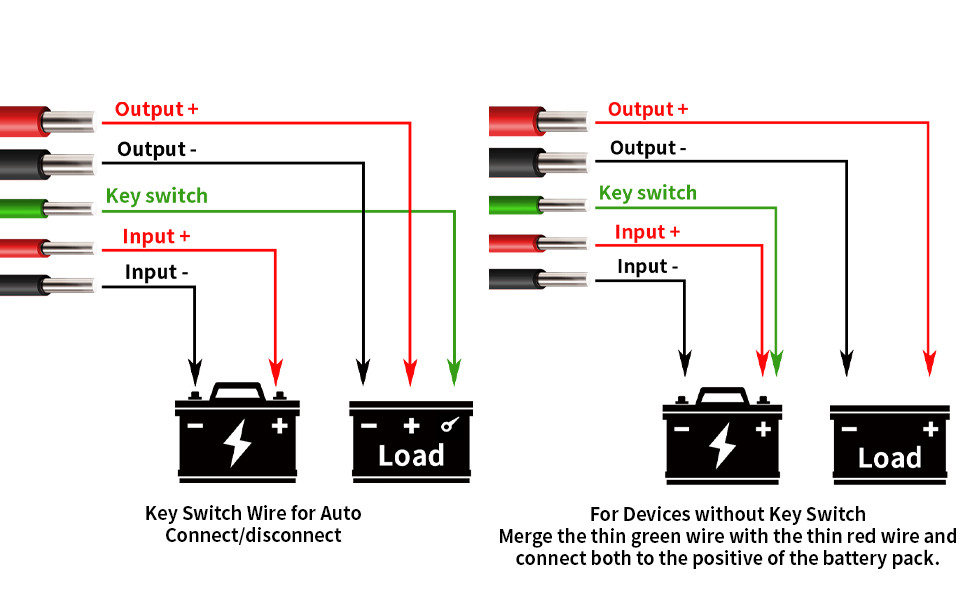

You can connect the thin green wire to the key switch on the back of the instrument cluster.
If you don’t have a key switch, please merge the thin red wire with the thick green wire and connect both to the positive of your battery pack.
DC to DC 12 Volt Converters are widely Used in a Variety of Devices
DC DC 12V converter are widely used in golf cart, car truck, led strip light, screen, monitoring system, speaker, motor and DIY etc.
For example, 72V to 12V converter, 48V to 12V converter, 36V to 12V converter,24V to 12V converter.
To avoid long periods of full-load operation, it is recommended that you reserve 20% of the power redundancy.
VOLTEGE REDUCER
96V 84V 72V 60V 48V 36V to 12V DC DC Converter Voltage Reducer with Fuse
High-Power DC to DC Converter Voltage Reducer works at 360W power with 12V 30A current(Max).
Please carefully check the working power of your battery pack. Don’t be conneted to any device with power higher than 360w.
Interlligent DC-DC Converter

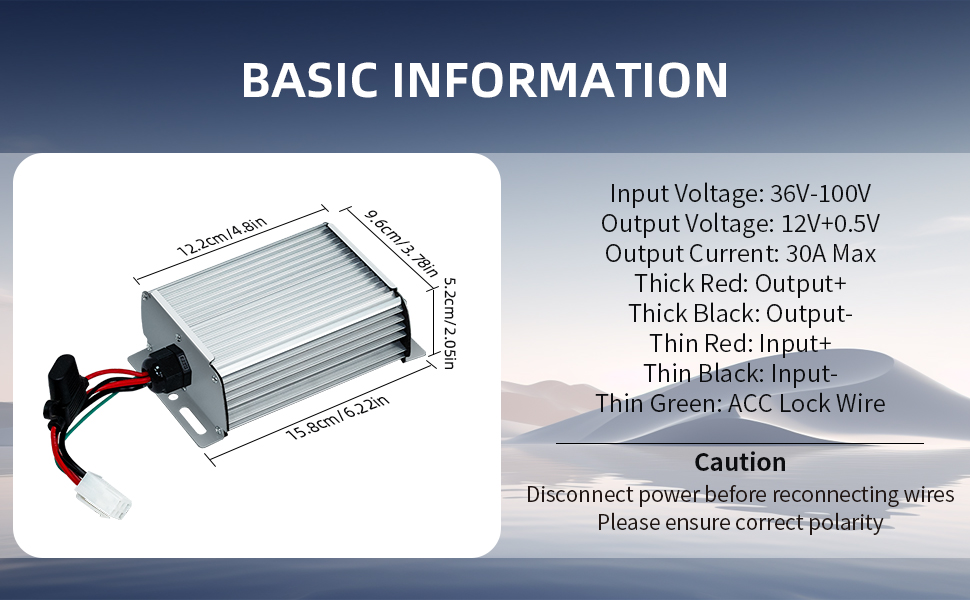

| Item Model | AIR36100-30A |
| Input Voltage | 36V-100V |
| Output Voltage | 12V±0.5V |
| Output Current | 0-30A Max |
| Output Power | 0-360W Max |
| Efficiency | =92% |
| Operating Temperature | -25?-45? |
| Storage temperature | -40?-60? |
| Number of Wires | 5 |
| Weight | 450g/15.87oz |
DC-DC 48V to 12V Step Down Voltage Reducer Regulator for Golf Carts
Our 12V voltage reducer regulator can meet your different control scenarios.
You can connect the thin green wire to the key switch on the back of the instrument cluster.
If you don’t have a key switch, please merge the thin red wire with the thick green wire and connect both to the positive of your battery pack.
DC to DC 12 Volt Converters are widely Used in a Variety of Devices
DC DC 12V converter are widely used in golf cart, car truck, led strip light, screen, monitoring system, speaker, motor and DIY etc.
For example, 72V to 12V converter, 48V to 12V converter, 36V to 12V converter,24V to 12V converter.
To avoid long periods of full-load operation, it is recommended that you reserve 20% of the power redundancy.
