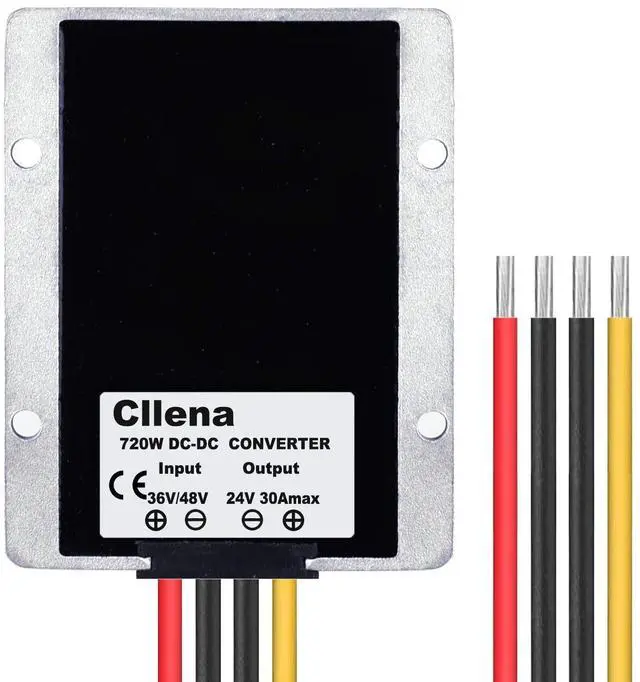

DC 36V 48V to 24V Converter Voltage Reducer 30A 720W Waterproof DC Step Down Converter Buck Transformer

Reminder:

* Keep good air convection.

* Input power should be lead acid battery or lithium battery.

* This converter cant charge the battery.

* Please install correct fuse in input cable.

* Dont connect Negative or GND to vehicle case or chassis.

* Never connect the converter to a solar panel or wind turbine. That will burn the converter.

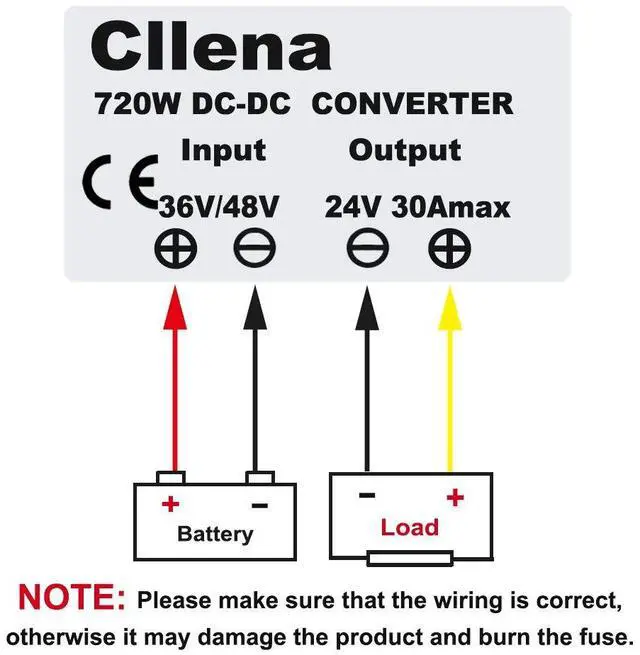

* Be sure of the correct polarity of input and output connection, never reverse the polarity, or it burns the converter.

* Please dont install any meters between converter to battery and converter to loads.

* When in doubt, the larger current converter is always a better choice.

Specifications:

Input Rated Voltage: 36V/48V DC

Input Voltage Range: 30-60V DC

Output voltage: DC 24V 30A

Output Rated Power: 720W

Efficiency: 97% (half load); 95% (full load)

No-load current: <0.1V

Ripple: 200mVp

Line Regulation: ±0.2%

Load Regulation: ±0.2%

Voltage Accuracy: ±1.5%

Enclosures: IP68

Case Operating Temperature: -40~85°C

Weight: 550g

Features:

1. 100% full power and stable current output, non-isolated module.

2. Industry grade DC 36V/48 to DC 24V step-down converter, efficiency up to 95%.

3. Die-cast aluminum shell, epoxy potting, cooling by free air convection; Waterproof level IP68 and anti-shock protection.

4. Protections: Over-current, Over-voltage, Over-temperature, Over-load and Short-circuit, auto-recovery when device is back to normal operating.

5. Certificates: CE/RoHS, 1 year warranty, lifetime up to 100,000 hours.

Package included:

1 x DC 36V/48V-24V 30A Voltage Converter
