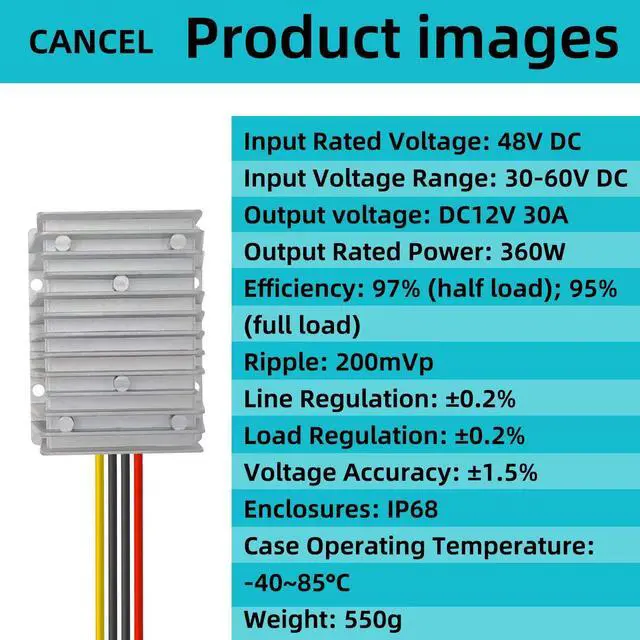

Specifications:
- Input Rated Voltage:DC 36V/ 48V
- Input Voltage Range: DC 30-60V
- Output voltage: DC 12V(Fixed Output)
- Output current: 30A(Max)
- Output Rated Power: 360W (Max)

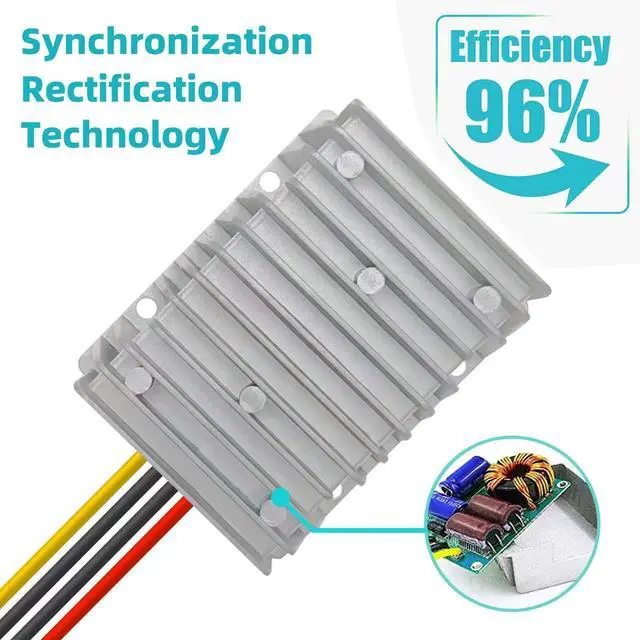

- Efficiency: 97% (half load); 95% (full load)
- Line Regulation: ±0.2%
- Load Regulation: ±0.2%

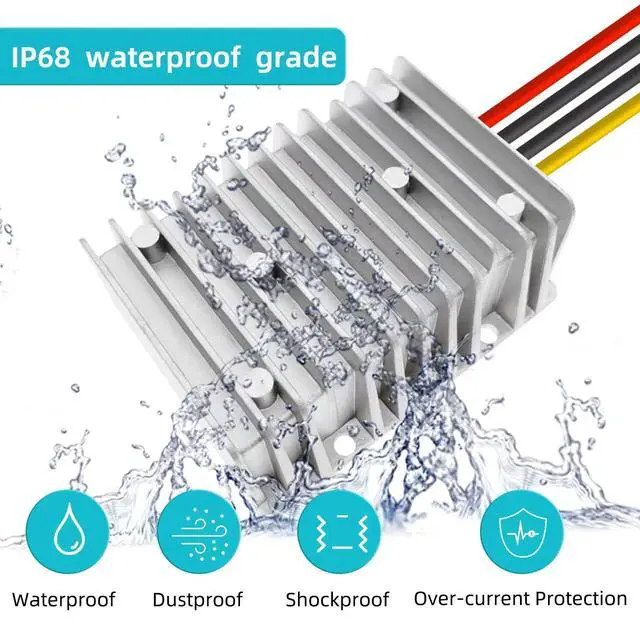

- Enclosures: IP68
- Case Operating Temperature: -40~85°C
- Product size: 3.94*3.15*1.5 inches (L*W*H)
- Weight: 0.5kg
Package Included:

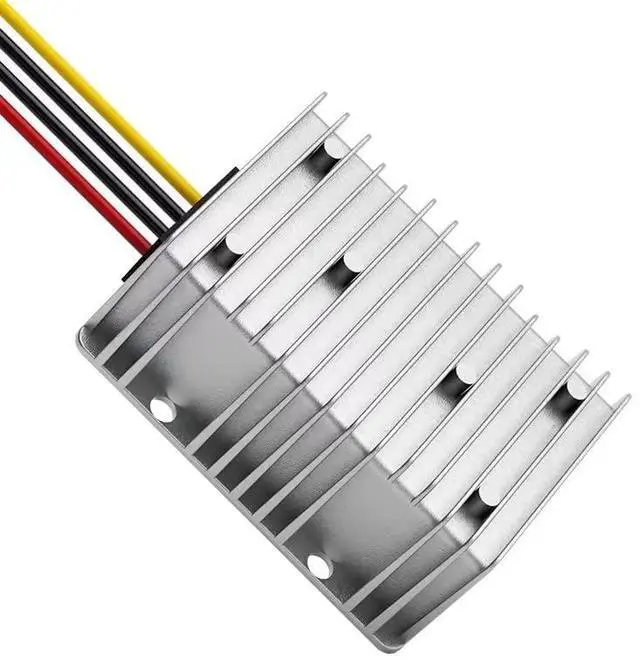

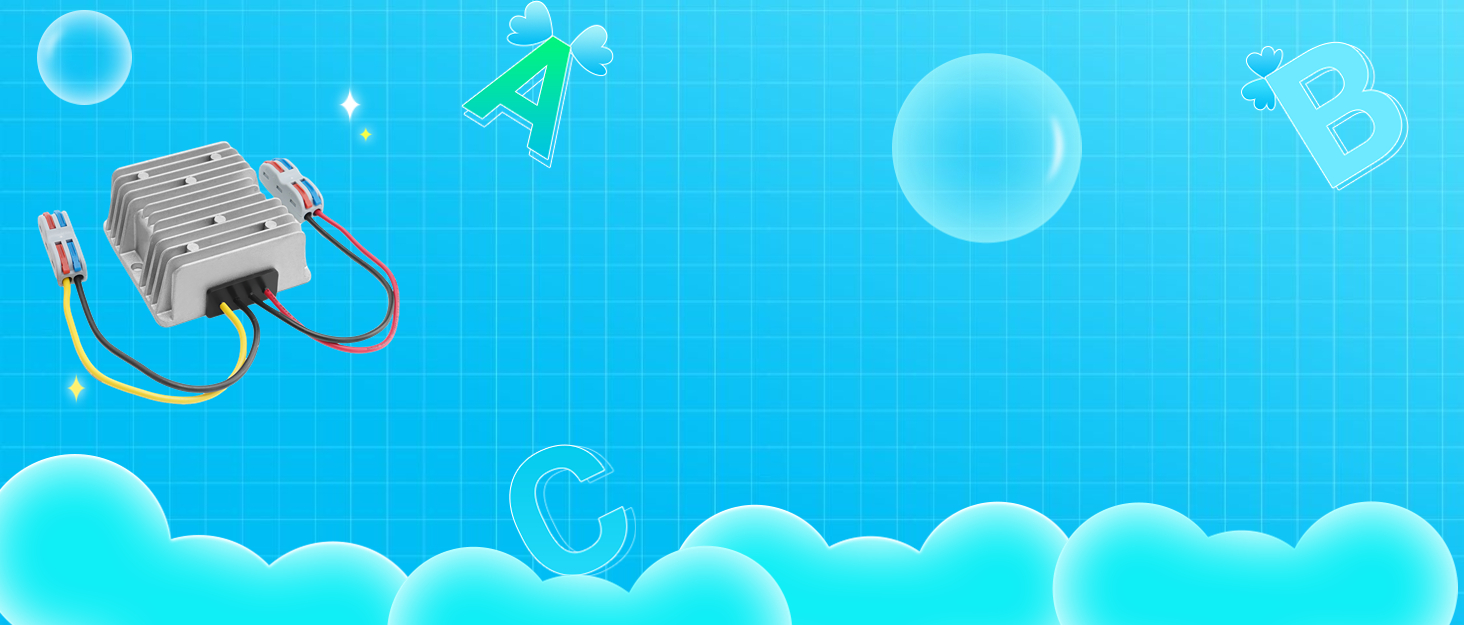

1 x DC 36V/48V to 12V 30A 360W Buck Converter
NOTE:Overheat Protection
- When the shell temperature exceeds 210 ° F, the converter will automatically reduce the output voltage, achieve automatic protection, and stop working. After cooling down, it will automatically return to normal
 DC 36V/48V to 12V 10A 120W | DC 36V/48V to 12V 20A 240W |  DC 36V/48V to 12V 30A 360W | |
|---|---|---|---|
| Customer Reviews | — | — | — |
| Price | — no data | — | — |
| Input voltage | 36V/48V | 36V/48V | 36V/48V |
| output voltage | 12V | 12V | 12V |
| output current | 10A | 20A | 30A |
| Output power | 120W | 240W | 360W |
DC Voltage Reducer Converter
DC 24V TO 12V
DC 36V/48V TO 12V
DC 12V/24V TO 5V
YIPIN HEXHA Bringing together years of experience in developing power converters and charging module products, we have carefully developed product technology and have been focusing on power module solutions for many years, using the latest technology to create more suitable power products for users.

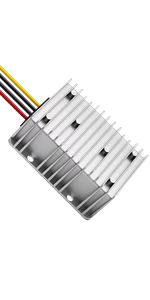

DC Buck Converter
