My laptop specifies a maximum charging capacity of 65 watts. Can I use a 100-watt charging port?
Yes, it's feasible. Modern laptops and chargers are designed to negotiate power, so your laptop will only draw up to 65 watts from the 100-watt port.

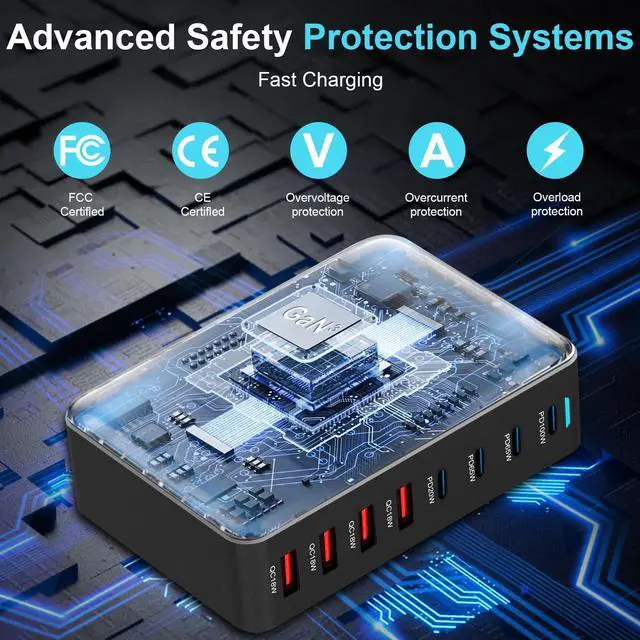

What advanced safety protection systems are equipped in the 320W USB-C charger block?
This charger utilizes GaN III Pro technology and offers nine levels of protection,Over temperature protection,Short circuit protection,Discharge and leakage protection,Over voltage protection,Flame retardant,Over current protection and other security

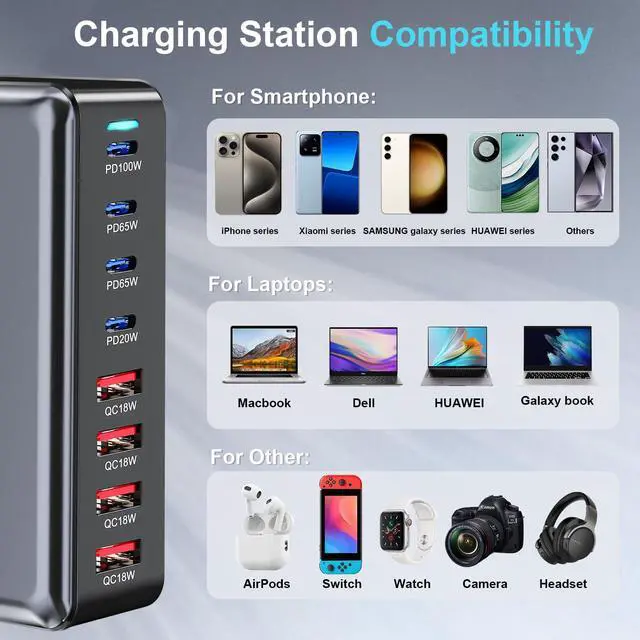

How many charging ports does the 8-in-1 USB-C Charger have, and what are their types?
The 8-in-1 USB-C Charger has 4 USB-C ports and 4 USB-A ports.
Why does charging stop for a second and then restart when other devices are connected to other ports?
Due to the charger's self-protection mechanism (Over Voltage Protection, Over Current Protection, Short Circuit Protection, Overcharge Protection, Over-discharge Protection)?Circuit design ?charging demand and other factors , is a normal phenomenon
Specifications
My laptop specifies a maximum charging capacity of 65 watts. Can I use a 100-watt charging port?
Yes, it's feasible. Modern laptops and chargers are designed to negotiate power, so your laptop will only draw up to 65 watts from the 100-watt port.
What advanced safety protection systems are equipped in the 320W USB-C charger block?
This charger utilizes GaN III Pro technology and offers nine levels of protection,Over temperature protection,Short circuit protection,Discharge and leakage protection,Over voltage protection,Flame retardant,Over current protection and other security
How many charging ports does the 8-in-1 USB-C Charger have, and what are their types?
The 8-in-1 USB-C Charger has 4 USB-C ports and 4 USB-A ports.
Why does charging stop for a second and then restart when other devices are connected to other ports?
Due to the charger's self-protection mechanism (Over Voltage Protection, Over Current Protection, Short Circuit Protection, Overcharge Protection, Over-discharge Protection)?Circuit design ?charging demand and other factors , is a normal phenomenon
Specifications
| Model number | YMX-320W |
|---|---|
| Lmsep Charger | The Supercharged 8-in-1 Desktop Charging Station |
| Input | 100-240V~, 3.2-2.5A, 50-60Hz |

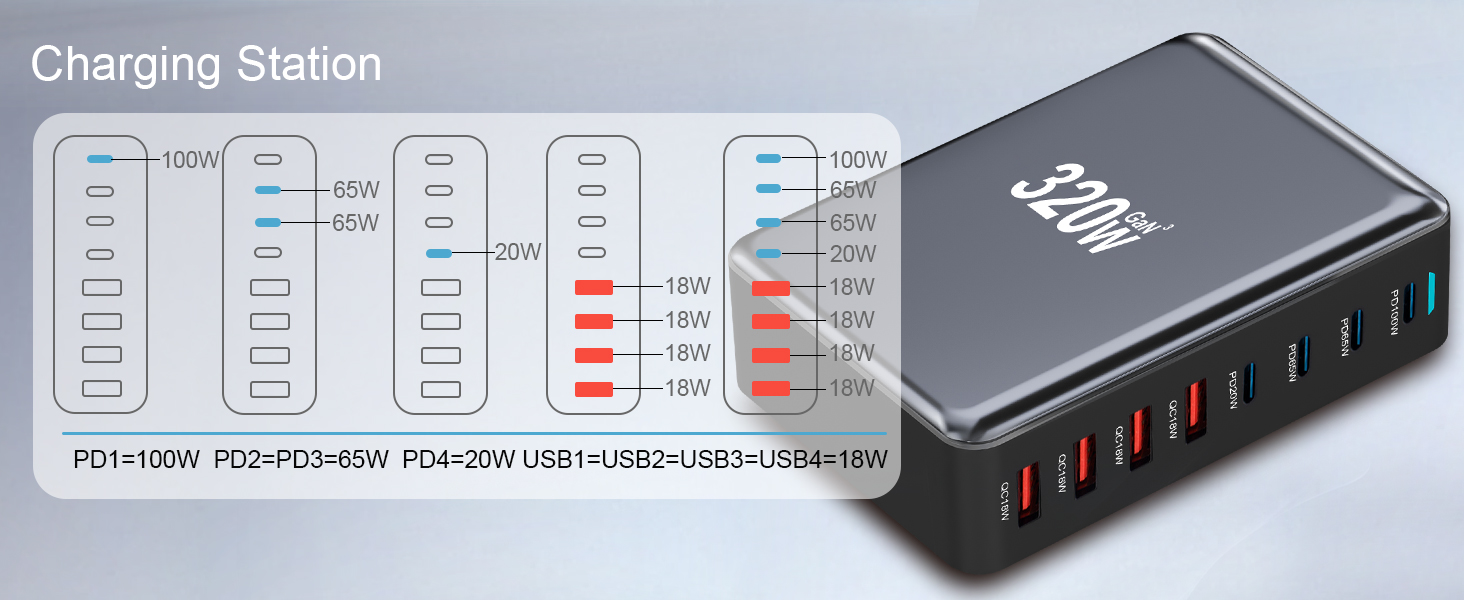

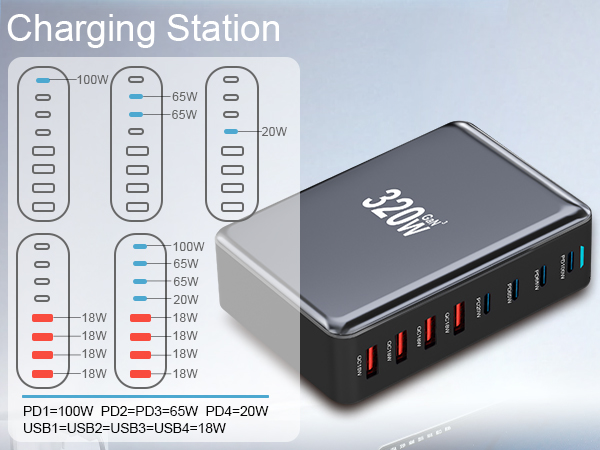

| USB-C Output | USB-C1:5V3A/9V3A/12V3A/15V3A/20V5A 100W(Max) USB-C2/C3:5V3A/9V3A/12V3A/15V3A/20V3.25A 65W(Max) USB-C4:5V3A/9V2.22A/12V1.67A 20W(Max) |
| USB-A Output | USB-A1/A2:5V3A/9V2A/12V1.5A 18W(Max) |
| Bare Dimensions | L4.3*W2.9*H1.5 inches / L110 ×W 94 × H38 mm |
| Net Weight | 1.21 lb / 550 g |
| Note1 | "8 fast charging ports, with C1 port supporting up to 100W power,C2 port supporting up to 65W power and the C1+C2 combination supporting up to 165W power. When using the C1+C2 USB-C ports simultaneously, can provide up to 100W and 65w output power. To achieve 100W output, use a cable with an E-Marker chip. Output power depends on the device's maximum input power and may vary across different charging stages. When multiple ports are used simultaneously, power is intelligently distributed. |
| Note2 | “Each output port can achieve the maximum output power specified on the interface when used individually. The 320W rating refers to the total output power of all ports when used individually. When charging multiple devices, the circuit design limits the total power of multiple ports to ensure device safety, and power is intelligently and dynamically distributed when multiple ports are used.” |
| Note3 | We recommend using the provided AC cord or a standard C7 2-pin AC cord with a current rating greater than 3.2A. |
| Note4 | Desktop charger products do not require grounding. The AC cord has double insulation protection, and the product is UL and CB certified for safe use. |
| Note5 | The exterior casing is made of plastic fireproof material. It is safe and reliable to use. |
| Note6 | Ensure the AC cord is fully inserted into the charger and the outlet before use. If charging is not possible, please reinsert the AC cord. |
| Note7 | If you encounter any problems while using the product, please leave us a message immediately. We offer 24-hour service. |
