 OS2 LC to LC |  OS2 LC to SC |  OS2 SC to SC |  OM3 LC to LC |  OM4 LC to LC |  OM2 LC to LC | |
|---|---|---|---|---|---|---|
| Customer Reviews | — | — | — | — | — | — |
| Price | — | — | — no data | — no data | — | — |
| Length Options | 7in~1000ft | 3ft~500ft | 1.6ft~500ft | 7in~500ft | 7in~500ft | 1.6ft~200ft |
| Fiber Mode | Singlemode | Singlemode | Singlemode | Multimode | Multimode | Multimode |
| Data Rate | 1G/10G | 1G/10G | 1G/10G | 10G/40G | 40G/100G | 1G/10G |
| Connector | LC/UPC to LC/UPC | LC/UPC to SC/UPC | SC/UPC to SC/UPC | LC/UPC to LC/UPC | LC/UPC to LC/UPC | LC/UPC to LC/UPC |
| LSZH Jacket | ? | ? | ? | ? | ? | ? |
| Outer Diameter | 2.0mm | 2.0mm | 2.0mm | 2.0mm | 2.0mm | 2.0mm |
| Min. Bend Radius(Fiber Core) | 16mm | 16mm | 16mm | 7.5mm | 7.5mm | 7.5mm |
| Min. Bend Radius(Fiber Cable) | 20D/10D (Dynamic/Static) | 20D/10D (Dynamic/Static) | 20D/10D (Dynamic/Static) | 20D/10D (Dynamic/Static) | 20D/10D (Dynamic/Static) | 20D/10D (Dynamic/Static) |

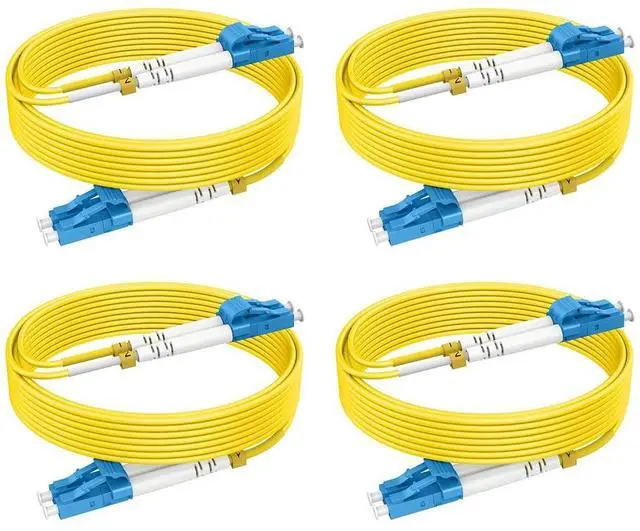

RamboCables OS2 LC to LC Fiber Patch Cable Single Mode Duplex 10G SMF 9/125µm

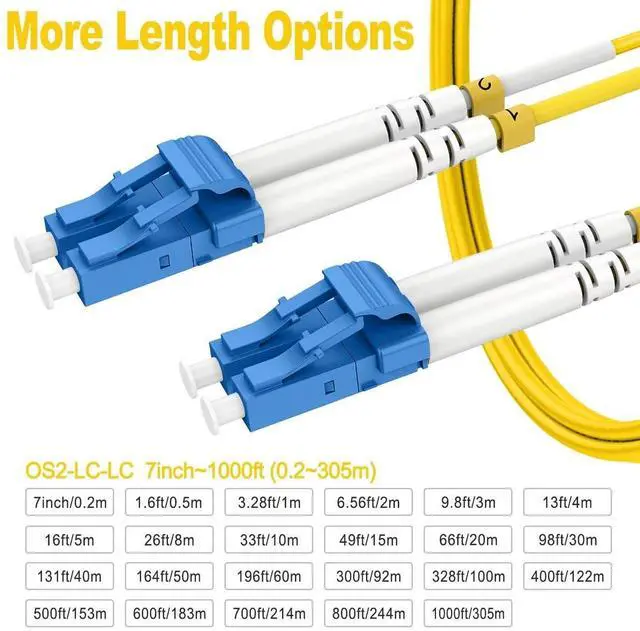

More length and types options to suit your cabling needs: 0.2m(7inch)~305m(1000ft)
RamboCables OS2 Single Mode Fiber can achieve transmission rates from 1 to 10 GbE at various transmission distances. It's ideal for connecting 1G/10G/40G/100G/400G Ethernet connections. It can transport data for up to 10km at 1310nm, or up to 40km at 1550nm.

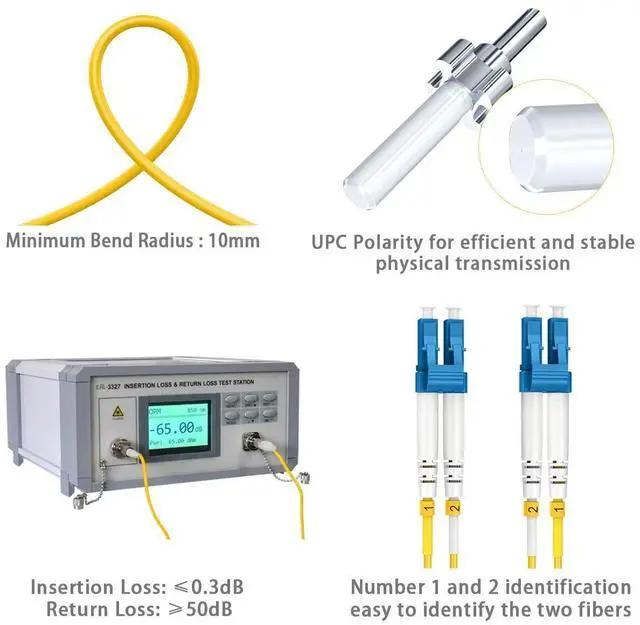

Product Specifications:
- Wavelengths: 1310nm and 1550nm
- Insertion Loss: =0.3dB
- Return Loss: =50dB
- Attenuation at 1310 nm:0.36 dB/km
- Attenuation at 1550 nm:0.22 dB/km
UPC Ceramic Ferrule
The fiber optic connector uses industry standard high precision ceramic ferrule. Optimum IL and RL of the Zirconia Ceramic Ferrule ensures stable signal transmission. Improve the speed and flexibility of optical signal propagation.
Connector Dust Cap
The connector Dust Cap can protect fiber optic connectors from external environmental pollution and external force damage, preventing severe network slowdown or network failure.
Easy To Install

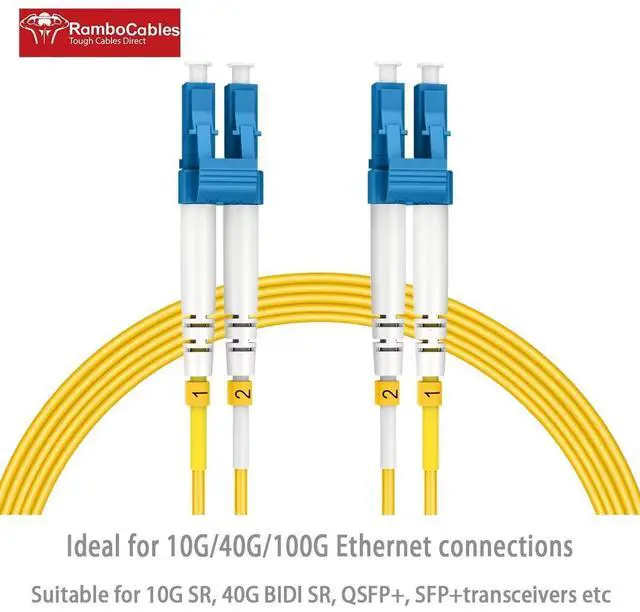

The OS2 fiber optic patch cable is plug and play, and the protective cover of the connector from Germany at both ends of the patch cable is marked with the numbers 1 and 2, which is easy to identify when you install it.

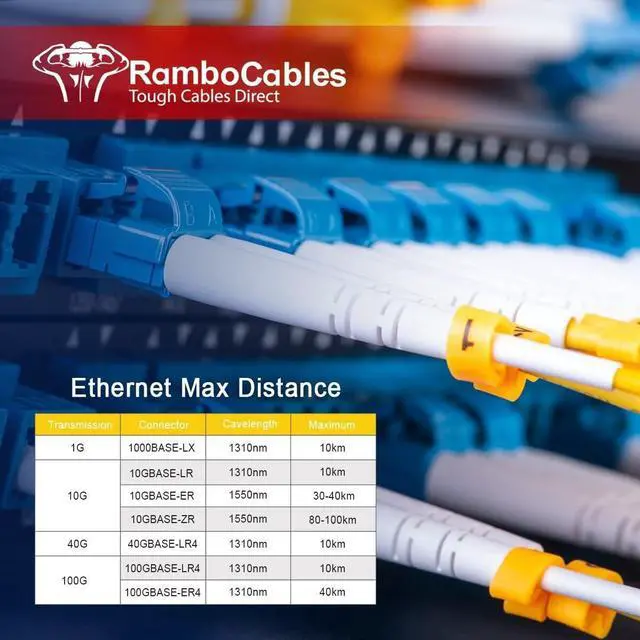

Ethernet Max Distance of Fiber Types
Wide Application
RamboCables fiber optic cables are compatible with all makes and models of switches, routers, enclosures, patch panels, media converters, SFP modules and other network components.Suitable for data centers, cloud storage networks, server farms, computer room wiring, community network construction and any places fiber optic cables are necessary.
