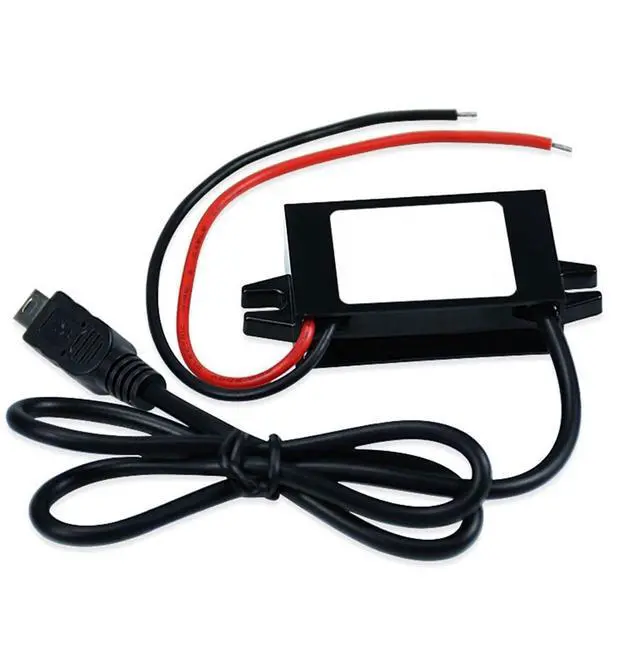

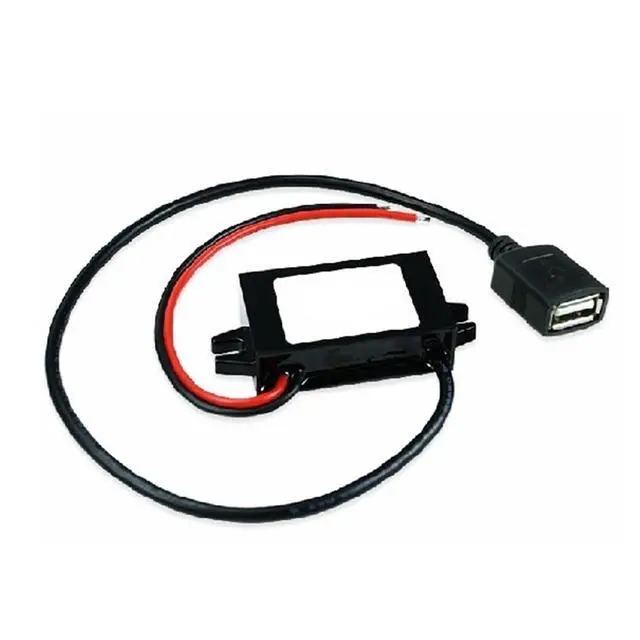

Type C USBC Mini Micro USB 12V 24V 36V 48V Convert to 5V 3A Car Phone Charger Step Down Converter 12 Volt to 5 Volt(Mini USB,DC 12V 24V (8-35V))

Power Converters

Type C USBC Mini Micro USB 12V 24V 36V 48V Convert to 5V 3A Car Phone Charger Step Down Converter 12 Volt to 5 Volt

Specification

Product Name

12V 24V 36V 48V to 5V 3A 15WDC Converter

Model No.

F**J5V3A1S-XXX

Module Properties

non-isolated module

Rectification

rectification

Input (cable length: 12cm)

Input Voltage

12V 24V 36V 48V / 12V 24V / 12V

InputVoltage Range

11-60V / 8-35V / 8-23V

Output(cable length: bare wire---13-14cm / USB/Type C---35cm,Micro/Mini USB---50cm)

Output Voltage

5V

Output Current

3A Max

Output Power

15W Max

Conversion Efficiency

>93%

Voltage regulation

±3%

Load regulation

± 2%

Ripple (Full load test)

<; 150mV

No-loadcurrent

<;100mA

Working Temperature

-40~80( If ambient temperature exceeds 40°c, lower power use, or enhance heat dissipation)

Waterproof Rating

IP68

Protection

Over-current protection / Over-voltage protection / Overheating protection / Short circuit protection

Application

mobile phone, car camera, Electric motors,Trucks, Golf Carts, Forklift, Solar Panel Power System, water pumps,industrial equipment and so on.

Case Material

ABS Plastic

Product Size (L x W x H)

46*27*14mm

Product Weight

45-55g/pc
