IP2368 100W Bidirectional Fast Charge Module, Type-C Buck-Boost PD Power Bank Board for 4S Lithium Battery DIY (High Power)
- 100W USB-C PD FAST CHARGING Powers compatible laptops, phones, and other USB-C devices while supporting multiple fast-charging protocols; 100W operation requires 20V charging or discharging.
- BIDIRECTIONAL BUCK-BOOST DESIGN Supports charging the 4S battery pack and powering connected devices through one Type-C interface, simplifying DIY power bank and portable power projects.
- 4S LITHIUM BATTERY CONFIGURATION Designed by default for a 4-series battery pack with a maximum voltage of 16.8V and a recommended charging input of 16.817V.

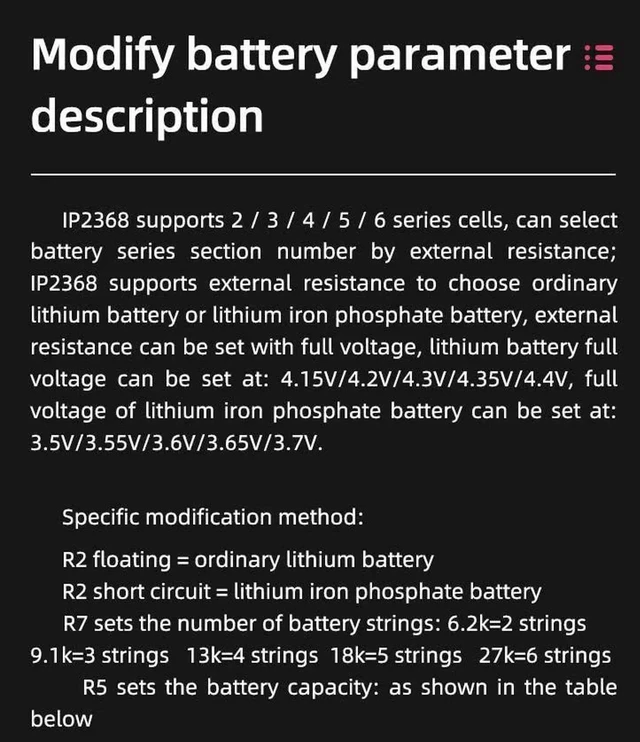

- ADJUSTABLE CHARGING PERFORMANCE Supports a 110A charging-current range and uses modifiable resistance for compatible battery-project adjustments by experienced electronics users.
- HIGH-CURRENT POWER BOARD Rated for 18A continuous working current and 30A instantaneous current; at 12V output, maximum specified output is 3A or 36W.
+
+
Overview
Specs
Reviews
Any questions? Our AI mode will help you find out quickly.
Try me now

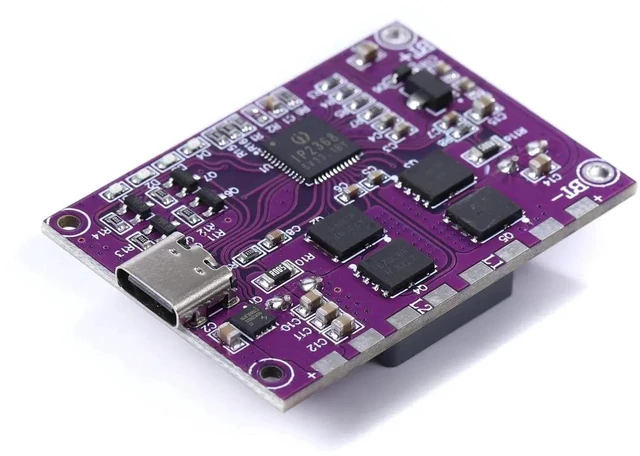

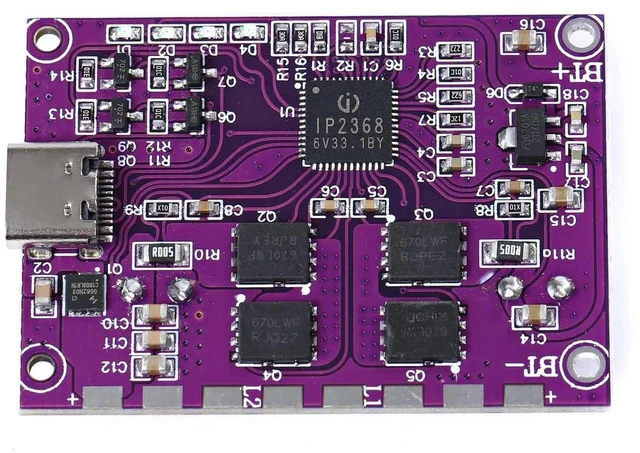

IP2368 100W USB-C PD Bidirectional Fast Charge Module
IP2368 is a USB-C PD buck-boost power bank board designed for 4S lithium battery DIY projects. Its bidirectional architecture supports battery charging and device power output through one Type-C interface, making it suitable for custom portable power supplies and compatible laptop or mobile-device charging applications.
Key Features
- Up to 100W operation: 100W charging or discharging requires 20V operation.
- Bidirectional buck-boost: Supports battery charging and USB-C device output.
- 4S battery design: Defaults to a 4-series lithium battery pack with a maximum voltage of 16.8V.
- Adjustable charging: Supports a specified charging-current range of 110A.
- High-current board: Rated for 18A continuous working current and 30A instantaneous current.
Specifications
- Model: IP2368
- Charging voltage: 16.817V
- Overcharge voltage: 4.235V ± 0.025V
- Overcharge release voltage: 4.19V ± 0.05V
- Overdischarge voltage: 2.8V ± 0.08V
- Overdischarge release voltage: 3.0V ± 0.1V
- Balance start voltage: 4.19V ± 0.05V
- 12V output limit: 3A maximum, 36W
Important Compatibility Notice
The board defaults to a 4S battery configuration. Changing it to a 5S or 6S supply may damage the voltage-regulation transistor. Battery assembly, resistor modification, wiring, insulation, thermal management, and operating-condition verification should be handled only by users experienced with lithium battery electronics. Batteries and other project components are not specified as included.
Frequently Asked Questions
Can this IP2368 module deliver 100W?
Yes, but 100W charging or discharging requires 20V operation. At 12V output, the specified maximum is 3A or 36W.
Which battery configuration does this board support by default?
It is configured for a 4S lithium battery pack with a maximum pack voltage of 16.8V and a charging-voltage range of 16.817V.
Can this module charge a battery and power USB-C devices?
Yes. Its bidirectional buck-boost design supports battery charging and device power output through the Type-C interface.
Can I use this board with a 5S or 6S battery pack?
The supplied specification warns that changing the board to a 5S or 6S supply may damage the voltage-regulation transistor. It should be used in its default 4S configuration unless properly redesigned by an experienced electronics user.
