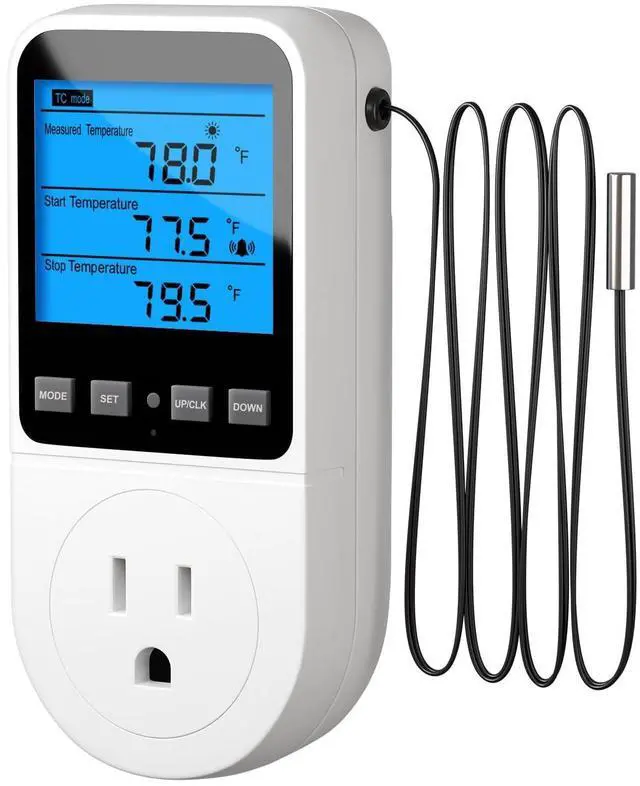

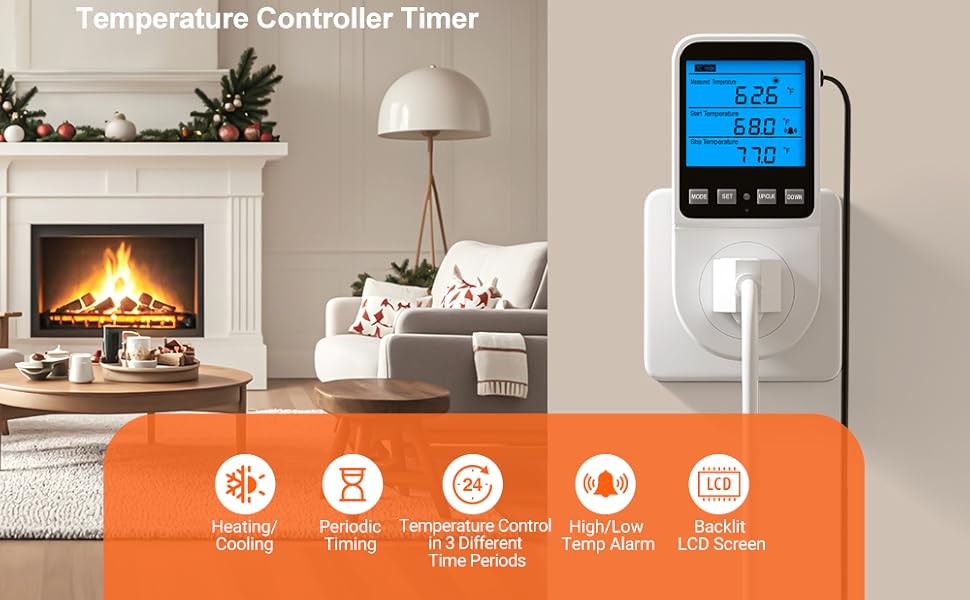

INKBIRDPLUS Plug in Thermostat Timer with Cycle Time Period Control
INKBIRDPLUS Plug in Thermostat TC+Timer

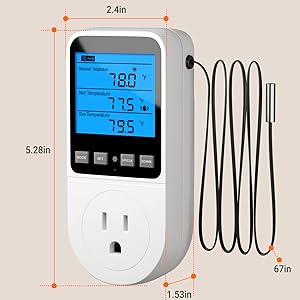

Specification
Power Supply: Max 15A/120V
Temperature Control Range: -40 to 120 ? (-40 to 248 ?)
Screen: 2.7" Backlit LCD
Calibration Range: -9.9 to 9.9 ?
Temperature Accuracy: ±1 ?/?
Notice
Tips: The relay is max 15A. Please use resistance load less than 15A, inductive load less than 2A.
Features
- Plug and play design, easy to use
- Flexible Temperature and Timing Control

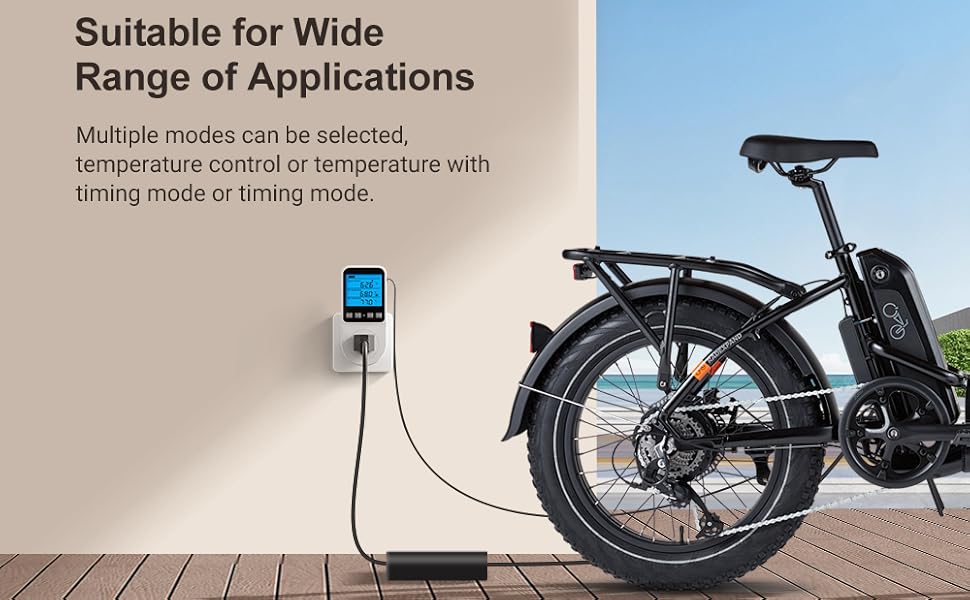

- Suitable for Wide Range of Applications
- Large LCD Blacklit screen
Flexible Temperature and Timing Control

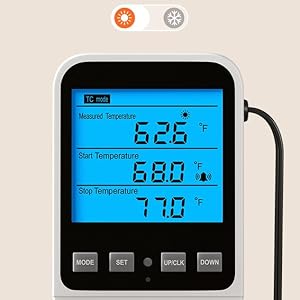

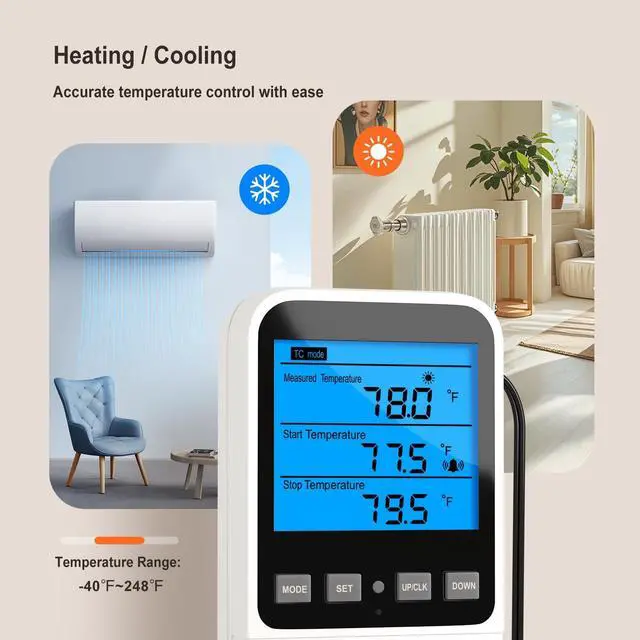

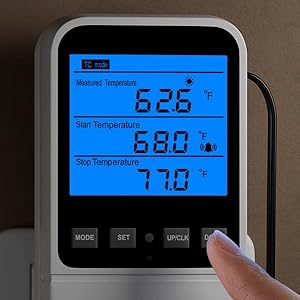

TC Mode - Start & Stop at specified temperature
Set Start & Stop temperature.
- Cooling : Start > Stop (eg. Start=68°F - Stop=77°F)
- Heating : Start < Stop (eg. Start=77°F - Stop=68°F)

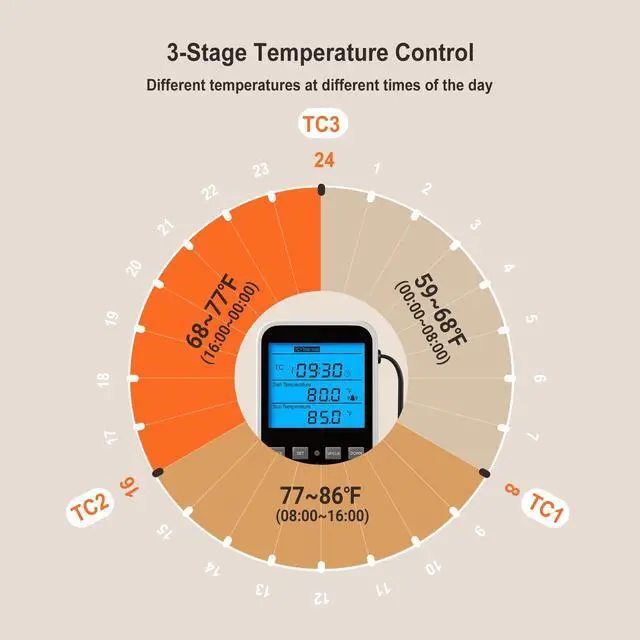

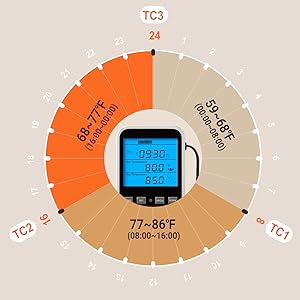

TC+Timer Mode - ON & OFF at specified time & different temperature
If TC 3 is not set, it will cycle from TC 1~TC 2. The whole cycle=24-hour.
- Set TC 1=00:00. From 0 A.M. to 8 A.M., Temper target range is 59°F~68°F
- Set TC 2=08:00. From 8 AM to 4 P.M. (or 0 A.M. if TC 3 is not set) , Temper target range is 77°F~86°F
- Set TC 3(optional)=16:00. From 4 P.M. to 0 A.M., Temper target range is 68°F~77°F

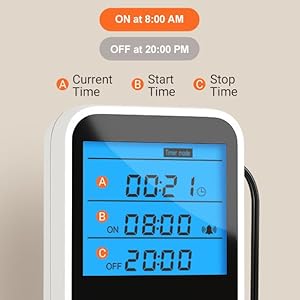

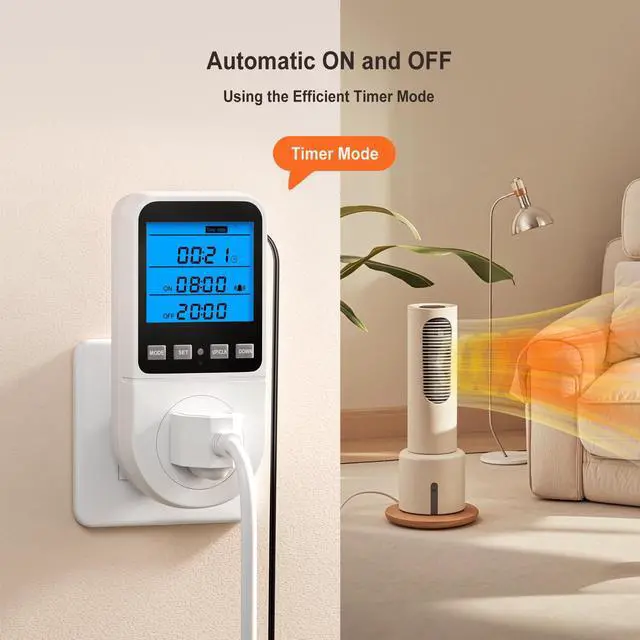

Timer Mode - ON & OFF at specified time
Set the current time, ON=08:00 & OFF=20:00.
- It will start working from 8 a.m. to 8 p.m. and stop.

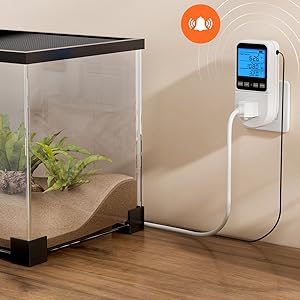

High/Low Temperature Alarm
Backlit Screen
IP67 Waterproof
Easy to reset
INKBIRDPLUS Plug in Thermostat Timer with Cycle Time Period Control
INKBIRDPLUS Plug in Thermostat TC+Timer
Specification
Power Supply: Max 15A/120V
Temperature Control Range: -40 to 120 ? (-40 to 248 ?)
Screen: 2.7" Backlit LCD
Calibration Range: -9.9 to 9.9 ?
Temperature Accuracy: ±1 ?/?
Notice
Tips: The relay is max 15A. Please use resistance load less than 15A, inductive load less than 2A.
Features
- Plug and play design, easy to use
- Flexible Temperature and Timing Control
- Suitable for Wide Range of Applications
- Large LCD Blacklit screen
Flexible Temperature and Timing Control
TC Mode - Start & Stop at specified temperature
Set Start & Stop temperature.
- Cooling : Start > Stop (eg. Start=68°F - Stop=77°F)
- Heating : Start < Stop (eg. Start=77°F - Stop=68°F)
TC+Timer Mode - ON & OFF at specified time & different temperature
If TC 3 is not set, it will cycle from TC 1~TC 2. The whole cycle=24-hour.
- Set TC 1=00:00. From 0 A.M. to 8 A.M., Temper target range is 59°F~68°F
- Set TC 2=08:00. From 8 AM to 4 P.M. (or 0 A.M. if TC 3 is not set) , Temper target range is 77°F~86°F
- Set TC 3(optional)=16:00. From 4 P.M. to 0 A.M., Temper target range is 68°F~77°F
Timer Mode - ON & OFF at specified time
Set the current time, ON=08:00 & OFF=20:00.
- It will start working from 8 a.m. to 8 p.m. and stop.
High/Low Temperature Alarm
Support customized alarm values and turn on/off the buzzer.

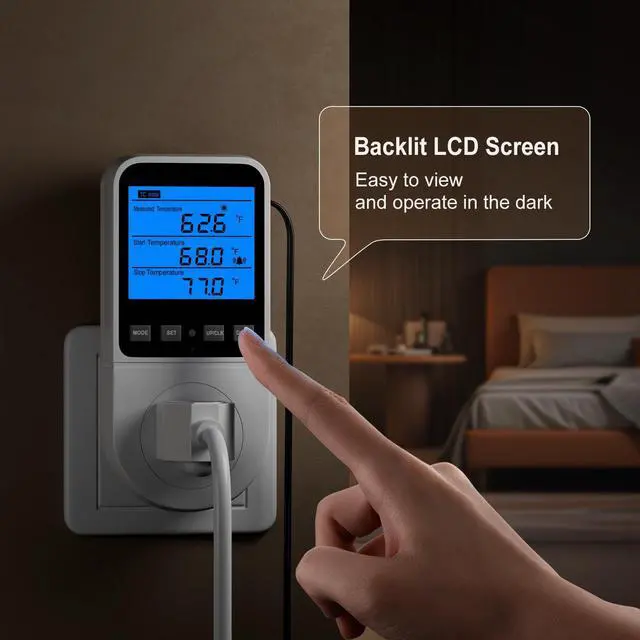

Backlit Screen
Good visibility, adapt to a variety of environments and make it clear and readable.
IP67 Waterproof
Suitable for both wet and dry environments.

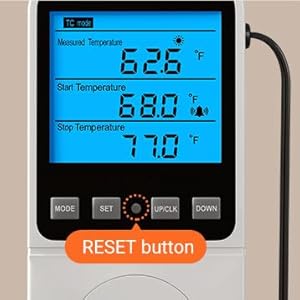

Easy to reset
When the product displays or works abnormally, press the RESET button, and all the setting will reset to the default values.
