HBK-P01 switching power supply is specially used for access control system and Intercom Camera.
With working current of 3A, it can provide electric lock and access controller with 12VDC steady output voltage.

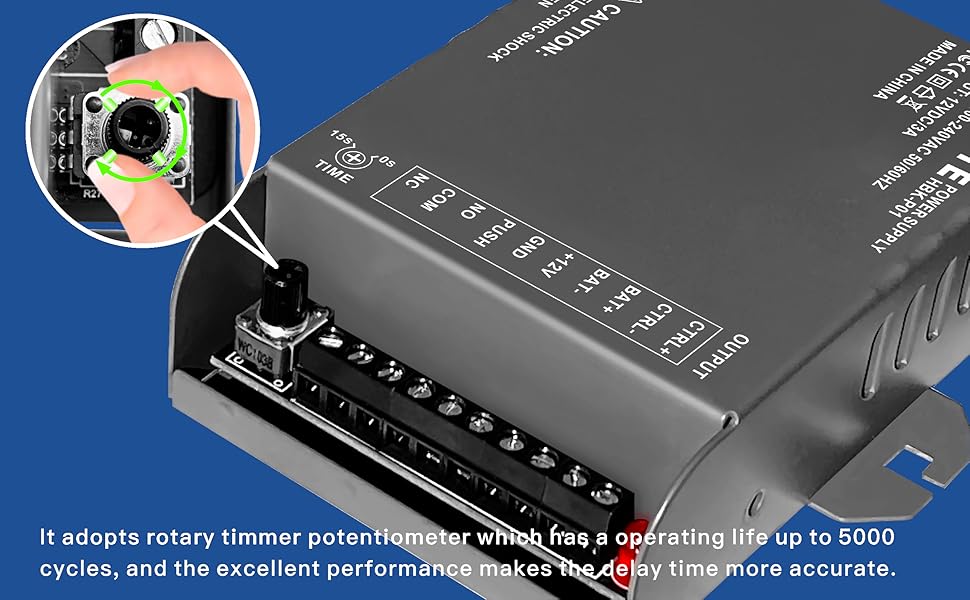

This device adopts rotary timmer potentiometer which have excellent performance makes the delay time more accurate.
Remarks: Opening time must set to 0 second when connecting with electric controlled lock. Otherwise electric bolt lock would be Burned Down.
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Introduction
This switching power supply is specially applied for access control system.
It can be protected automatically when there is short circuit, over voltage or over current.
It is of strong practicality, simple interface and steady performance.
With working current of 3A, it can provide electric lock and access controller with 12VDC steady output voltage.
Features
Indoor use only.
With Backup Battery Link, support add external battery.
Low noise design with ripple as low as 85mVp-p.
Compatible with electric lock, access controller, exit push button and intercom camera.
Can reduce the load of access controller and save wiring to reduce the hidden trouble.
Based on relay control circuit, lock time can be adjusted from 0 to 15 seconds.
Automatic protection function for dangerous situations, such as, overload, over voltage and short circuit.
Protection mechanism: Power will be disconnected temporarily or the fuse will be insured automatically.
A short circuit (flow) protection: When the output circuit is short-circuited, it will be automatically disconnected and will automatically return to normal state when troubleshooting.
Specifications
Input Voltage
100-240VAC
Input Frequency
50-60Hz
Output Voltage
12VDC
Output Current
3A
Output Power
36W
Efficiency (Typ.)
90%
Time Delay
0-15s
Backup Battery
Support
Enclosure Material
Aluminum alloy
Enclosure Finish
Spraying
Enclosure Color
Grey
Operating Temperature
-4? to 140? (-20°C to 60°C)
Operating Humidity
10%-90%RH
Product Weight
7.3oz (207g)
Wire Length
8" (20cm)
Enclosure Dimension
4-29/64"x3-5/64"x1-17/64" (113x78x32mm)

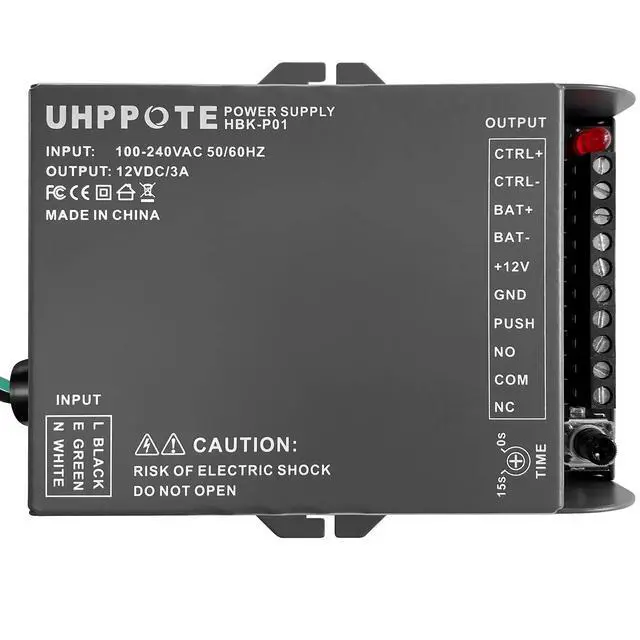

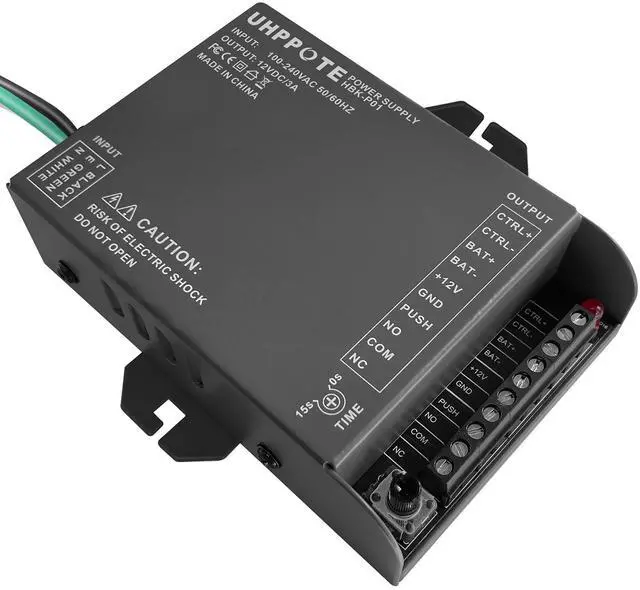

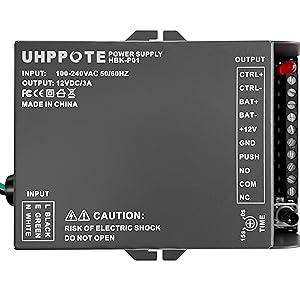

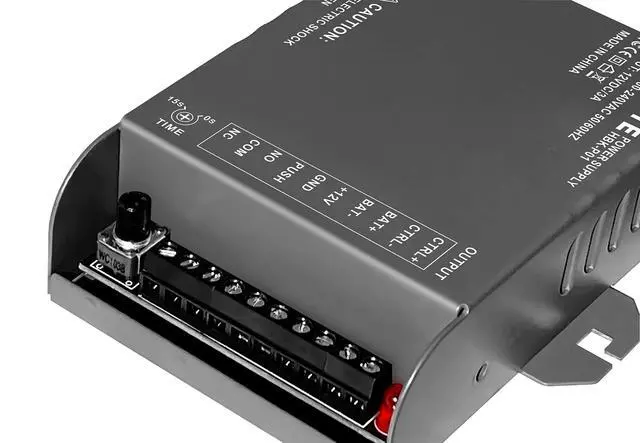

HBK-P01 Switching Power Supply
Widely applied in access control system and intercom camera.

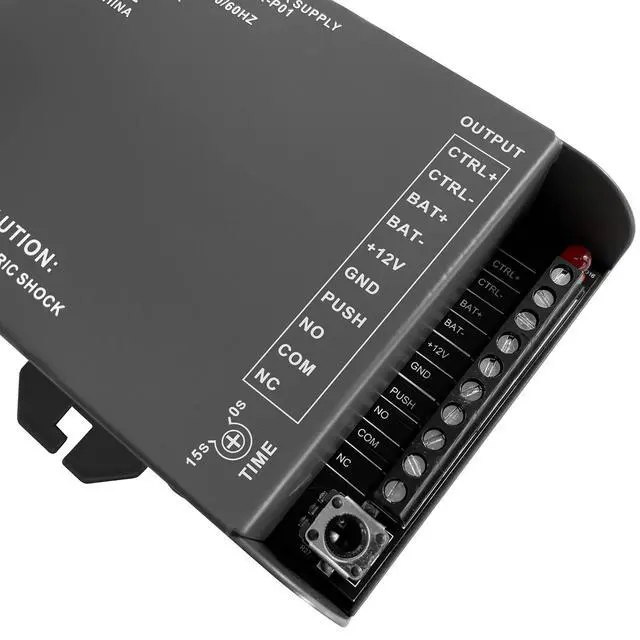

NC/NO/COM outputs, can control various type of electric locks.
0~15 seconds delay time adjustable.
Aluminum alloy enclosure with good heat dissipation.
3A full power load.
External battery specifications: 7AH 12V lead-acid battery (Battery is not included)
About Input and Output Connecting:
18AWG UL1015 cable for input connecting (Cable length: 8?).
Screw type PCB terminal blocks for output connecting.
Package List
HBK-P01 Power Supply x 1
User Manual x 1
Plastic Anchors x 2
#7x1" Self-Tapping Screw x 2

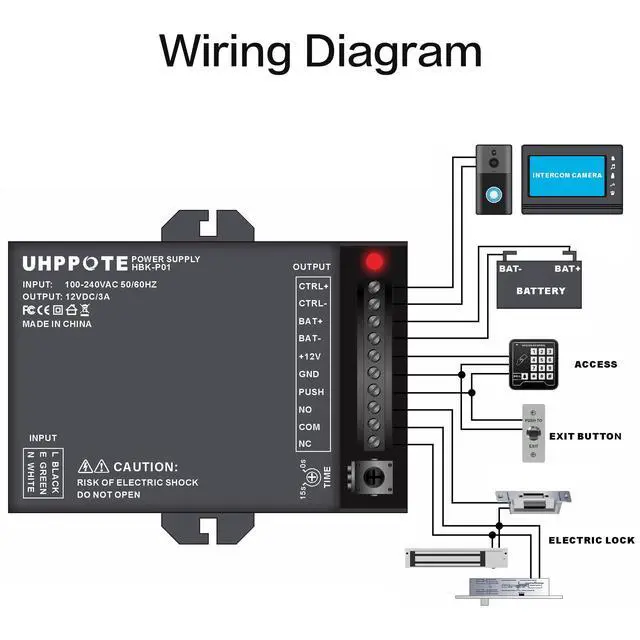

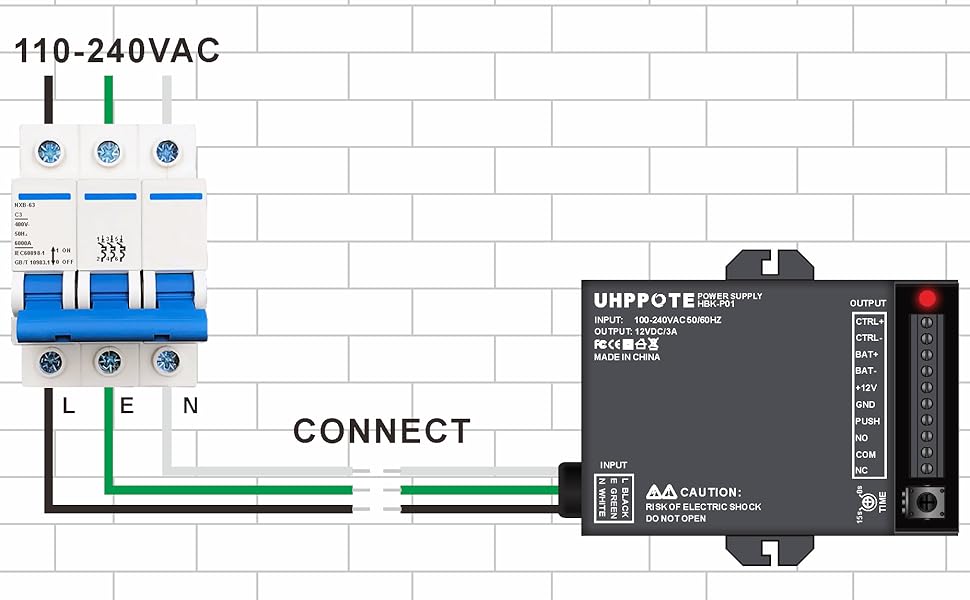

Input Wiring Diagram

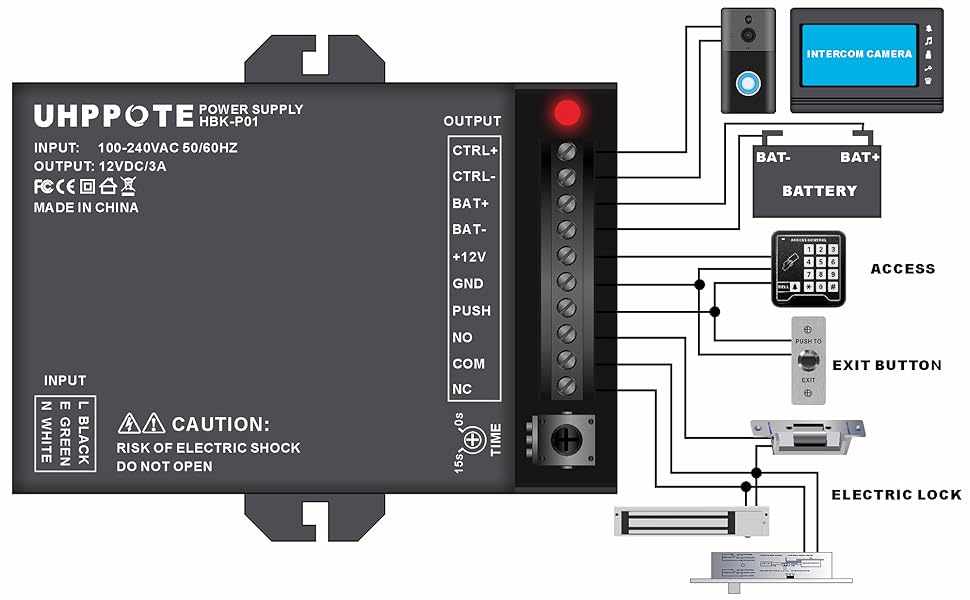

Output Wiring Diagram
Introduction
This switching power supply is specially applied for access control system.
It can be protected automatically when there is short circuit, over voltage or over current.
It is of strong practicality, simple interface and steady performance.
With working current of 3A, it can provide electric lock and access controller with 12VDC steady output voltage.
Features
Indoor use only.
With Backup Battery Link, support add external battery.
Low noise design with ripple as low as 85mVp-p.
Compatible with electric lock, access controller, exit push button and intercom camera.
Can reduce the load of access controller and save wiring to reduce the hidden trouble.
Based on relay control circuit, lock time can be adjusted from 0 to 15 seconds.
Automatic protection function for dangerous situations, such as, overload, over voltage and short circuit.
Protection mechanism: Power will be disconnected temporarily or the fuse will be insured automatically.
A short circuit (flow) protection: When the output circuit is short-circuited, it will be automatically disconnected and will automatically return to normal state when troubleshooting.
Specifications
Input Voltage
100-240VAC
Input Frequency
50-60Hz
Output Voltage
12VDC
Output Current
3A
Output Power
36W
Efficiency (Typ.)
90%
Time Delay
0-15s
Backup Battery
Support
Enclosure Material
Aluminum alloy
Enclosure Finish
Spraying
Enclosure Color
Grey
Operating Temperature
-4? to 140? (-20°C to 60°C)
Operating Humidity
10%-90%RH
Product Weight
7.3oz (207g)
Wire Length
8" (20cm)
Enclosure Dimension
4-29/64"x3-5/64"x1-17/64" (113x78x32mm)
HBK-P01 Switching Power Supply
Widely applied in access control system and intercom camera.
NC/NO/COM outputs, can control various type of electric locks.
0~15 seconds delay time adjustable.
Aluminum alloy enclosure with good heat dissipation.
3A full power load.
External battery specifications: 7AH 12V lead-acid battery (Battery is not included)
About Input and Output Connecting:
18AWG UL1015 cable for input connecting (Cable length: 8?).
Screw type PCB terminal blocks for output connecting.
Package List
HBK-P01 Power Supply x 1
User Manual x 1
Plastic Anchors x 2
#7x1" Self-Tapping Screw x 2
Input Wiring Diagram
Output Wiring Diagram
