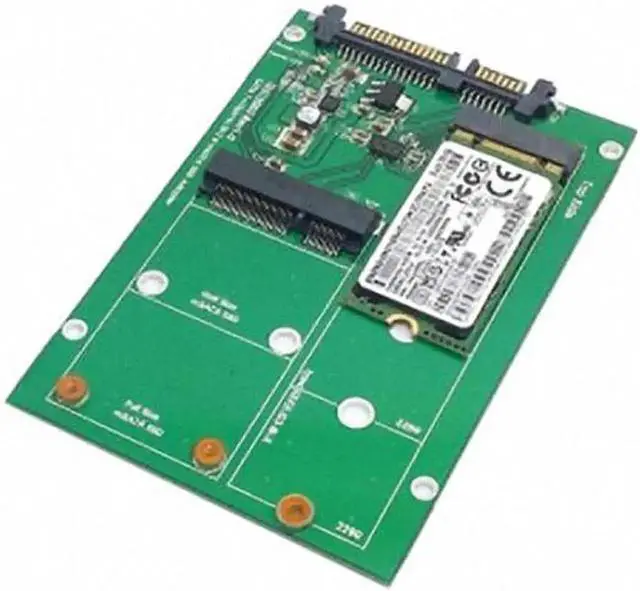

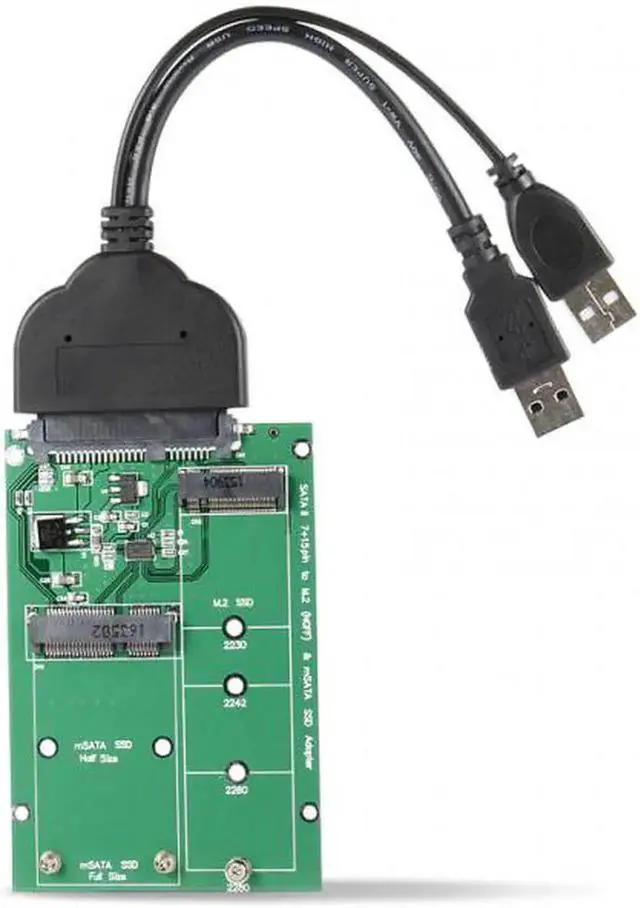

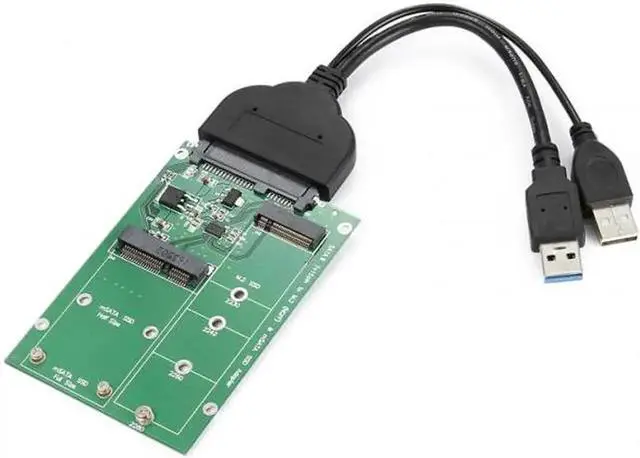

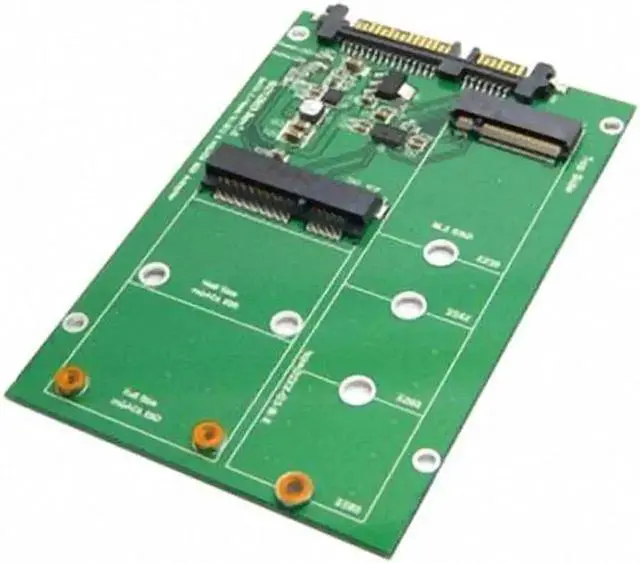

Aomoproing U3-067+SA-130 USB 3.0 to SATA 22pin 2.5" Hard Disk to 2 in 1 Combo Mini PCI- E 2 Lane M.2 NGFFmSATA SSD Adapter Converter
- USB 3.0 to SATA 22pin 2.5" Hard Disk to 2 in 1 Combo Mini PCI- E 2 Lane M.2 NGFF mSATA SSD Adapter Converter

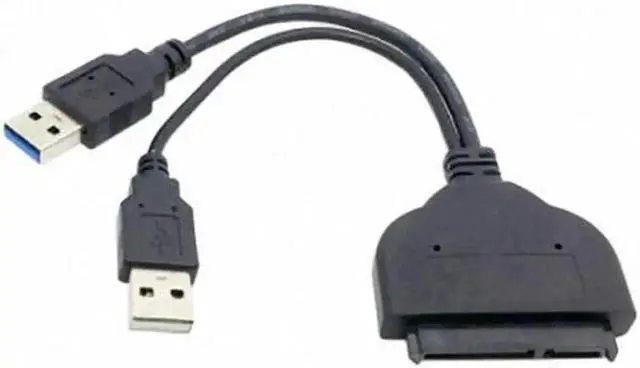

- The item included one cable and one PCBA.
- 2.5" SATA SSD Form Factor : 98 x 65.5mm
- M.2 (NGFF) mSATA to SATA III Module
- Build in Mini PCI-e 52pin Female connector
- Build in M.2 (NGFF) B key Female connector
- Insert both M.2 mSATA SSD on the PCBA,M.2 SSD is the first priority. mSATA won't work.
- Support SATA Reversion 3.2
- PCI Express M.2 Spec. Revision 0.7, Version 1.0
- PCI Express Mini Card Electromechanical Spec. 1.2
- PWM synchronous buck converter Power IC
- 3A maximum output current
- Short circuit protection
- In-rush current suppression
- Thermal shutdown protection
- ESD HBM (Human Body Mode)/2KV
- Note:
- 1. the MSATA and NGFF SSD cannot work at same time.
- 2.The adapter only work for B-key or B/M-key socket NGFF SSD, cannot work for M-key socket.
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
- USB 3.0 to SATA 22pin 2.5" Hard Disk to 2 in 1 Combo Mini PCI- E 2 Lane M.2 NGFF mSATA SSD Adapter Converter
- The item included one cable and one PCBA.
- 2.5" SATA SSD Form Factor : 98 x 65.5mm
- M.2 (NGFF) mSATA to SATA III Module
- Build in Mini PCI-e 52pin Female connector
- Build in M.2 (NGFF) B key Female connector
- Insert both M.2 mSATA SSD on the PCBA,M.2 SSD is the first priority. mSATA won't work.
- Support SATA Reversion 3.2
- PCI Express M.2 Spec. Revision 0.7, Version 1.0
- PCI Express Mini Card Electromechanical Spec. 1.2
- PWM synchronous buck converter Power IC
- 3A maximum output current
- Short circuit protection
- In-rush current suppression
- Thermal shutdown protection
- ESD HBM (Human Body Mode)/2KV
- Note:
- 1. the MSATA and NGFF SSD cannot work at same time.
- 2.The adapter only work for B-key or B/M-key socket NGFF SSD, cannot work for M-key socket.
