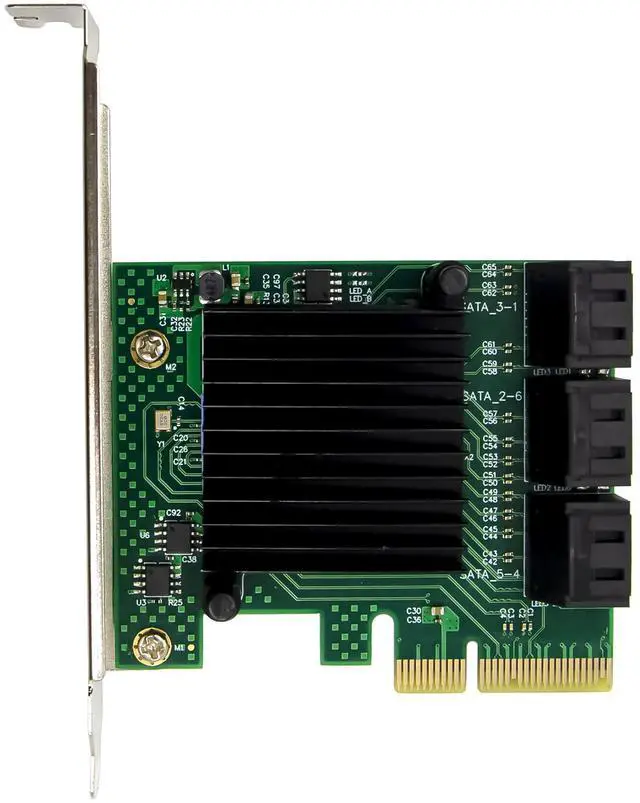

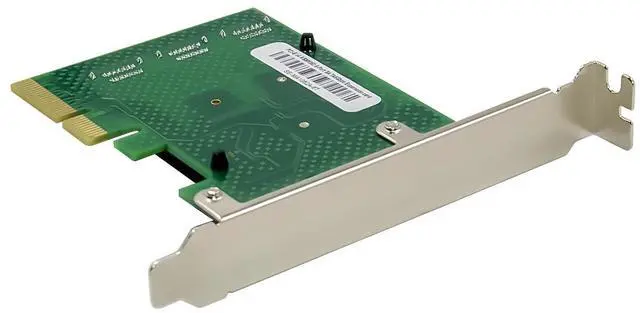

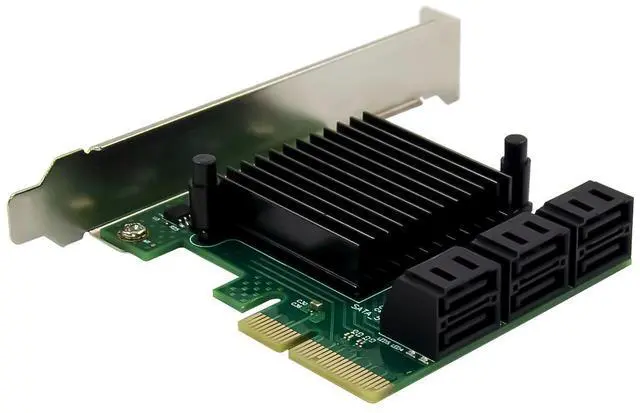

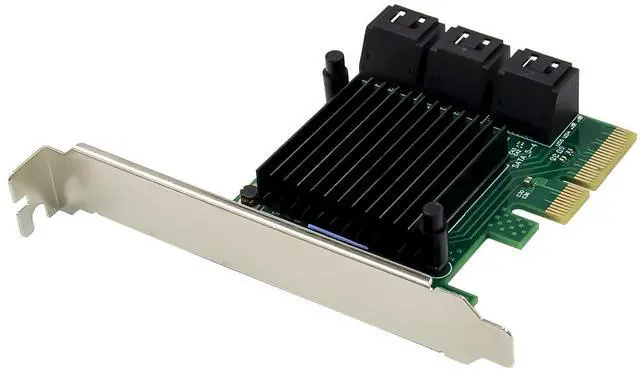

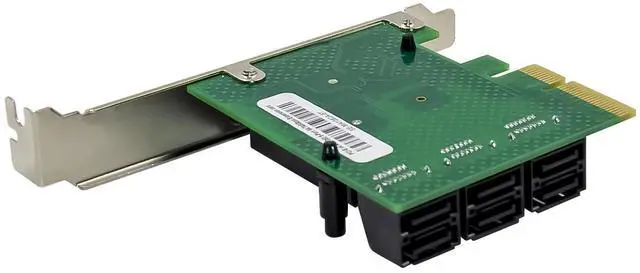

JVFYI PCIe ASM1062 SATAIII 6-Channel Expansion card

Compliant with PCI Express Specification V2.0

2.5G and 5Gbps seed negotiation

Backward compatible with PCI Express 1.x

Supports PCI Express Link layer power management

PCI Express interface: PCIe X4(Gen2x2)

Compliant with Serial ATA Specification v3.2

Supports 6- SATAIII port

Supports communication speeds of 6Gbps,3Gbps,and 1.5Gbps

1.5Gbps,3.0Gbps and 6.0Gbps seed negotiation

SATA PHY1i/1m/2i/2m/3i

Supports S.M.A.R.T feature

On-board with LED read/write indicator

Hot Plug and Hot Swap

Support Native Command Queue(NCQ)

Support Port Multiplier command based switching

Compatible with SATA6G,3G and 1.5G hard drives

Support partial and slumber power management states

Drivers support for Linux , WindowsXP/Server 2003/Vista/Win7/server2008/ Win8/Win8.1/ win10

Chipset:ASM1062+ASM1093

Package content

1 x PCIe ASM1062 SATAIII 6-Channel Expansion card

1 x Users Manual

1 x CD Driver

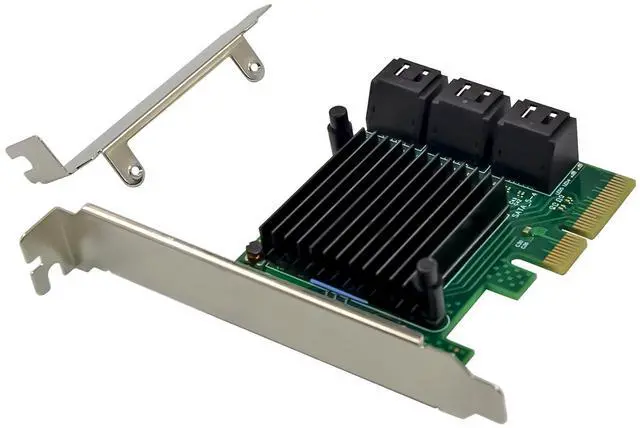

1 x Low profile bracket

6 x SATA cables

Accessories

System Requirements

Linux , WindowsXP/Server 2003/Vista/Win7/server2008/ Win8/Win8.1/ win10

One available PCI Express x4/x8/x16 slot

Hardware installation

1.Turn off the computer and unplug the power cord

2.Remove the computer cover and the card slot cover from the slot that matches your adapter

3.Insert the card edge connector into the slot and secure the bracket to the chassis

4.Replace the computer cover ,then plug in the power cord

5.Power on the computer

Install Drivers and software

Windows Operating Systems

You must have administrative rights to the operating system to install the drivers.

1.insert the CD driver bound with PCIe ASM1062 SATAIII 6-Channel expansion card driver into your CD-ROM drive:

2.if the Found New Hardware Wizard screen is displayed, click Cancel

3.locate the folder where the driver is located

4.double click setup.exe to run install program.

5.Follow the instructions in the install wizard to complete the driver installation.
