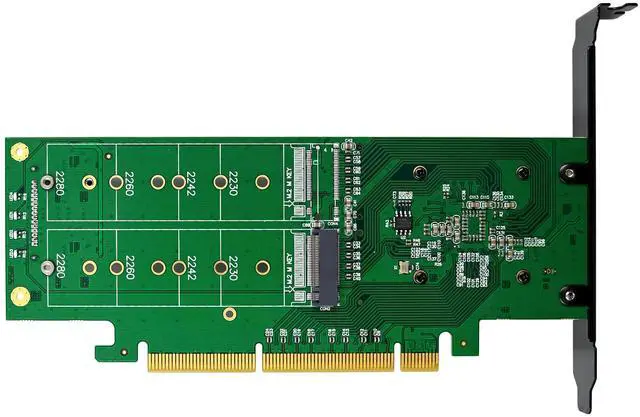

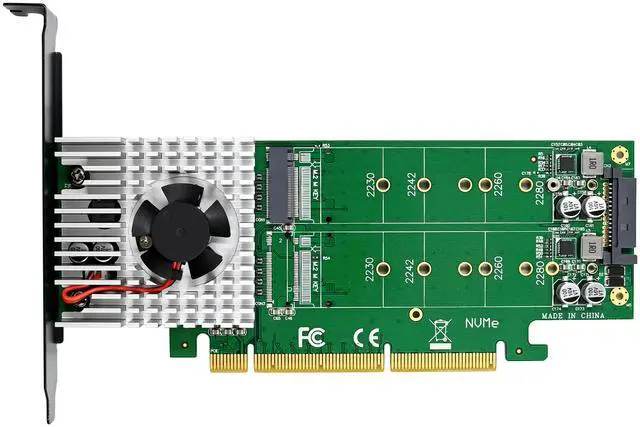

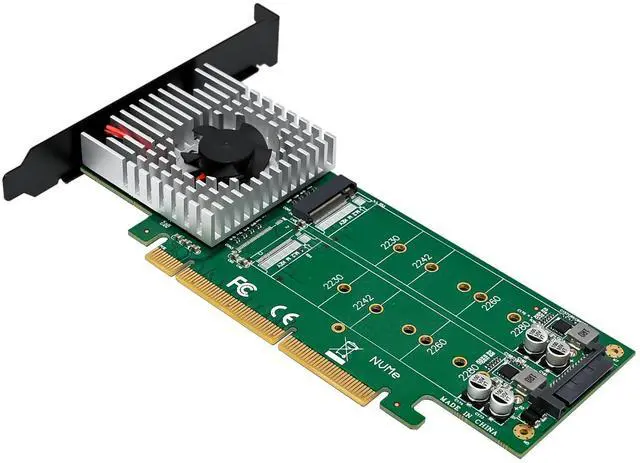

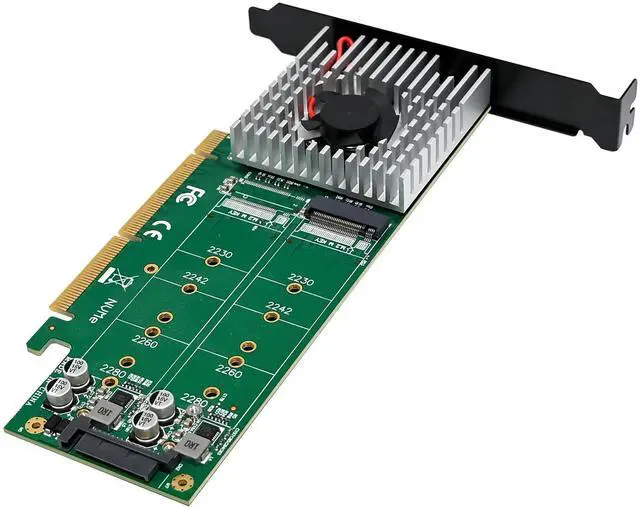

JVFYI PCIe x8x16 ASM2812 Dual- M.2 NVMe SSD Adapter
Limited time offer, ends 01/12 By BRIGHTOR
- This PCIe ASM2812 to Dual- M.2 SSD adapter is used to ASMedia high-performance chipset ASM2812,it is a low latency, low cost, and low power 24lane, it supports 2-Port x4 lane M.2 Key M SSD device. With upstream PCIe Gen3x16 bandwidth, it can enable users to build up various high speed IO systems, including server, system storage or communication platforms.
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Specification
Compliant with PCI Express Specification Revision v3.0
Backwards compatible with PCIe 2.0 and PCIe 1.0
Supporting transfer rate of 2.5Gb(250MB/s),5Gb(500MB/s),and 8Gb(1GB/s)per lane
PCI Express interface: x8x16
Supports NVM Express(NVMe)
Support for 2-Port x4 lane M.2 Key M NVMe SSD device
Supports M.2 SSD modules sizes: 2230,2242,2260,2280
Supports M.2 M key and B+M key with PCIe Protocol
M.2 Specification Revision 0.9
Automatic detection of lane configuration on boot-up
Support L1 substate deep power saving mode
Support wake up function in S3/S4
Support hot-plug, surprise remove
operating temperature range: 0~85°C
Support operating system: Linux kernel3.17 or above,Win7,Win8,Win8.1,Win10 32or 64bit
No driver is required because the driver is transparent to the operating system
Package content

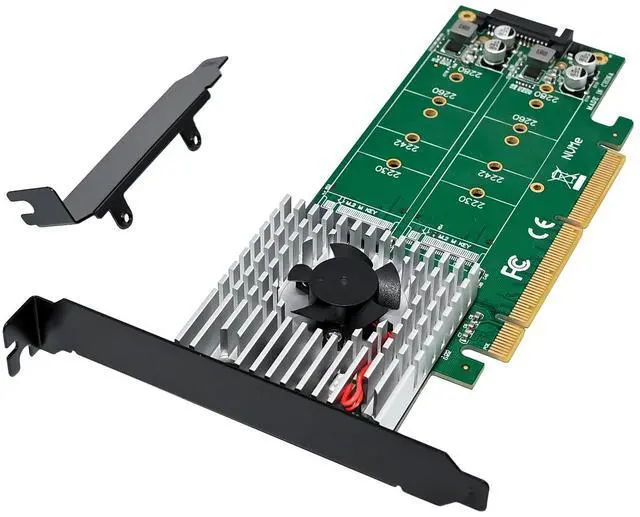

1 x PCIe x8x16 ASM2812 to dual- M.2 NVMe SSD adapter
1 x Users Manual
4 x Screws
1 x Screw driver
2 x heat sink
1 x SATA power cable
System Requirements
Linux-kernel3.17 or above,Win7/Win8/Win8.1/Win10 32or 64bit
One available PCI Express x16 slot
