AJMRTC 4 Port M.2 NVMe PCIe Adapter Card, PCIe 4.0 / 3.0 x16 Expansion Controller, Supports 4 M-Key NVMe SSD 2230 2242 2260 2280, PCIe Bifurcation Required for PC Server Workstation
- 1. 4 M.2 M-Key NVMe slots expand one PCIe x16 slot to install four NVMe SSDs
- 2. Compatible with PCIe 4.0 and PCIe 3.0, each channel runs up to 32Gbps
- 3. Fits 2230, 2242, 2260, 2280 form factor NVMe SSDs, NOT for SATA B+M key SSD
- 4. Individual LED status indicators for each drive, built-in heatsink for thermal control

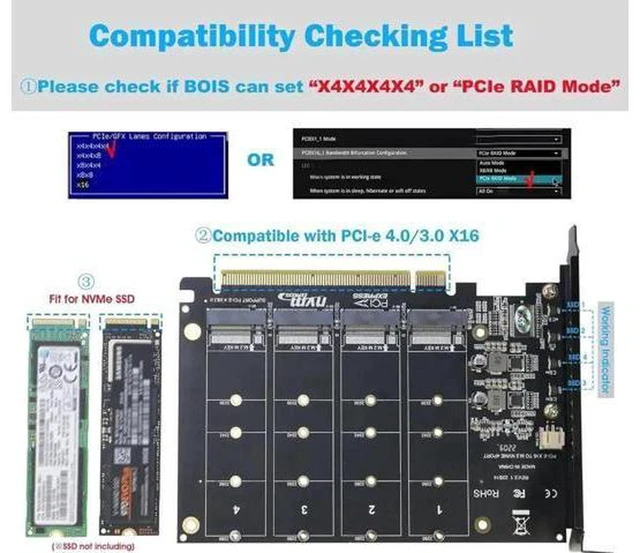

- 5. Requires motherboard PCIe bifurcation (x4x4x4x4) setting in BIOS to recognize all 4 SSDs
+
+
Overview
Specs
Reviews
Any questions? Ask CelesteSM will help you find out quickly.
Try me now

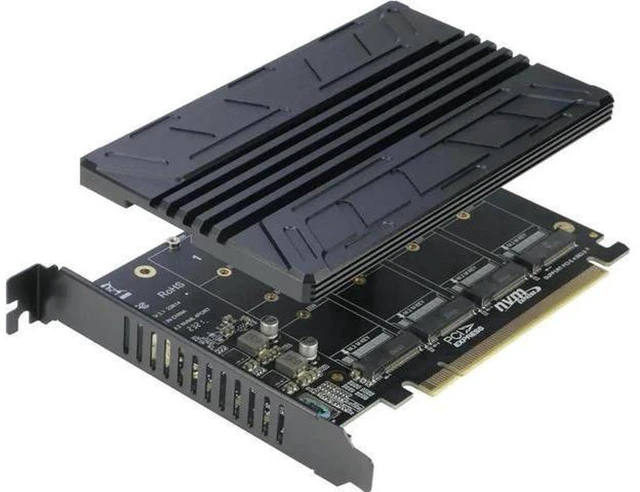

AJMRTC 4-port NVMe PCIe expansion card turns a single PCIe x16 slot into four independent M.2 NVMe slots. It supports PCIe 4.0 and PCIe 3.0 bandwidth for high-speed storage expansion. It works with M-Key NVMe SSDs of common lengths 2230, 2242, 2260 and 2280. Each SSD has a dedicated LED activity light to show working status. The integrated heatsink prevents thermal throttling during heavy workloads. Important note: your motherboard and CPU must support PCIe x16 bifurcation and be configured to x4x4x4x4 in BIOS to detect all four drives. Ideal for workstations, NAS servers, video editing and high-capacity storage array builds.
Specifications
- Brand: AJMRTC
- Host Interface: PCIe x16 (PCIe 4.0 / 3.0 compatible)
- SSD Slots: 4 × M.2 M-Key NVMe
- Supported SSD Length: 2230, 2242, 2260, 2280
- Per Lane Speed: Up to 32Gbps
- Requirement: PCIe Bifurcation x4x4x4x4 supported motherboard
- Indicator: Separate LED for each SSD

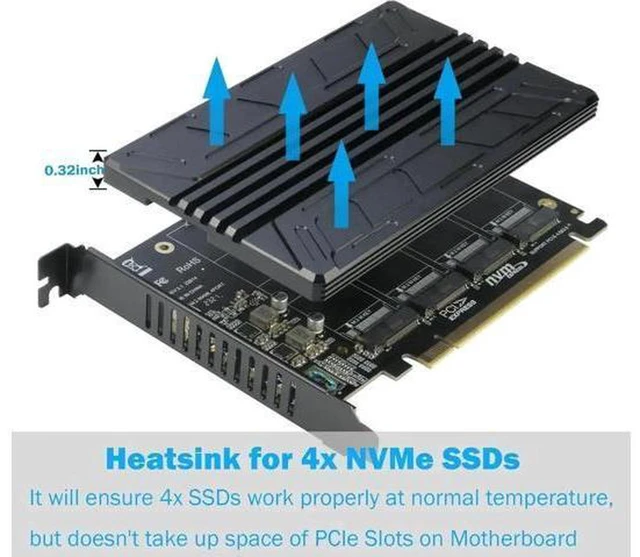

- Cooling: Aluminum heatsink
- Bracket: Full height PCIe bracket
- Application: Server, Workstation, Video Editing, Storage Array
