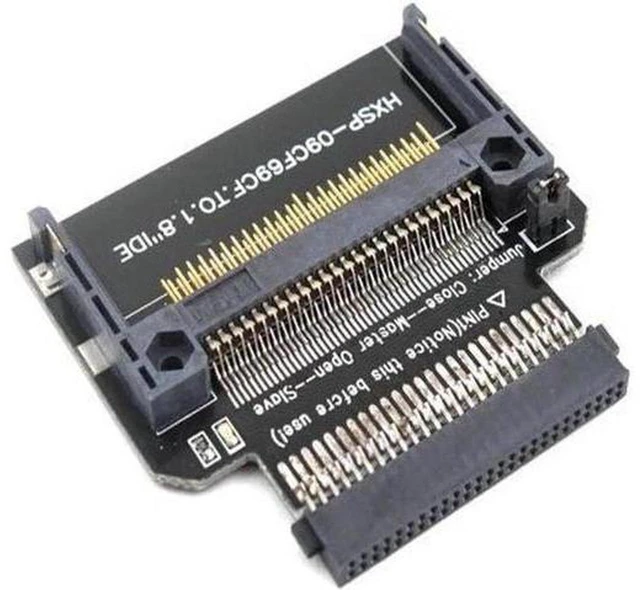

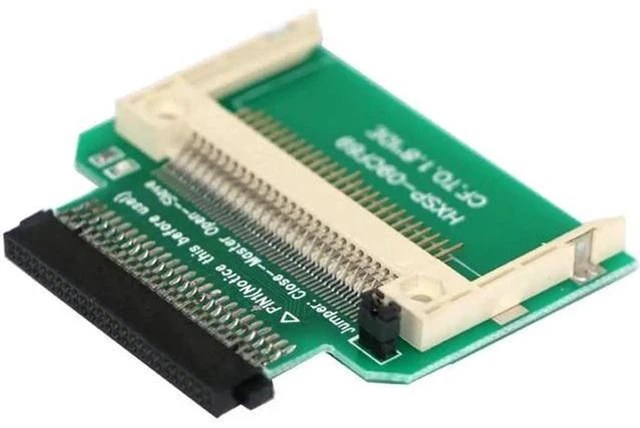

AJMRTC Compact Flash CF to 1.8" 50Pin IDE ZIF CE Adapter Riser, Bootable CF Card Converter for 1.8 Inch PATA HDD Replacement, Vintage Notebook Car Audio Industrial Storage Upgrade

AJMRTC CF to 1.8" 50Pin ZIF IDE adapter turns a standard Compact Flash card into a 1.8-inch PATA hard drive, serving as a solid-state replacement for aging mechanical 1.8" ZIF HDDs. It is widely used for vintage laptops, old car stereo systems, POS terminals, CNC controllers and embedded industrial equipment that only feature the 50-pin ZIF CE IDE port.

The adapter supports both Type I and Type II CF cards as well as IBM Microdrive. It can run as a bootable storage device, so you can install OS and firmware directly on the CF card. The master-slave jumper lets you match the host configuration to avoid detection conflicts. Since CF cards have no spinning platters, this upgrade eliminates hard drive failure caused by vibration and bumps, which is especially valuable for car audio and vehicle-mounted systems.

Gold-plated contacts ensure reliable connection and reduce oxidation for long-term continuous operation. The PCB layout matches the mounting footprint of original 1.8" ZIF hard drives for simple installation. It works with legacy Windows, DOS and dedicated industrial firmware. Please note this adapter is only for 1.8" 50Pin ZIF CE IDE and not compatible with 2.5" 44Pin IDE or 3.5" 40Pin IDE drives.

Specifications

1. Brand: AJMRTC
2. Input: CF Socket (Type I / Type II / Microdrive)
3. Output: 1.8" 50Pin ZIF CE IDE PATA
4. Transfer Mode: DMA / Ultra DMA
5. Boot Support: Bootable
6. Configuration: Master / Slave Jumper Selectable
7. Vibration Resistance: High, no moving parts
8. Application: Vintage Notebook, Car Audio, POS, CNC, Industrial Embedded Device, Legacy Equipment Repair
