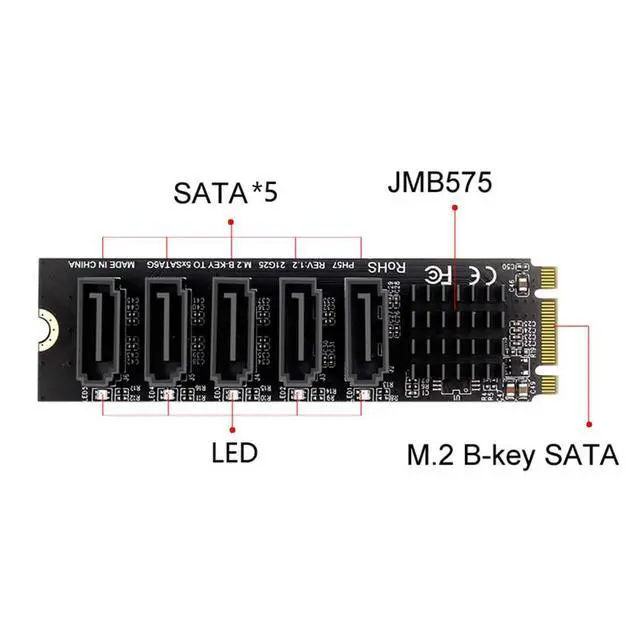

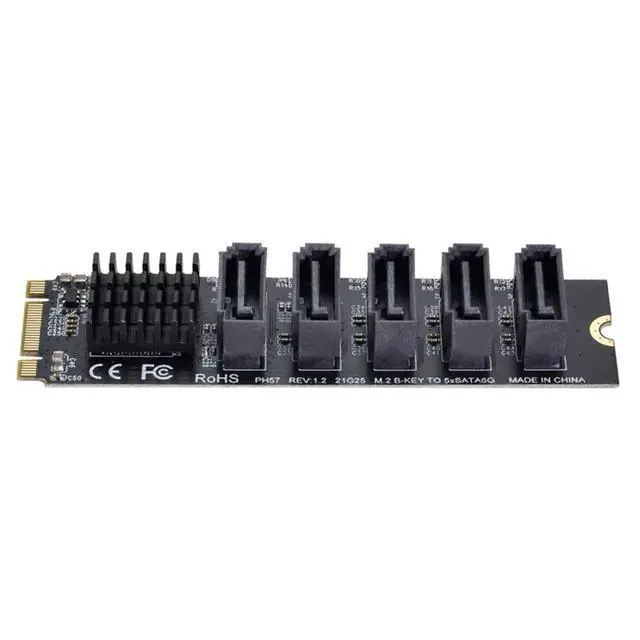

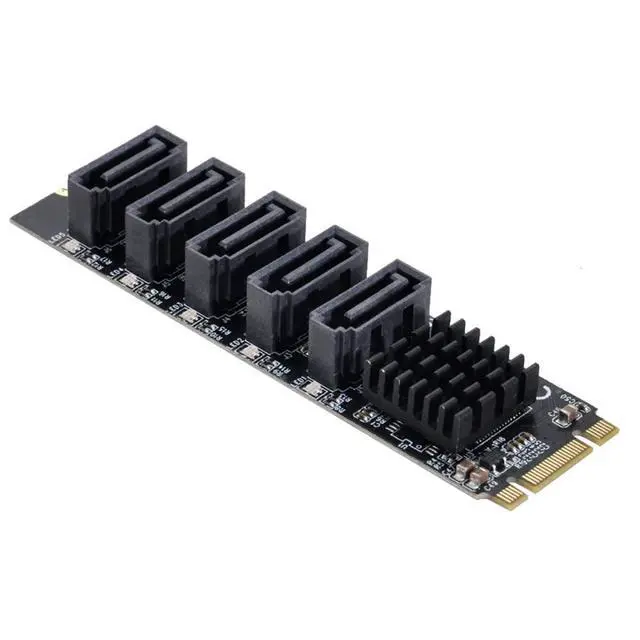

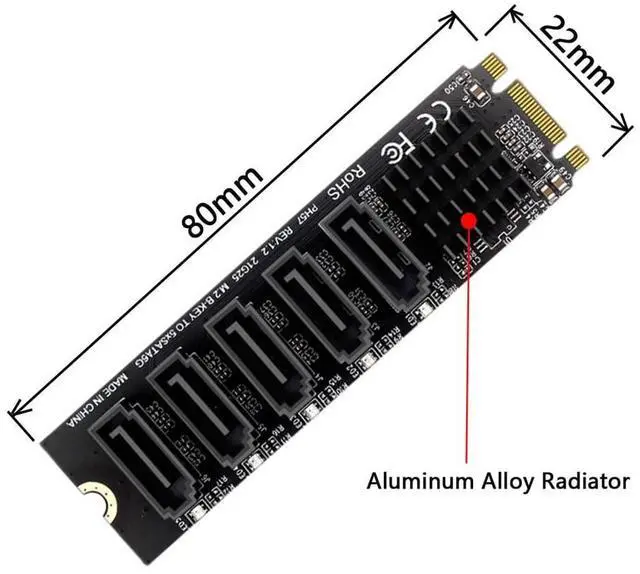

xiwai NGFF Key B+M to SATA 3.0 6Gbps 5 Ports Adapter Converter Port Select JMB575
- NGFF Key B+M to SATA 3.0 6Gbps 5 Ports Adapter Converter Port Select JMB575 JMB575 is a single chip solution. It integrated 5 independent SATA channels and a micro-processor.; With proper setting, the chip can be configured as 1 to 5 ports SATA 6Gbps Port.; JMB575 supports cascaded mode which enables maximum 5 drives connected to one host.; Key Features · Comply with Serial ATA Port Multi Spec. Revision 1.2 · Comply with Serial ATA Port Select Spec. Revision 1.0; Support 5 port SATA 6Gbps interface · Supports BIST and loopback mode; Support command-based and FIS-based switching · Support PM aware and non-PM aware host; Main control chip: JMB575; Interface: 5 * SATA3.0 interface Applicable slot: NGFF Key B+M
+
+
Overview
Specs
Reviews
Any questions? Our AI mode will help you find out quickly.
Try me now
Product description Xiwai NGFF Key B+M to SATA 3.0 6Gbps 5 Ports Adapter Converter Port Select JMB575 NGFF Key B+M to SATA 3.0 6Gbps 5 Ports Adapter Converter Port Select JMB575 JMB575 is a single chip solution. It integrated 5 independent SATA channels and a micro-processor. With proper setting, the chip can be configured as 1 to 5 ports SATA 6Gbps Port. JMB575 supports cascaded mode which enables maximum 5 drives connected to one host.
Key Feature: Comply with Serial ATA Port Multi Spec. Revision 1.2 Comply with Serial ATA Port Select Spec. Revision 1.0 Support 5 port SATA 6Gbps interface Supports BIST and loopback mode Support command-based and FIS-based switching Support PM aware and non-PM aware host
Main control chip: JMB575
Interface: 5 * SATA 3.0 interface
Applicable slot: NGFF Key B+M
Key Feature: Comply with Serial ATA Port Multi Spec. Revision 1.2 Comply with Serial ATA Port Select Spec. Revision 1.0 Support 5 port SATA 6Gbps interface Supports BIST and loopback mode Support command-based and FIS-based switching Support PM aware and non-PM aware host
Main control chip: JMB575
Interface: 5 * SATA 3.0 interface
Applicable slot: NGFF Key B+M
