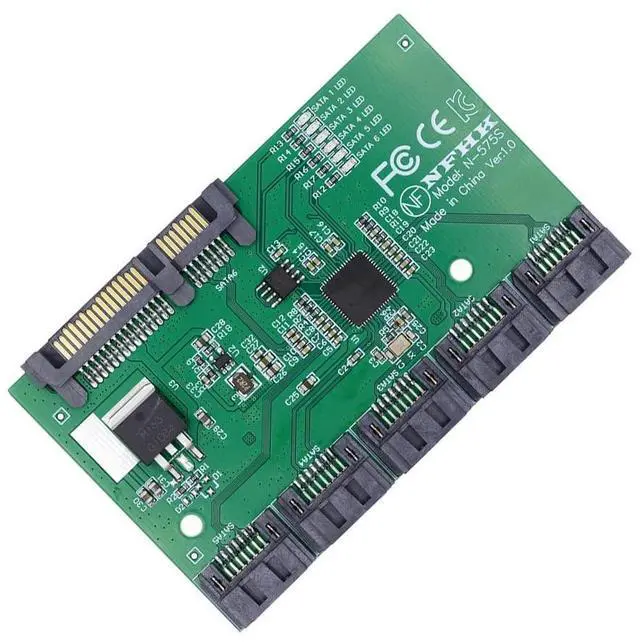

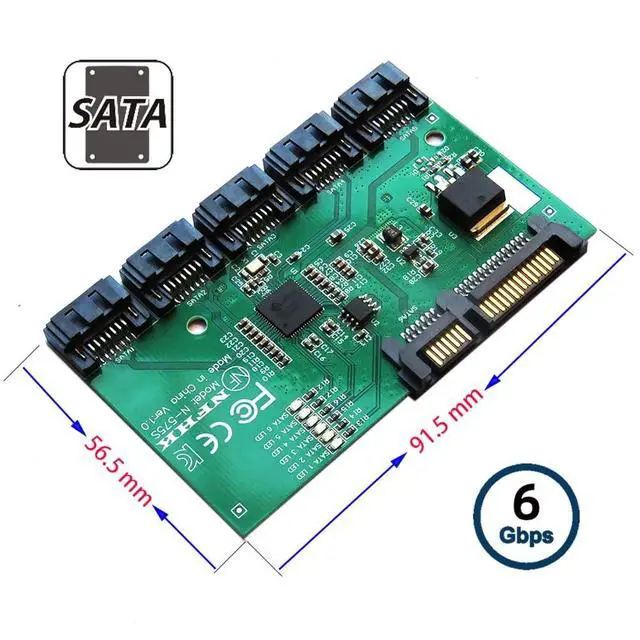

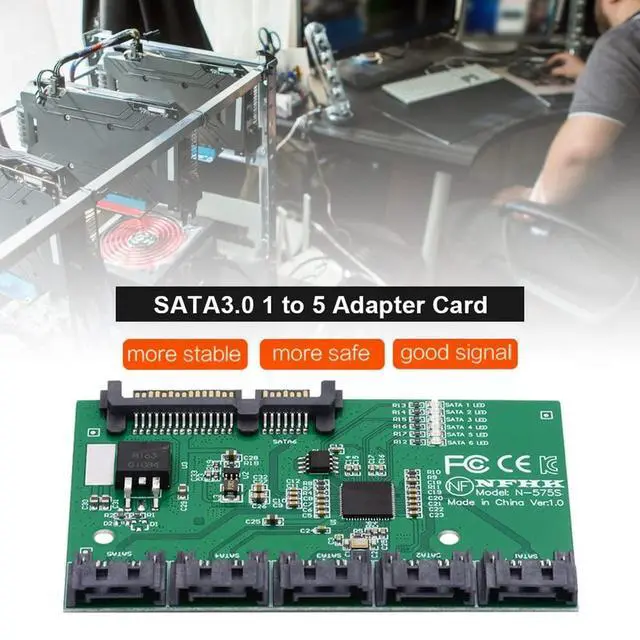

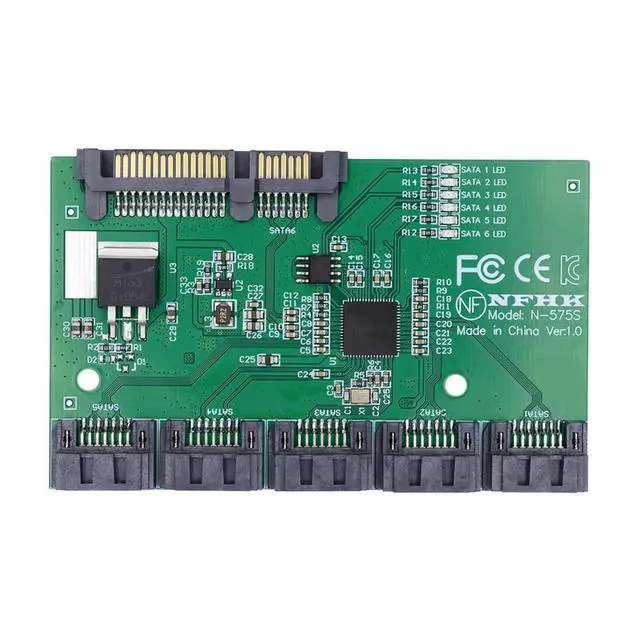

xiwai SATA HUB Ports 3.0 6Gbps 1 to 5 Splitter Adapter Converter PM Multiplier Port Selector JMB575

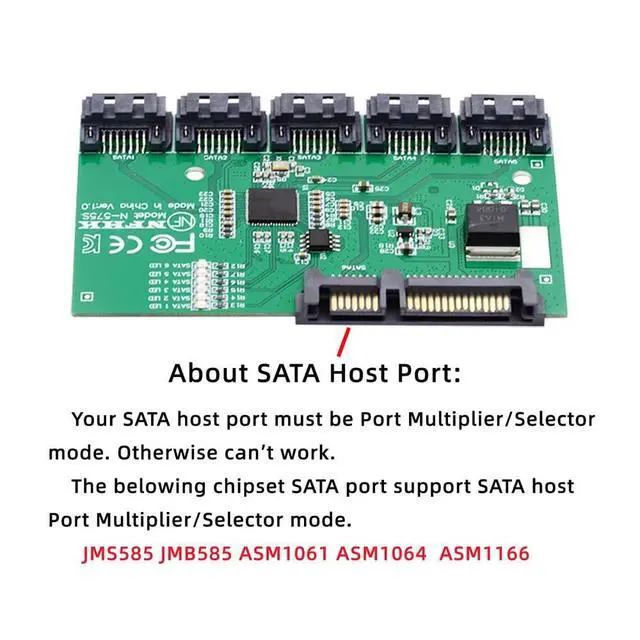

- Your SATA host port must be port Multiplier / Selector mode. Otherwise can't work.; The belowing chipset SATA port can be supported: JMS582 JMB585 ASM1061 ASM1064 ASM1166.; JMB575 is a single chip solution. It integrated 5 independent SATA channels and a micro-processor.; With proper setting, the chip can be configured as 1 to 5 ports SATA 6Gbps Port.; JMB575 supports cascaded mode which enables maximum 5 drives connected to one host.
+
+
Overview
Specs
Reviews
Any questions? Our AI mode will help you find out quickly.
Try me now
Product description xiwai SATA HUB Ports 3.0 6Gbps 1 to 5 Splitter Adapter Converter PM Multiplier Port Selector JMB575 Your SATA host port must be port Multiplier / Selector mode. Otherwise can't work. The belowing chipset
SATA port can be supported: JMS582 JMB585 ASM1061 ASM1064 ASM1166. JMB575 is a single chip solution. It integrated 5 independent SATA channels and a micro-processor. With proper setting, the chip can be configured as 1 to 5 ports SATA 6Gbps Port. JMB575 supports cascaded mode which enables maximum 5 drives connected to one host. Key Features Comply with Serial ATA Port Multi Spec. Revision 1.2. Comply with Serial ATA Port Select Spec. Revision 1.0. Support 5 port SATA 6Gbps interface. Supports BIST and loopback mode. Support command-based and FIS-based switching. Support PM aware and non-PM aware host.

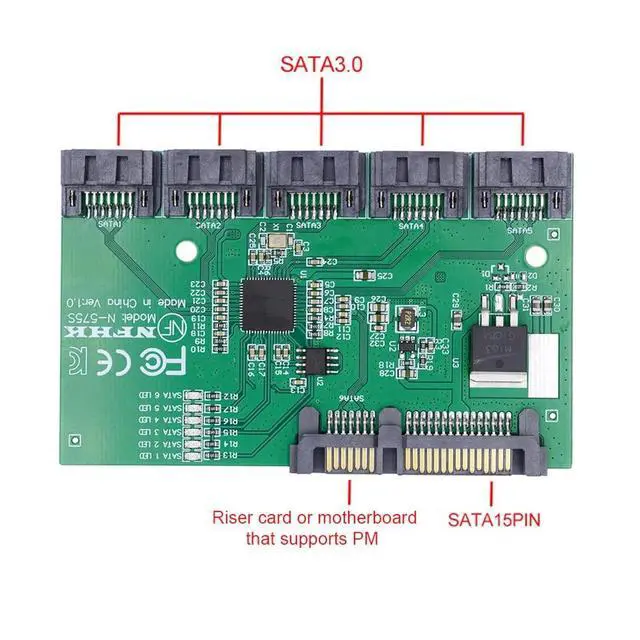

Applicable slot: SATA port with PM function.
Interface: 5 * SATA 3.0 interface
Main control chip: JMB575
SATA port can be supported: JMS582 JMB585 ASM1061 ASM1064 ASM1166. JMB575 is a single chip solution. It integrated 5 independent SATA channels and a micro-processor. With proper setting, the chip can be configured as 1 to 5 ports SATA 6Gbps Port. JMB575 supports cascaded mode which enables maximum 5 drives connected to one host. Key Features Comply with Serial ATA Port Multi Spec. Revision 1.2. Comply with Serial ATA Port Select Spec. Revision 1.0. Support 5 port SATA 6Gbps interface. Supports BIST and loopback mode. Support command-based and FIS-based switching. Support PM aware and non-PM aware host.
Applicable slot: SATA port with PM function.
Interface: 5 * SATA 3.0 interface
Main control chip: JMB575
