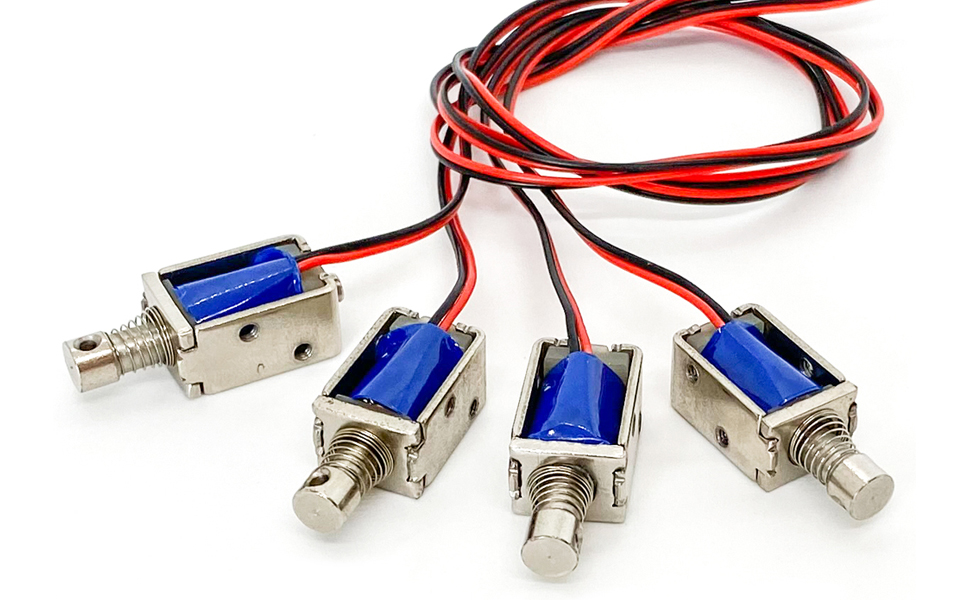

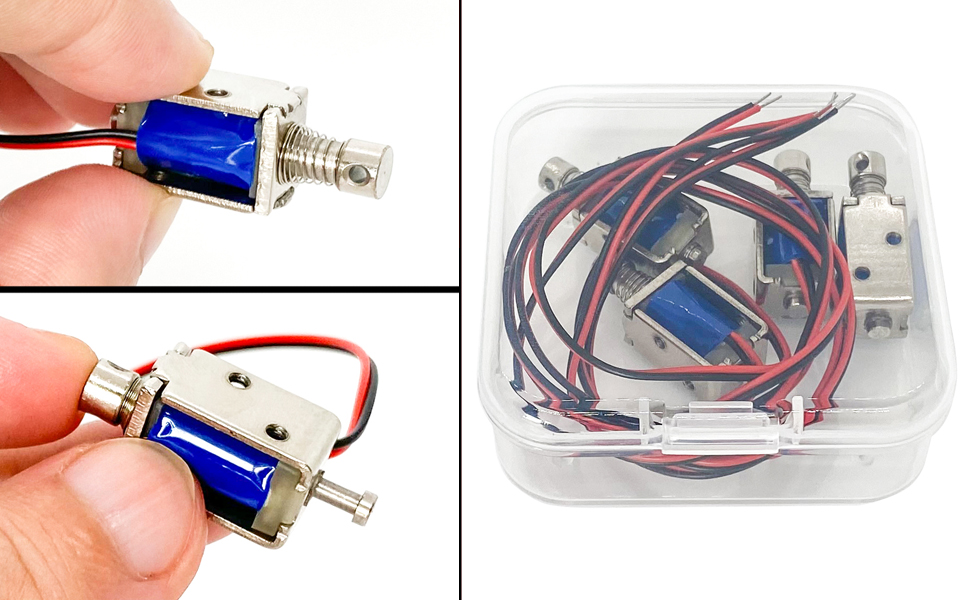

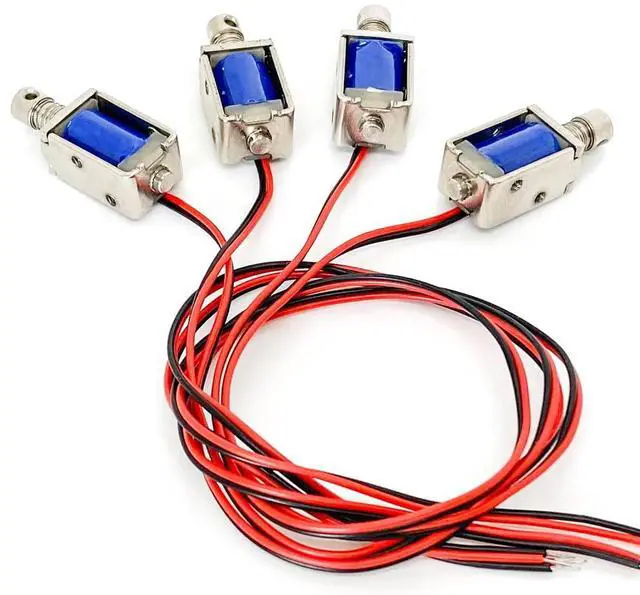

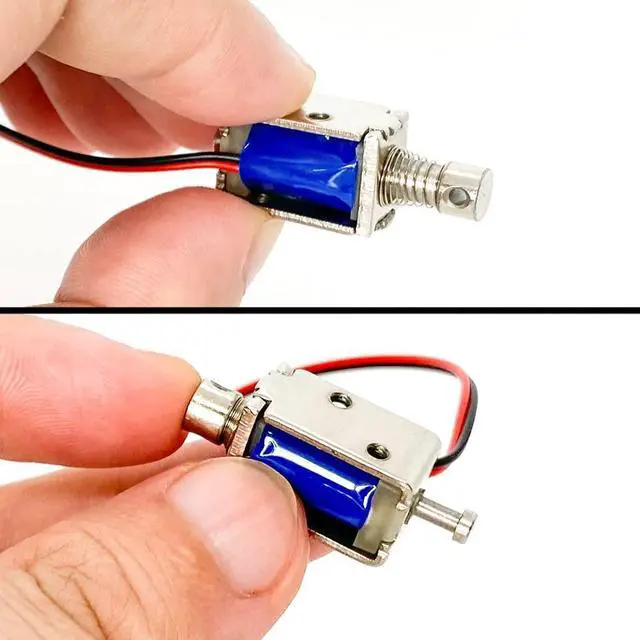

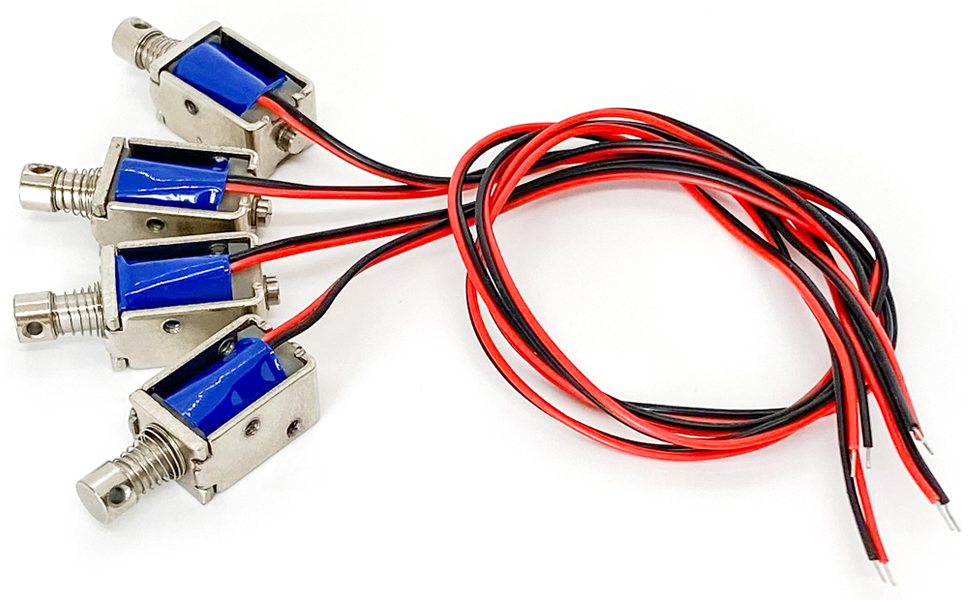

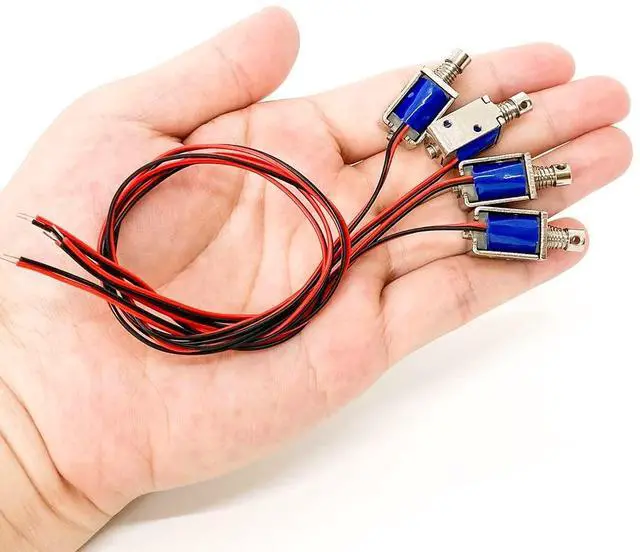

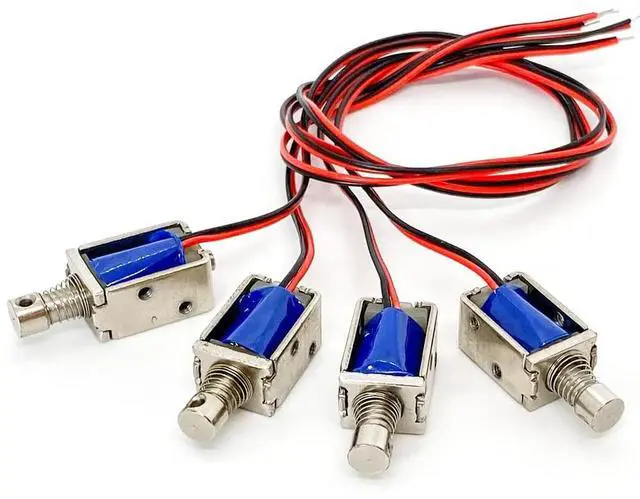

Package Included: 4 x 12VDC Push-Pull Type Solenoid
Specifications:
Voltage: DC12V
Load Current: 460mA
NOTE: Because of its small size and large working current, it generates a lot of heat and is not suitable for long-term power-on. It is recommended that the power-on time does not exceed 1 minute. Generally suitable for instant power-on use.
Power: approx. 5.5W
Coil Resistance: approx. 26ohm
Stroke: 4mm/0.157inch
Initial Thrust (pull): 0.15N~0.2N
Body Fixed Hole Diameter: M2;

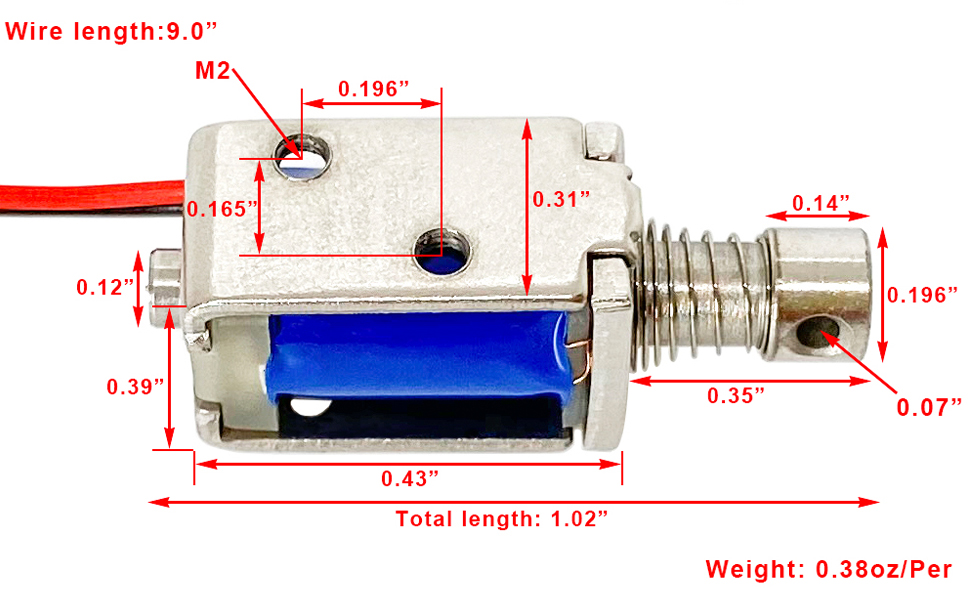

Size: 26x10x8mm/ 1.02x0.39x0.31inch (Including prominent parts)
Head Shaft Length: 9mm/0.35inch(The length of the thick head is 3.5mm/0.137inch)
Head Shaft Diameter: 5mm/0.196inch(Head Hole Diameter: 1.8mm/0.07inch;)
Tail Shaft Diameter: 3mm/0.12inch
Power Cable Length: 230mm/9.0inch (No distinction +/-)
Weight: 0.26oz/Per

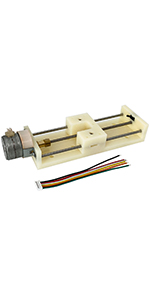

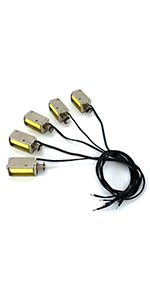

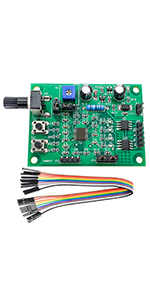

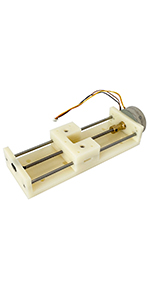

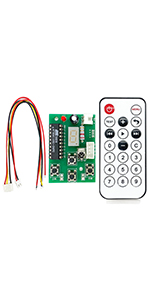

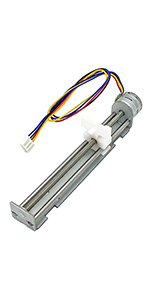

 5PCS DC12V 2.5W Mini Push Pull Type Solenoid |  DC 2 Phase 4 Wire Stepper Motor 90mm Stroke |  DC 5V-12V 2-Phase 4-Wire Linear Stepper Motor 100mm Stroke Guide Rail |  Multifunction DC Stepper Motor Speed Controller Regulator Switch Module |  Remote Control DC 2-Phase 4-Wire Stepper Motor Driver Controller Board |  DC 5V-12V 2-Phase 4-Wire Linear Stepper Motor 100mm Stroke Guide Rail | |
|---|---|---|---|---|---|---|
