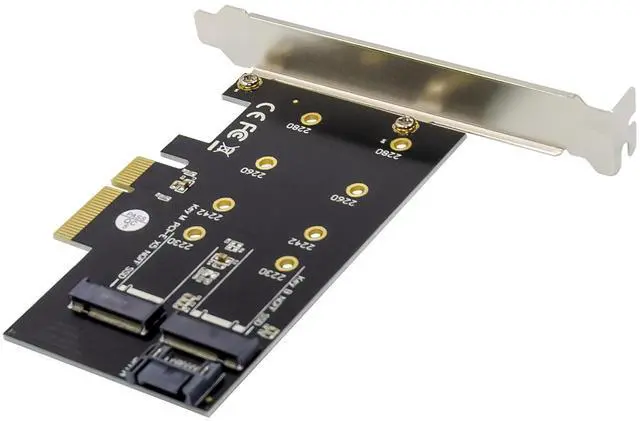

JVFYI PCIe x4 M.2 B&M Key NVMe SSD Adapter

Compliant with PCI Express Specification Revision 3.0

Compliant with Serial ATA Specification Revision 3.0

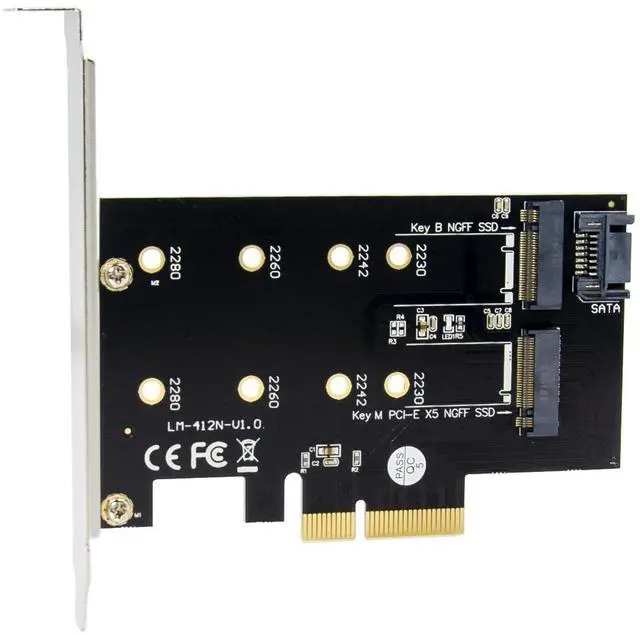

Support NVMe key B/M m.2 SSD including 2230,2242,2260,and 2280 drives

Backwards compatible with PCIE V2.0 and V1.0 mainboards

Drive sizes are 80,60,42 and 30mm

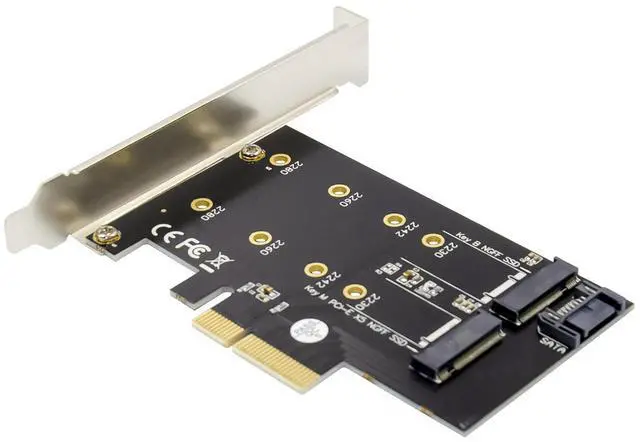

Support Any M Key M.2 SSD , B Key and B+M Key M.2 SSD

B- Key interface can insert SSD of M.2 NGFF SATA Protocol, then insert SATA cable to connect motherboard ,use PCI E to supply power ,without External power supply

M-Key interface can insert SSD of M.2 NGFF PCI-E Protocol, and PCI-E transmission data do not need to access SATA cable to connect motherboard

The M.2 PCIe SSD gets its power supply form the motherboard PCIe BUS slot 3.3v

Support operating system:Windows10,Windows 8,Windows8.1, Windows Server 2012 R2,Linux, Fedora, SUSE, Ubuntu, Red hat native drivers support PCIe NVMe

No driver is required because the driver is transparent to the operating system

Package content

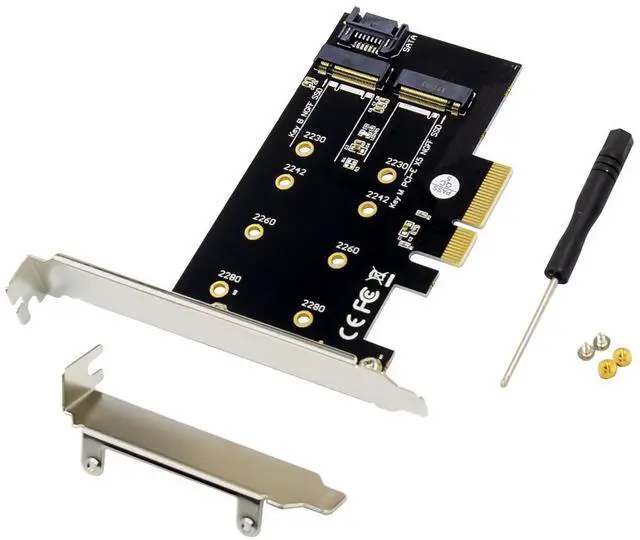

1 x PCIe x4 M.2 B&M Key NVMe SSD Adapter

1 x Users Manual

1 x Low profile bracket

Accessories

System Requirements

Windows10,Windows 8,Windows8.1, Windows Server 2012 R2,Linux 32bit or 64 bit

One available PCI-Express x4/x8/x16 slot

Hardware installation

Please first installed the M.2 M Key SSD and M.2 B Key SSD into the NVMe adapter, then follow these steps:

1.Turn Off the power to your computer.

2. Unplug the power cord and remove your computers cover.

3. To install the card, carefully align the cards bus connector with the selected PCIe slot on the motherboard. Push the board down firmly.

4. Used the SATA cable connect NVMe adapter to the motherboard SATA port

5. Replace the slot brackets holding screw to secure the card.

6. Replace the computer cover and reconnect the power cord.

More information and settings please refer to the User Guides or you can contact us.
