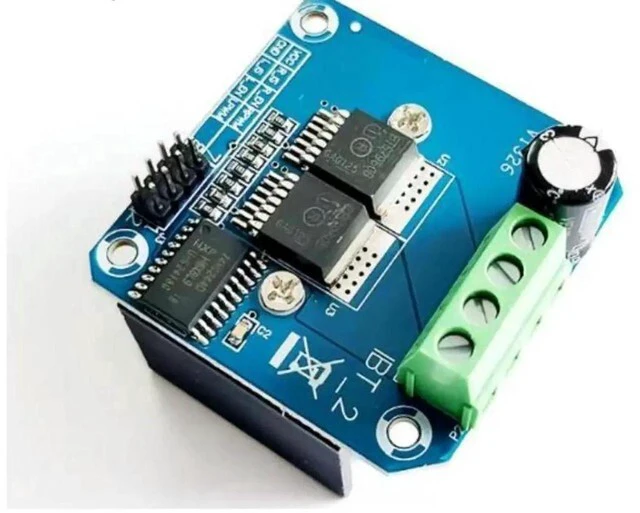

AJMRTC BTS7960 HighPower Motor Drive Module, 43A CurrentLimiting HBridge DC Motor Controller, Intelligent Drive for Vehicle Motor and Semiconductor Refrigeration Chip Control DIY Project

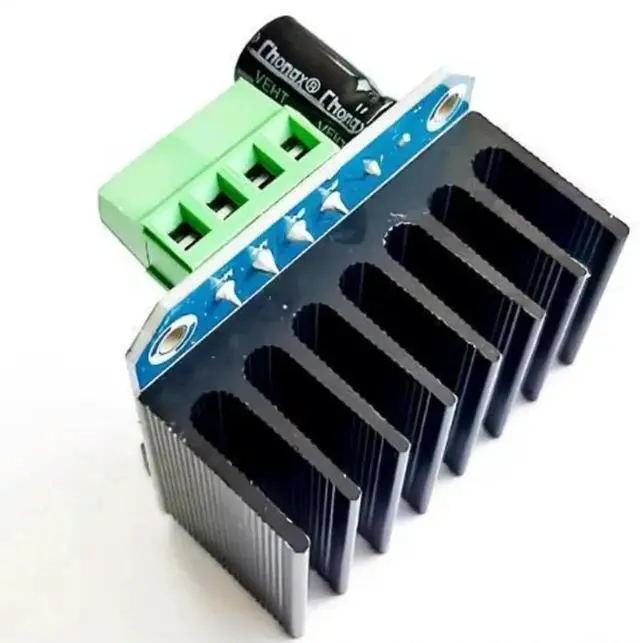

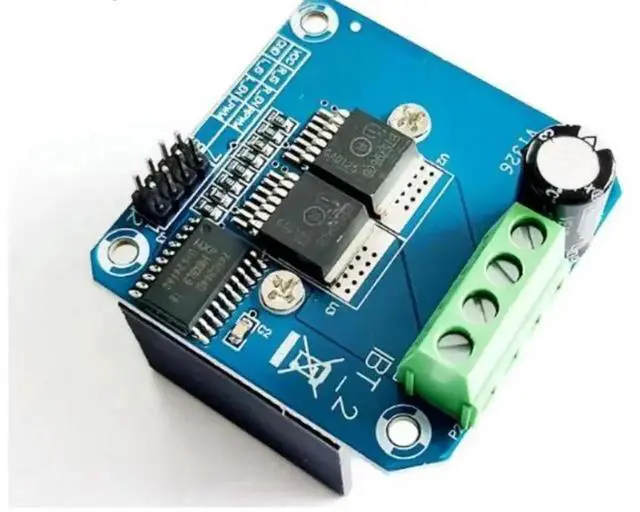

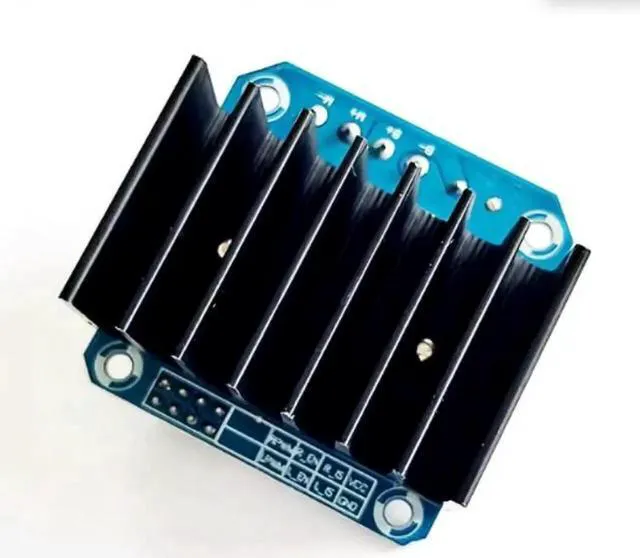

AJMRTC BTS7960 highpower motor drive module is an Hbridge power control board built around Infineon BTS7960 power semiconductor chip. It can provide peak output current up to 43A and realize forwardreverse rotation control for DC motors. Equipped with adjustable currentlimiting circuit, users can set threshold value to avoid excessive current burning loads during motor stall or abnormal operation. Apart from driving vehicletype DC motors, this module is also competent to control semiconductor refrigeration chips, switching cooling and heating working states by changing current direction. Multiple builtin hardware protection mechanisms such as overtemperature shutdown and shortcircuit interception greatly improve reliability under heavyload environments. Widely applied for intelligent vehicle projects, robot power units, thermoelectric refrigeration equipment transformation and other highcurrent DIY builds. Pay attention to add adequate heat sink for BTS7960 chip under longtime highcurrent working, and do not exceed module rated current parameters.

Module Model: BTS7960 Max Output Current: 43A Control Mode: HBridge Forward & Reverse Drive Key Feature: Adjustable CurrentLimiting Control Applicable Load: DC Vehicle Motor, Semiconductor Refrigeration Chip Protection Function: Overheat, Shortcircuit, Reversepolarity Protection Application: Smart Car, Robot, Thermoelectric Refrigeration Equipment, Electronic DIY Control Signal: MCU level signal control
