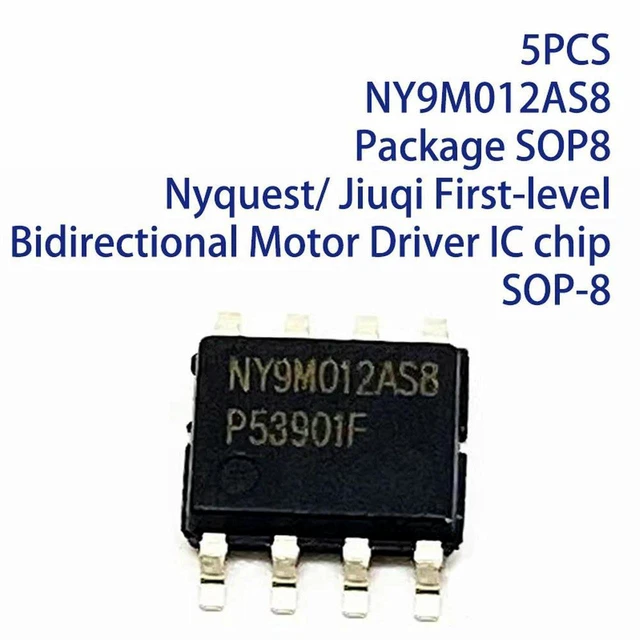

AJMRTC 5Pcs NY9M012AS8 SOP-8 Bidirectional Motor Driver IC Chips, Nyquest Jiuqi Single Channel H-Bridge Motor Controller, 1.2A Output for Small DC Motor Drive Projects
- - NY9M012AS8 SOP8 bidirectional motor driver IC from Nyquest (Jiuqi), single channel H-bridge architecture for DC motor control.
- - Supports forward, reverse, brake and stop modes with up to 1.2A continuous output current for small DC motors.
- - Built-in thermal shutdown protection and 5KV HBM ESD protection, improves circuit stability and anti-interference performance.
- - CMOS input with internal pull-down resistors, no extra current-limiting resistors required to simplify PCB design.
- - Package of 5 pieces, ideal for electronic DIY, toy motors, small home appliances and embedded control projects.
+
+
Overview
Specs
Reviews
Any questions? Our AI mode will help you find out quickly.
Try me now
AJMRTC NY9M012AS8 motor driver IC is a single-chip CMOS bidirectional H-bridge driver manufactured by Nyquest (Jiuqi) in SOP-8 surface mount package. It delivers up to 1.2A output current to drive small DC motors, supporting four working states: forward rotation, reverse rotation, brake and stop. The chip integrates thermal shutdown protection and high ESD protection to prevent damage under overheating or static conditions. CMOS input pins come with built-in pull-down resistors, which saves peripheral components and reduces PCB layout difficulty. Low standby current helps reduce power consumption of your device. This pack contains 5 pieces of NY9M012AS8 chips, widely used for electric toys, small household equipment, smart lock motors and student electronic development projects.
- Brand: AJMRTC
- Part Number: NY9M012AS8
- Manufacturer: Nyquest (Jiuqi)
- Package: SOP-8
- Type: Single Channel Bidirectional H-Bridge Motor Driver IC
- Max Continuous Output Current: 1.2A
- Protection: Thermal Shutdown, 5KV HBM ESD Protection
- Input Type: CMOS with Internal Pull-Down Resistors
- Quantity: 5 Pieces
- Application: Small DC Motor, Electronic Toy, Smart Device, Electronic DIY Project
