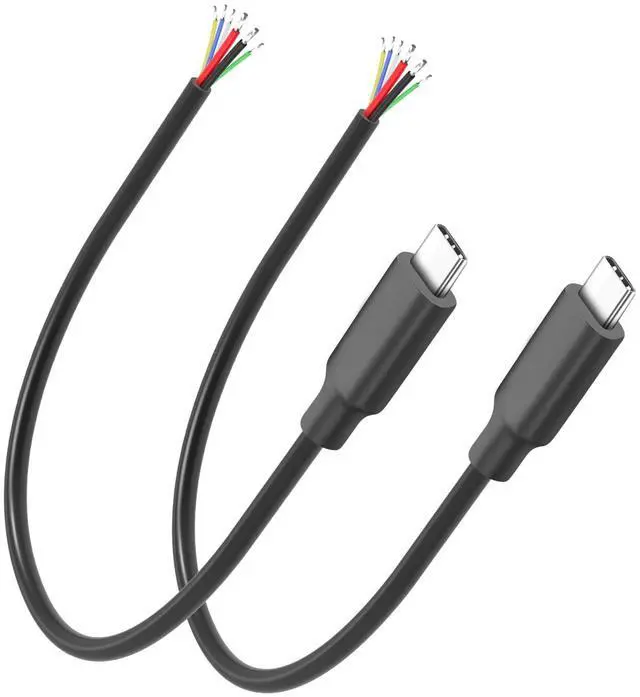

6 Pin USB C DIY Full Featured Bare Wire Repair Cable 5A USB Type C Male 6 Core Charging Data Extension Pigtail Cable Plug 480Mbps CC1+CC2, for DIY Repair R&D Testing, 30cm/11.8in, 2Pcs
- USB C Bare Wire6 pin USB C male DIY bare wire charging data repair cable, featuring a Type C male connector at one end and 6 pin tinned wires at the other; this is the most common complete wiring solution for DIY and repair work.
- 6 pin6 core USB C male connector Charging data DIY bare wire pigtail cable, 6 pin contacts (red VCC, black GND, yellow CC1, blue CC2, green D+, white D-), representing a standard and complete USB 2.0 pin configuration. It includes all the core signals required for charging, data transfer, reversible plug detection and fast charging protocol negotiation.
- Custom Pinout6 pin USB C DIY bare wire Soldered pigtail cable, 6 pin custom pinout: Power supply: VBUS + GND. Data communication: D+ / D- (for communication with a computer, file transfer, etc.). Fast charging negotiation: CC1 / CC2 (for requesting higher voltage/current from the charger).
- 5A Charging6 pin USB Type C plug charging DIY bare wire charging, supporting 5V 5A fast charging and 480Mbps data transfer. Furthermore, by utilising the CC1/CC2 lines in conjunction with a PD spoofing chip (such as the CH224K or FUSB302), you can spoof voltages such as 5V, 9V, 12V, 15V and 20V from a PD charger to power various DIY projects.
+
+
Overview
Specs
Reviews
Any questions? Our AI mode will help you find out quickly.
Try me now
6 pin USB C male DIY full function bare wire repair cable, featuring a USB C male connector at one end and 6 pin tinned wires at the other. The 6 pin contacts (red VCC, black GND, yellow CC1, blue CC2, green D+, white D-) constitute a standard and complete USB 2.0 pin configuration. It includes all core signals required for charging, data transfer, reversible plug detection and fast charging protocol negotiation. Suitable for DIY full function USB 2.0 Type C cables, product development and engineering testing. Additionally, by utilising the CC1/CC2 wires in conjunction with a PD spoofing chip (such as the CH224K or FUSB302), it is possible to spoof voltages such as 5V, 9V, 12V, 15V and 20V from a PD charger to power various DIY projects.

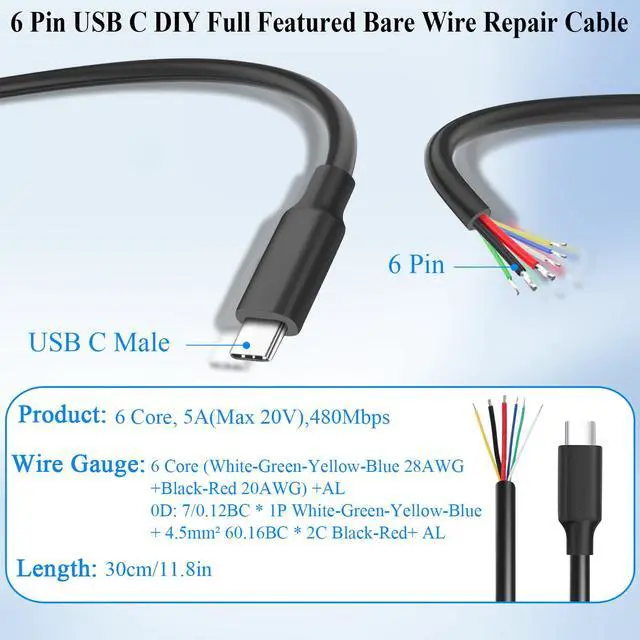

Port: USB Type C Male
Conductors: 6 pin

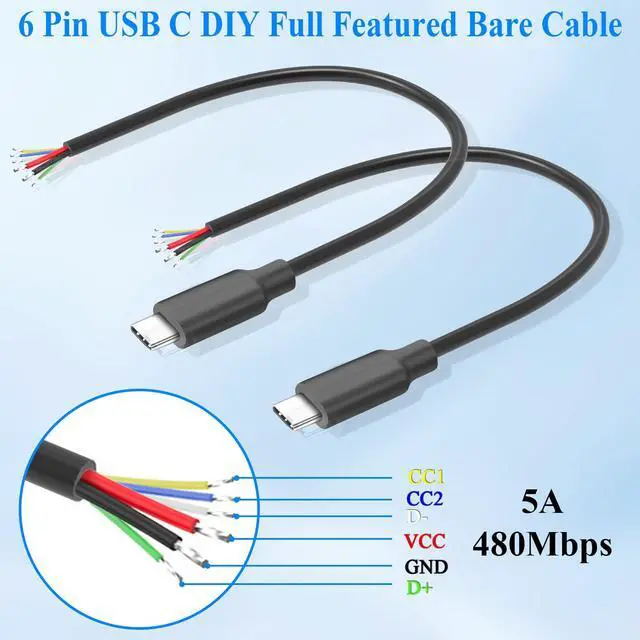

Pinout: Red VCC, Black GND, Yellow CC1, Blue CC2, Green D+, White D-

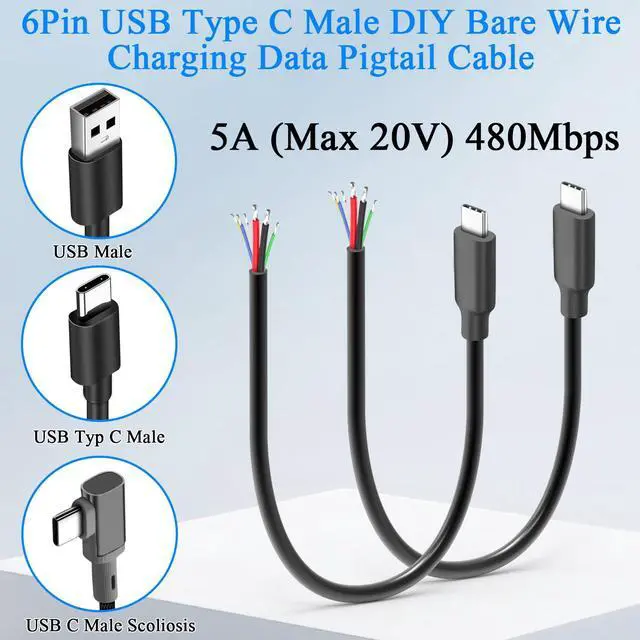

Charging Power: 5A (Max 20V)
Data Transfer: 480Mbps
Fast Charging Protocol: Supported

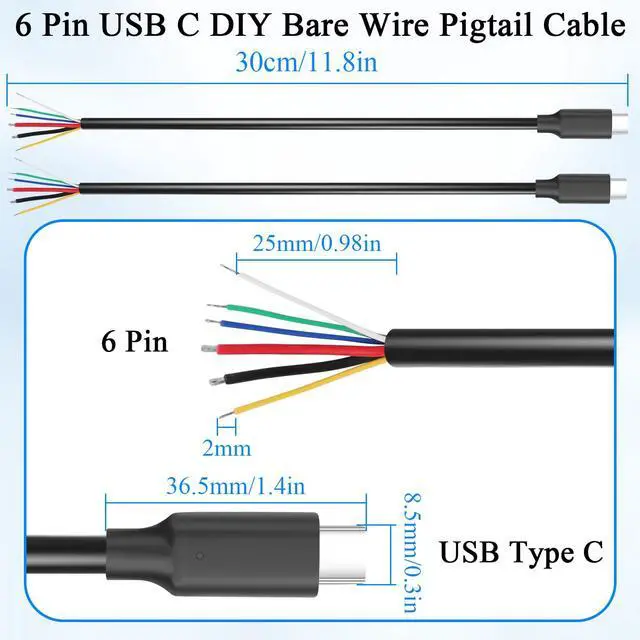

Cable Length: 30cm
Packaging: 2 x USB Type C 6 pin Charging Data Extension Pigtail Cable Plug
